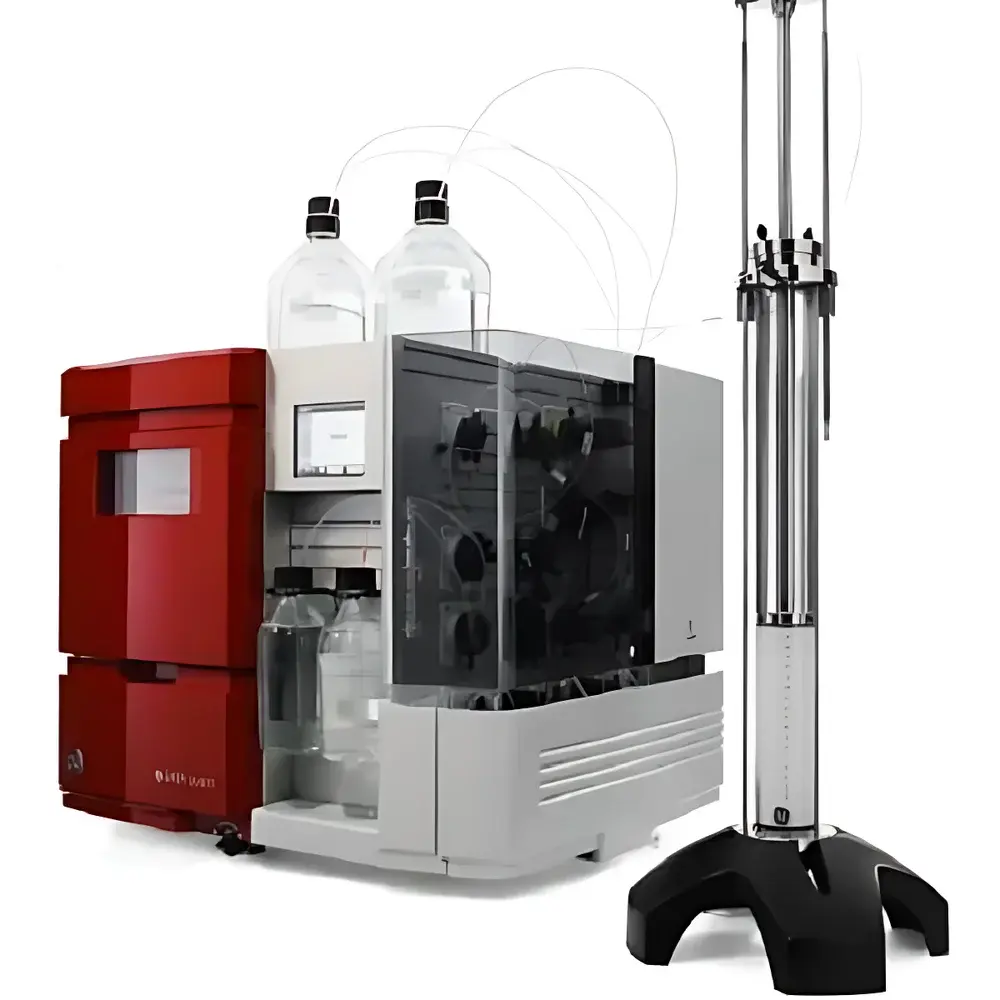

Cytiva AKTA avant Automated Protein Purification System

Overview

The Cytiva AKTA avant Automated Protein Purification System is a benchtop preparative chromatography platform engineered for robust method development, scalable process optimization, and regulatory-compliant purification of recombinant proteins, monoclonal antibodies (mAbs), and other biopharmaceutical targets. Built upon Cytiva’s legacy of high-precision liquid chromatography systems—deployed in over 100,000 laboratories worldwide—the AKTA avant integrates advanced fluidic architecture, real-time differential pressure monitoring, and intelligent software automation to support affinity, ion exchange, size exclusion, and hydrophobic interaction chromatography. Its core measurement principle relies on dual-wavelength UV-Vis detection (190–700 nm) using a stable xenon lamp source, coupled with inline conductivity, pH, and temperature sensing to deliver multi-parameter process analytics. Designed for seamless translation from discovery to clinical manufacturing, the system enables direct scale-up through consistent flow dynamics, column geometry mapping, and retention of critical process parameters—including linear velocity, residence time, and gradient slope—across column volumes ranging from HiScreen™ screening columns (1–5 mL bed volume) to production-scale columns (up to 5 L).

Key Features

• BufferPro Integrated Buffer Formulation: Fully automated online buffer blending via a dedicated quaternary mixing valve; supports 26 predefined buffer recipes with dynamic compensation for temperature-induced ionic strength shifts and acid/base titration kinetics—mimicking manual preparation while ensuring reproducibility and scalability.
• Design of Experiments (DoE) Workflow Integration: Embedded DoE engine within UNICORN 6 software enables simultaneous variation of multiple critical process parameters (e.g., pH, conductivity, gradient slope, load density), reducing experimental burden by up to 70% compared to one-factor-at-a-time (OFAT) approaches while improving statistical confidence in model outputs.
• Dual-Point Pressure Monitoring: Independent, column-integrated pressure transducers measure inlet and outlet pressures in real time, calculating true ΔP across the packed bed—essential for column integrity management, constant-pressure packing validation, and early detection of channeling or clogging.
• UNICORN 6 Regulatory-Ready Software: Fully compliant with FDA 21 CFR Part 11, featuring electronic signatures, immutable audit trails, role-based user permissions, locked method execution, and secure database storage—all validated for GLP/GMP environments.
• UniTag & Column Logbook: QR-code-based column tracking system automatically logs column history—including total runs, maximum ΔP, cleaning cycles, and maintenance alerts—enabling full traceability for prepacked Capto™, MabSelect™, and custom-packed columns.
• Modular Fraction Collection: Temperature-controlled fraction collector with configurable rack support (3–96-well formats), automatic rack type recognition, condensation prevention, and volume-triggered collection (0.1–50 mL per fraction).

Sample Compatibility & Compliance

The AKTA avant accommodates diverse sample matrices including clarified mammalian cell culture harvests, bacterial lysates, plasma fractions, and purified protein intermediates. It supports standard chromatographic media such as agarose-, cellulose-, and polymer-based resins (e.g., Capto Core 700, MabSelect SuRe LX, SOURCE 15Q) and is validated for use with Cytiva’s BioProcess™-qualified prepacked columns—including HiScreen™, Tricorn™, and XK™ series. All hardware and firmware meet IEC 61000-6-2/6-4 electromagnetic compatibility standards and operate within ISO 14644-1 Class 8 cleanroom-compatible environmental conditions (4–35 °C, 20–95% RH non-condensing). System validation packages—including IQ/OQ documentation, 21 CFR Part 11 readiness reports, and risk assessments—are available through Cytiva’s Regulatory Support Services.

Software & Data Management

UNICORN 6 serves as the unified control, analysis, and data governance platform. Its Method Editor provides drag-and-drop workflow construction using standardized phase templates (equilibration, load, wash, elution, regeneration), while retaining full script-level customization for advanced users. All raw sensor data (UV, conductivity, pH, temperature, pressure, flow) are timestamped and stored in a single, tamper-evident SQL Server database. Audit trails record every user action—including method edits, parameter changes, run starts/stops, and export events—with immutable linkage to electronic signatures. Data export options include CSV, PDF reports, and native .u6 format compatible with Cytiva’s Process Development Suite for comparative analysis across scales. Backup and restore protocols follow NIST SP 800-33 guidelines, and system downtime mitigation is supported via hot-swappable modules and remote diagnostics.

Applications

• Rapid screening of binding/elution conditions for antibody purification using Protein A affinity chromatography
• Optimization of polishing steps (e.g., cation exchange for aggregate removal or anion exchange for host cell protein clearance)
• Development of continuous chromatography workflows leveraging multi-column configurations
• Stability-indicating method development under stressed conditions (pH, temperature, ionic strength)
• Process characterization studies aligned with ICH Q5A(R2) and Q5B guidelines
• Support of Quality-by-Design (QbD) initiatives through mechanistic modeling and design space definition
• Training and technology transfer between R&D, pilot, and commercial manufacturing sites

FAQ

What regulatory standards does the AKTA avant support?
The system and UNICORN 6 software are designed to meet FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 requirements for electronic records and signatures, including audit trail integrity, user authentication, and data archival.
Can the AKTA avant be used for GMP manufacturing?
While primarily deployed in process development and clinical-stage manufacturing, the AKTA avant supports GMP-aligned operations when implemented with validated methods, qualified equipment, and documented change control—particularly for Phase I–II material production.
How does BufferPro improve scalability of buffer preparation?
BufferPro uses thermodynamically accurate mixing algorithms and real-time feedback from conductivity/pH sensors to replicate lab-scale manual buffer preparation—ensuring identical ionic strength, buffering capacity, and pH profiles across scales without reformulation.
Is column tracking mandatory for routine operation?
No—UniTag scanning is optional but strongly recommended for regulated environments; manual column ID entry remains fully supported, and all run metadata (including ΔP, UV breakthrough, and fraction yield) is retained regardless of identification method.
What level of technical support is included with purchase?
Cytiva provides standard warranty coverage, remote troubleshooting, application consulting, and optional service agreements—including priority response, preventive maintenance, and on-site Labcrew engineering support.
