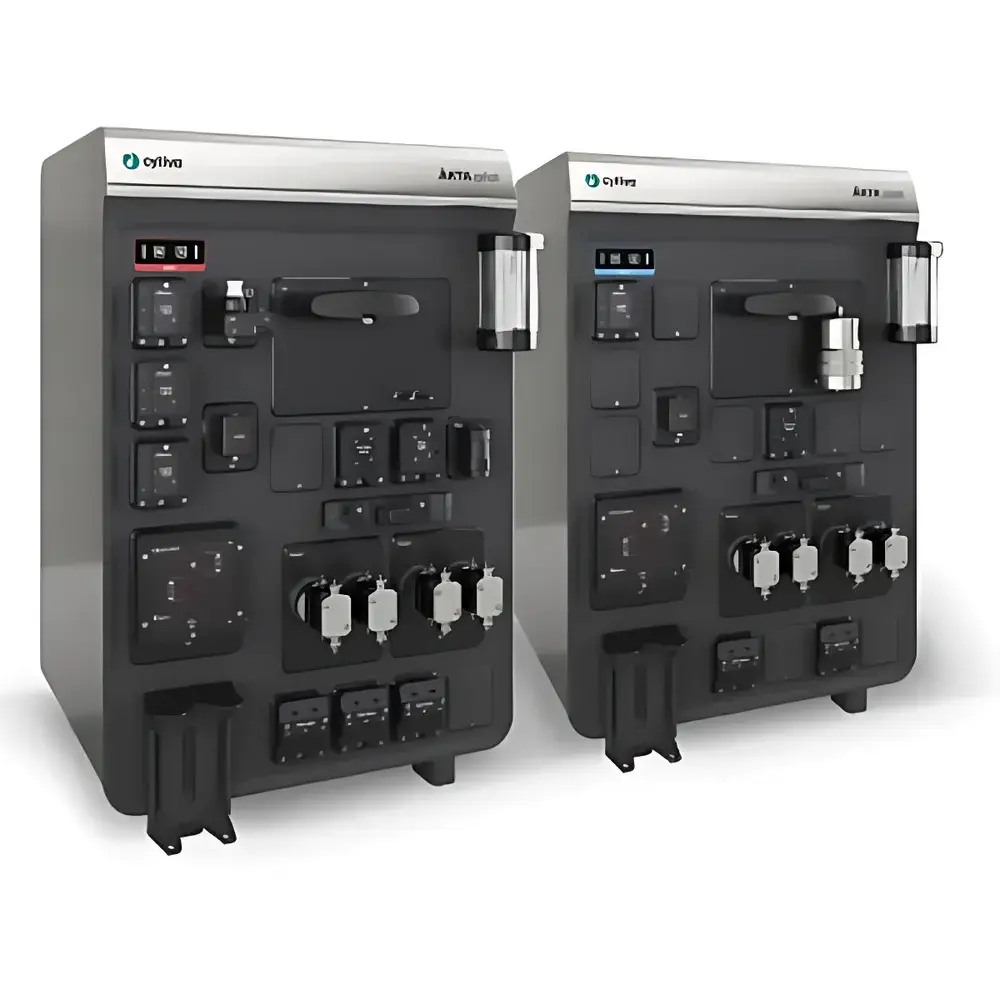

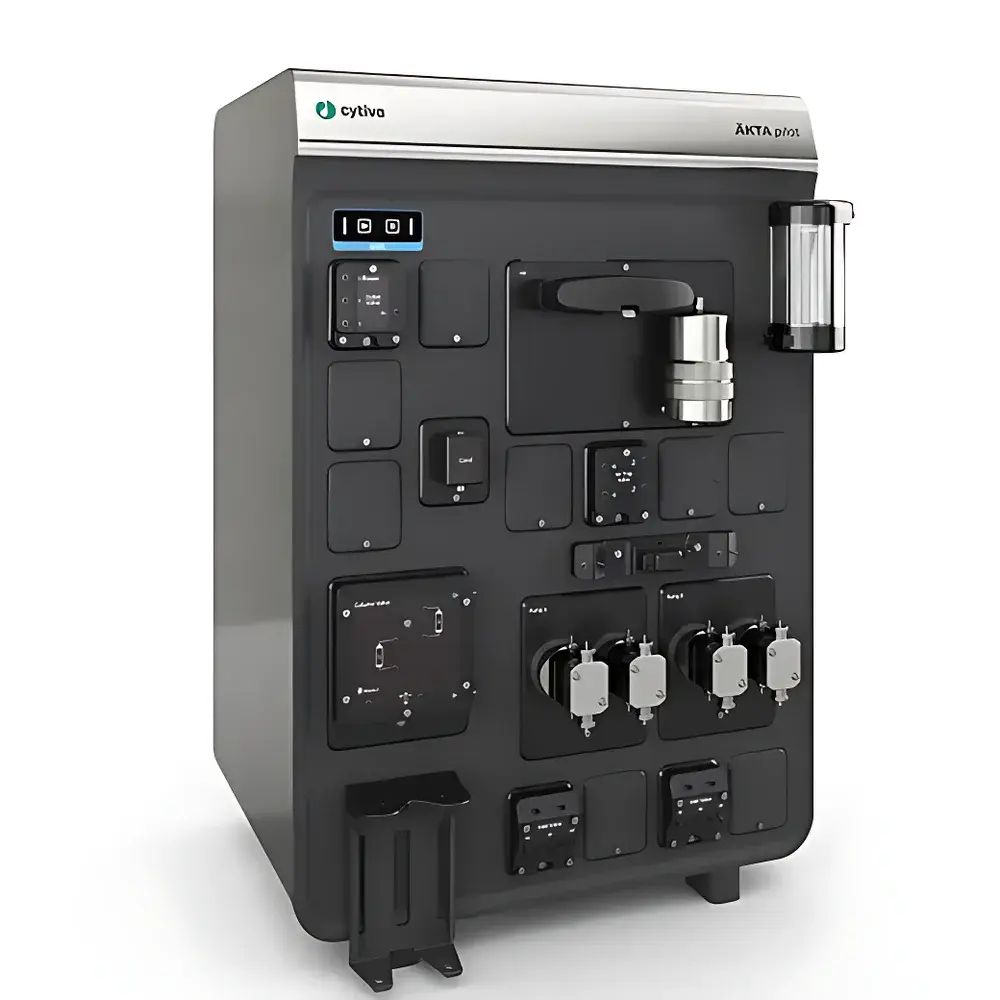

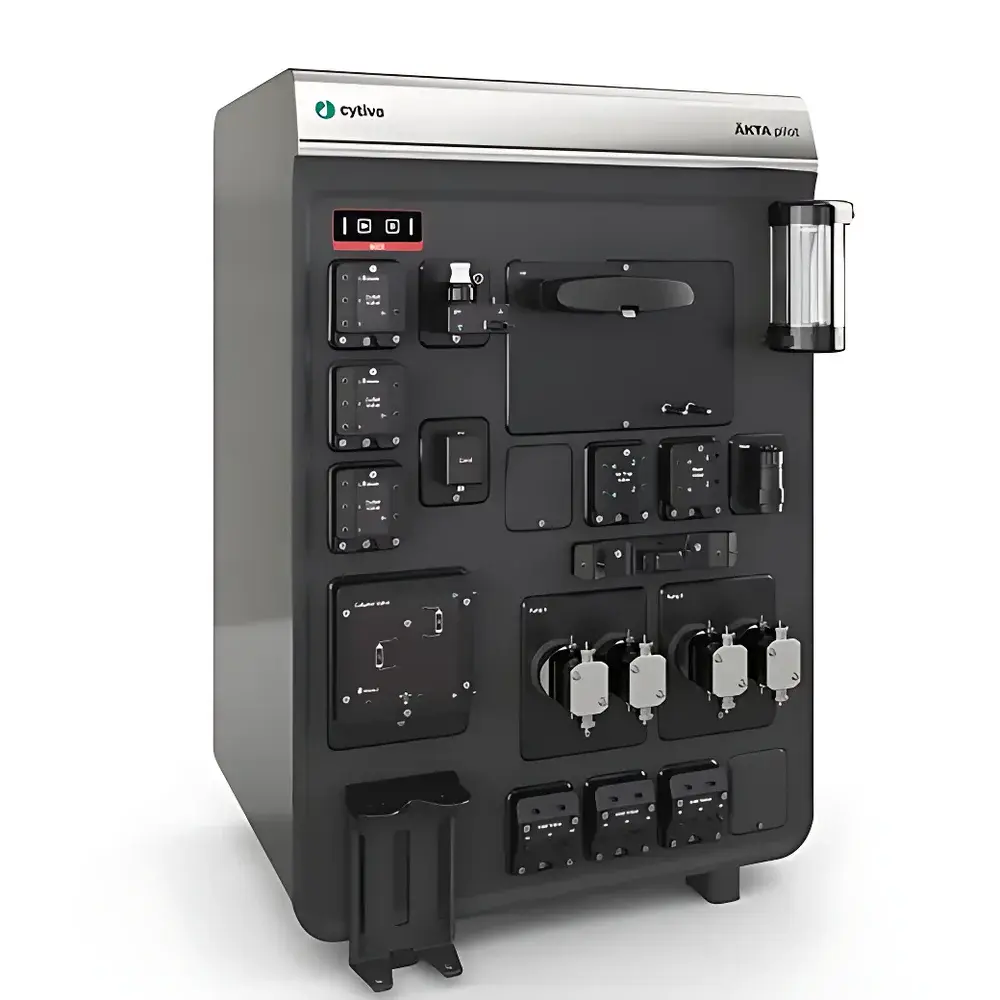

Cytiva ÄKTA pilot 600S Chromatography System

Overview

The Cytiva ÄKTA pilot 600S is a modular, benchtop preparative chromatography system engineered for robust process development, method transfer, and early-stage scale-up of therapeutic proteins, monoclonal antibodies, viral vectors, and other biopharmaceuticals. Based on Cytiva’s proven UNICORN software-controlled architecture and precision fluidic design, the system implements high-fidelity gradient formation, real-time UV/ conductivity/pH monitoring, and pressure-regulated flow delivery—principles rooted in classical liquid chromatography theory (e.g., van Deemter equation optimization, column efficiency modeling, and mass transfer kinetics). Its wide operational envelope—spanning flow rates from 0.01 to 600 mL/min and pressures up to 20 MPa—enables seamless transition from analytical and lab-scale purification (e.g., 10–26 mm i.d. columns) to pilot-scale operations (up to 200 mm i.d.), supporting >40-fold volumetric capacity scaling while preserving retention time reproducibility and resolution integrity.

Key Features

• Modular hardware architecture: Interchangeable pumps, detectors, fraction collectors, and valve modules allow functional expansion without system replacement.
• High-precision dual-plunger piston pumps with active backpressure control ensure stable flow across viscosity gradients and column packing densities.
• Integrated multi-wavelength UV-Vis detector (280 nm standard, optional 214/254/300 nm), conductivity sensor, and pH monitor with temperature compensation support real-time peak tracking and elution profiling.
• UNICORN 7 software platform with validated method editor, sequence manager, and automated report generation—including PDF export with embedded chromatograms and metadata.
• Configurable user roles (Administrator, Operator, Viewer) with password protection and session timeout, aligned with ALCOA+ data integrity principles.
• Pre-validated I/O interfaces for third-party devices (e.g., balance, refrigerated fraction collector, external pH controller) via Ethernet/IP or RS-232.

Sample Compatibility & Compliance

The ÄKTA pilot 600S accommodates a broad range of chromatographic media—including agarose-, silica-, and polymer-based resins—as well as monolithic and membrane adsorbers. It supports all major chromatography modes: ion exchange (IEX), size exclusion (SEC), hydrophobic interaction (HIC), affinity (e.g., Protein A), and multimodal separations. Column compatibility spans inner diameters from 26 mm to 200 mm, enabling direct linear scale-up from benchtop to clinical manufacturing batches. While the 600S variant is designated for non-GMP environments, its hardware and firmware are identical to the GMP-qualified ÄKTA pilot 600R. When deployed with UNICORN 7.2+ in validated configuration—including electronic signatures, full audit trail, and 21 CFR Part 11-compliant security settings—the system meets requirements for GLP studies and preclinical material production under ISO 9001 and ISO 13485 frameworks.

Software & Data Management

UNICORN software serves as the central control and data governance layer. All method parameters, run logs, detector signals, and fraction triggers are timestamped and stored in encrypted .u7 files. The software enforces version-controlled method libraries, automatic backup to network drives, and configurable data retention policies. Audit trail records capture operator identity, timestamp, parameter changes, and file modifications—exportable in CSV or XML for regulatory submission. Raw data files retain native resolution (e.g., 10 Hz sampling for UV traces), and UNICORN’s built-in integration with Cytiva’s Bioprocess Analytics tools enables batch comparison, overlay analysis, and yield calculation per fraction. Data exports comply with CDISC SDTM standards for biologics development reporting.

Applications

• Process development of mAb purification workflows, including Protein A capture followed by polishing steps (e.g., cation exchange, SEC).
• Buffer screening and gradient optimization under varying pH/conductivity conditions.
• Stability-indicating method development for aggregate and fragment analysis.
• Scalability assessment across column geometries—validating linearity of residence time, binding capacity, and recovery between 26 mm and 100 mm columns.
• Production of research-grade viral vectors (AAV, lentivirus) under controlled, documented conditions prior to GMP campaign initiation.
• Training platform for personnel transitioning from lab-scale ÄKTA pure systems to manufacturing-relevant purification paradigms.

FAQ

What distinguishes the ÄKTA pilot 600S from the 600R?

The 600S is configured for non-GMP use with standard UNICORN licensing; the 600R includes factory-installed 21 CFR Part 11 compliance features, IQ/OQ documentation packages, and GMP-oriented validation support.
Can I upgrade a 600S to GMP-ready status?

Yes—hardware is identical; GMP readiness requires UNICORN 7.2+ with appropriate license, validated installation, and site-specific qualification protocols.
Is column switching automation supported?

Yes—via optional multi-port valves and UNICORN’s valve sequencing engine, enabling automated column regeneration, bypass, or parallel loading.
What maintenance intervals are recommended?

Pump seals: every 6 months or 1,000 hours; UV lamp: annually; system sanitization: after each product campaign per SOP.
Does the system support remote monitoring?

Yes—UNICORN Connect enables secure web-based access to live chromatograms, alarms, and system status via authenticated HTTPS connection.
