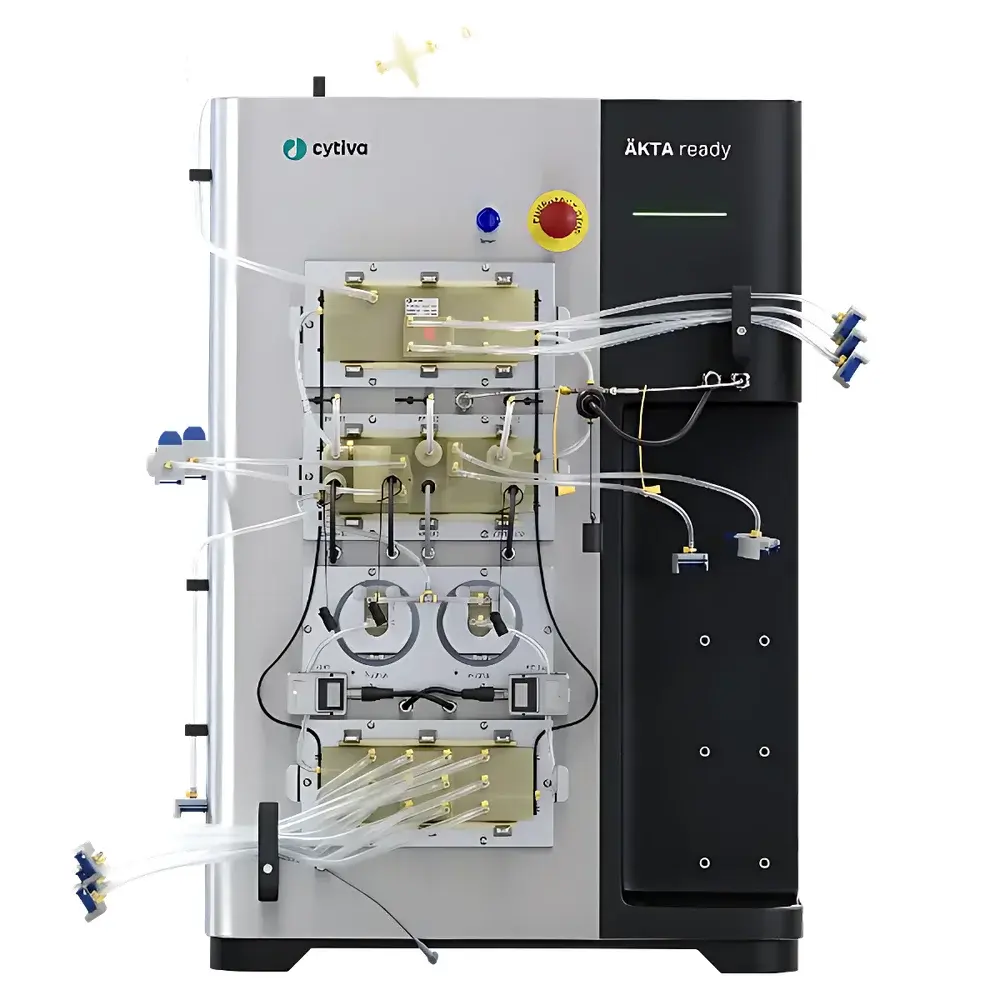

Cytiva ÄKTA ready™ 450 Chromatography System
| Brand | Cytiva |
|---|---|
| Origin | Sweden |
| Model | ÄKTA ready™ 450 |
| System Type | Single-Use Preparative Chromatography Platform |
| Flow Rate Range | 0.01–45 mL/min |
| Hold-Up Volume | < 1.2 mL (system dead volume) |
| Pressure Limit | Up to 20 bar |
| Compliance | Designed for GMP-compliant small-scale bioprocessing |
| Sensor Integration | Integrated single-use conductivity, pH, UV, and temperature sensors |
| Fluidic Path | Pre-sterilized, gamma-irradiated disposable flow path kits |
Overview
The Cytiva ÄKTA ready™ 450 Chromatography System is a compact, single-use preparative liquid chromatography platform engineered for robust, scalable, and regulatory-compliant purification of therapeutic proteins, monoclonal antibodies, viral vectors, and other biologics at clinical and early commercial scales. Operating on the principle of pressure-driven liquid chromatography with real-time multi-parameter detection, the system delivers precise gradient formation, accurate fraction collection, and full traceability—critical for process development and GMP manufacturing environments. Its low-flow architecture (0.01–45 mL/min) and minimal system hold-up volume (<1.2 mL) ensure high recovery of precious samples, reduced buffer consumption, and minimized product degradation during purification. The ÄKTA ready™ 450 is purpose-built for closed-system processing, eliminating cross-contamination risks associated with reusable hardware and reducing validation burden in regulated workflows.
Key Features
- Single-use fluidic path: Pre-assembled, gamma-irradiated flow path kits—including pumps, valves, detectors, and tubing—are pre-sterilized and certified for GMP use, eliminating cleaning-in-place (CIP) and sterilization-in-place (SIP) procedures.
- Rapid changeover capability: Full flow path replacement completed in ≤10 minutes, enabling efficient campaign-based production and multi-product facility utilization without revalidation.
- Integrated single-use sensors: Factory-calibrated, disposable UV (280 nm), conductivity, pH, and temperature sensors provide real-time, drift-free monitoring with no recalibration required between runs.
- GMP-ready software architecture: UNICORN™ 7.1 software supports 21 CFR Part 11 compliance with electronic signatures, audit trails, user access control, and secure data storage—fully aligned with GLP/GMP documentation requirements.
- Scalable platform design: Shares method compatibility and operational logic with larger ÄKTA ready™ systems and ReadyToProcess™ chromatography columns (e.g., RTP 10–100 mm ID), enabling seamless transition from process development to pilot- and clinical-scale manufacturing.
- Low dead-volume manifold: Optimized internal geometry minimizes band broadening and sample dilution, preserving resolution in shallow gradients and supporting high-resolution ion exchange and size exclusion applications.
Sample Compatibility & Compliance
The ÄKTA ready™ 450 accommodates a broad range of biomolecules including IgG, Fc-fusion proteins, plasmid DNA, AAV, lentivirus, and mRNA–lipid nanoparticle complexes. It is compatible with standard chromatographic resins (e.g., Capto™, SOURCE™, and Sepharose™) packed in ReadyToProcess™ single-use columns (10–100 mm ID). All disposable components meet USP Class VI and ISO 10993 biocompatibility standards. The system supports compliance with ICH Q5A(R2), Q5B, Q5D, and relevant sections of EMA/CHMP/BWP/334376/2013 for viral vector purification. Process data integrity adheres to ALCOA+ principles, and software functionality is validated per GAMP 5 guidelines.
Software & Data Management
UNICORN™ 7.1 software provides intuitive method editor, real-time chromatogram visualization, and automated fraction triggering based on UV peak thresholds or time windows. All raw data—including sensor outputs, pump status, valve positions, and alarm logs—are stored in proprietary .chm files with embedded metadata (user ID, timestamp, instrument ID, method version). Export options include CSV, PDF reports, and XML for LIMS integration. Audit trail records all critical actions—including method edits, run starts/stops, and parameter overrides—with immutable timestamps and user attribution. Data backups are configurable via network shares or external NAS devices meeting 21 CFR Part 11 security controls.
Applications
- Clinical-stage purification of mAbs and bispecifics under GMP conditions
- Small-batch purification of viral vectors (AAV, LV) for Phase I/II trials
- Process characterization studies requiring high reproducibility across multiple resin lots
- Platform method transfer from analytical to preparative scale using identical gradient logic
- Multi-product facilities where rapid changeover between distinct therapeutic modalities is essential
- Quality control release testing of purified intermediates using standardized, validated methods
FAQ
Is the ÄKTA ready™ 450 suitable for GMP manufacturing?
Yes—the system is designed and documented for use in GMP environments, with full traceability, electronic records, and support for regulatory submissions.
Can I reuse the flow path kit?
No—flow path kits are intended for single-use only and must be discarded after each run or campaign, as validated per Cytiva’s PQ documentation.
Does the system support method transfer to larger ÄKTA platforms?
Yes—gradient profiles, flow rates, and fractionation logic are directly transferable to ÄKTA ready™ 800 and ÄKTA process systems when using ReadyToProcess™ columns.
What validation documentation is provided?
Cytiva supplies Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols and reports, along with risk assessments and software validation summaries.
How is sensor calibration managed?
All sensors are factory-calibrated and supplied with individual calibration certificates; no field recalibration is required or supported due to their single-use design.
