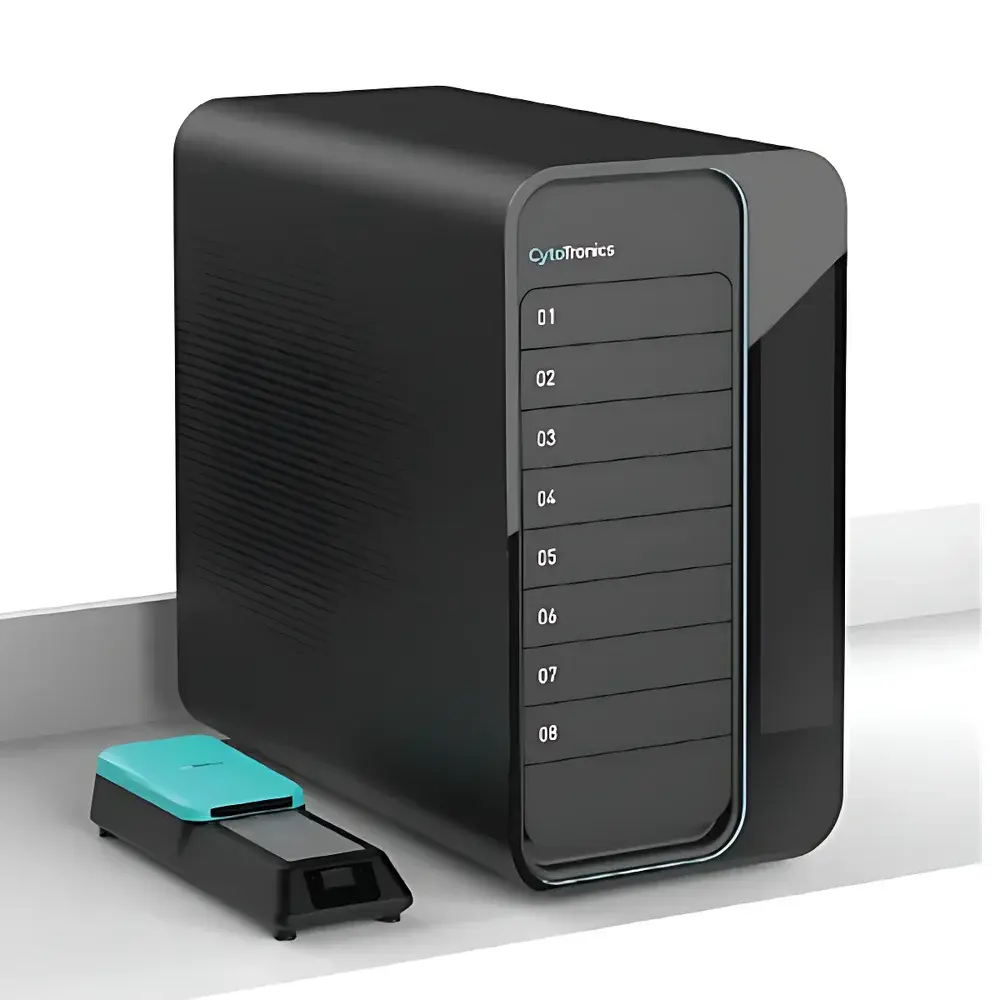

CytoTronics Pixel Primo High-Throughput Microporous Microelectrode Array System

Overview

The CytoTronics Pixel Primo High-Throughput Microporous Microelectrode Array System is an engineered platform for quantitative, non-invasive, real-time monitoring of living cells in standard multiwell formats (e.g., 96-well and 384-well plates). It operates on the principle of extracellular impedance spectroscopy—measuring frequency-dependent changes in electrical impedance across a dense, planar microelectrode array embedded beneath each well’s culture surface. Unlike conventional endpoint assays or fluorescent labeling techniques, this system captures dynamic cellular responses—including adhesion, spreading, barrier integrity, motility, and electrophysiological activity—without perturbing native cell physiology. Its semiconductor-fabricated microporous architecture integrates 138,000 individually addressable electrodes per well, enabling subcellular spatial resolution down to 15 µm. This architecture supports simultaneous multi-parametric readouts across multiple wells, making it suitable for longitudinal studies spanning hours to weeks under physiologically relevant conditions.

Key Features

• High-Density Microelectrode Architecture: Each well contains a monolithic, CMOS-fabricated electrode array with 138,000 microelectrodes, enabling high-fidelity impedance mapping at 15 µm spatial resolution.
• Multi-Modal Sensing Capability: Supports concurrent acquisition of impedance-based morphological metrics, extracellular field potential (EFP) recordings from excitable cells (e.g., cardiomyocytes, neurons), and redox current measurements for metabolic profiling.
• Real-Time Kinetic Acquisition: Configurable sampling intervals as short as 15 minutes enable continuous monitoring of dynamic cellular processes—including confluence progression, cytotoxic onset, contractile rhythm, and synaptic burst activity.
• Non-Invasive & Label-Free Operation: Eliminates reliance on dyes, transfection reagents, or genetic reporters—preserving endogenous signaling pathways and enabling repeated measurements from the same population over time.
• Integrated Stimulation Module: On-chip biphasic current stimulation enables controlled electrophysiological pacing, optogenetic-compatible patterned stimulation (via optional light-coupling interface), and localized injury modeling.
• Scalable Throughput: Compatible with automated liquid handlers and incubator-integrated operation, supporting parallel interrogation of up to 384 wells per run with synchronized data timestamping and environmental logging.

Sample Compatibility & Compliance

The Pixel Primo system is validated for use with primary human and rodent cells—including iPSC-derived cardiomyocytes, cortical neurons, endothelial monolayers, epithelial barriers (e.g., Caco-2, MDCK), and suspension-adapted immune cell lines. It accommodates both adherent and semi-suspension cultures in standard tissue-culture-treated or ECM-coated plates. All hardware and firmware comply with IEC 61000-6-3 (EMC) and UL 61010-1 safety standards. The accompanying software platform is designed to support Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) environments, including full audit trail logging, role-based user access control, electronic signature capture, and data integrity safeguards aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements.

Software & Data Management

The Pixel Primo Control Suite provides a unified interface for experimental design, real-time visualization, and post-acquisition analysis. Raw impedance spectra (10 Hz–10 MHz), time-series EFP waveforms, and chronoamperometric redox traces are stored in vendor-neutral HDF5 format with embedded metadata (e.g., passage number, seeding density, media batch ID). Advanced analytics modules include linear discriminant analysis (LDA) for class separation of compound-induced phenotypes, t-distributed stochastic neighbor embedding (t-SNE) for high-dimensional response clustering, and customizable kinetic parameter extraction (e.g., barrier resistance slope, beat period variability, spike frequency adaptation). Export options include CSV, MATLAB .mat, and Python-compatible NumPy arrays—ensuring interoperability with institutional data lakes and third-party analysis pipelines.

Applications

• Cardiac Safety Pharmacology: Detection of pro-arrhythmic liabilities via field potential duration (FPD) prolongation, triangulation, and early afterdepolarization (EAD) incidence in stem-cell-derived cardiomyocyte assays.
• Neurotoxicity Screening: Quantification of network bursting dynamics, synchrony index decay, and synaptic depression kinetics in primary neuronal co-cultures exposed to environmental toxins or candidate therapeutics.
• Epithelial/Endothelial Barrier Function: Real-time tracking of trans-endothelial electrical resistance (TEER) and capacitance dispersion during inflammatory challenge or tight junction modulation.
• Mechanistic Toxicology: Discrimination of necrotic vs. apoptotic cytotoxicity pathways through impedance phase-angle trajectory analysis and redox current hysteresis profiling.
• Stem Cell Differentiation Monitoring: Non-destructive assessment of lineage commitment milestones based on evolving impedance signatures and spontaneous electrophysiological maturation.
• Drug Mechanism-of-Action Studies: Integration of impedance morphology, electrophysiology, and metabolic redox signals to deconvolute polypharmacology and off-target effects.

FAQ

What plate formats are supported?
The system natively supports 96-well and 384-well microplates with standard ANSI/SBS footprints. Custom electrode layouts are available for specialized plate geometries upon request.
Can the system be used inside a CO₂ incubator?
Yes—the main instrument chassis is designed for ambient lab use, but the sensor cartridge and cabling assembly are rated for continuous operation at 37°C and 5% CO₂ when installed in compatible incubator-integrated enclosures.
Is raw data accessible for custom algorithm development?
All acquired datasets are stored in open HDF5 format with documented schema; Python and MATLAB SDKs are provided for programmatic access and integration into proprietary analysis frameworks.
How is calibration performed?
System calibration is performed automatically prior to each experiment using on-board reference resistors and capacitors; no user intervention or external standards are required.
Does the platform support multi-user collaboration and data sharing?
Yes—centralized database deployment (SQL Server or PostgreSQL) enables role-based project sharing, version-controlled experiment templates, and cross-laboratory metadata harmonization via MIAME/MINSEQE-compliant annotation fields.
