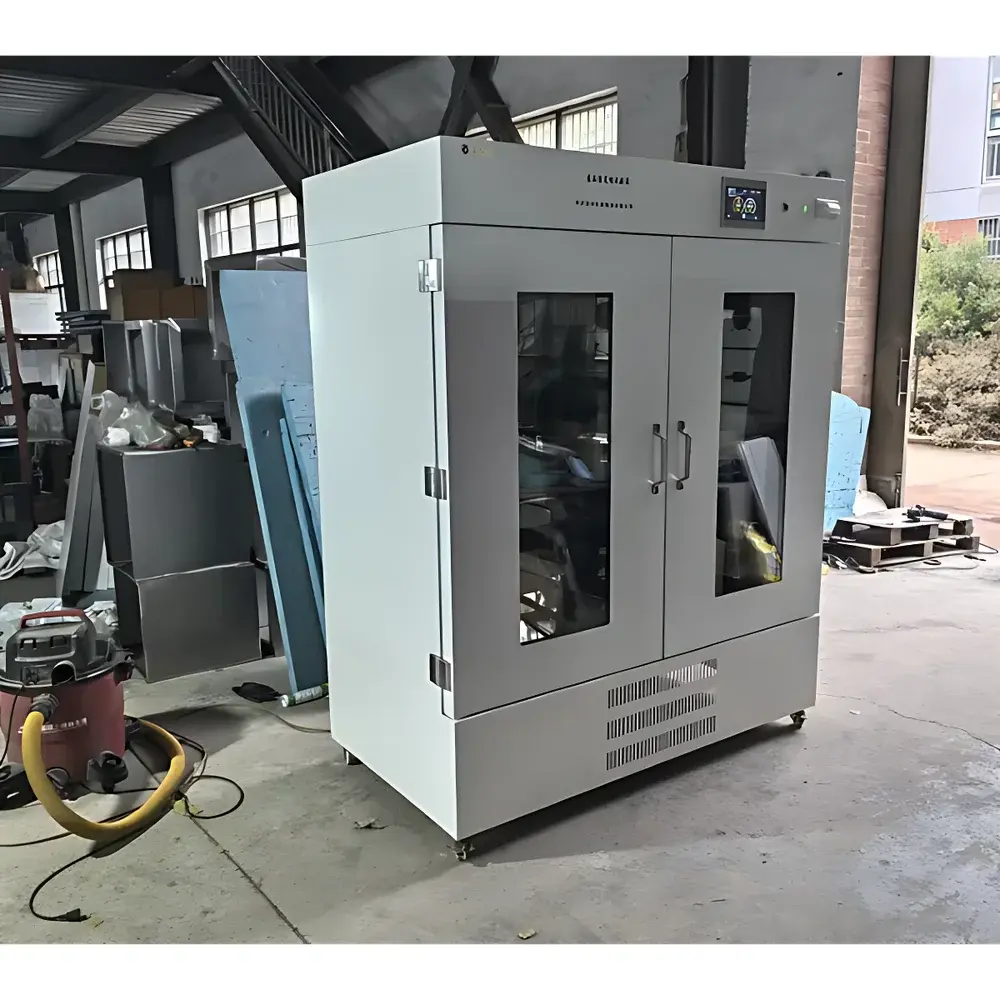

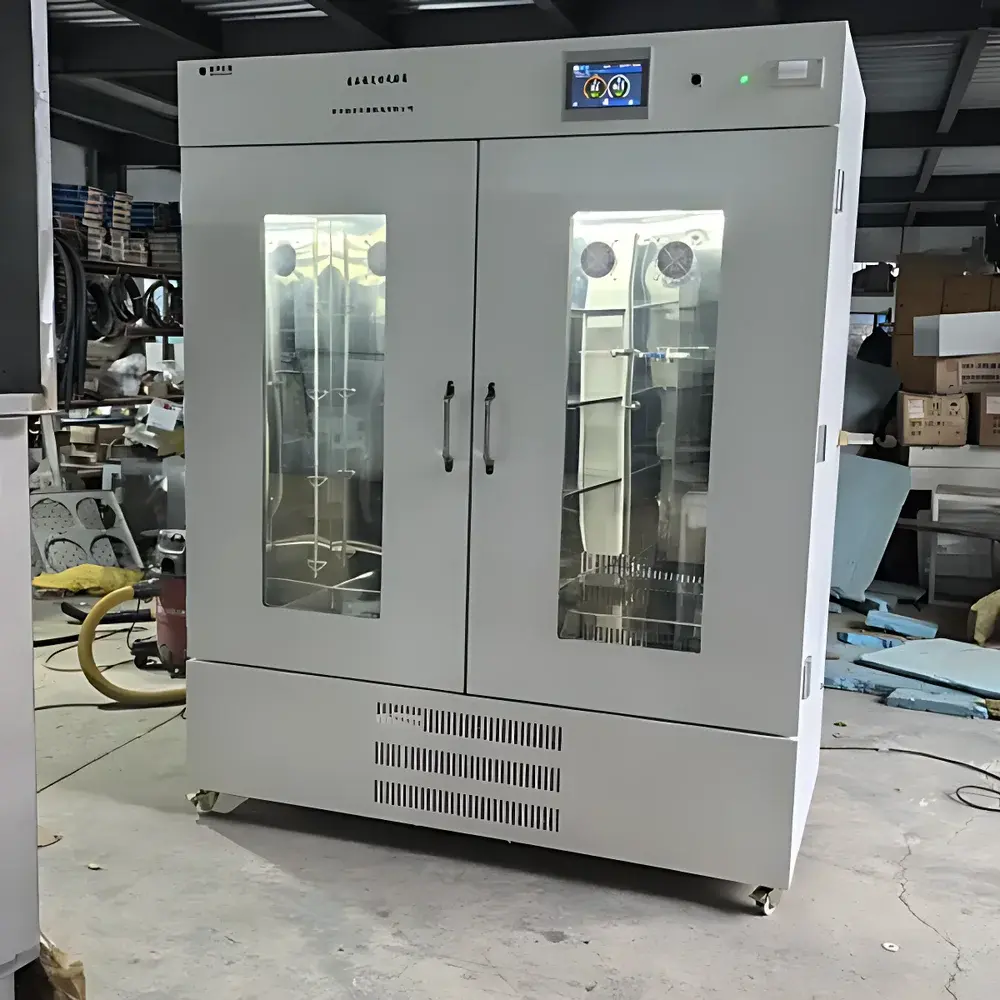

CZGY GY-1000YPQ Drug Stability Testing Chamber

Overview

The CZGY GY-1000YPQ Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term, high-fidelity stability studies of pharmaceutical products under defined temperature and humidity conditions. Designed in accordance with ICH Q1A(R2), Q5C, and Q5D guidelines, this chamber provides a rigorously controlled environment for accelerated and real-time stability testing—including photostability assessments when integrated with optional UV/visible light modules. Its balanced heating-cooling-humidification architecture ensures minimal spatial gradient deviation across the entire working volume, enabling reproducible storage conditions essential for shelf-life prediction, formulation development, and regulatory submission packages (e.g., FDA IND/NDA, EMA MAA). The chamber’s structural integrity—cold-rolled steel exterior with electrostatic powder coating and 304 stainless-steel interior—meets ISO 14644-1 Class 8 cleanroom compatibility standards for low particulate generation and corrosion resistance.

Key Features

• Integrated Danfoss refrigeration system featuring an electronically controlled expansion valve, pressure relief valve, and intelligent defrost management—ensuring continuous operation over extended test cycles without manual intervention.
• True-color 7-inch touchscreen HMI with bilingual (English/Chinese) interface, supporting both constant-value and multi-step programmable control modes (5 user-defined programs, each with up to 100 segments; segment duration configurable in minutes or hours).
• High-precision environmental regulation: ±0.5 °C temperature uniformity and ±5 %RH humidity fluctuation, validated per ASTM E2875-22 and ISO 16774:2021 protocols using NIST-traceable PT100 and anti-condensation capacitive humidity sensors.
• Three-tier role-based access control (Administrator / Supervisor / Operator) with full audit trail logging—capturing user ID, timestamp, parameter changes, and event triggers in compliance with FDA 21 CFR Part 11 and EU Annex 11 requirements.
• Onboard thermal printer and USB data export functionality for raw time-series logs (temperature, humidity, alarms, setpoint deviations), supporting ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
• Wi-Fi-enabled remote monitoring and email/SMS alerting for critical excursions, door-open events, or system faults—integrated with enterprise LIMS or MES platforms via standard Modbus TCP or HTTP REST API interfaces.

Sample Compatibility & Compliance

The GY-1000YPQ accommodates diverse pharmaceutical sample formats—including blister packs, vials, syringes, sachets, and bulk powder containers—within its 1.07 m³ usable chamber volume. Interior shelving is fully adjustable and constructed from perforated 304 stainless steel to optimize airflow distribution. The dual-door design (outer insulated door + inner tempered glass door) minimizes thermal load during visual inspection while maintaining environmental integrity. All materials contacting the test space comply with USP and ISO 10993-5 for non-cytotoxicity. The system supports qualification documentation packages (IQ/OQ/PQ) aligned with ASTM E2500-22 and EU GMP Annex 15, including mapping reports for temperature/humidity uniformity, recovery testing, and sensor calibration certificates traceable to national metrology institutes.

Software & Data Management

Embedded firmware delivers real-time data acquisition at 10-second intervals, storing ≥12 months of compressed historical records internally. Data export supports CSV and PDF formats, with optional encrypted ZIP archiving for secure transfer. Audit trail entries are immutable and timestamped with hardware-generated UTC clocks synchronized via NTP. The system supports electronic signature workflows per 21 CFR Part 11 Subpart B, including biometric or token-based authentication for critical actions (e.g., program modification, calibration adjustment). Optional cloud synchronization enables centralized fleet monitoring across multiple sites, with role-specific dashboards for QA managers and stability analysts.

Applications

• ICH Q1A(R2)-aligned accelerated stability studies (40 °C/75 %RH, 30 °C/65 %RH) and long-term storage (25 °C/60 %RH, 30 °C/65 %RH).
• Forced degradation studies under stressed conditions to identify degradation pathways and validate analytical methods.
• Reference standard storage under controlled ambient conditions per USP and Ph. Eur. 5.20.2.
• Stability-indicating method development support, including bracketing and matrixing study designs.
• QC release testing environments for hygroscopic APIs requiring strict humidity control during assay preparation.

FAQ

Does the GY-1000YPQ meet ICH Q1A(R2) and FDA 21 CFR Part 11 requirements?
Yes—the chamber’s control architecture, audit trail implementation, and electronic signature capabilities are designed to satisfy core elements of both ICH Q1A(R2) environmental specification criteria and FDA 21 CFR Part 11 Subpart B for closed systems.
Can the system be validated for GMP use?
Yes—CZGY provides IQ/OQ protocol templates and supports third-party PQ execution. All sensors ship with factory calibration certificates traceable to NIST or equivalent NMIs.
What is the maximum allowable load mass without compromising temperature/humidity uniformity?
Uniformity remains within specification for up to 80 kg distributed load across five shelves; full-load mapping reports are included in the OQ package.
Is remote firmware update supported?
Firmware updates require authenticated local USB upload; remote updates are disabled by default to maintain cybersecurity integrity per IEC 62443-3-3.
How often must humidity sensors be recalibrated?
Annual recalibration is recommended; the system logs sensor drift diagnostics and triggers maintenance alerts at ±2 %RH deviation from baseline calibration.
