Datacolor Guardian Predictive Monitoring Service

Overview

The Datacolor Guardian Predictive Monitoring Service is a cloud-connected, remote performance assurance platform engineered exclusively for Datacolor spectrophotometers used in color-critical industrial environments. Unlike conventional calibration or reactive maintenance programs, Guardian operates on a proactive, data-driven paradigm grounded in statistical process control (SPC) and instrument health analytics. It continuously evaluates spectral stability, lamp output consistency, detector linearity, and optical path integrity through scheduled, non-intrusive diagnostic routines—executed automatically during idle periods without disrupting production workflows. Designed for global manufacturing supply chains—including textile, paint, plastics, and automotive OEMs—the service delivers objective, traceable evidence of instrument fitness-for-purpose, directly supporting ISO/IEC 17025-compliant quality management systems and internal GLP/GMP validation requirements.

Key Features

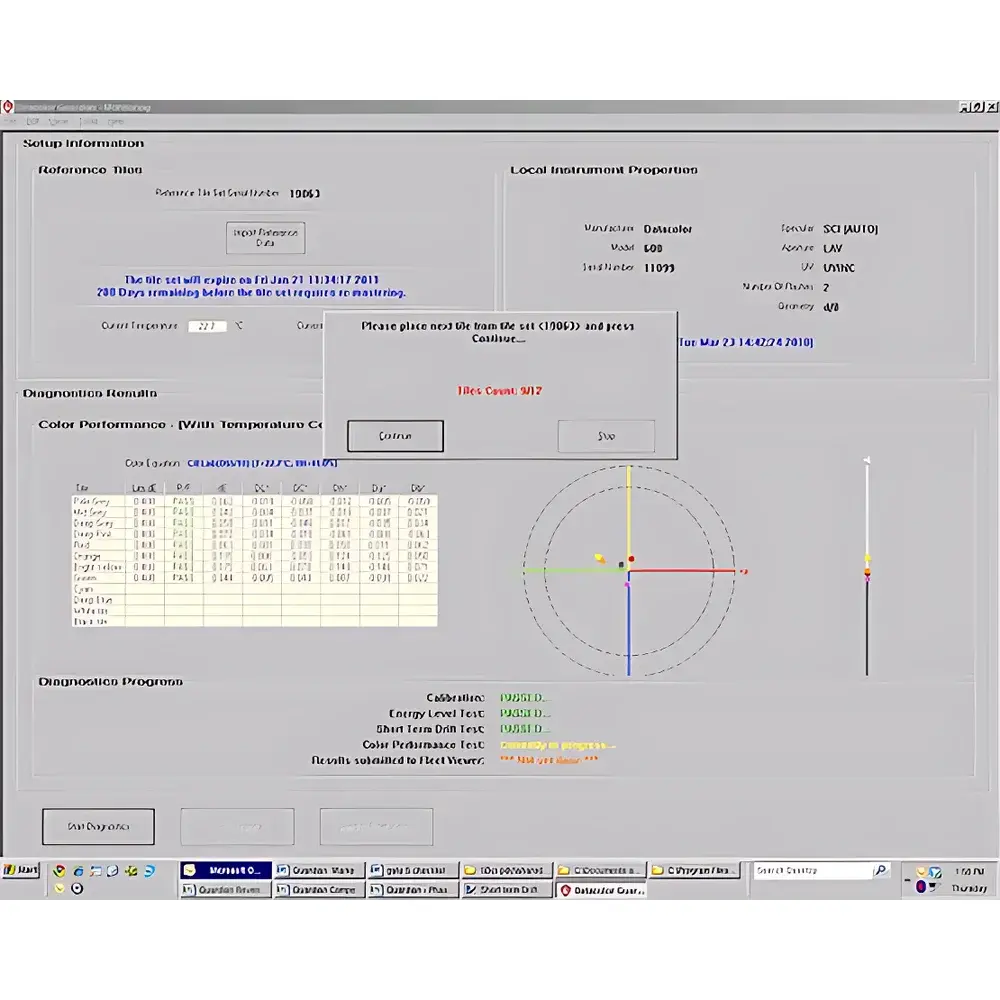

• Automated Remote Diagnostics: Executes standardized spectral verification protocols (e.g., white tile reflectance, dark current, wavelength accuracy checks) at user-defined intervals—daily, weekly, or per shift—without manual intervention.
• Expert-Reviewed Health Reports: Each diagnostic cycle generates a PDF report with pass/fail status, trend charts for critical parameters (e.g., ΔE drift, spectral noise floor), and actionable recommendations reviewed by Datacolor-certified metrology engineers.
• Real-Time Alerting & Escalation: Configurable email/SMS notifications trigger upon detection of out-of-tolerance behavior, with automatic ticket generation and priority routing to regional support centers.

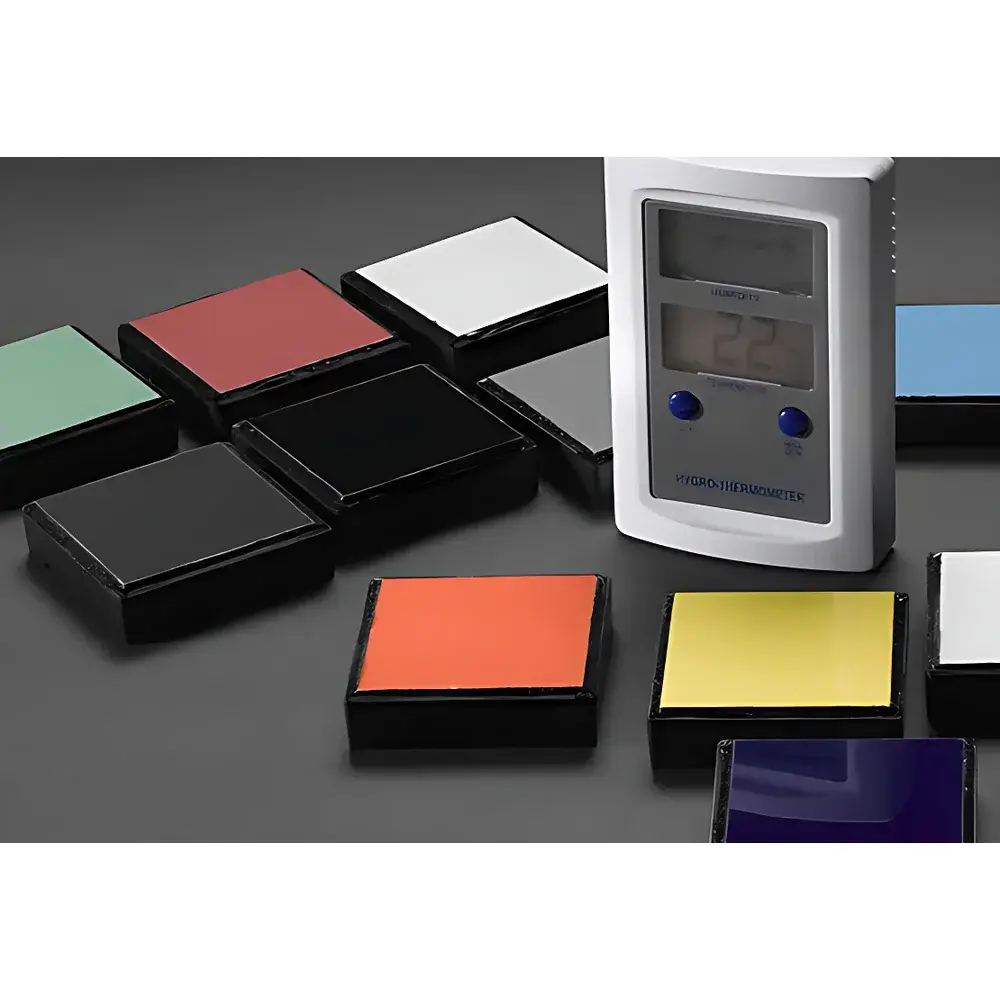

• Instrument-to-Master Correlation: Enables traceable alignment between field instruments and reference Datacolor Master units using disposable, NIST-traceable ceramic tiles—ensuring inter-device measurement consistency across geographically dispersed facilities.
• Secure Cloud Dashboard: Role-based web interface provides fleet-wide visibility into instrument uptime, diagnostic history, calibration status, and compliance documentation—accessible via desktop or mobile browser.

Sample Compatibility & Compliance

Guardian supports all Datacolor spectrophotometer models equipped with firmware version 4.2 or later—including the Datacolor 600, Datacolor 800, Datacolor MATCHTEXTILE, and Datacolor CHECKPLUS series. The service requires stable Ethernet or Wi-Fi connectivity and adherence to Datacolor’s network security guidelines (TLS 1.2+, firewall port configuration). Diagnostic tiles are certified to ASTM E308-22 Annex A2 for reflectance standardization and comply with ISO 13655:2017 spectral measurement geometry requirements. All generated reports include digital signatures and audit trails compliant with FDA 21 CFR Part 11 for electronic records and signatures.

Software & Data Management

The Guardian portal integrates natively with Datacolor’s suite of color management software—including Color iMatch®, Color iQC®, and Datacolor Textile Workflow—enabling direct import of diagnostic metadata into batch release workflows. Raw spectral data, diagnostic logs, and certificate archives are stored in encrypted AWS S3 buckets with configurable retention policies (12–60 months). Audit logs record every user action, system event, and report generation timestamp—supporting internal audits and external regulatory inspections. Data export options include CSV, XML, and PDF formats compatible with enterprise QMS platforms such as TrackWise and MasterControl.

Applications

• Textile & Apparel Manufacturing: Ensures consistent shade matching across dye houses, finishing plants, and brand-owned labs—reducing customer returns due to color deviation.
• Automotive Coatings: Maintains spectral repeatability for OEM-approved color standards across Tier 1 suppliers and in-plant QC stations.
• Plastics & Packaging: Monitors long-term stability of spectrophotometers measuring opaque, translucent, or fluorescent materials under varying ambient conditions.
• Paint & Coatings R&D: Provides documented instrument performance history required for method validation under ASTM D2244 and ISO 11664-4.
• Pharmaceutical Excipients: Supports visual appearance control per USP and ICH Q5E guidelines where color is a critical quality attribute.

FAQ

What hardware modifications are required to enable Guardian?
None. Guardian operates entirely through existing instrument firmware and network connectivity—no add-on sensors, dongles, or hardware upgrades are needed.
Can Guardian replace routine physical calibration?
No. Guardian complements—but does not substitute—scheduled calibration using certified standards per ISO/IEC 17025 Clause 6.5. It identifies early degradation trends that inform optimal recalibration timing.
Is historical diagnostic data accessible after service subscription ends?
Yes. Customers retain full read-only access to archived reports and logs for six months post-termination, in accordance with GDPR and CCPA data portability provisions.
How frequently are diagnostic algorithms updated?
Algorithm updates occur quarterly and are deployed automatically via secure OTA firmware patches—validated against Datacolor’s internal metrology reference fleet prior to release.
Does Guardian support multi-vendor instrument fleets?
No. Guardian is purpose-built for Datacolor spectrophotometers only. Cross-platform monitoring requires third-party MES or LIMS integration via API.
