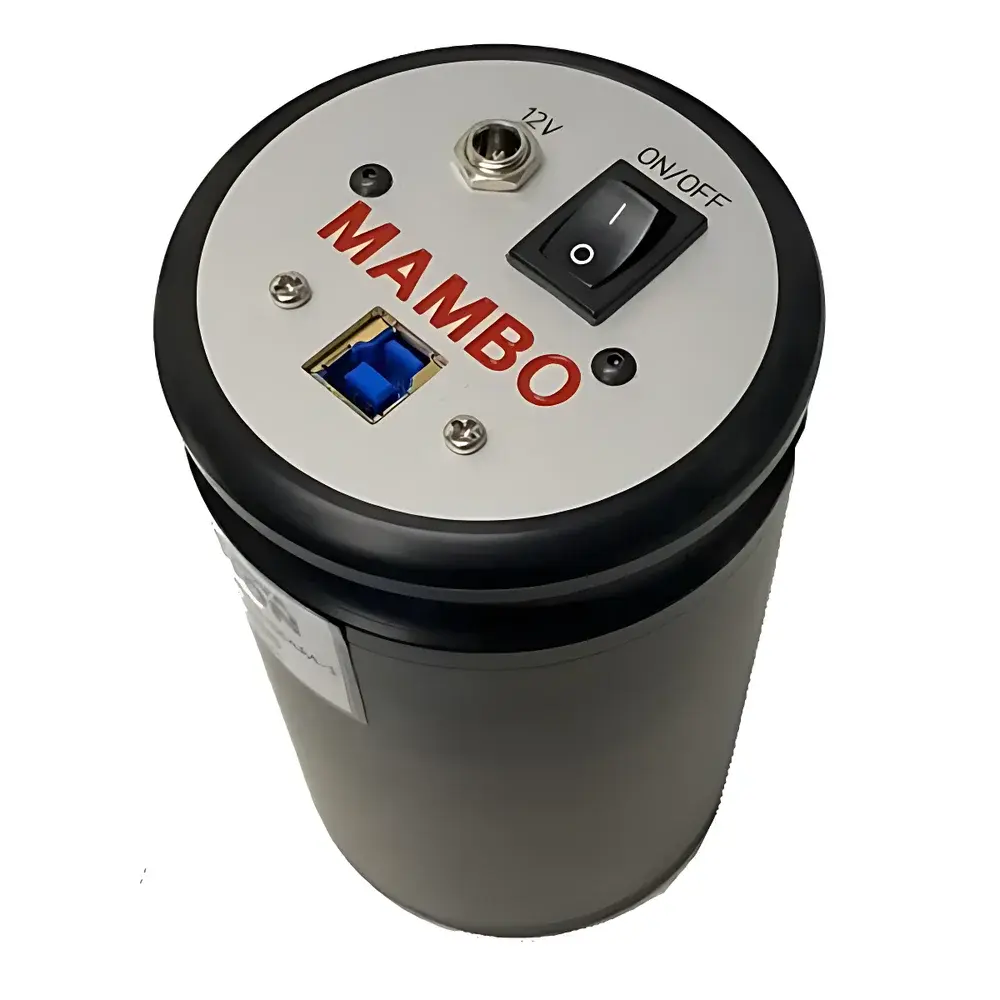

Dia-stron MAMBO Hair Color Measurement Instrument
| Brand | Dia-stron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MAMBO |
| Pricing | Available Upon Request |
Overview
The Dia-stron MAMBO Hair Color Measurement Instrument is a precision optical metrology system engineered for objective, repeatable, and spectrally resolved hair color assessment in cosmetic R&D, formulation validation, clinical trichology studies, and regulatory-compliant product development. Unlike subjective visual grading or consumer-grade RGB imaging, the MAMBO employs a calibrated 12-bit color camera coupled with a custom-designed integrating sphere geometry and spectrally stable LED illumination (CIE D65–equivalent white light source). This configuration ensures uniform diffuse illumination and minimizes directional reflectance artifacts—critical for capturing intrinsic hair chromaticity independent of surface texture, curl pattern, or gloss. The system operates on the principle of spectral reflectance measurement under standardized geometric conditions (45°/0° or d/8°, configurable per ISO 13655:2017), enabling quantification of CIELAB (L*, a*, b*), CIEDE2000 ΔE values, and chromaticity coordinates (x, y) traceable to NPL (National Physical Laboratory, UK) reference standards.
Key Features
- Integrated 12-bit scientific-grade CMOS color camera with factory-applied spectral sensitivity correction across visible wavelengths (400–700 nm)
- Optimized integrating sphere illumination chamber ensuring Lambertian reflectance conditions and eliminating hotspot bias
- Pre-installed, vendor-validated hair color reference database comprising >12,000 spectrally measured samples from ethnically diverse donor panels (Caucasian, Asian, African, Hispanic), all acquired under GLP-aligned protocols
- Automated ROI (Region-of-Interest) segmentation algorithm that isolates hair shafts from background, scalp, or mounting substrates using edge-aware thresholding and morphological filtering
- Modular hardware design compliant with IEC 61000-6-3 (EMC) and IEC 61010-1 (electrical safety), rated IP20 for laboratory benchtop use
- USB 3.0 interface with deterministic latency (<5 ms frame-to-host transfer) for synchronized multi-instrument workflows
Sample Compatibility & Compliance
The MAMBO accommodates single strands, bulk tresses (up to 5 mm diameter), clipped samples, and mounted cross-sections on standard glass slides. It supports both virgin and chemically treated hair (bleached, dyed, permed), with built-in compensation for porosity-induced scattering variance. All measurement protocols align with ISO 8501-4:2021 (color assessment of organic substrates) and ASTM D2244–22 (standard practice for calculation of color tolerances). Data output formats (CSV, XML, JSON) are structured to support audit trails required under FDA 21 CFR Part 11 for regulated cosmetic stability testing. System calibration certificates are issued annually by Dia-stron’s UK-based metrology lab, accredited to ISO/IEC 17025:2017.
Software & Data Management

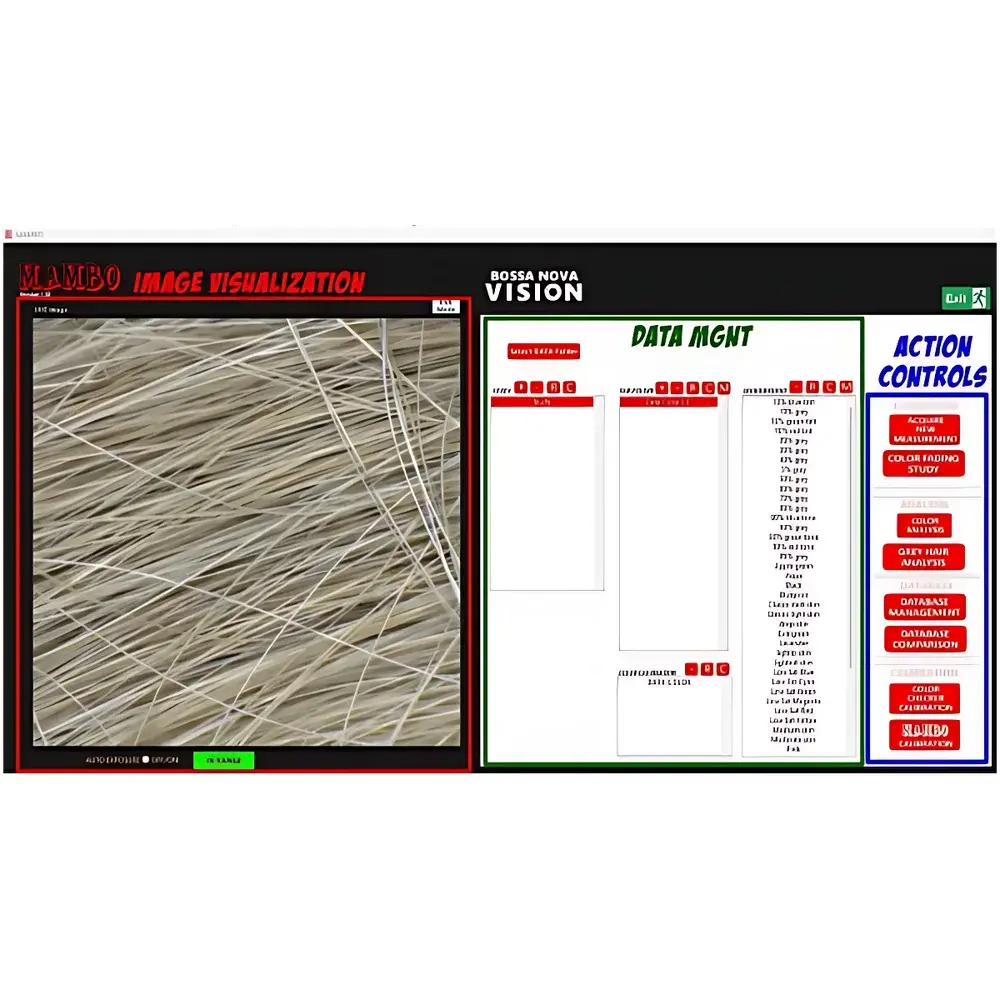

The proprietary MAMBO Control Suite (v4.2+) runs on Windows 10/11 (64-bit) and provides full instrument control, real-time preview, batch processing, and statistical reporting. Software features include: user-defined pass/fail thresholds based on ΔE₀₀ tolerances; longitudinal tracking of color shift over time (e.g., post-colorant fade kinetics); export of raw spectral reflectance curves (31-point, 10 nm intervals); and integration with LIMS via HL7 or RESTful API endpoints. Audit logs record operator ID, timestamp, calibration status, and raw image hash—enabling full traceability per GLP and GMP documentation requirements.
Applications
- Objective evaluation of permanent, semi-permanent, and direct dye efficacy across ethnic hair types
- Quantitative assessment of oxidative damage-induced yellowing (e.g., after bleaching or UV exposure)
- Stability testing of color-protective shampoos, conditioners, and leave-on treatments under accelerated aging (ISO 29603)
- Correlation of instrumental color metrics with sensory panel data for claim substantiation (e.g., “up to 3× longer color retention”)
- Supporting regulatory submissions to the EU Cosmetics Regulation (EC No 1223/2009) and Health Canada Cosmetic Notification Program
FAQ
Does the MAMBO require annual recalibration? Why?
Yes. Annual recalibration against NPL-traceable ceramic tile standards is mandatory to maintain CIELAB accuracy within ±0.3 ΔE units. Drift in LED spectral power distribution and sensor quantum efficiency necessitates hardware-level correction.
Can the system measure hair color on living subjects?
No. The MAMBO is designed exclusively for ex vivo analysis of clipped or plucked samples. In vivo use violates ISO 14155:2020 clinical investigation guidelines and compromises geometric repeatability due to scalp movement and lighting variability.
Is the reference database expandable with in-house samples?
Yes. Users may import spectrally validated reference samples via the Database Manager module, provided they meet Dia-stron’s spectral acquisition protocol (D65 illumination, 10° observer, 8-mm aperture) and undergo inter-laboratory verification.
What software validation documentation is supplied?
A complete IQ/OQ/PQ protocol package—including test scripts, acceptance criteria, and electronic signatures—is delivered with each installation and conforms to Annex 11 and GAMP 5 standards.
