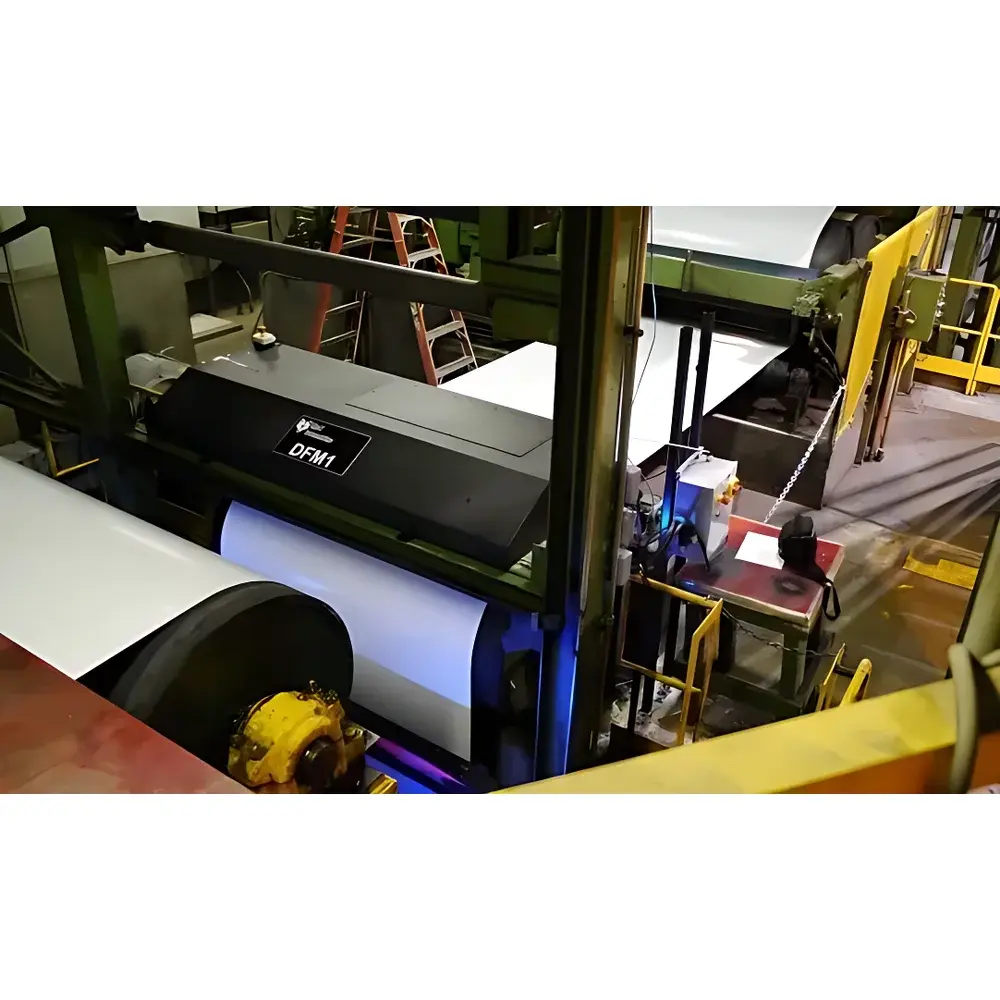

DJH Wolf DFM Alpha In-Line Coating Thickness Measurement System

Overview

The DJH Wolf DFM Alpha In-Line Coating Thickness Measurement System is an industrial-grade, non-contact optical metrology platform engineered for real-time, high-precision measurement of organic coating thickness on continuously moving metal substrates—primarily pre-painted steel (coil coating) and aluminum strip. Based on advanced dual-wavelength interferometric profilometry combined with multi-angle spectral reflectance analysis, the DFM Alpha resolves film thickness without reliance on empirical calibration or material-specific reference standards. Unlike conventional eddy-current or beta-backscatter systems, it operates independently of substrate conductivity, base metal thickness (within standard coil gauges), surface roughness, or coating chemistry—including polyester, PVDF, SMP, epoxy, and acrylic systems—enabling true universal deployment across diverse production lines.

Key Features

• Measurement range: 3 µm to 100 µm with repeatability better than ±0.2 µm; average thickness control accuracy down to ±0.1 µm via statistical aggregation of multiple spatially distributed readings.
• Material-agnostic operation: No calibration required for different paint chemistries, pigment loadings, metallic flake content, or substrate alloys (e.g., GI, GA, Al-Mg, stainless steel).
• Topography-aware profiling: Simultaneously quantifies peak-to-valley height (Rz), surface waviness, and lateral feature spacing—critical for evaluating texture-rich finishes such as matte, embossed, or wrinkled coatings.
• Dual-sensor architecture: Two synchronized optical probes mounted above the strip measure both top and bottom surfaces in a single pass; integrated edge detection enables automatic lateral centering and dynamic adaptation to strip width variation (±15% nominal width).
• Z-axis active probe positioning: Motorized vertical adjustment allows precise working distance control (typically 25–40 mm); full retraction to safe park position for routine cleaning or maintenance without mechanical disassembly.
• Robust industrial design: IP65-rated housing, vibration-damped mounting interface, and thermal stabilization ensure stable performance under ambient factory conditions (15–40 °C, 150,000 hours.

Sample Compatibility & Compliance

The DFM Alpha supports all standard coil-coated products including architectural panels, appliance skins, roofing substrates, and automotive interior trim blanks. It meets functional requirements aligned with ASTM D7091 (Standard Practice for Nondestructive Measurement of Dry Film Thickness of Nonmagnetic Coatings on Non-Ferrous Metals) and ISO 2808 (Paints and Varnishes — Determination of Film Thickness). Its measurement traceability is maintained through NIST-traceable reference standards and in-house validation protocols compliant with ISO/IEC 17025. The system architecture supports integration into GMP-compliant environments: audit trails, user access levels, electronic signatures, and data integrity safeguards are configurable per FDA 21 CFR Part 11 and EU Annex 11 guidelines.

Software & Data Management

The DFM Alpha runs on the proprietary WolfVision Control Suite v4.x—a Windows-based SCADA-integrated application supporting OPC UA, Modbus TCP, and EtherNet/IP connectivity. Real-time thickness maps (2D cross-web profiles), statistical process control (SPC) charts (X̄/R, Cpk), and alarm-triggered event logging are generated at up to 100 Hz per probe. Historical data is stored in encrypted SQLite databases with optional migration to SQL Server or cloud-hosted time-series platforms (e.g., InfluxDB). All raw interferometric spectra and processed thickness values are exportable in CSV, HDF5, or ASTM E1382-compliant formats for third-party analytics or AI-driven defect correlation.

Applications

• Real-time closed-loop feedback to roller coater gap actuators for adaptive thickness control.
• Automated qualification of post-cure film uniformity prior to slitting or packaging.
• Root-cause analysis of edge thinning, orange peel, or mottle defects via spatial thickness gradient mapping.
• Validation of batch-to-batch consistency during product changeovers or formulation transitions.
• Supporting IATF 16949 and ISO 9001 quality documentation through automated report generation (PDF/HTML) with embedded metadata (timestamp, line speed, oven temperature, operator ID).

FAQ

Does the DFM Alpha require recalibration when switching between different paint types?

No. Its physics-based measurement principle eliminates the need for product-specific calibration. A single factory verification suffices for lifetime operation across all standard coil coating formulations.
Can it be installed downstream of the curing oven without interference from thermal radiation?

Yes. The optical head incorporates active thermal shielding and spectral filtering to reject IR emissions up to 300 °C substrate surface temperature. Installation is typically performed directly above the final turning roll after the oven exit.
What is the typical service life and maintenance schedule?

Designed for 20+ years of continuous operation, the system requires only quarterly optical window inspection and annual laser power verification. No consumables or periodic sensor replacement is specified.
Is edge detection reliable at low line speeds (<30 m/min)?

Yes. Edge tracking remains fully functional down to 5 m/min using adaptive contrast thresholding and sub-pixel centroid interpolation, ensuring accurate positioning even during threading or slowdown events.
