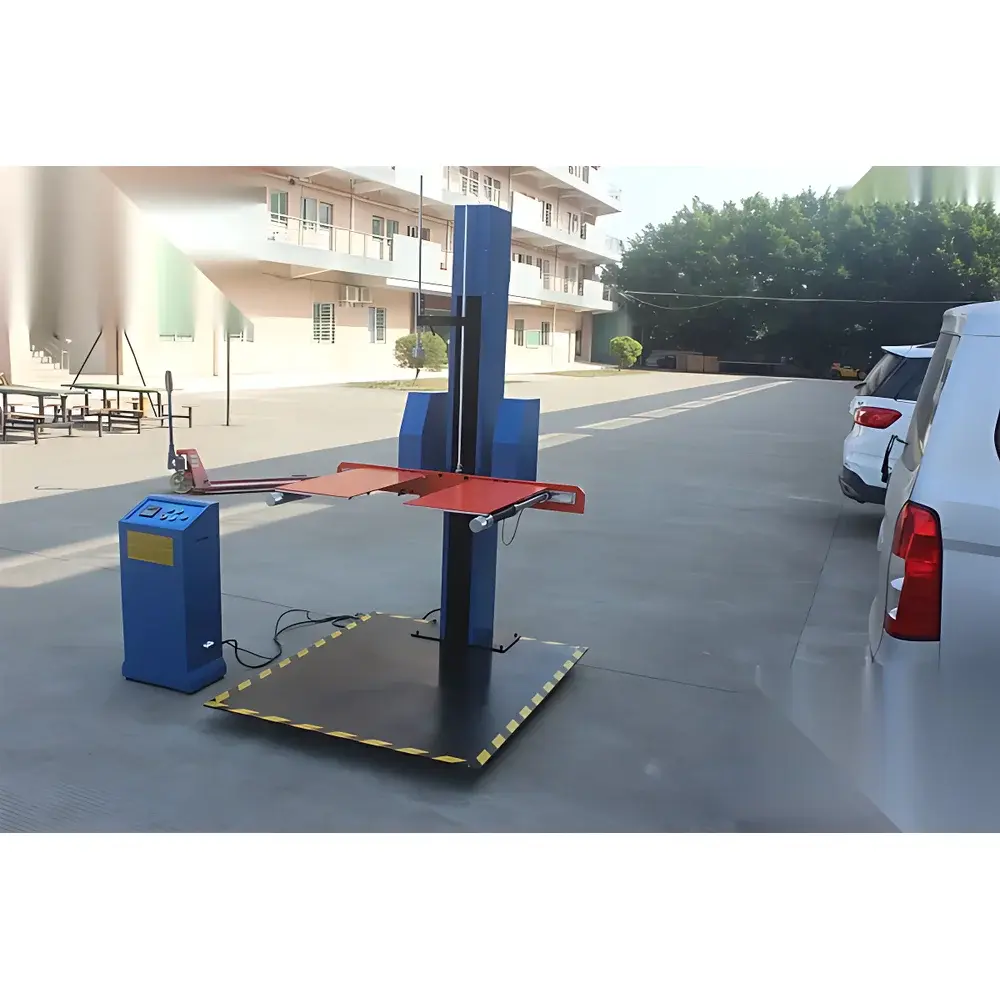

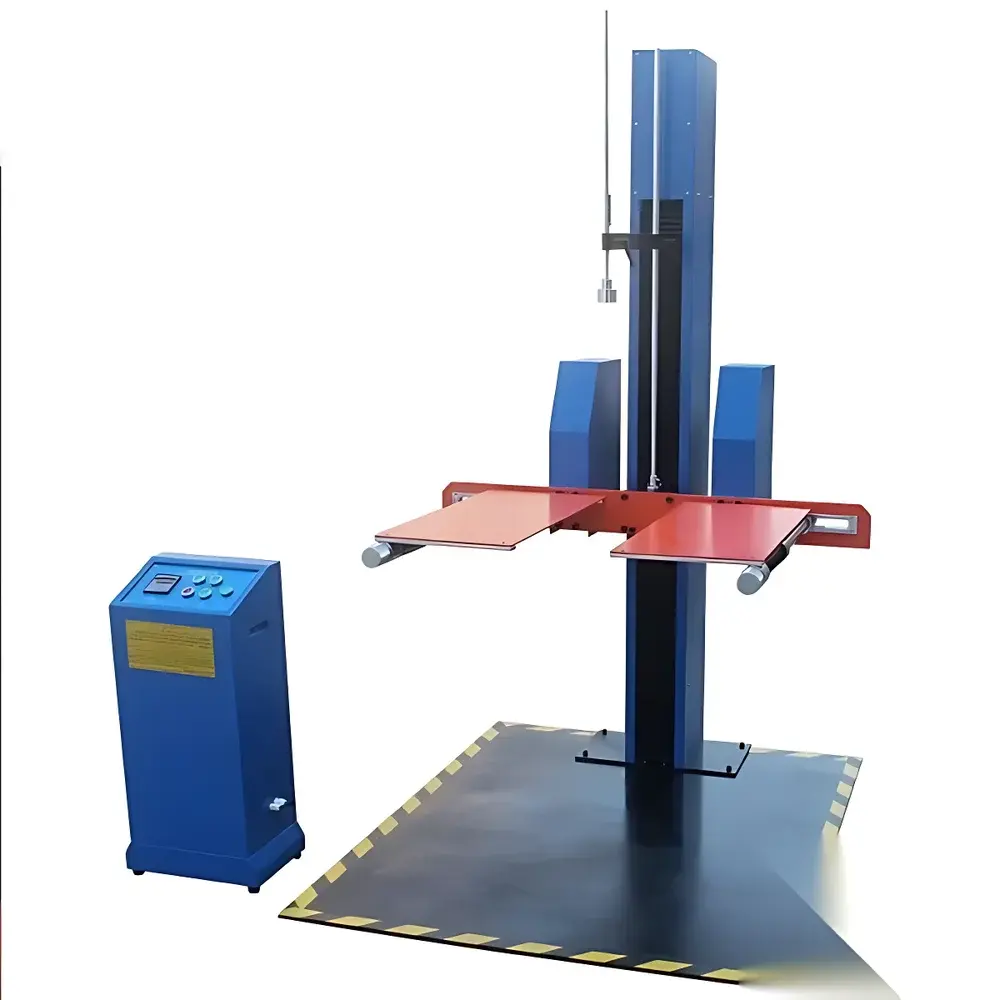

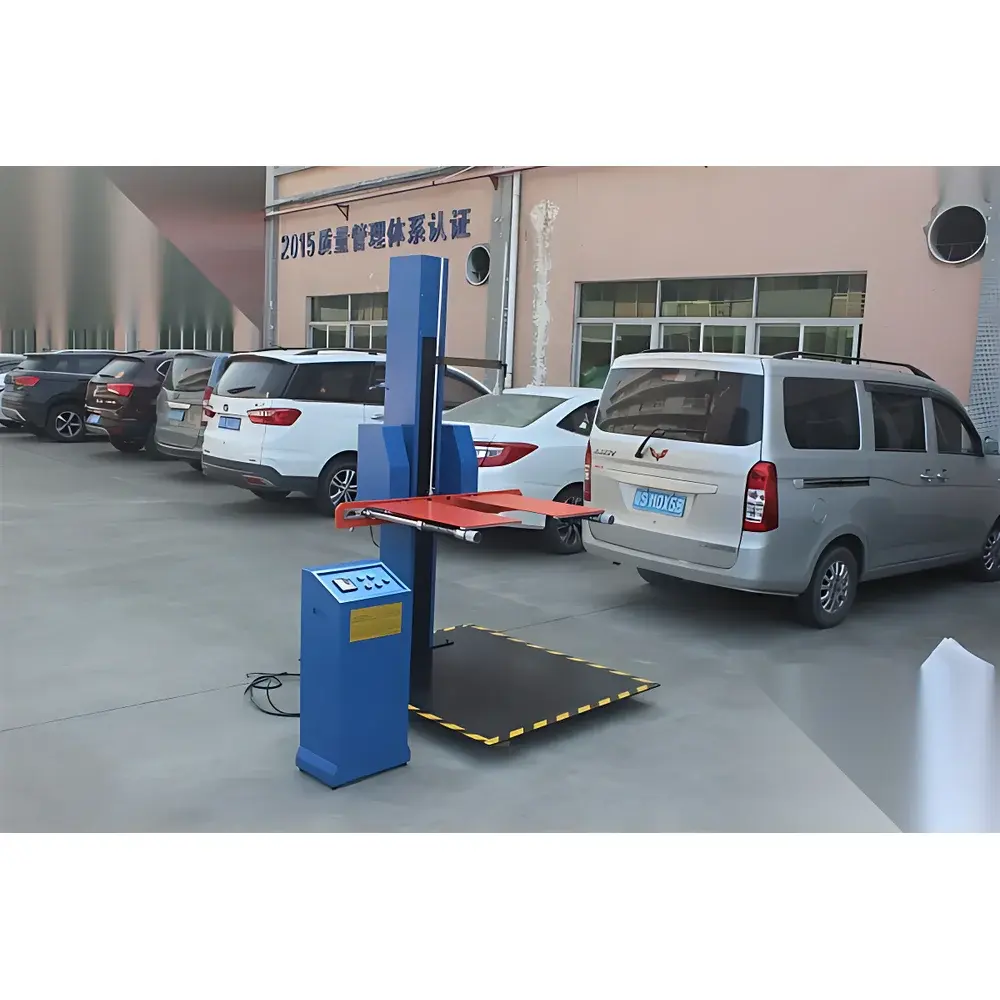

OK-DL-150 Single-Arm Drop Testing Machine

Overview

The OK-DL-150 Single-Arm Drop Testing Machine is an electromechanically actuated, height-precise impact testing system engineered for evaluating the structural integrity and protective performance of transport packaging under controlled vertical free-fall conditions. It operates on the principle of gravitational acceleration (9.81 m/s²), enabling repeatable simulation of real-world distribution hazards—including face, edge, and corner impacts—on fully assembled, unitized, or filled shipping containers. Designed in strict accordance with GB/T 4857.5 (equivalent to ISO 2248:1985) and aligned with the broader GB/T 4857 series for packaging performance evaluation, the OK-DL-150 supports standardized test protocols required for quality assurance in logistics, regulatory submission, and packaging development workflows. Its single-arm, dual-column architecture ensures unobstructed access for specimen placement while maintaining mechanical rigidity during high-energy release cycles.

Key Features

• Single-arm, dual-column structural frame fabricated from precision-ground, chromium-plated high-tensile steel—resistant to deformation, corrosion, and long-term fatigue.
• Electromechanical lifting and automatic reset mechanism with brushless DC motor drive, enabling programmable height positioning from 300 mm to 1500 mm in 10-mm increments.
• Encoder-based digital height measurement system with real-time feedback; certified accuracy of ±2% or ±10 mm (whichever is greater) against setpoint, traceable per GB/T 4857.5 Annex B.
• True three-mode drop capability: flat-face, two-edge (12 defined orientations), and eight-corner configurations—all executed without manual repositioning of the test specimen.
• Hydraulic damping system integrated into the base platform to absorb residual kinetic energy, minimizing rebound vibration and ensuring stable post-impact measurement conditions.
• Fail-safe electromagnetic latch with redundant mechanical interlock, preventing unintended release during setup or power interruption.
• Angle tolerance ≤5° between impact surface and horizontal base plane—verified via built-in spirit level and adjustable leveling feet.

Sample Compatibility & Compliance

The OK-DL-150 accommodates rigid and semi-rigid transport packages up to 150 kg gross weight and dimensions up to 800 × 800 × 800 mm. Compatible with corrugated fiberboard boxes, wooden crates, plastic totes, composite drums, and palletized unit loads—provided specimens maintain dimensional stability during lift and release. The machine satisfies national and international regulatory frameworks including GB/T 4857.5 (China), ISO 2248:1985 (International Organization for Standardization), and ASTM D5276 (Standard Test Method for Drop Test of Loaded Containers). It supports full traceability for GLP/GMP-aligned validation studies when paired with external data logging systems compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

While the OK-DL-150 operates as a standalone electromechanical tester, its digital height encoder output is RS-485 compatible (Modbus RTU protocol), allowing integration with third-party SCADA or LIMS platforms for automated test sequencing, audit-trail generation, and electronic record retention. Optional PC-based control software (sold separately) enables batch programming of multi-height, multi-orientation test sequences, automatic pass/fail flagging based on preconfigured thresholds, and export of CSV-formatted reports compliant with ISO/IEC 17025 documentation standards. All height setpoints, actual drop values, timestamps, and operator IDs are logged locally on non-volatile memory for minimum 10,000-cycle retention.

Applications

• Validation of primary and tertiary packaging designs prior to mass production or logistics rollout.
• Root-cause analysis of field damage incidents by replicating suspected drop scenarios in controlled laboratory conditions.
• Supplier qualification testing for contract packaging vendors under IATF 16949 or ISO 9001 quality management systems.
• Development of shock-absorbing cushioning materials (e.g., molded pulp, EPS, air pillows) through iterative drop-height optimization.
• Supporting ISTA 1A, 2A, and 3A test protocols when combined with environmental preconditioning per GB/T 4857.2.
• Internal QA/QC verification for e-commerce fulfillment centers handling fragile electronics, pharmaceuticals, or precision instruments.

FAQ

What standards does the OK-DL-150 comply with?
It conforms to GB/T 4857.5, ISO 2248:1985, and related clauses in the GB/T 4857 series (e.g., GB/T 4857.1, .2, .17, .18) for packaging performance testing.
Can the machine perform corner drops without manual reorientation?
Yes—the single-arm cradle allows secure clamping and precise angular positioning for all eight corners without disassembly or secondary fixtures.
Is calibration documentation provided with shipment?
Each unit ships with a factory calibration certificate referencing NIST-traceable height standards and encoder linearity verification per ISO 17025 principles.
What maintenance is required for long-term accuracy?
Annual verification of encoder resolution, mechanical alignment, and hydraulic damper fluid level is recommended; no routine lubrication of load-bearing columns is needed due to chromium plating.
Does the OK-DL-150 support automated data export?
Yes—via RS-485 Modbus interface; optional software enables direct CSV report generation with timestamped height, orientation, and cycle count metadata.
