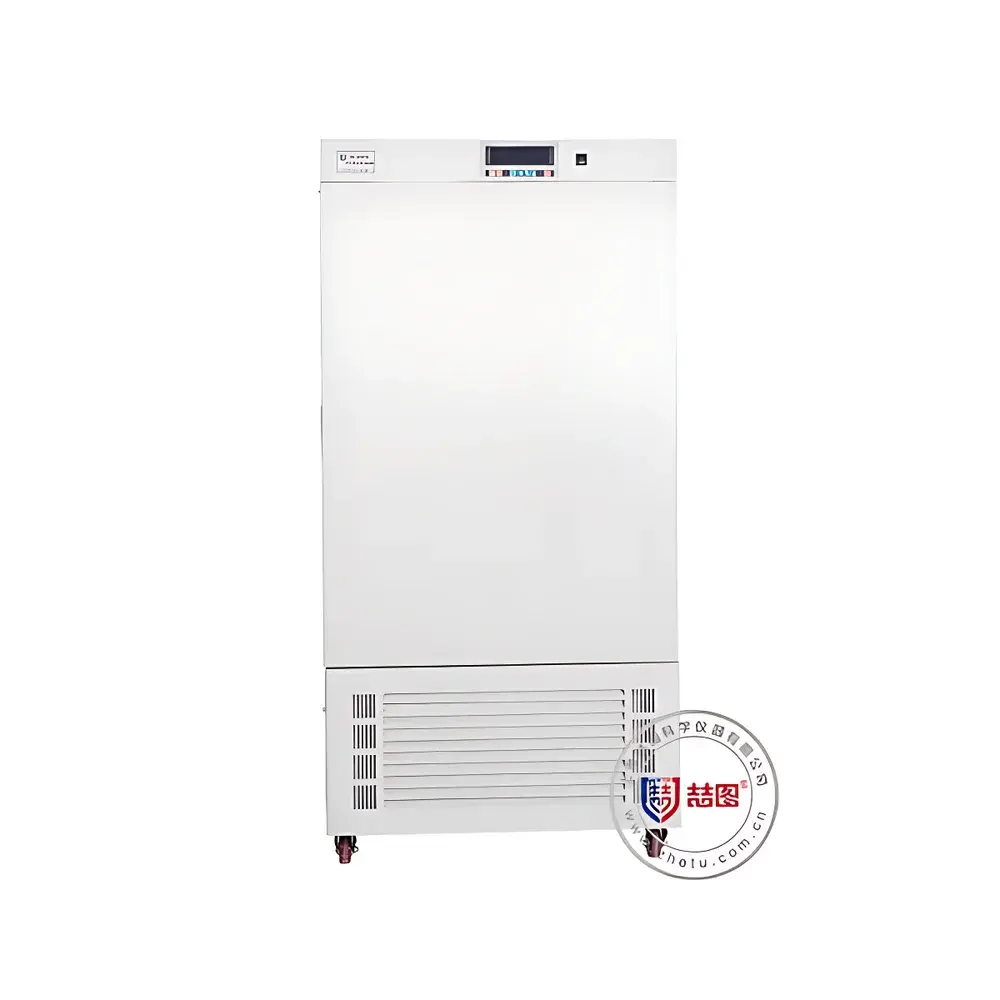

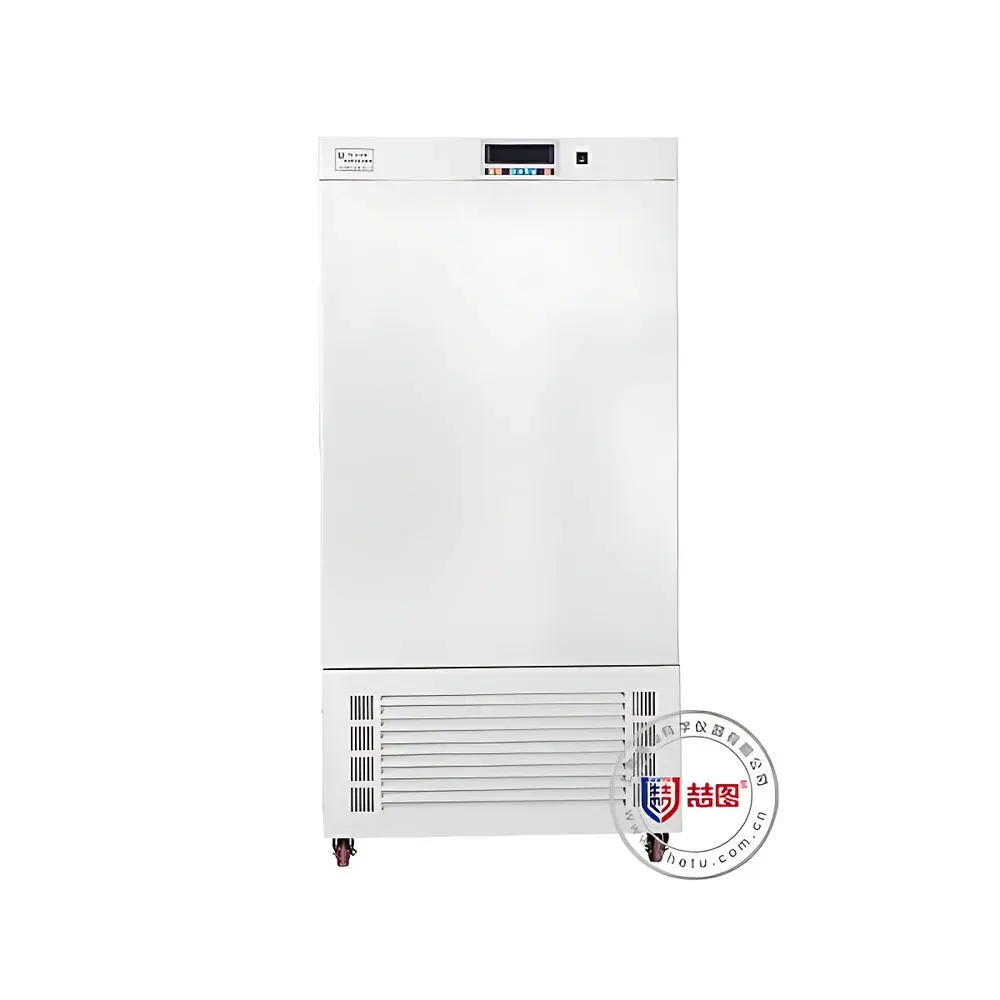

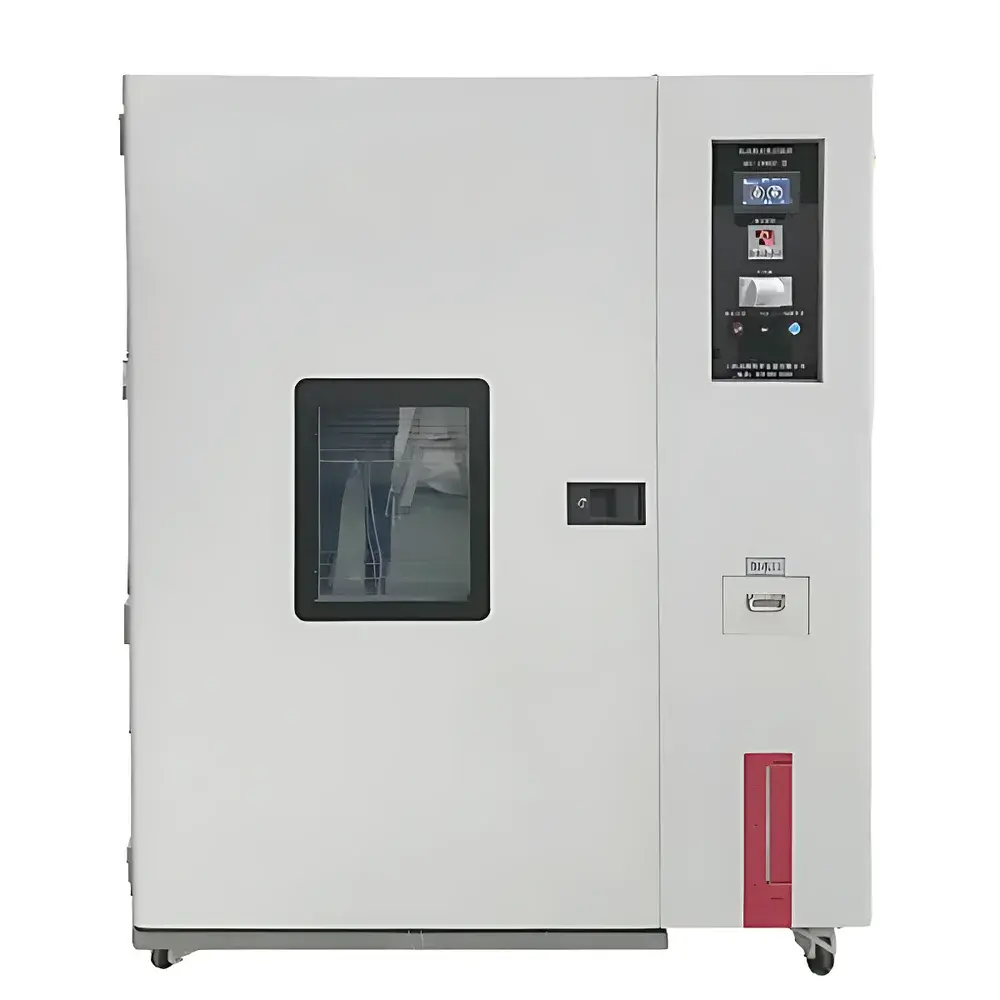

DRETOP BGMH-1000 Integrated Drug Stability Testing Chamber

Overview

The DRETOP BGMH-1000 Integrated Drug Stability Testing Chamber is a GMP-aligned environmental simulation system engineered for ICH Q1–Q5-compliant pharmaceutical stability studies. It operates on a dual-loop, independently controlled thermohygrometric architecture—combining precision PID-regulated heating/cooling with high-stability solid-state humidity generation and optional photometric illumination—to replicate defined climatic conditions per ICH guidelines (e.g., Condition 25 °C/60 %RH for long-term testing; 40 °C/75 %RH for accelerated studies; and 4500 lx ± 500 lx for photostability per ICH Q5C). The chamber’s structural integrity derives from double-wall insulated stainless-steel construction, silicone gasket sealing rated for −20 °C to +80 °C operation, and a balanced forced-air circulation system designed to meet ISO 14644–1 Class 8 airflow uniformity requirements within the working volume. Its primary function is to provide reproducible, auditable, and traceable environmental exposure for active pharmaceutical ingredients (APIs), finished dosage forms, and biologics during formal stability protocols mandated by regulatory authorities including the US FDA, EMA, PMDA, and NMPA.

Key Features

• Independent dual-control architecture for temperature and humidity—eliminating cross-interference and enabling simultaneous ramp-and-soak profiles with ±0.5 °C temperature fluctuation and ±3 %RH humidity deviation.
• 7-inch industrial-grade color touchscreen HMI supporting 100 programmable cycles, each with up to 100 segments; slope-based ramp control for temperature/humidity transitions; and customizable illumination timing (on/off/duty cycle) for photostability trials.
• Multi-tiered access management: Administrator (full system configuration), Maintenance Technician (real-time monitoring, log review, firmware update), and Operator (run/stop, data view only)—enforcing ALCOA+ principles for data integrity.
• High-efficiency refrigeration subsystem featuring imported hermetic compressors, auto-defrost logic, and nickel-chromium heating elements paired with high-CFM centrifugal blowers—ensuring ≤2.5 °C temperature uniformity across the 1000 L working volume.
• Electronic humidity sensing operating at elevated temperatures (up to 65 °C), eliminating reliance on traditional wet-bulb psychrometry and associated maintenance downtime.
• Integrated safety architecture: independent mechanical overtemperature cutoff (K-type limiter), compressor/fan overload protection, earth-leakage circuit interruption, and audible/visual alarm escalation with SMS notification via optional wireless module.
• Continuous data acquisition at 60-second intervals, stored locally in non-volatile memory with >3-year retention capacity; full audit trail including operation logs, alarm history, and parameter change timestamps.

Sample Compatibility & Compliance

The BGMH-1000 accommodates standard pharmaceutical packaging configurations—including blister cards, HDPE bottles, glass vials, and lyophilized trays—across four adjustable stainless-steel shelves (load capacity: 15 kg/shelf). Its internal geometry and airflow design comply with WHO TRS 992 Annex 6 and USP requirements for spatial uniformity validation. Optional accessories extend regulatory alignment: (i) 3Q validation packages (IQ/OQ/PQ) pre-executed per ASTM E2500 and EU Annex 15; (ii) CNAS-accredited calibration certificates at user-defined test points (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 5 °C/80 %RH); (iii) optional 21 CFR Part 11–enabled software with electronic signatures, audit trail export, and role-based e-signature workflows. All chambers undergo factory performance verification per ISO 16770:2021 and are supplied with a Declaration of Conformity to CE Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU.

Software & Data Management

The embedded control firmware supports real-time graphical visualization of temperature, humidity, and illumination (if equipped) via dynamic trend curves. Historical datasets are exportable in CSV or PDF formats directly from the touchscreen or via USB 2.0 port. Optional RS485 Modbus RTU interface enables integration into centralized LabVantage, STARLIMS, or TrackWise LIMS environments. For remote oversight, the S-type mobile client provides authenticated access to live chamber status, alarm acknowledgment, and historical curve replay—without exposing internal network infrastructure. Data security adheres to ICH GCP and GMP Annex 11: all parameter modifications are logged with operator ID, timestamp, and pre-/post-change values; deletion or overwrite functions are disabled by default and require administrator override with justification entry.

Applications

• ICH Q1A(R2) long-term, intermediate, and accelerated stability studies for small-molecule drugs and generics.
• ICH Q5C photostability assessment under Option 1 (near-UV and visible light) and Option 2 (controlled irradiation) conditions.
• ICH Q5D cell culture media and biologics storage condition qualification (e.g., 2–8 °C mapping, 25 °C/60 %RH real-time stability).
• GMP-compliant revalidation of warehouse and logistics environmental controls per EU GDP Chapter 9.
• Method development and transfer support for dissolution, extractables/leachables, and particulate matter testing requiring stable ambient baselines.
• Academic and contract research organization (CRO) use in formulation development, excipient compatibility screening, and degradation pathway analysis.

FAQ

What ICH guidelines does the BGMH-1000 support out-of-the-box?
It natively supports ICH Q1A(R2), Q1B, Q1C, Q5C, and Q5D test conditions through preloaded program templates and validated sensor accuracy across the full operational range.
Is 21 CFR Part 11 compliance available as standard or optional?
Part 11 functionality is optional and requires activation of the validated software module (S-type), which includes electronic signatures, audit trail encryption, and system-generated certificate of validation.
Can the chamber be calibrated to NIST-traceable standards?
Yes—CNAS-certified calibration services are available at customer-specified temperature/humidity setpoints; certificates include measurement uncertainty budgets per ISO/IEC 17025.
What is the maximum allowable load mass without compromising uniformity?
Total payload must not exceed 60 kg distributed evenly across shelves; exceeding this may affect airflow dynamics and invalidate temperature uniformity claims per ISO 16770.
How is alarm escalation handled during unattended operation?
Alarms trigger local siren, visual indicator, and—when equipped with B-type module—SMS alerts to up to three designated recipients with fault code and timestamp.
Does the system support automated reporting for regulatory submissions?
Yes—PDF reports with embedded chamber ID, test protocol reference, environmental profile plots, and digital signature fields can be generated and exported directly from the HMI or via connected PC software.
