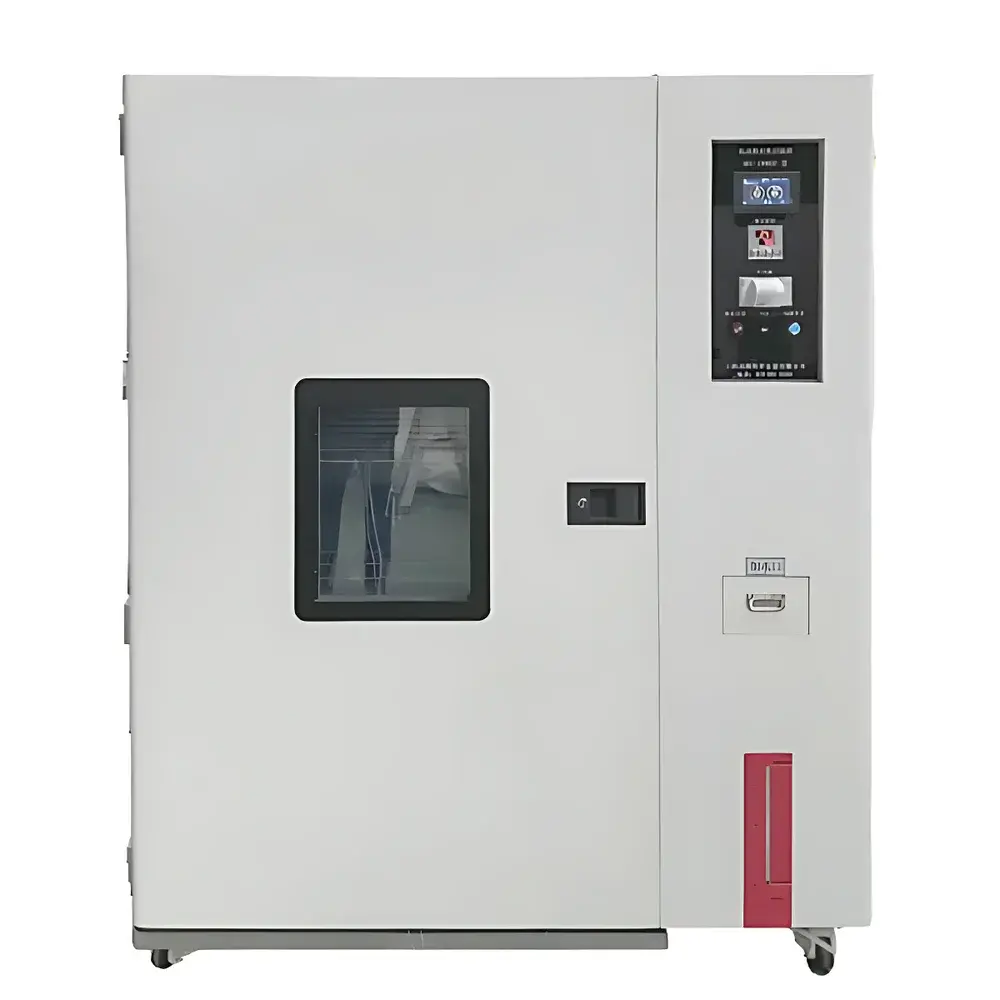

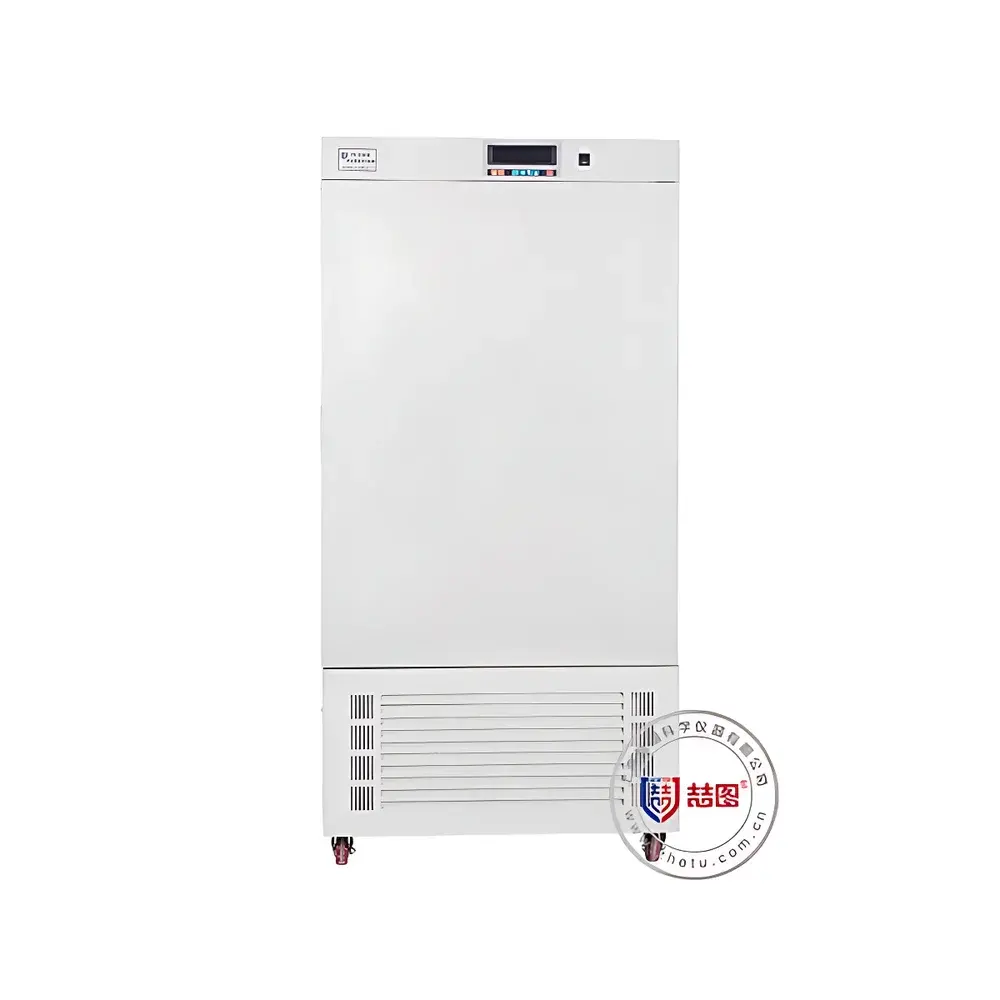

DRETOP BGMH-250 Integrated Drug Stability Testing Chamber
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | BGMH-250 |
| Temperature Range | 0–65 °C |
| Temperature Uniformity | ±2.5 °C |
| Temperature Fluctuation | ±0.5 °C |
| Humidity Range | 30–95 %RH (customizable to 20–95 %RH) |
| Humidity Deviation | ±3 %RH |
| Illumination Range | 0–25,000 lx (optional) |
| Internal Volume | 250 L |
| Power Supply | AC 220 V / 50 Hz |
| Input Power | 2400 W |
| Control Interface | Color TFT Touchscreen |
| Programmable Steps | 100 segments per program × 100 programs |
| Data Logging Interval | 60 s (≥3 years continuous storage) |
| Compliance Support | IQ/OQ/PQ documentation, CNAS calibration certificate available |
Overview
The DRETOP BGMH-250 Integrated Drug Stability Testing Chamber is a purpose-built environmental simulation system engineered for pharmaceutical stability studies in accordance with ICH Q1–Q5 guidelines and regional regulatory requirements including USP , FDA 21 CFR Part 11, and EU Annex 15. It employs a dual-loop, independent control architecture for precise regulation of temperature, relative humidity, and optional photometric irradiance—enabling execution of accelerated, long-term, intermediate, high-humidity, and photostability testing protocols as defined in ICH Q1B and Q5C. The chamber integrates a high-efficiency refrigeration system with auto-defrost functionality, a nickel-chromium heating assembly, and a forced-air convection system optimized to meet ISO 14644-1 Class 8 airflow uniformity criteria across the working volume. Its structural design prioritizes thermal inertia minimization and recovery stability, ensuring compliance with ICH-defined temperature deviation limits (±0.5 °C fluctuation, ±2.5 °C uniformity) during door-opening events and load transitions.
Key Features
- Industrial-grade color TFT touchscreen interface with multilingual (English/Chinese) display and role-based access control: Administrator, Maintenance Technician, and Operator tiers—each with auditable permission boundaries.
- Advanced programmable logic: Up to 100 user-defined test programs, each supporting 100 sequential segments with independent ramp/hold profiles for temperature, humidity, and illumination (if equipped).
- Dual-independent climate control: Separate PID-regulated refrigeration and humidification circuits minimize cross-interference and improve energy efficiency while reducing maintenance frequency.
- High-stability humidity sensing: High-temperature-rated electronic capacitive RH sensor eliminates reliance on traditional dry/wet-bulb assemblies, eliminating consumable replacement and calibration drift.
- Robust thermal management: Optimized air duct geometry, centrifugal circulation fan (rated >50,000 hours MTBF), and silicone rubber door gasket ensure ≤2.5 °C spatial uniformity and rapid (<15 min) temperature recovery after 30-second door opening (per ASTM E2736).
- Comprehensive safety architecture: Dual-stage over-temperature cutoff (main controller + independent K-type mechanical limiter), compressor/fan overload protection, leakage current detection, and audible/visual alarm with optional SMS alert via GSM module (B-type add-on).
- Data integrity assurance: Built-in non-volatile memory logs operational parameters at 60-second intervals for ≥3 years; supports audit-trail-enabled event logging (system start/stop, setpoint changes, alarms, user logins) compliant with ALCOA+ principles.
Sample Compatibility & Compliance
The BGMH-250 accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum tubes—on four adjustable stainless-steel shelves (load capacity: 15 kg/shelf). Its internal chamber (580 × 500 × 850 mm W×D×H) meets ICH Q5C light exposure geometry requirements when configured with optional V-type UV sterilization or E-type LED-based photometric illumination (0–25,000 lx, ±5 % linearity). All electrical and mechanical subsystems conform to IEC 61010-1:2010 safety standards. Optional 3Q validation packages (IQ/OQ/PQ) are provided per GMP Annex 15, including installation verification of sensor placement, operational boundary testing (e.g., worst-case humidity ramp at 40 °C/75 %RH), and performance qualification across three calibrated reference points (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 60 °C/ambient RH). CNAS-accredited calibration certificates are available for temperature (0 °C, 60 °C, 121 °C) and humidity (15 °C/40 %RH, 20 °C/60 %RH, 30 °C/80 %RH) points.
Software & Data Management
The embedded control firmware supports FDA 21 CFR Part 11-compliant electronic records through configurable audit trails, electronic signatures, and immutable data storage. Real-time trend visualization includes dual-axis plots (temperature vs. time, humidity vs. time) with zoom, pan, and overlay functions. Historical datasets export in CSV or PDF format via USB port or RS485 interface (R-type option); integration with LIMS or SCADA systems is supported via Modbus RTU protocol. Optional J-type standalone recorder provides redundant local data capture with 128 MB internal flash memory. Mobile monitoring (S-type app) enables remote viewing of live chamber status, alarm history, and real-time curves on iOS/Android devices—without exposing internal network infrastructure.
Applications
- ICH Q1A(R2) accelerated stability testing (40 °C/75 %RH, 30 °C/65 %RH)
- ICH Q1B photostability assessment under near-UV and visible light (Option E or multi-spectral R/G/B/V sources)
- Long-term storage condition simulation (25 °C/60 %RH, 30 °C/65 %RH)
- High-humidity stress testing (40 °C/90 %RH, 50 °C/95 %RH)
- Excipient compatibility screening under controlled hygrothermal conditions
- GMP-compliant stability protocol execution for ANDA, NDA, and MA submissions
- Biologics and mRNA formulation stability under low-temperature/high-humidity regimes (with extended RH range option)
FAQ
Does the BGMH-250 comply with ICH Q1 and Q5 guidelines?
Yes—the chamber’s control accuracy, uniformity, and documentation capabilities are validated against ICH Q1A(R2), Q1B, and Q5C requirements. Full 3Q validation kits and CNAS calibration reports support global regulatory submissions.
Can humidity be maintained at 20% RH?
Standard configuration covers 30–95% RH; 20–95% RH is available as a factory-customized option using enhanced desiccant-assisted dehumidification.
Is remote monitoring supported out-of-the-box?
Basic remote status viewing requires the S-type mobile app (optional); full data streaming and control require RS485 integration with third-party SCADA or cloud platforms.
What is the warranty coverage for critical components?
Compressor and touchscreen controller are covered under 24-month limited warranty; all other subsystems carry 18-month parts-and-labor coverage from date of commissioning.
How is data integrity ensured during power interruptions?
The system features automatic power-resume functionality with non-volatile memory retention. All logged data remains intact, and active programs resume from last valid segment upon restoration.
