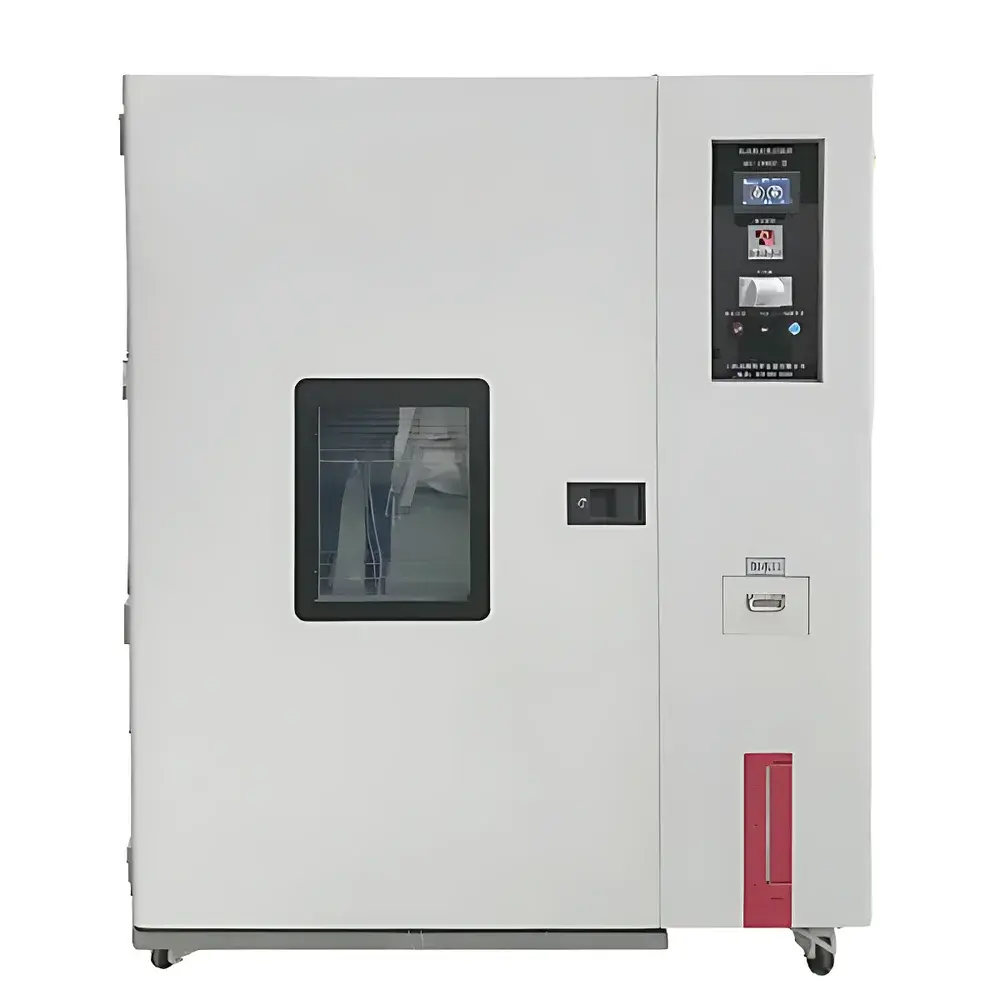

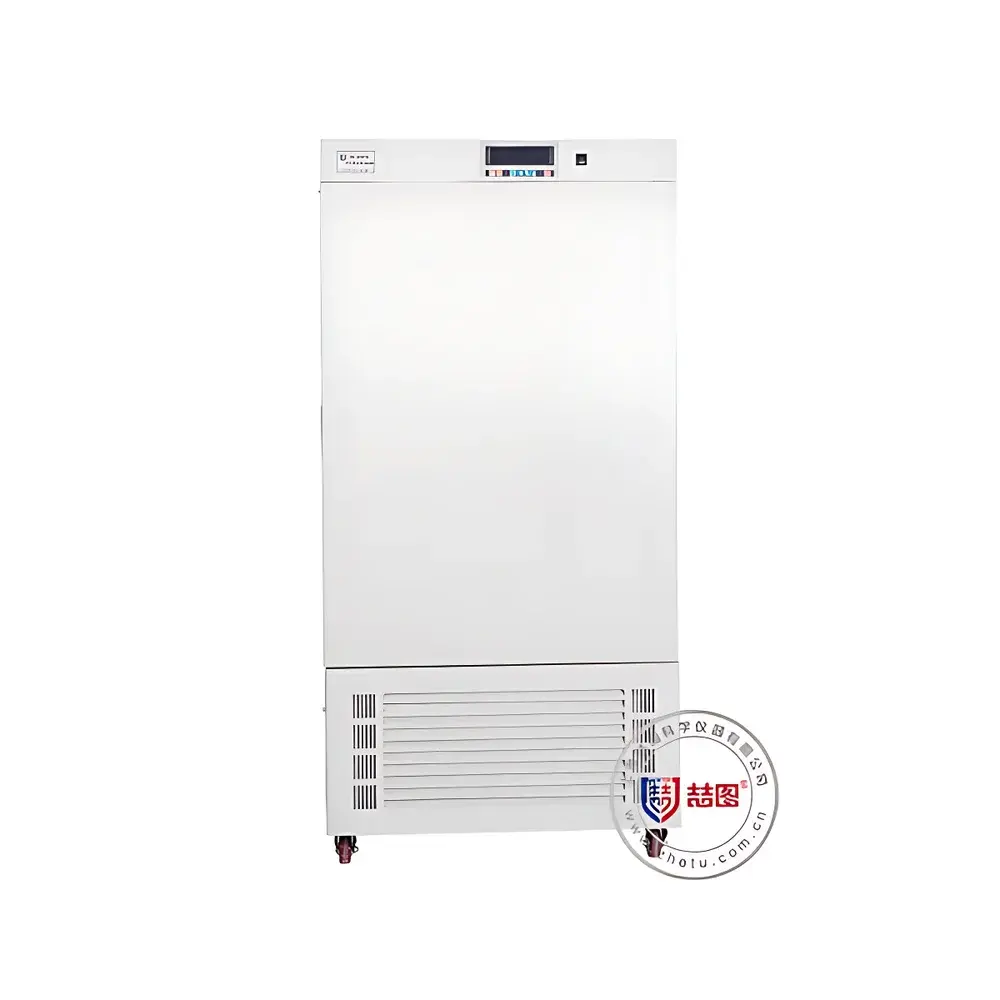

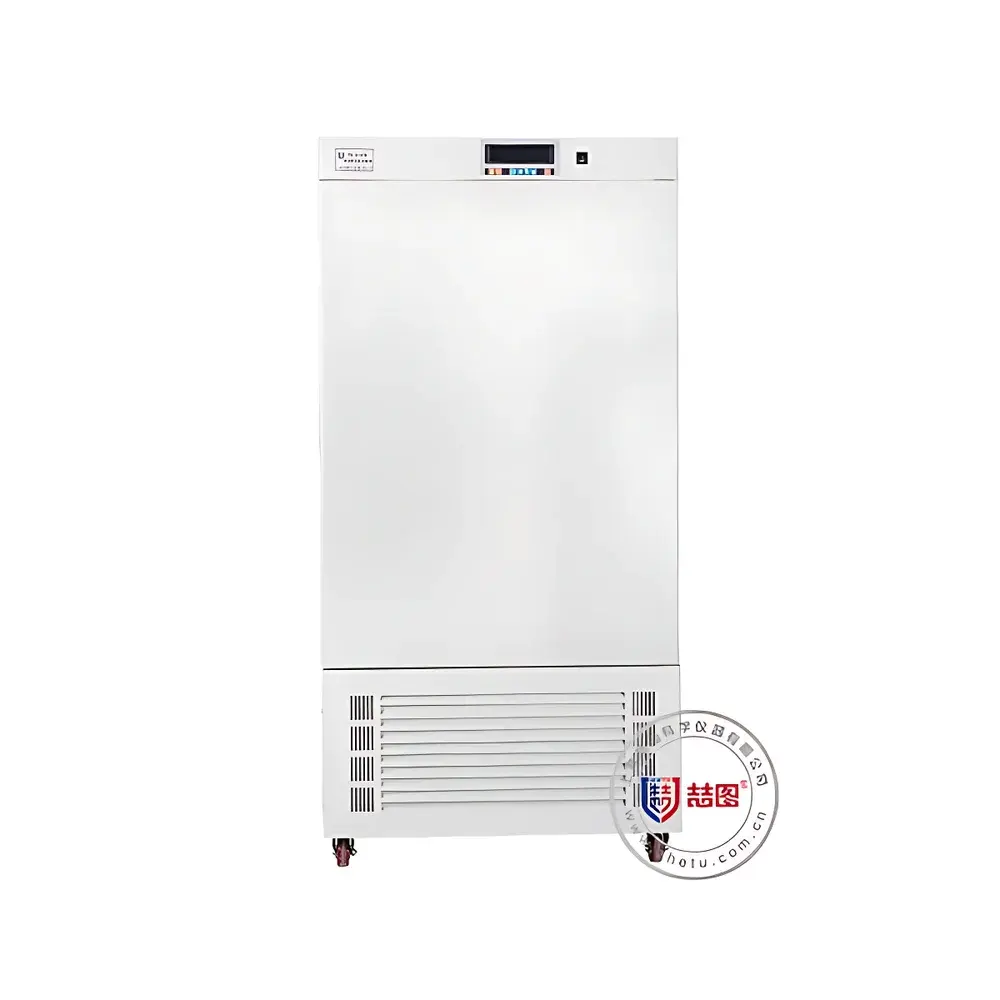

DRETOP BMH-800 Pharmaceutical Stability Testing Chamber

Overview

The DRETOP BMH-800 Pharmaceutical Stability Testing Chamber is an ISO 14644-1 and ICH Q1-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of pharmaceutical products, active pharmaceutical ingredients (APIs), and drug formulations. It operates on a dual-loop control architecture—separately regulating temperature, relative humidity, and optional photometric exposure—to replicate the precise climatic conditions specified in ICH guidelines (Q1A–Q1E), USP , and WHO TRS Annex 9. The chamber employs a high-efficiency refrigeration circuit with imported hermetic compressors, low-GWP refrigerant, and automated defrost logic to maintain uninterrupted operation over extended test durations (up to 180 days continuously). Its internal airflow design follows ASTM E2877-22-recommended turbulence-free laminar distribution, ensuring spatial uniformity across all load configurations. Structural integrity is reinforced by electropolished 304 stainless steel inner walls, silicone rubber door gaskets rated for -20 °C to +80 °C service, and double-glazed observation windows with anti-fog heating elements.

Key Features

• Fully programmable 10.1-inch color touchscreen HMI supporting up to 100 user-defined multi-segment protocols (100 segments per program), with real-time slope control for temperature and humidity ramps
• Multi-tiered access management: Administrator (full system configuration), Maintenance Technician (data review + alarm reset), and Operator (run/stop + live monitoring only)—enabling role-based compliance with FDA 21 CFR Part 11 audit trail requirements
• Independent PID-controlled thermal and humidification systems using NiCr alloy heaters, centrifugal forced-air circulation (≥30 air changes/hour), and high-stability capacitive humidity sensors operating continuously at elevated temperatures (eliminating dry-wet bulb maintenance)
• Embedded data logger with non-volatile memory retains ≥3 years of timestamped temperature/humidity records at 60-second intervals; supports USB export and micro-printer output (standard)
• Comprehensive safety architecture including over-temperature cut-off (dual independent limit controllers), compressor/fan overload protection, ground-fault interruption, and audible/visual alarm with SMS alert via optional B-type module
• Energy-optimized design: EC fan motors, variable-speed refrigeration modulation, and intelligent power recovery after grid interruption (auto-restart with parameter retention)

Sample Compatibility & Compliance

The BMH-800 accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum pouches—across its 800 L working volume. Its interior geometry and airflow profile meet ICH Q5C recommendations for minimal thermal stratification (<±2.5 °C deviation across shelf plane) and humidity homogeneity (±3 %RH point-to-point variance). Optional illumination modules (E-type, V-type, or multi-spectral R/G/B/V LED arrays) conform to ICH Q5C photostability testing requirements (Option 1: cool white fluorescent; Option 2: UV-A + visible spectrum), with irradiance calibrated per ISO 10977 and traceable to NIM (China National Institute of Metrology). Full 3Q validation packages (IQ/OQ/PQ) are available upon request, aligned with EU GMP Annex 15 and PIC/S PE 009-16. CNAS-accredited calibration certificates cover temperature (0 °C, 60 °C, 121 °C), humidity (15 °C/40 %RH, 20 °C/60 %RH, 30 °C/80 %RH), and illuminance (at 1000 lx, 5000 lx, and 25,000 lx setpoints).

Software & Data Management

The embedded control firmware provides native support for electronic record integrity per ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available. All user actions—including program edits, setpoint changes, and manual overrides—are logged with timestamps, operator ID, and reason-for-change fields. Historical trend curves (temperature, humidity, illumination) are viewable in real time or retrospectively, with zoom, compare, and overlay functions. Optional RS485 interface enables integration into LabVantage, STARLIMS, or custom MES environments; S-type mobile app extends remote monitoring and push-notification alerts to iOS/Android platforms. Data exports comply with CSV and PDF/A-1b standards for regulatory submission readiness.

Applications

• ICH Q1A(R2)-mandated long-term stability studies (25 °C/60 %RH, 30 °C/65 %RH) and accelerated testing (40 °C/75 %RH)
• High-humidity challenge tests per USP and Ph. Eur. 2.9.40 for hygroscopic dosage forms
• Photostability assessment under ICH Q5C Option 1 (fluorescent) and Option 2 (UV + visible) conditions
• Excipient compatibility screening and degradation pathway analysis under controlled stress environments
• Biologics and mRNA vaccine formulation stability profiling at sub-zero dew point conditions (with optional low-RH configuration)
• GMP-compliant release testing and shelf-life determination in QC laboratories

FAQ

Does the BMH-800 comply with FDA 21 CFR Part 11 requirements for electronic records?
Yes—the system implements role-based authentication, immutable audit trails, electronic signatures (via administrator approval workflow), and data integrity safeguards aligned with Part 11 Subpart B.
Can the chamber operate continuously for 6 months without maintenance?
Yes—its maintenance-free humidity sensor, auto-defrost refrigeration cycle, and redundant safety controls enable unattended operation for ≥180 days under validated load conditions.
Is third-party IQ/OQ/PQ support available?
Yes—DRETOP provides full GMP-aligned 3Q documentation packages, including protocol templates, executed reports, and evidence of equipment qualification against user requirement specifications (URS).
What is the uncertainty of temperature and humidity measurement?
Temperature uncertainty: ±0.3 °C (k=2) at 25 °C; humidity uncertainty: ±2.1 %RH (k=2) at 60 %RH—verified per ISO/IEC 17025-accredited procedures.
How is data security ensured during power failure?
All critical parameters and logs are written to non-volatile flash memory prior to shutdown; the system resumes from last known state upon power restoration, preserving program continuity and timestamp integrity.
