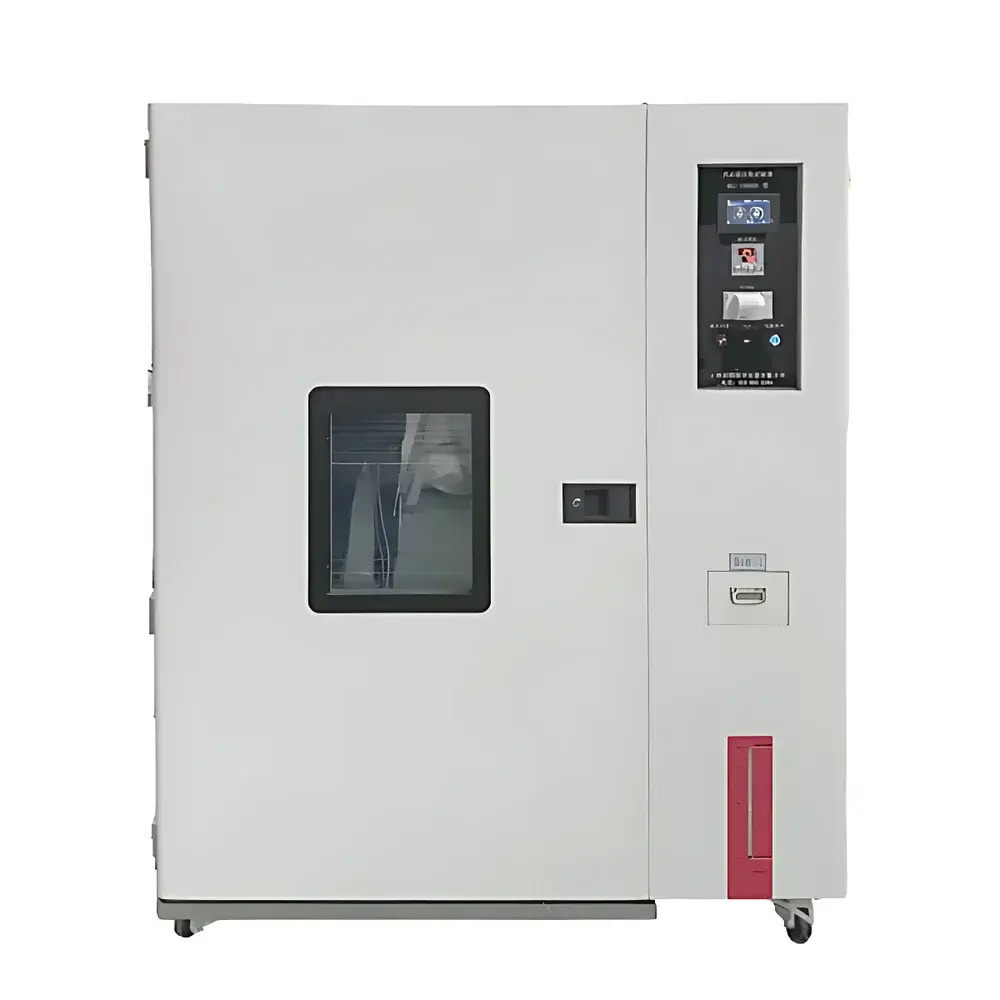

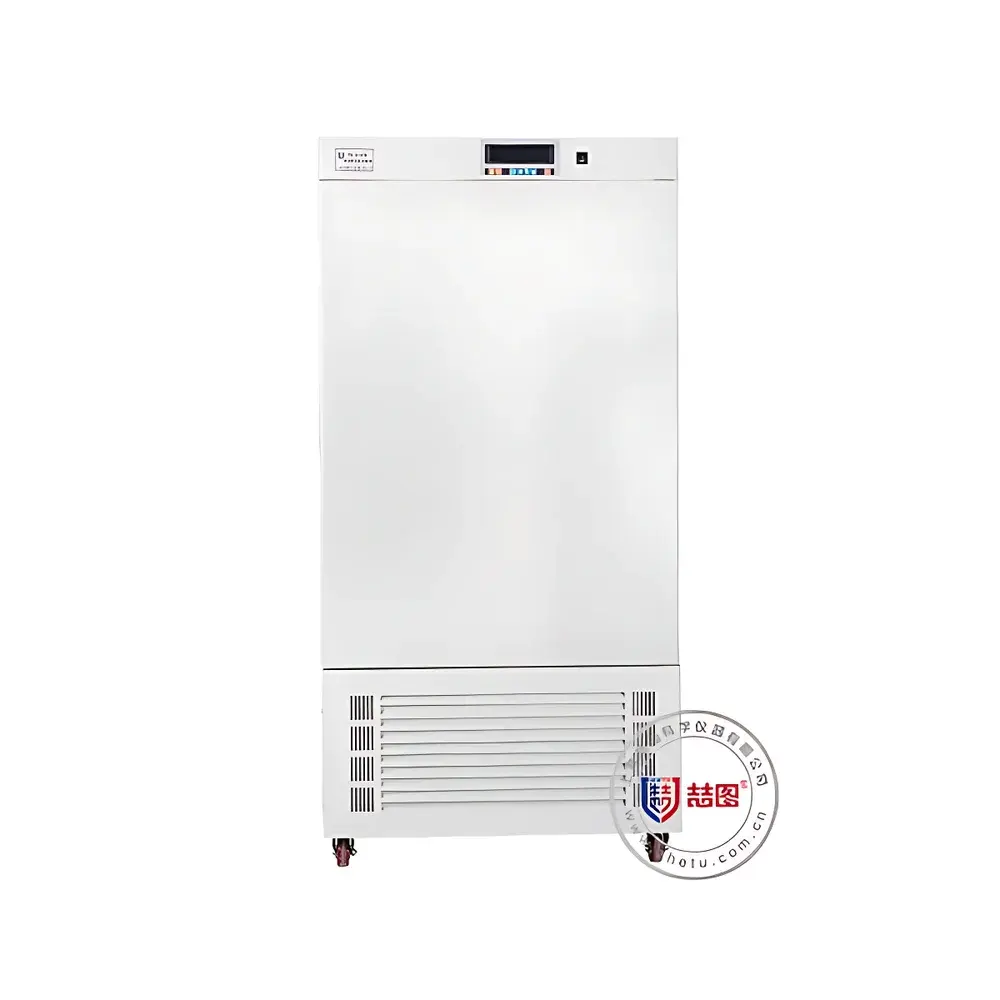

DRETOP EMH-1000 Drug Stability Testing Chamber

Overview

The DRETOP EMH-1000 Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of pharmaceutical products in accordance with ICH Q1A(R3), Q1B, Q5C, and relevant regional regulatory expectations (USP , EP 2.9.40, JP 17). It integrates precise, independent control of temperature, relative humidity, and optional photometric irradiance (visible and UV) within a single-chamber architecture. The chamber employs a dual-loop PID control strategy—separate thermal and humidification systems—ensuring minimal cross-interference during dynamic profile execution. Its design prioritizes metrological integrity: temperature uniformity is maintained at ±2.5 °C across the full working volume under steady-state conditions, while humidity control accuracy remains within ±3 %RH over the 30–95 %RH range. The unit is constructed with electropolished stainless steel interior walls, high-efficiency nickel-chromium heating elements, and a low-GWP refrigeration circuit using imported compressors—enabling stable operation at 65 °C/95 %RH or 40 °C/75 %RH for durations exceeding 180 days without drift or condensation artifacts.

Key Features

• 10.1-inch full-color capacitive touchscreen HMI with bilingual (English/Chinese) interface and multi-level access control (Administrator, Maintenance Technician, Operator)
• Programmable logic controller supporting up to 100 user-defined test protocols, each with 100 segments; ramp-and-soak profiles for temperature, humidity, and illumination intensity
• Independent humidity generation via high-temperature electronic capacitive RH sensor—eliminating reliance on wet-bulb/dry-bulb psychrometry and associated maintenance
• Optimized air circulation architecture featuring centrifugal forced convection fans and aerodynamically tuned ductwork—achieving ≤60 s recovery time after door opening and ≤±0.5 °C spatial gradient across load zone
• Dual-stage safety architecture: primary microprocessor-based controller + secondary independent mechanical over-temperature limiter (K-type option)
• Integrated data logging with non-volatile memory—60-second sampling interval yields >3 years of continuous traceable records (timestamped, parameter-tagged, CRC-verified)
• Comprehensive alarm management: audible alert, visual indicator, automatic power cutoff on critical fault (over-temperature, compressor stall, fan failure), plus optional SMS notification (B-type add-on)
• Silicone rubber door gasket rated for -20 to +80 °C service life—maintaining seal integrity and internal pressure differential across operational extremes

Sample Compatibility & Compliance

The EMH-1000 accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum-laminated pouches—on four independently adjustable stainless steel shelves (load capacity: 15 kg/shelf). Its internal geometry complies with ICH Q5C recommendations for sample placement density and airflow clearance. All control firmware and data handling routines are designed to support GLP and GMP environments: audit trail functionality logs all user actions (login/logout, parameter edits, program starts/stops), and optional RS485 Modbus RTU interface enables integration into validated SCADA or MES platforms. Upon request, DRETOP provides full 3Q validation packages (IQ/OQ/PQ) aligned with ASTM E2500-21 and EU Annex 15 guidance. CNAS-accredited calibration certificates are available for specified temperature/humidity setpoints, traceable to NIM (China National Institute of Metrology).

Software & Data Management

The embedded operating system supports real-time graphical display of temperature, humidity, and (if equipped) illuminance curves, with zoom, pan, and overlay functions. Historical datasets export in CSV format via USB port or RS485 link—retaining original timestamps, operator IDs, and event markers (e.g., door open, alarm trigger). Optional J-type paperless recorder provides redundant local archiving with 12-month internal flash memory retention. Remote monitoring is enabled via S-type mobile application (iOS/Android), delivering push notifications for alarm states and live telemetry without exposing the chamber’s network stack to external attack vectors. All data files include SHA-256 hash signatures to ensure forensic integrity—meeting FDA 21 CFR Part 11 requirements when paired with organizational electronic signature policies.

Applications

• ICH Q1A(R3) long-term stability testing (25 °C/60 %RH, 30 °C/65 %RH)
• Accelerated stability assessment (40 °C/75 %RH, 50 °C/80 %RH)
• Photostability evaluation per ICH Q1B: Option E (visible light, 25000 lx) and Option V (UV-C germicidal cycle) enable sequential or concurrent light exposure protocols
• High-humidity challenge testing for hygroscopic APIs and excipients
• Excipient compatibility screening under controlled thermo-hygrometric stress
• Biologics formulation development requiring extended low-temperature/humidity cycling (e.g., 5 °C/40 %RH → 40 °C/80 %RH)
• Reference standard storage under ISO 8573-1 Class 4 compressed air-equivalent ambient conditions

FAQ

Does the EMH-1000 meet ICH Q1B photostability requirements?
Yes—when configured with the E-type illuminance control module (0–25,000 lx, ±5 % accuracy) and optional V-type UV-C subsystem, it satisfies ICH Q1B Option 1 (method A) irradiance thresholds and spectral distribution guidelines.
Can humidity be controlled below 30 %RH?
Standard configuration begins at 30 %RH; however, custom dehumidification modules (desiccant wheel or dual-refrigerant cascade) can extend the lower limit to 20 %RH upon specification during order placement.
Is remote validation support available for 3Q documentation?
DRETOP provides on-site or virtual IQ/OQ execution by certified engineers, including URS review, FAT/SAT witnessing, and PQ protocol development—fully compliant with EU GMP Annex 15 and WHO TRS 986.
What is the maximum allowable sample mass per shelf?
Each of the four shelves supports up to 15 kg distributed load; total chamber loading must not exceed 60 kg to preserve airflow dynamics and thermal homogeneity.
How is data integrity ensured during power interruption?
The system features automatic restart with state restoration (including active program position and elapsed segment time), backed by supercapacitor-buffered RAM and battery-independent EEPROM for critical firmware and calibration constants.
