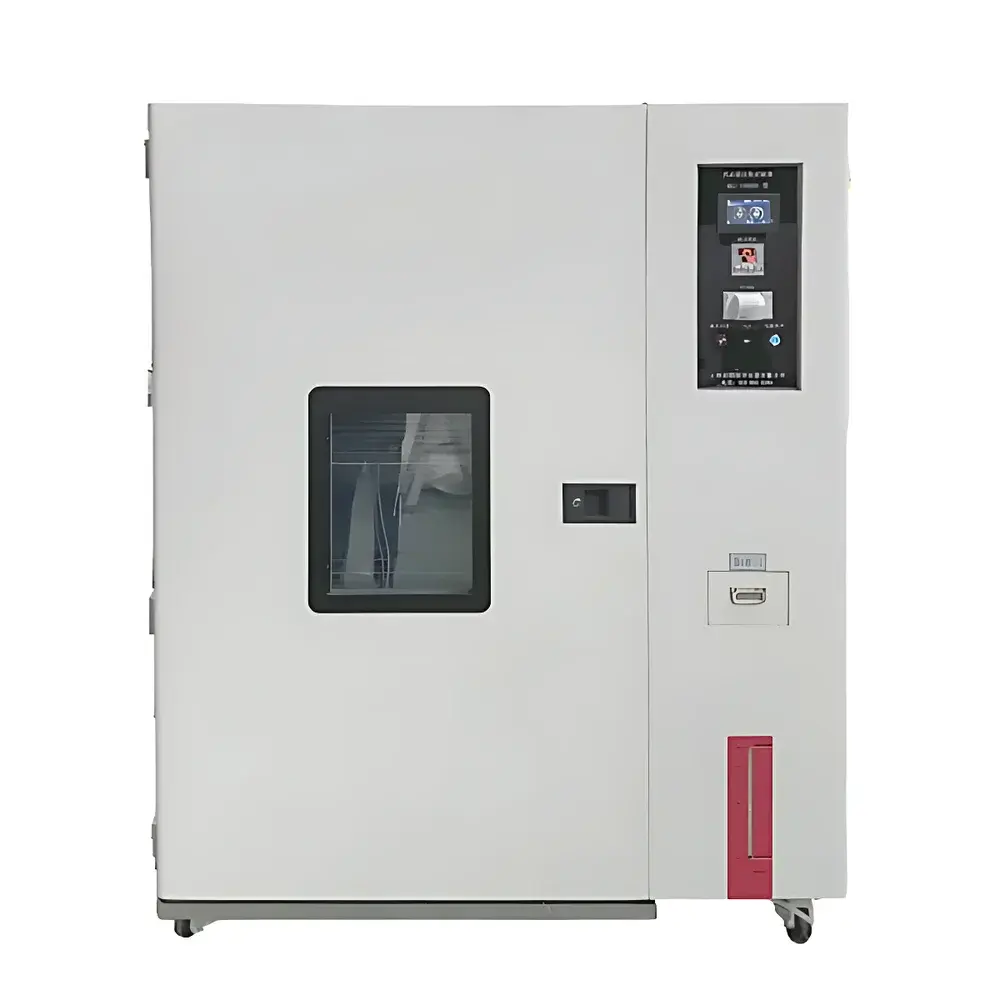

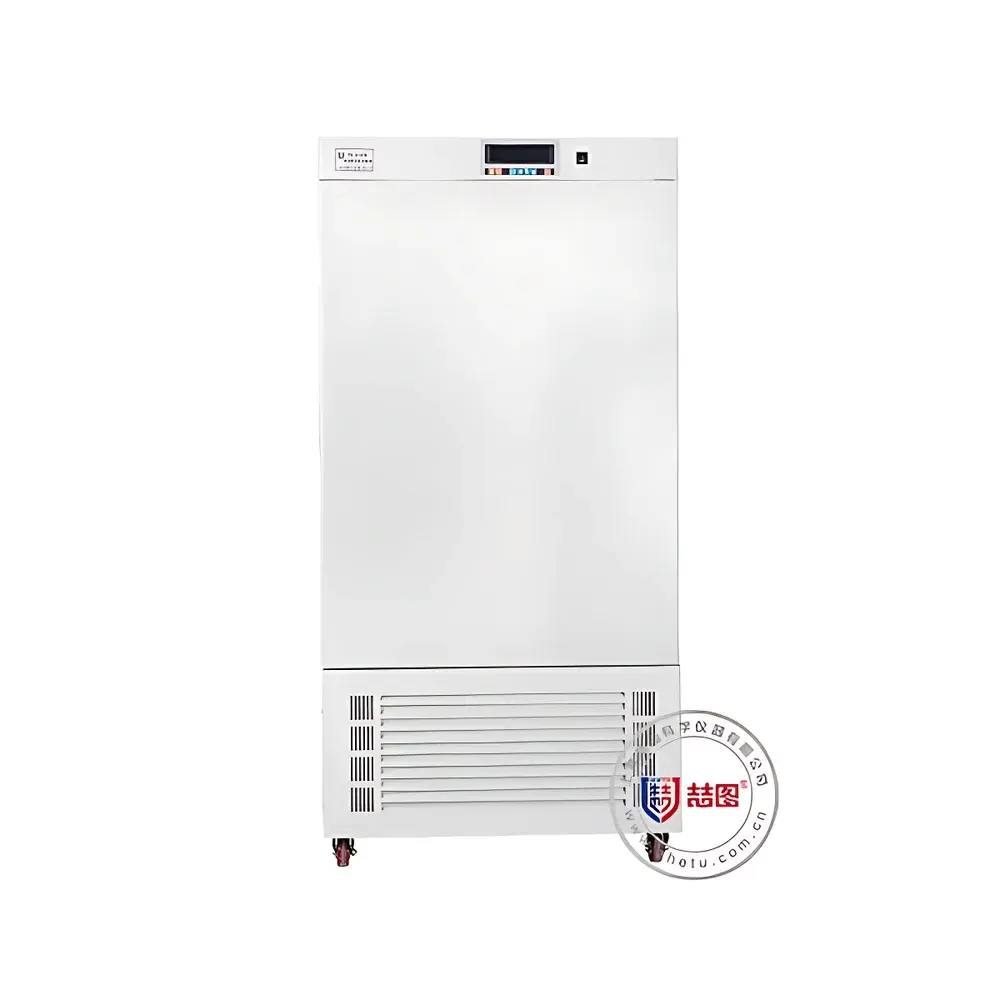

DRETOP EMH-250 Pharmaceutical Stability Testing Chamber

Overview

The DRETOP EMH-250 Pharmaceutical Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of drug substances and products under controlled temperature, humidity, and optional light exposure. Designed in accordance with ICH Q1A(R2), Q1B, Q5C, and WHO TRS 953 Annex 2 guidelines, the chamber employs a dual-loop PID-controlled refrigeration-heating-humidification architecture to maintain precise climatic conditions over extended durations—critical for defining shelf life, establishing storage recommendations, and supporting regulatory submissions to FDA, EMA, PMDA, and NMPA. Its robust thermal management system integrates independent control of cooling, heating, and humidification subsystems, minimizing cross-interference and ensuring high reproducibility across repeated test cycles. The chamber’s insulated double-wall construction, silicone rubber door gasket, and optimized forced-air convection ducting collectively achieve ≤±2.5 °C temperature uniformity and ≤±3 %RH humidity deviation—performance metrics validated per ISO 16770:2017 for stability chambers.

Key Features

• 10.1-inch full-color resistive touchscreen interface with multilingual (English/Chinese) display and hierarchical user access control (Administrator, Maintenance Technician, Operator)
• Programmable logic controller supporting up to 100 multi-segment protocols (100 segments per program), enabling complex ramp-soak profiles for temperature, humidity, and optional illumination
• Independent high-efficiency refrigeration circuit using R404A-free, low-GWP compressor; automatic defrost cycle prevents ice accumulation during prolonged low-temperature operation
• High-stability nickel-chromium heating elements paired with centrifugal forced-air circulation (≥300 m³/h airflow) ensure rapid thermal recovery (<15 min after 30-second door opening) and uniform chamber distribution
• High-accuracy capacitive humidity sensor operating continuously at elevated temperatures—eliminating reliance on traditional wet-bulb/dry-bulb systems and associated maintenance overhead
• Integrated data integrity safeguards: real-time logging at 60-second intervals (stored internally for ≥3 years), tamper-resistant audit trail, time-stamped alarm history, and non-deletable operational logs
• Comprehensive safety architecture including over-temperature cutoff, compressor/fan overload protection, ground-fault interruption, and audible/visual alarm escalation
• Standard USB port, optional RS485 Modbus RTU interface, and mobile app (S-type) for remote monitoring and parameter adjustment compliant with GxP IT infrastructure requirements

Sample Compatibility & Compliance

The EMH-250 accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum tubes—on three corrosion-resistant, height-adjustable stainless-steel shelves (load capacity: 15 kg/shelf). Its internal chamber volume (250 L) and optimized airflow design meet ICH Q5C recommendations for sample spacing and air exchange rates. The system supports full 3Q validation (IQ/OQ/PQ) with vendor-supplied documentation aligned to EU Annex 15 and ASTM E2500-13. Optional CNAS-accredited calibration certificates are available for user-specified temperature/humidity setpoints (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 5 °C/ambient RH). For photostability testing per ICH Q1B, optional configurations include Lx-digital LED irradiation (0–25,000 Lx, ±5 % accuracy), UV-C germicidal modules (254 nm, programmable duty cycle), and multi-spectral light sources (R/G/B/V combinations). All firmware and data handling protocols support ALCOA+ principles and are compatible with 21 CFR Part 11 electronic record controls when deployed with approved third-party software platforms.

Software & Data Management

Data acquisition and reporting are managed through embedded firmware with built-in non-volatile memory and optional PC-based DRETOP StabilitySuite™ software (v3.2+). The system records temperature, relative humidity, runtime, alarm events, and operator actions with immutable timestamps. Audit trails capture all configuration changes, manual overrides, and login/logout sequences—retained for ≥36 months. Export functions support CSV and PDF formats; historical curves can be overlaid for comparative analysis across batches or protocols. Optional SMS alerting (B-type module) delivers real-time fault notifications to designated personnel. RS485 connectivity enables integration into centralized laboratory information management systems (LIMS) or SCADA networks using standard Modbus registers. All data exports include digital signatures and checksum verification to satisfy GLP/GMP data integrity expectations.

Applications

• ICH Q1A(R2)-compliant long-term stability studies (25 °C/60 %RH, 30 °C/65 %RH)
• Accelerated stability assessment (40 °C/75 %RH, 50 °C/ambient RH)
• Intermediate condition testing (30 °C/65 %RH)
• High-humidity challenge tests (40 °C/90 %RH, 25 °C/95 %RH)
• Photostability screening per ICH Q1B (optionally equipped with visible/UV light modules)
• Excipient compatibility and degradation pathway analysis
• Biologics and mRNA vaccine formulation stability under sub-zero or refrigerated conditions (with low-temperature option)
• Reference standard storage under certified environmental conditions

FAQ

What regulatory standards does the EMH-250 comply with?
The chamber is designed to meet ICH Q1A(R2), Q1B, Q5C, ISO 16770:2017, and WHO TRS 953 Annex 2. Full 3Q validation packages (IQ/OQ/PQ) and CNAS traceable calibration reports are available upon request.
Can the EMH-250 perform photostability testing?
Yes—when equipped with optional illumination modules (E-type Lx-display LED, V-type UV-C, or multi-spectral R/G/B/V configurations), it supports ICH Q1B Step 1–3 light exposure protocols.
Is remote monitoring supported?
Standard RS485 Modbus RTU and optional S-type mobile app enable real-time parameter viewing, alarm notification, and limited control from iOS/Android devices.
How is data integrity ensured?
All logged data is write-once, timestamped, and cryptographically hashed. Audit trails record every user action; deletion or modification is physically prohibited without Administrator-level firmware reflash.
What validation documentation is included?
Factory-installed IQ/OQ protocols are provided. PQ execution support, URS alignment, and risk assessments (per ASTM E2500) are available as professional services.
Does the system support 21 CFR Part 11 compliance?
Yes—when used with validated third-party software (e.g., StabilitySuite™ with electronic signature module) and configured with role-based access, audit trail, and secure electronic records per Part 11 Subpart B requirements.
