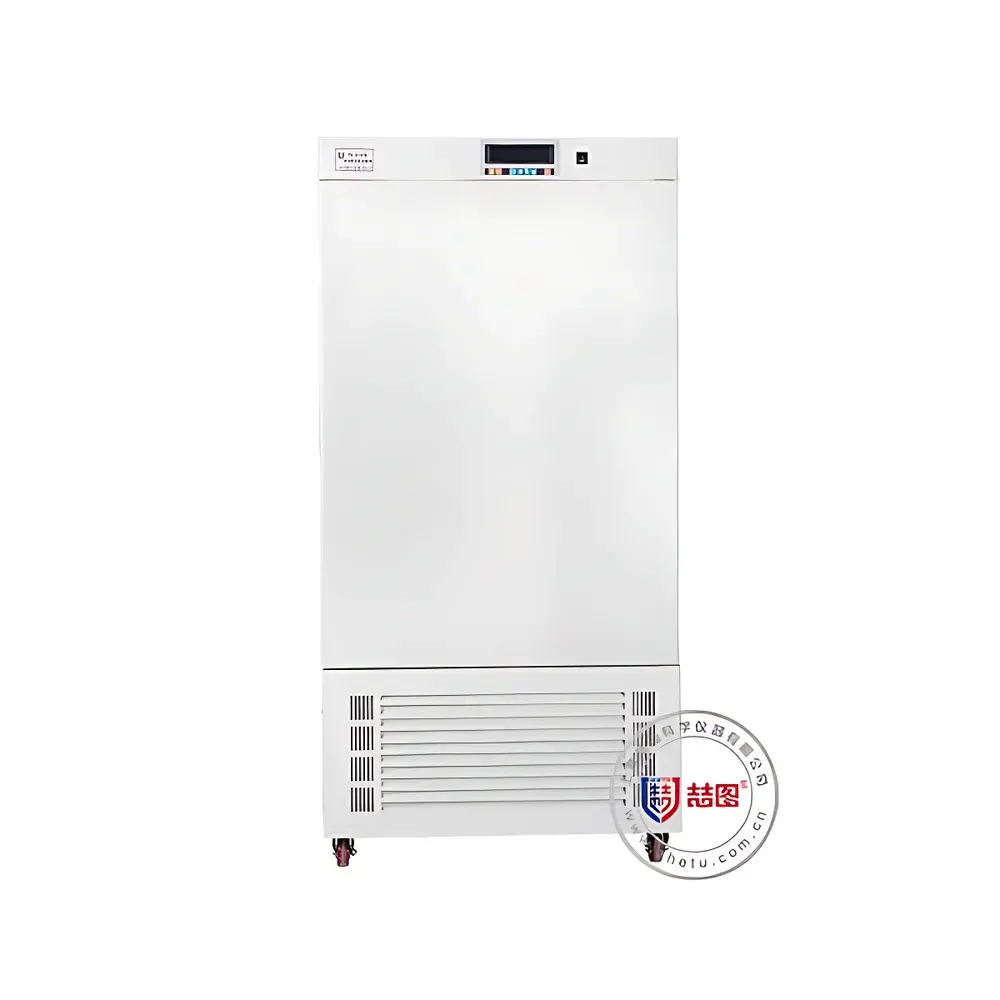

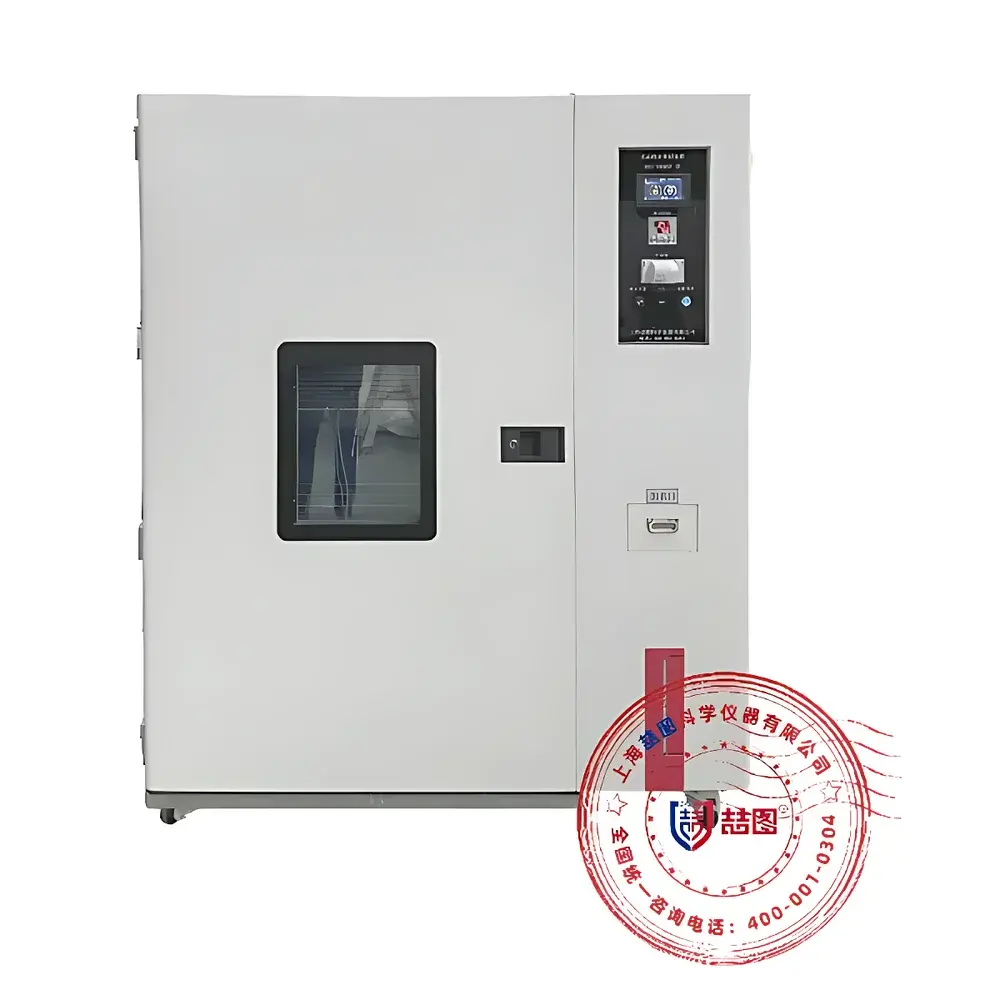

DRETOP EMH-800 Pharmaceutical Stability Testing Chamber

Overview

The DRETOP EMH-800 Pharmaceutical Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of pharmaceutical products in accordance with ICH Q1A(R2), Q1B, Q5C, and related regulatory guidance. It implements precision-controlled dual-loop climate regulation—separately managing refrigeration, heating, humidification, and optional photometric exposure—to replicate defined storage conditions including long-term (25 °C/60 % RH), accelerated (40 °C/75 % RH), intermediate (30 °C/65 % RH), high-humidity (25 °C/90 % RH), and photostability (ICH Q5B) test protocols. The chamber employs a robust air circulation architecture with forced convection via high-efficiency centrifugal fans, optimized duct design, and NiCr alloy heating elements to ensure thermal homogeneity and rapid recovery after door openings—critical for GLP/GMP-aligned validation workflows.

Key Features

• 7-inch full-color capacitive touchscreen interface with intuitive navigation, bilingual (English/Chinese) display, and hierarchical access control—Administrator, Maintenance Technician, and Operator roles with auditable permission boundaries.
• Programmable logic controller supporting up to 100 user-defined multi-segment test profiles; each profile configurable with up to 100 time-temperature-humidity-lighting steps, slope-controlled transitions, and cycle repetition.
• Independent PID-regulated cooling, heating, and humidification subsystems—minimizing cross-interference and enabling stable operation under extreme setpoint combinations (e.g., 60 °C/95 % RH).
• High-stability electronic humidity sensor rated for continuous operation at elevated temperatures—eliminating maintenance associated with traditional wet-bulb psychrometers.
• Imported hermetic scroll compressor with R404A/R134a eco-friendly refrigerant blend, auto-defrost functionality, and energy-efficient cycling logic compliant with ISO 50001 principles.
• Double-layer silicone rubber door gasket ensuring >95 % chamber sealing integrity across −10 °C to +70 °C ambient extremes; validated internal pressure differential <±5 Pa during steady-state operation.
• Fuzzy-PID hybrid temperature control algorithm delivering ±0.5 °C setpoint accuracy and ±2.5 °C spatial uniformity (measured per ASTM E2874–19 Annex A1 using 9-point sensor array).
• Integrated safety architecture: independent mechanical overtemperature cutoff (K-type), real-time compressor/fan current monitoring, ground-fault circuit interruption, and audible/visual alarm with SMS alert via optional GSM module (B-type).
• Onboard data logging at 60-second intervals with non-volatile flash memory—retaining ≥3 years of timestamped T/RH/light intensity records; exportable via USB or RS485 to external SCADA or LIMS platforms.

Sample Compatibility & Compliance

The EMH-800 accommodates diverse sample formats—including blister packs, vials, syringes, ampoules, sachets, and bulk powders—within its 800 L stainless-steel interior (304 grade, electropolished finish). Four adjustable 304 stainless steel shelves (load capacity: 15 kg/shelf) support flexible configuration without obstructing airflow. All materials contacting the chamber environment meet USP Class VI biocompatibility requirements. Optional configurations include UV-C germicidal irradiation (V-type), top-mounted directional LED illumination (D-type), multi-spectral light sources (R/G/B/V), and photometric feedback control with lx-resolution display (E-type). The system supports full 3Q qualification (IQ/OQ/PQ) documentation aligned with EU Annex 15 and FDA Process Validation Guidance. CNAS-accredited calibration certificates are available for user-selected validation points (e.g., 0 °C, 40 °C, 60 °C; 15 °C/40 % RH, 25 °C/60 % RH, 40 °C/75 % RH).

Software & Data Management

Embedded firmware complies with FDA 21 CFR Part 11 requirements for electronic records and signatures—featuring role-based audit trails, immutable operation logs, electronic signature prompts for critical actions (e.g., program start/stop, parameter modification), and tamper-evident data encryption. Real-time trend curves (temperature, humidity, illumination) are viewable on-screen and exportable as CSV or PDF. Optional J-type standalone chart recorder provides redundant analog traceability. RS485 Modbus RTU interface enables integration with LabVantage, Thermo Fisher SampleManager, or custom MES systems. Remote monitoring is supported via S-type mobile application (iOS/Android), displaying live parameters, alarm status, and historical trends—with push notifications for deviation events.

Applications

• ICH Q1-compliant stability protocol execution: long-term, accelerated, intermediate, and high-humidity testing per regulatory submission requirements.
• Photostability assessment per ICH Q5B, including Option 1 (Option 2) exposure sequences using calibrated visible/UV LED arrays.
• Excipient compatibility screening under controlled hygrothermal stress.
• Biologics and mRNA vaccine formulation stability under low-temperature/high-humidity challenge conditions.
• Reference standard storage verification and working stock shelf-life extension studies.
• Environmental stress testing of primary packaging components (e.g., moisture permeability of HDPE bottles, delamination of aluminum foil blisters).
• GLP-compliant toxicology study sample conditioning prior to analytical analysis.

FAQ

Does the EMH-800 comply with ICH Q1A(R2) and Q5B requirements?
Yes—the chamber’s temperature uniformity (±2.5 °C), humidity control fidelity (±3 % RH), and optional photometric accuracy (±5 % of setpoint, 0–25,000 lx) meet ICH-defined performance thresholds for stability chambers used in registration dossiers.
Can the system be validated for GMP production environments?
Absolutely. Full IQ/OQ/PQ documentation packages—including risk assessments, test protocols, raw data worksheets, and summary reports—are provided. Optional third-party witnessed qualification is available.
Is remote access and alarm notification supported out-of-the-box?
Standard RS485 communication enables local network integration; SMS alerts require optional B-type GSM module. Mobile app monitoring (S-type) is available as a software upgrade.
What calibration services are offered?
CNAS-certified field calibration at user-specified points (e.g., 25 °C/60 % RH, 40 °C/75 % RH) with traceable NIST-equivalent standards. Certificate includes uncertainty budgets per ISO/IEC 17025.
How is data integrity ensured during power interruptions?
The system features automatic power recovery with state retention—resuming the active program from the exact step and timestamp upon restoration. All logged data resides in write-protected flash memory.
