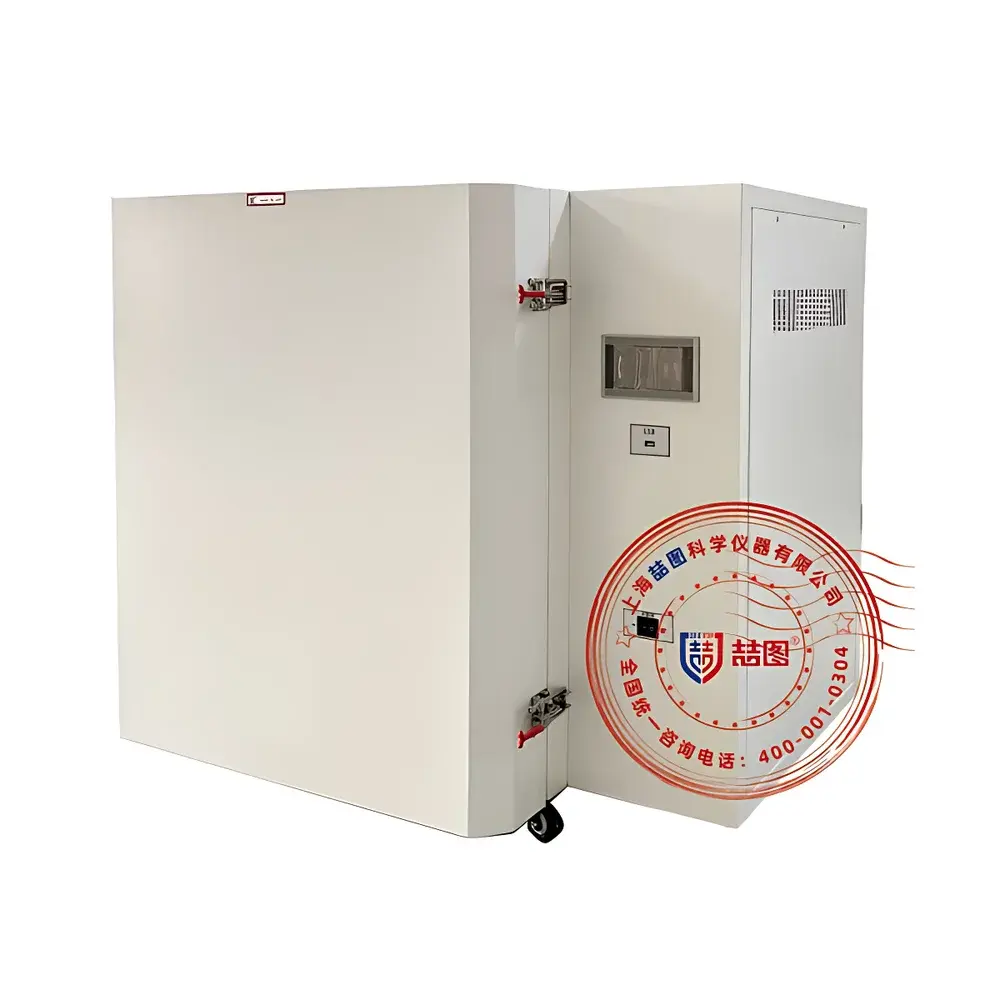

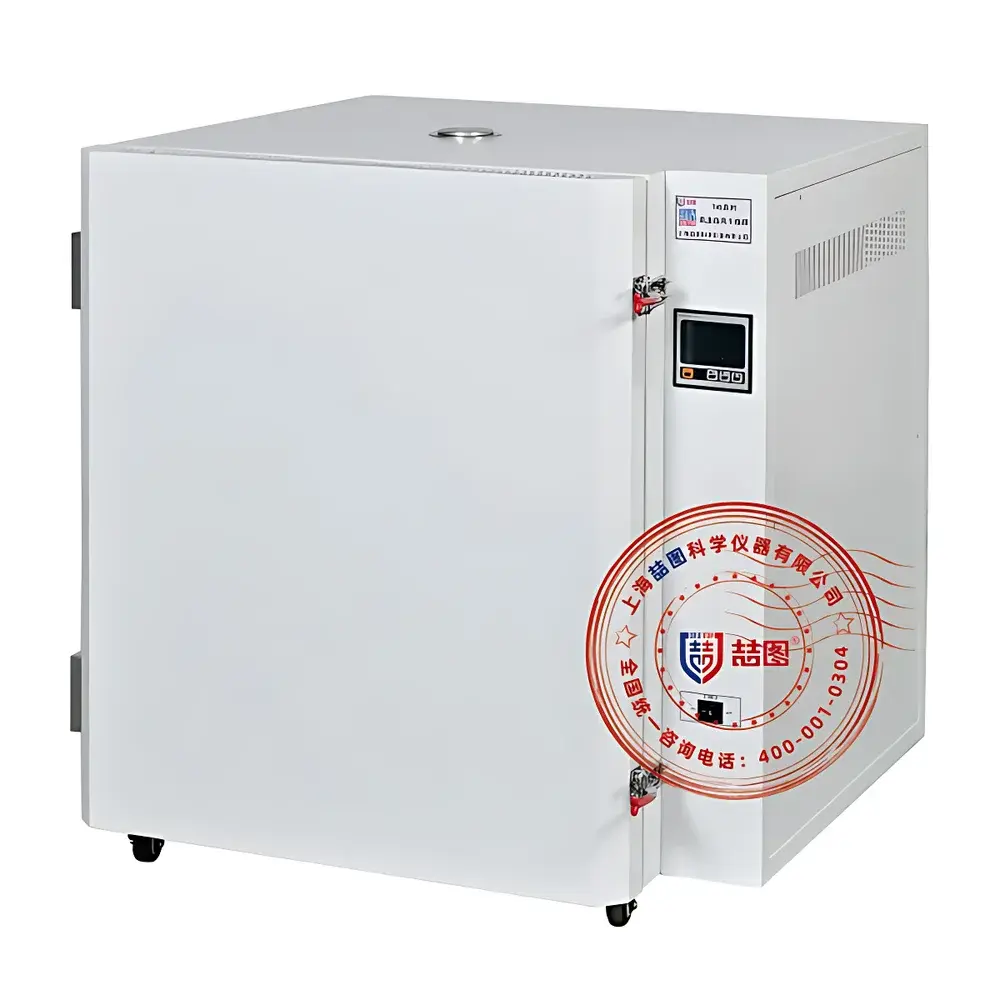

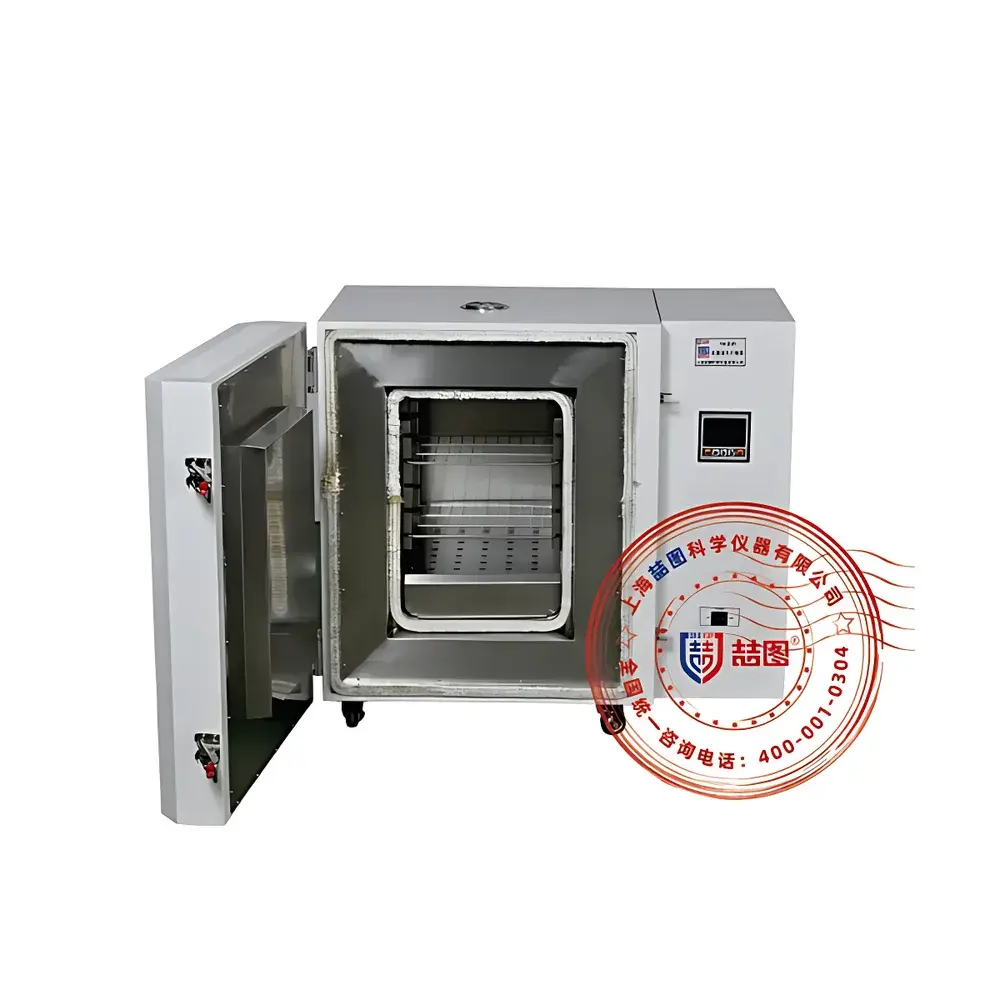

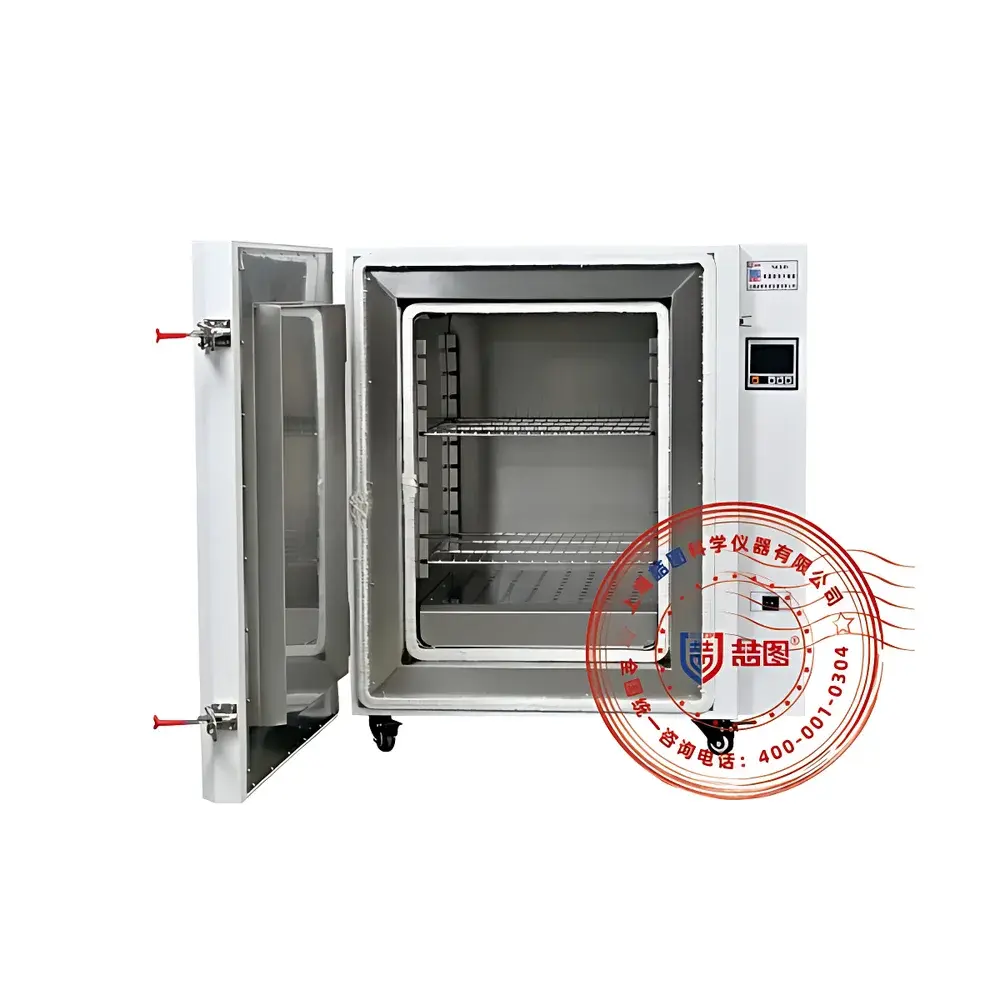

DRETOP G6-50P High-Temperature Forced-Air Drying Oven

Overview

The DRETOP G6-50P High-Temperature Forced-Air Drying Oven is an industrial-grade thermal processing instrument engineered for precise, repeatable, and stable operation across demanding laboratory and pilot-scale applications. Utilizing a dual-air-channel forced convection architecture, the oven integrates high-power centrifugal blower assemblies with stainless-steel heating elements to achieve rapid thermal response and exceptional temperature homogeneity within its 50 L working chamber. Unlike gravity-convection ovens, the G6-50P actively circulates heated air at controlled velocity—minimizing thermal stratification and ensuring uniform heat transfer to samples regardless of placement. Its operational range extends from ambient +20°C up to 600°C, making it suitable for high-temperature drying, thermal aging, pre-baking of substrates, stress-relief annealing of metallic components, and accelerated stability testing per ICH Q1 guidelines. The system complies with fundamental safety and performance expectations outlined in IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and supports traceable calibration practices required under ISO/IEC 17025.

Key Features

• Microprocessor-based PID temperature controller with digital LCD interface, offering real-time display of setpoint, actual temperature, elapsed time, and fault codes in tri-color format for intuitive status recognition.
• Dual-stage over-temperature protection: primary control via PID algorithm and secondary independent mechanical limit controller (optional), meeting fail-safe requirements for unattended operation.
• Brushed AISI 304 stainless-steel interior chamber with seamless welded corners and removable, height-adjustable perforated shelves—designed for corrosion resistance, cleanability, and long-term dimensional stability at elevated temperatures.
• High-efficiency thermal insulation using premium-grade ceramic fiber blanket (not fiberglass), reducing external surface temperature rise and minimizing standby energy loss—aligned with ISO 50001 energy management principles.
• Low-noise, high-torque fan motor coupled with multi-blade impeller ensures consistent airflow distribution without turbulence-induced hot/cold spots; validated per ASTM E145-22 Annex A3 for forced-ventilation uniformity assessment.
• Integrated parameter memory function retains user-defined settings—including timer duration, ramp rates (when programmable controller is installed), and alarm thresholds—following unexpected power interruption.

Sample Compatibility & Compliance

The G6-50P accommodates a broad spectrum of sample formats including ceramic green bodies, metal coupons, polymer films, glass vials, aluminum trays, and inert crucibles. Its non-vacuum, atmospheric-pressure configuration is appropriate for moisture removal, solvent evaporation, binder burnout, and thermal curing where oxidative or inert atmospheres are not required. While not rated for Class I Div 1 hazardous locations, the unit meets EN 60079-0 general requirements for non-explosive environment use. All electrical components conform to RoHS Directive 2011/65/EU. For regulated pharmaceutical or medical device manufacturing, the oven may be qualified as ancillary equipment under FDA 21 CFR Part 11 when paired with compliant data logging systems (e.g., USB export or RS485-connected SCADA). Documentation packages support IQ/OQ protocols per GAMP 5.

Software & Data Management

The base configuration includes a stand-alone microcontroller with embedded firmware supporting single-setpoint operation and 1–9999 minute timer functionality. Optional upgrades expand digital capability: a programmable logic controller enables multi-step thermal profiles (up to 30 segments); a color TFT touchscreen interface provides graphical trend visualization and touch-enabled parameter entry; and USB data export allows CSV-formatted temperature/time logs to be transferred directly to external PCs for audit-ready reporting. When connected via RS485 to a centralized LabVantage or Thermo Fisher SampleManager LIMS, the G6-50P can feed timestamped process metadata—including deviation alerts and maintenance flags—into electronic batch records. All firmware revisions maintain backward compatibility and support NIST-traceable calibration certificate generation.

Applications

• Materials Science: Sintering aid removal from ceramic compacts, heat treatment of sintered tungsten carbide tools, residual stress relief in aerospace alloys, and thermal expansion coefficient determination via controlled ramp-hold cycles.
• Pharmaceutical R&D: Active pharmaceutical ingredient (API) drying under defined humidity-free conditions, depyrogenation validation of glassware per USP , and accelerated degradation studies per ICH Q1A(R3).
• Electronics Manufacturing: Pre-baking of PCB substrates prior to solder paste application, moisture desorption from encapsulated IC packages, and flux residue curing in reflow simulation protocols.
• Quality Control Labs: Moisture content analysis (LOI) per ASTM D2216, ash content determination per ASTM D3174, and gravimetric residual solvent quantification in polymer composites.
• Academic Research: Kinetic modeling of thermal decomposition reactions, catalyst activation protocols, and development of novel high-temperature sensor calibration standards.

FAQ

What is the maximum continuous operating temperature of the G6-50P?
The chamber is rated for uninterrupted operation at 600°C, with thermal cut-off safeguards activated at 620°C (factory default). Continuous exposure above 550°C requires periodic verification of seal integrity and heater element resistance.
Can the G6-50P be used for nitrogen-purged processes?
No—the unit lacks gas inlet/outlet ports and pressure-rated door seals. For inert-atmosphere applications, consider the DRETOP GN series with integrated purge fittings and O₂ monitoring.
Is the temperature uniformity specification valid across the full 600°C range?
The ±2.5°C uniformity value is verified at 100°C per ASTM E145-22. At 500°C and 600°C, typical uniformity degrades to ±3.5°C and ±4.5°C respectively due to radiative heat transfer dominance; users requiring tighter tolerances at extreme temperatures should perform in-situ mapping with calibrated thermocouples.
Does the G6-50P support 21 CFR Part 11 compliance out of the box?
No—electronic record integrity features (audit trails, electronic signatures, role-based access) require integration with third-party compliant software platforms. The hardware provides necessary timestamps and event logging but does not implement cryptographic signing or user authentication natively.
What maintenance intervals are recommended for optimal performance?
Blower motor lubrication every 12 months, door gasket inspection quarterly, and annual verification of thermocouple calibration against NIST-traceable reference sources. Filter cleaning is not applicable—the system uses open-loop airflow without particulate filtration.
