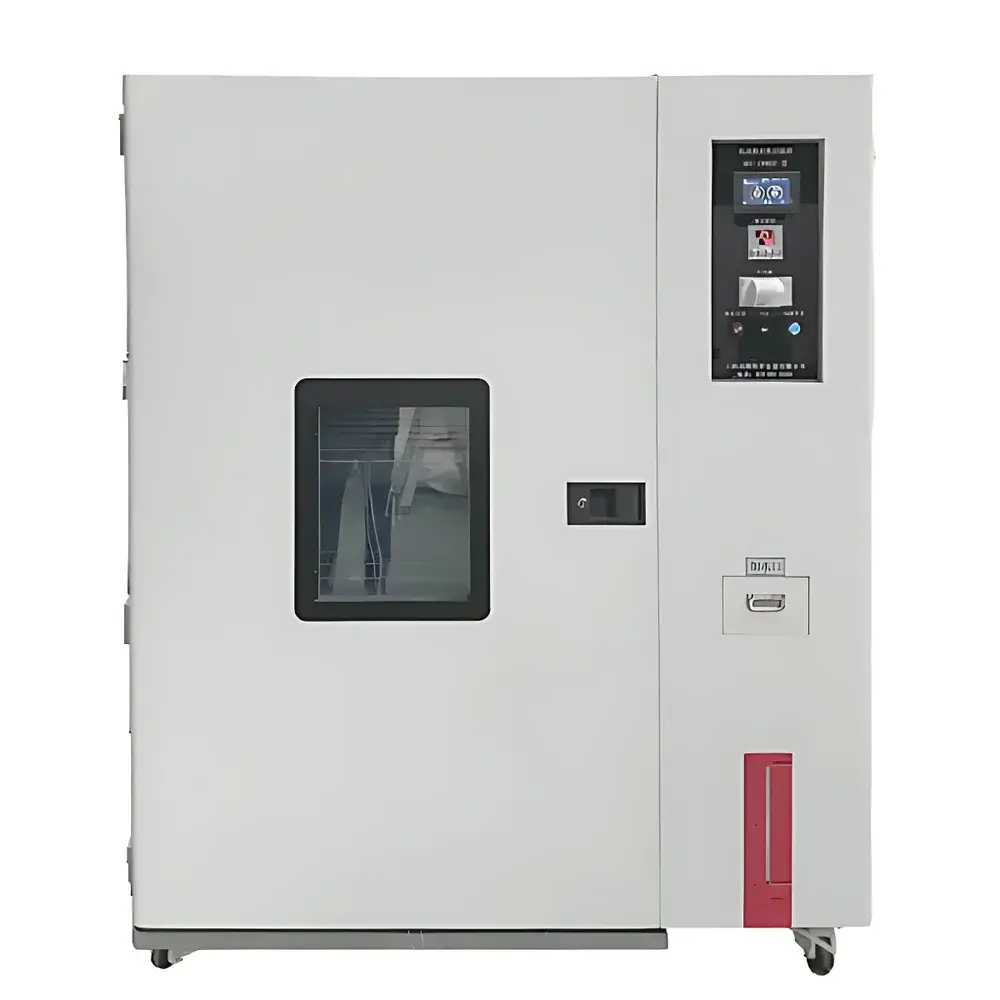

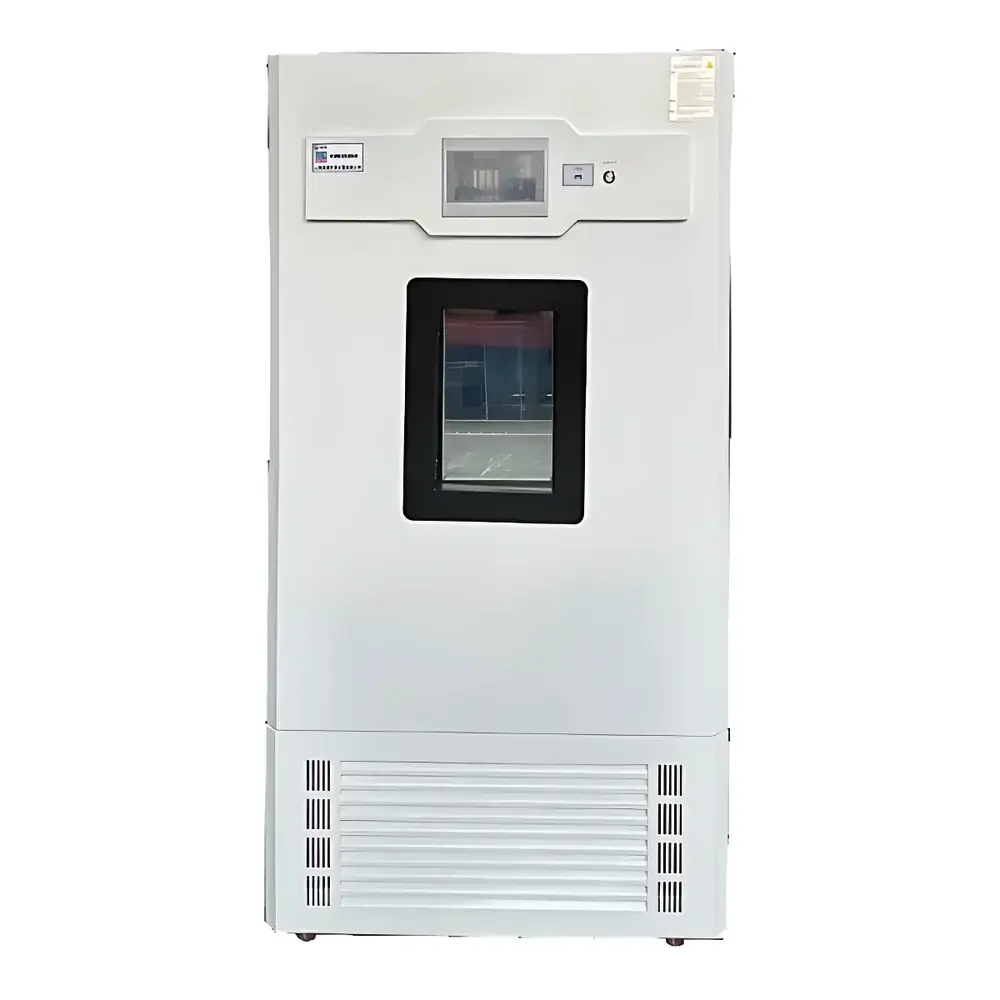

DRETOP GMC-200-II Multi-Chamber Drug Stability Testing Chamber

Overview

The DRETOP GMC-200-II Multi-Chamber Drug Stability Testing Chamber is an ICH Q1-compliant environmental simulation system engineered for pharmaceutical stability studies under controlled temperature, humidity, and photostability conditions. Designed in accordance with ICH Q5C, Q5D, and WHO TRS Annex 2 guidelines, this dual-compartment chamber enables parallel execution of multiple stability protocols—including accelerated testing (40 °C ±2 °C / 75% RH ±5% RH), long-term storage (25 °C ±2 °C / 60% RH ±5% RH), intermediate conditions (30 °C ±2 °C / 60% RH ±5% RH), and photostability testing per ICH Q1B (optionally equipped with 4500 ±500 lx cool white fluorescent + near-UV lamps). Its dual-chamber architecture allows independent parameter control in upper and lower compartments—supporting concurrent trials with divergent environmental profiles while maintaining strict traceability and separation of test conditions. The system employs a microprocessor-based PID control algorithm with real-time feedback from high-accuracy Pt100 sensors (temperature) and capacitive polymer humidity sensors (30–95% RH, ±3% RH accuracy), ensuring compliance with USP , EP 2.2.45, and ISO 14644-3 validation requirements.

Key Features

• Dual independent chambers (upper/lower) with fully decoupled temperature, humidity, and lighting control—enabling simultaneous ICH Q1A(R2) long-term and accelerated studies;
• Color TFT touchscreen interface supporting bilingual operation (English/Chinese), multi-level user permissions (Administrator/Maintainer/Operator), and audit-trail-enabled parameter logging;
• Programmable multi-segment cycling: up to 100 programs, each with 100 segments; slope-controlled ramping for temperature/humidity transitions; programmable illumination timing and intensity levels;
• Robust thermal management: nickel-chromium heating elements, high-efficiency scroll compressor (R134a-free refrigerant), auto-defrost cycle, and optimized forced-air convection with low-turbulence wind duct design (temperature uniformity: ±1.5 °C at 25 °C);
• Enhanced sealing integrity: triple-layer silicone door gasket, stainless steel 304 interior, electrostatically coated carbon steel exterior, and pressure-balanced chamber design minimizing thermal leakage during door operation;
• Integrated safety architecture: over-temperature cut-off (independent mechanical limiter), compressor/fan overload protection, ground-fault circuit interruption (GFCI), and power-loss recovery with automatic restart and state restoration.

Sample Compatibility & Compliance

The GMC-200-II accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum pouches—within its two independently configurable chambers (each 100 L net volume, 500 × 450 × 450 mm internal dimensions). Each compartment supports up to two adjustable stainless steel shelves (load capacity: 15 kg/shelf), facilitating flexible sample arrangement without compromising airflow uniformity. The system meets critical regulatory prerequisites for GMP environments: full 3Q documentation (IQ/OQ/PQ protocols available upon request), 21 CFR Part 11–compliant electronic records (when paired with optional DRETOP StabilitySuite™ software), and traceable calibration against NIST-traceable references. Optional CNAS-accredited calibration certificates are provided for selected temperature/humidity setpoints (e.g., 25 °C/60% RH, 40 °C/75% RH, 0 °C, 60 °C, 121 °C). All hardware and firmware comply with IEC 61000-4 electromagnetic compatibility standards and UL 61010-1 safety certification.

Software & Data Management

Data acquisition and reporting are supported via embedded USB 2.0 port (for direct export of CSV/Excel-formatted logs) and optional RS485 Modbus RTU interface for integration into LIMS or SCADA systems. Real-time trend visualization includes temperature, relative humidity, illumination intensity (if equipped), and operational status flags. Historical data—spanning run time, alarm events, operator actions, and environmental deviations—is stored onboard for ≥12 months (circular buffer) and exportable with timestamped metadata. Optional accessories include a built-in thermal printer (for immediate hardcopy of critical parameters) and wireless SMS alert module (A-series), which transmits fault codes (e.g., sensor failure, compressor shutdown) directly to designated mobile devices. For enterprise deployment, DRETOP’s StabilitySuite™ software provides FDA 21 CFR Part 11–compliant electronic signatures, role-based access control, automated report generation (per ICH Q5C Annex), and audit trail review functionality meeting GLP/GMP audit readiness criteria.

Applications

• ICH-compliant stability protocol execution: long-term (25 °C/60% RH, 12 months), accelerated (40 °C/75% RH, 6 months), and intermediate (30 °C/60% RH) studies;
• Photostability assessment per ICH Q1B: cool white fluorescent (4500 ±500 lx) and near-UV (200 W·h/m²) exposure testing;
• Excipient compatibility screening under variable hygroscopic stress (20–98% RH range, optional configuration);
• Biologics and mRNA vaccine formulation stability monitoring at sub-ambient temperatures (0–65 °C range, ±0.5 °C stability);
• Reference standard storage validation and comparability studies across manufacturing sites;
• Regulatory submission support: raw data archives, calibration records, deviation logs, and PQ reports aligned with EMA CHMP/ICH guidance.

FAQ

Does the GMC-200-II meet ICH Q1A(R2) and Q5C requirements for stability testing?
Yes—the dual-chamber design, temperature/humidity accuracy (±0.5 °C / ±3% RH), and programmable photostability modes align with ICH Q1A(R2) and Q5C specifications. Full 3Q validation packages are available.
Can both chambers operate at different temperature/humidity setpoints simultaneously?
Yes—each chamber has independent PID controllers, sensors, and actuation systems, enabling concurrent but distinct environmental profiles without cross-contamination or thermal coupling.
Is the system compatible with 21 CFR Part 11 electronic record requirements?
When configured with DRETOP StabilitySuite™ software and optional electronic signature module, it supports audit trails, user authentication, and data integrity controls required for Part 11 compliance.
What calibration documentation is included?
Standard shipment includes factory calibration certificate. CNAS-accredited calibration at user-specified points (e.g., 25 °C/60% RH) is available as an add-on service.
Are custom illumination spectra supported beyond standard white light?
Yes—optional multi-wavelength LED modules (red, green, blue, violet) enable spectral-specific photodegradation studies per ICH Q5C Annex recommendations.
