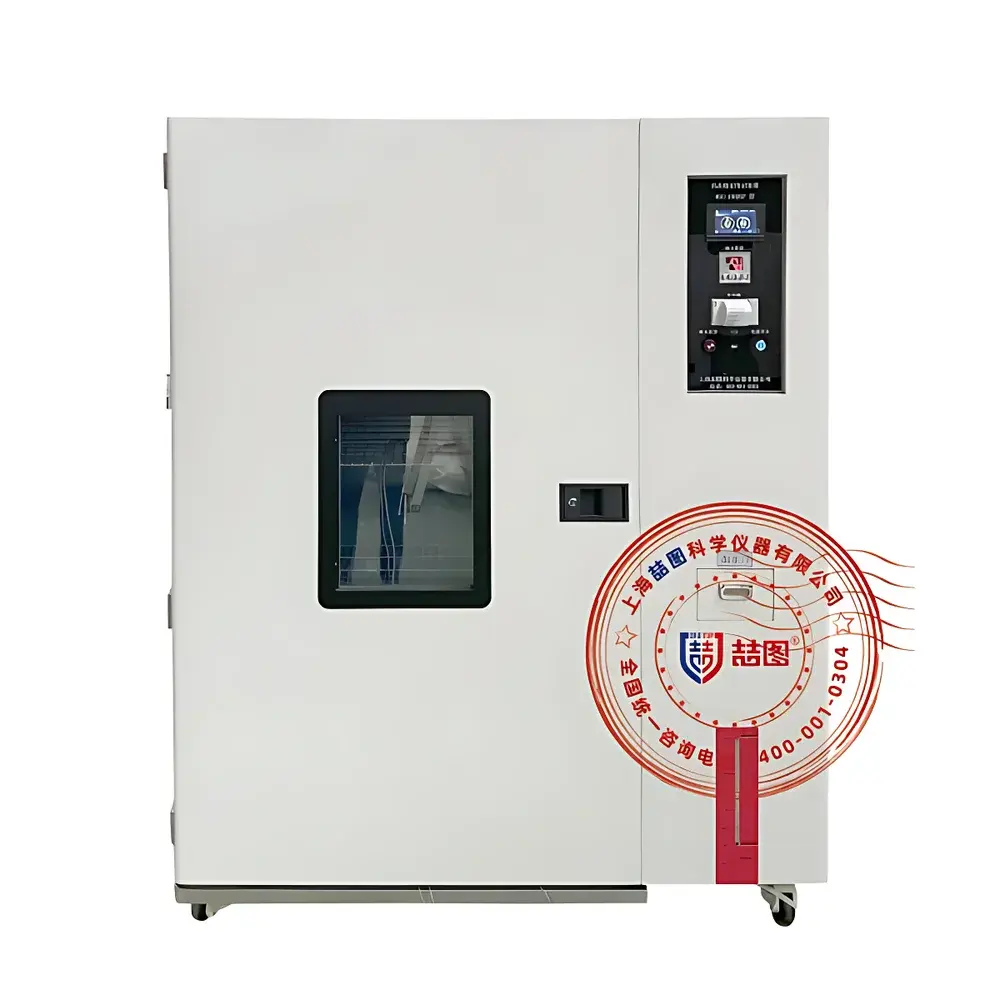

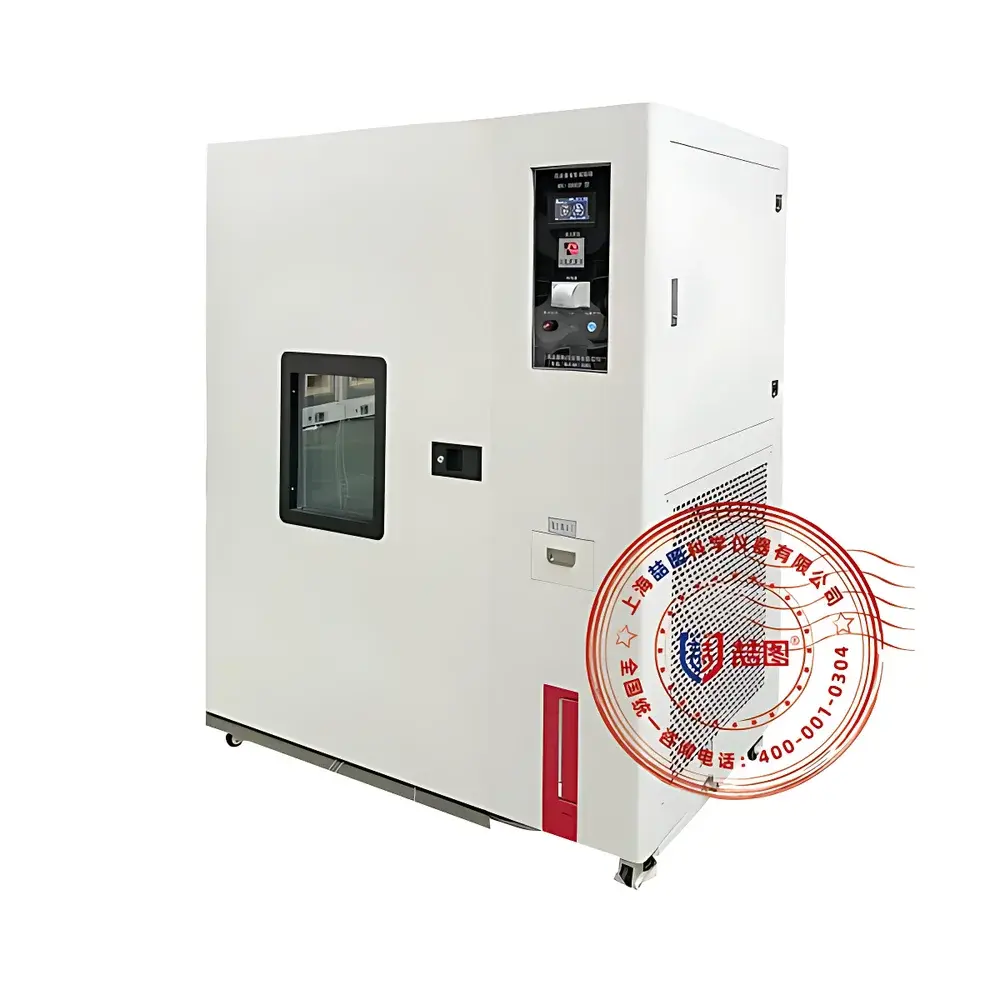

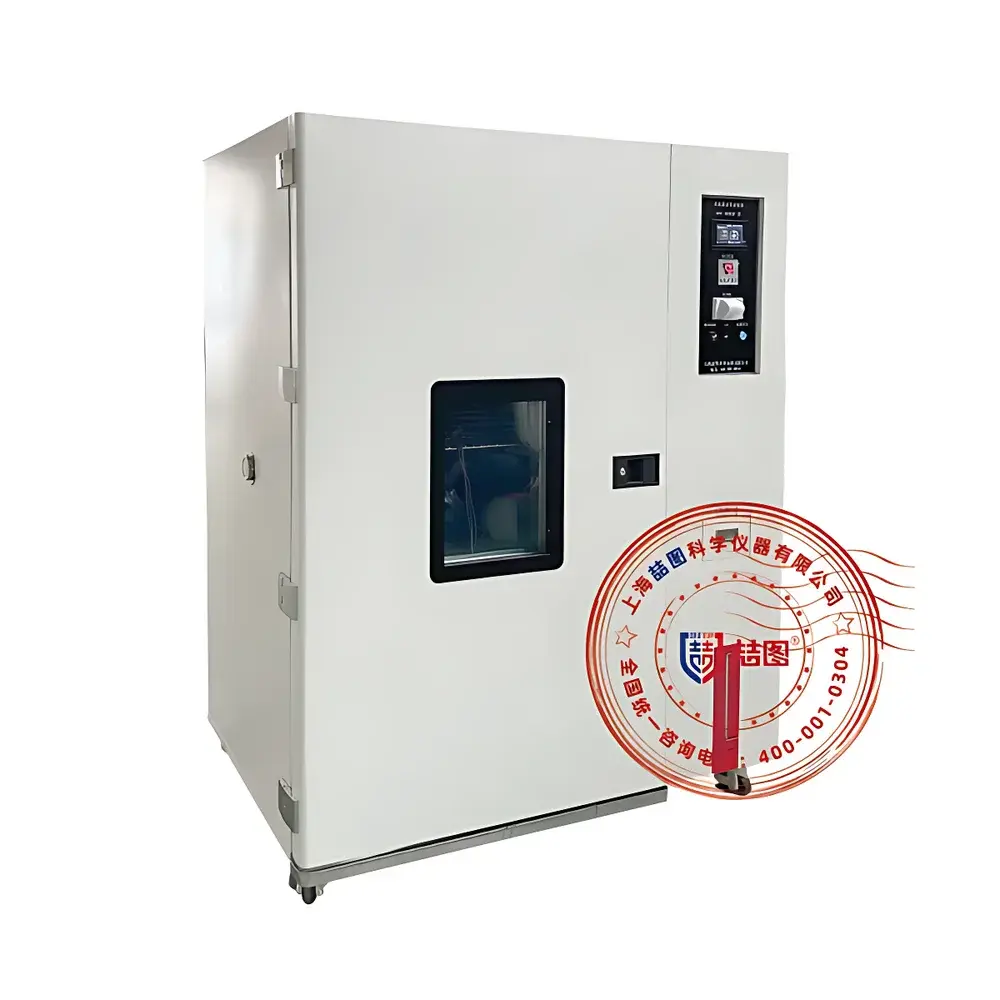

DRETOP GMC-250-I Comprehensive Drug Stability Testing Chamber
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Model | GMC-250-I |
| Price Range | USD 4,200 – 7,000 |
Overview
The DRETOP GMC-250-I Comprehensive Drug Stability Testing Chamber is an ICH Q1A(R2)-aligned environmental simulation system engineered for pharmaceutical stability studies under Good Manufacturing Practice (GMP) and regulatory-compliant laboratory environments. It implements a dual-evaporator refrigeration architecture with precision PID-controlled temperature (0–65 °C, ±0.5 °C fluctuation), humidity (30–95% RH, ±3–5% RH deviation), and photometric control (0–20,000 lx, tri-face LED illumination). Designed to replicate ICH-specified storage conditions—including long-term (25 °C/60% RH, 30 °C/60% RH), accelerated (40 °C/75% RH), intermediate (30 °C/65% RH), and photostability (4500 ±500 lx) protocols—the chamber delivers thermodynamic stability and metrological traceability essential for drug shelf-life determination, registration dossier preparation (e.g., CTD Module 3), and post-approval change management per USP , EP 2.2.44, and Chinese Pharmacopoeia General Chapter 9001/9002.
Key Features
- Dual-Evaporator Climate Control: Independent cooling and dehumidification pathways eliminate thermal-hygrometric coupling—ensuring simultaneous accuracy in temperature ramping and RH stabilization without performance trade-offs.

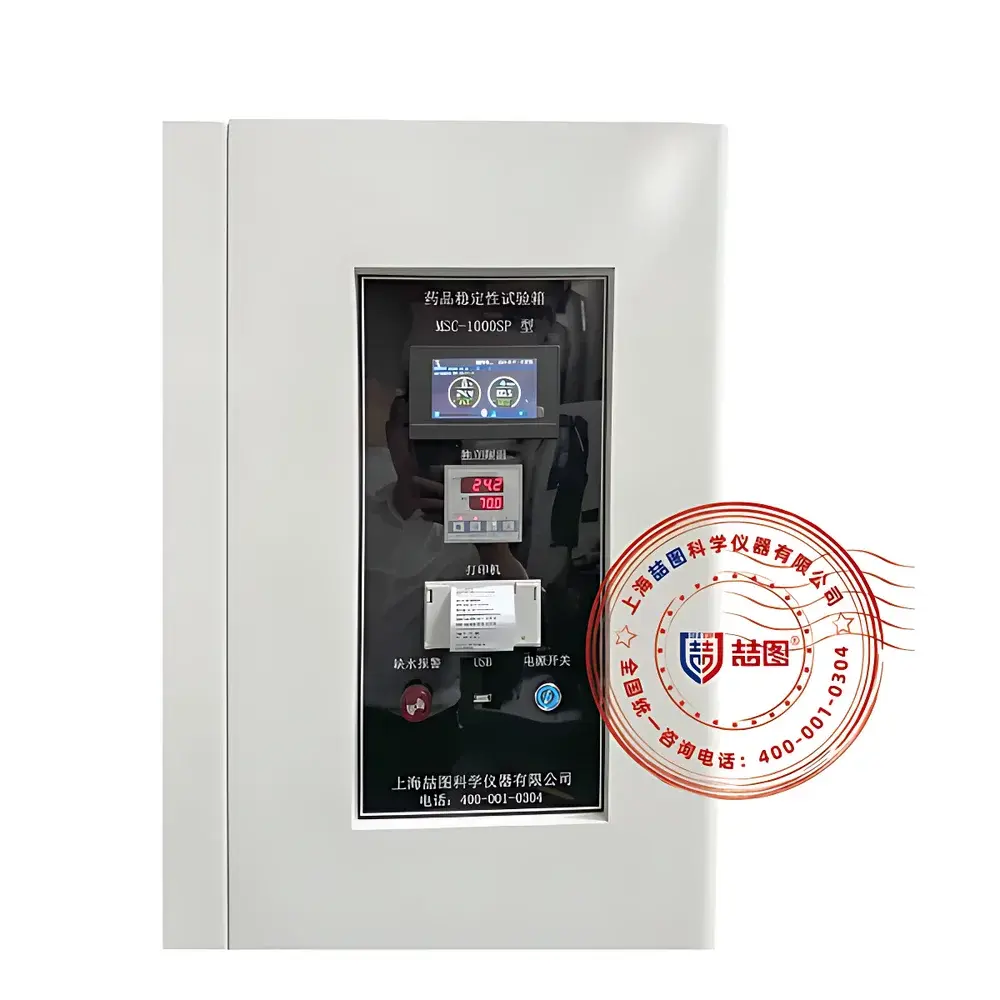

- GMP-Ready Touch Interface: 7-inch color TFT touchscreen with bilingual (English/Chinese) GUI, real-time trend graphs, and 3-tier role-based access (Operator/Administrator/Engineer) supporting ALCOA+ data integrity principles.
- Programmable Multi-Stage Protocols: Up to 100 user-defined programs; each with ≤100 segments, adjustable duration (0–999:59 h:mm), setpoint interpolation, slope control, and conditional logic (e.g., “hold at 40 °C/75% RH for 180 days” or “cycle between dark and 12,000 lx every 24 h”).
- Robust Thermal Architecture: Nickel-chromium heating elements + centrifugal forced-air convection; hermetic eco-friendly compressor; stainless-steel 304 interior with radius-corner design and adjustable shelves compliant with ISO 14644-1 Class 8 cleanroom maintenance standards.
- Fault-Tolerant Operation: Auto-recovery on power interruption; triple safety interlocks (leakage current, overload, compressor overtemperature); silicone gasket sealing enabling <5 min temperature recovery after door opening.
Sample Compatibility & Compliance
The GMC-250-I accommodates vials, blister packs, syringes, ampoules, and lyophilized formulations across 250 L working volume (580 × 500 × 850 mm W×D×H), with four removable 304 stainless-steel shelves (load capacity: 15 kg/shelf). Its 25 mm diameter test port supports live monitoring via external probes (e.g., fiber-optic PT100, capacitive RH sensors) while maintaining chamber integrity. The system conforms to ASTM E2809-22 (stability testing apparatus qualification), ISO 16776:2021 (pharmaceutical environmental chambers), and meets the mechanical and operational requirements of FDA 21 CFR Part 11 Annex 11 (EU GMP) for electronic records and signatures—validated for IQ/OQ/PQ execution under client-specific protocols.
Software & Data Management
Integrated firmware includes embedded Modbus RTU (RS485) and optional Ethernet connectivity for MES/LIMS integration. All operational parameters—including setpoints, actual values, alarm events, user actions, and timestamped deviations—are stored locally with tamper-evident hashing. Data export is supported via USB flash drive in CSV/Excel format, including full audit trails (login/logout, parameter edits, program starts/stops) required for GLP/GMP audits. Optional cloud synchronization enables remote supervision, centralized fleet management, and automated PDF report generation (trend charts, deviation summaries, compliance certificates).
Applications
- ICH Q5C biologics stability assessment (e.g., monoclonal antibodies, recombinant proteins)
- Accelerated stability testing per USP and WHO TRS 1010 Annex 9
- Photostability screening per ICH Q1B and EP 2.2.44 (Option: UV-A/visible spectrum LED array)
- Real-time stability monitoring for ANDA submissions and post-approval lifecycle management
- Excipient compatibility studies and formulation robustness evaluation under stress conditions
- Reference standard storage validation per USP and Ph. Eur. 5.12
FAQ
Does the GMC-250-I meet ICH Q1A(R2) long-term and accelerated condition specifications?
Yes—it achieves ±0.5 °C temperature stability and ±3–5% RH accuracy across all ICH-defined conditions, validated per ASTM E2809-22 Annex A3.
Can the chamber operate continuously for 12-month real-time studies without manual intervention?
Yes—its dual-evaporator design eliminates defrost-induced parameter drift; auto-switching backup mode ensures uninterrupted operation during compressor maintenance cycles.
Is electronic signature capability included for 21 CFR Part 11 compliance?
Yes—role-based authentication, biometric-ready login, and immutable audit logs are built-in; digital signature modules are available as configurable firmware options.
What is the maximum sample load weight and how is uniformity verified?
Maximum load: 60 kg total (15 kg per shelf); temperature/humidity uniformity (±1.5 °C / ±5% RH) is certified per ISO 16776:2021 using 9-point sensor mapping per ICH Q1A(R2) Appendix 3.
Are calibration certificates and qualification documentation provided?
Factory calibration reports (NIST-traceable) are included; IQ/OQ templates aligned with Annex 15 and EU GMP Annex 15 are supplied for client-executed validation.
