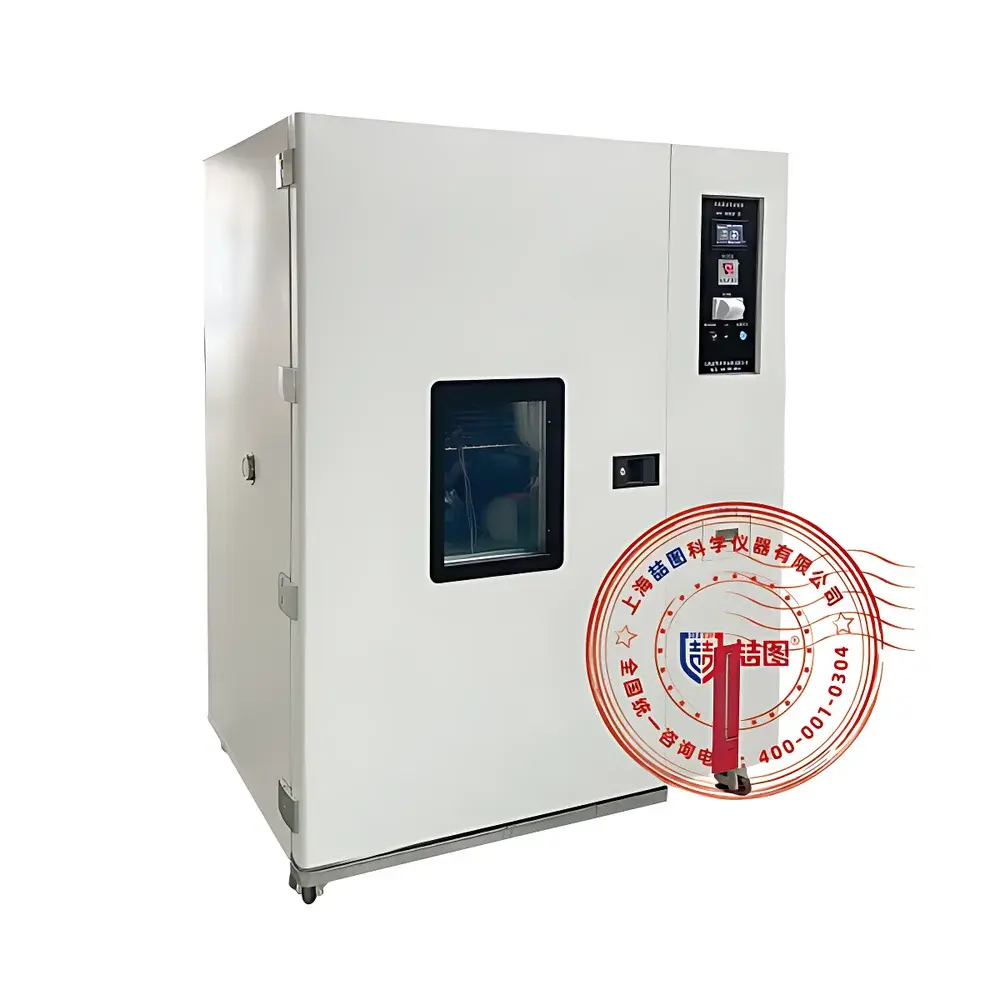

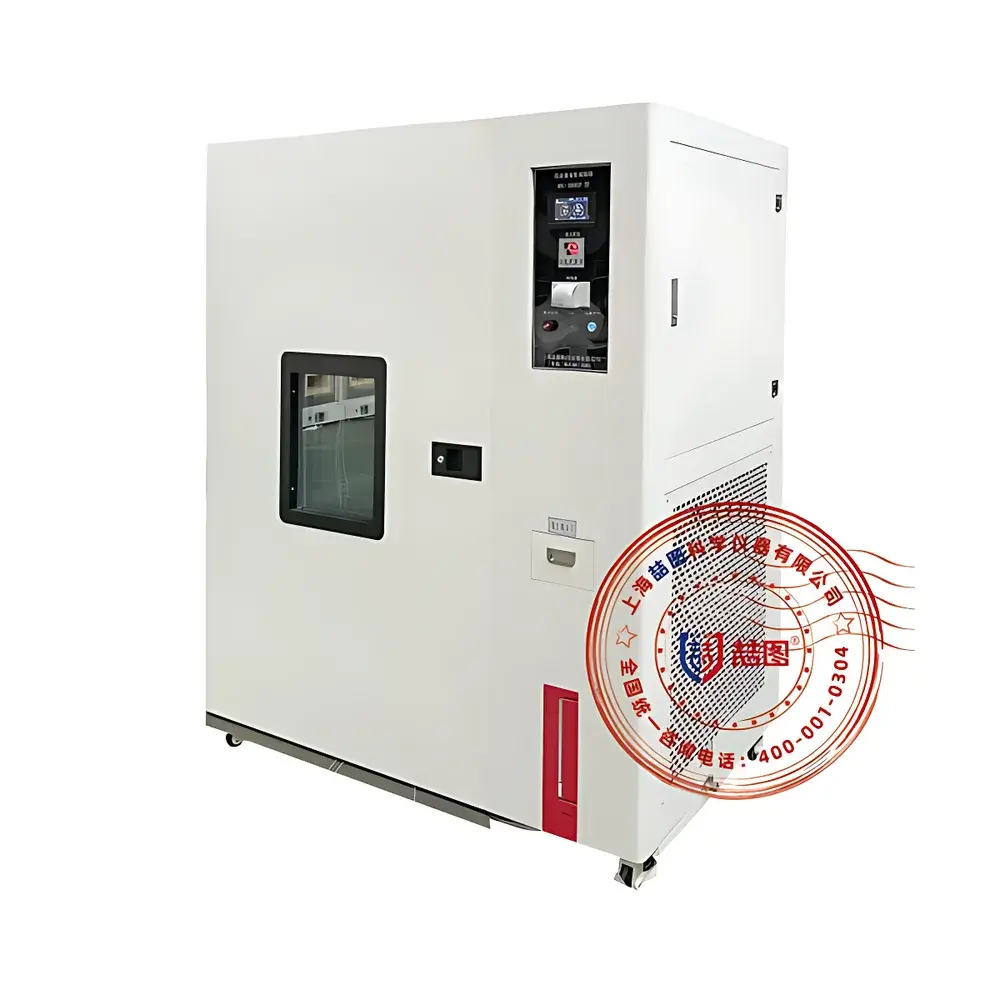

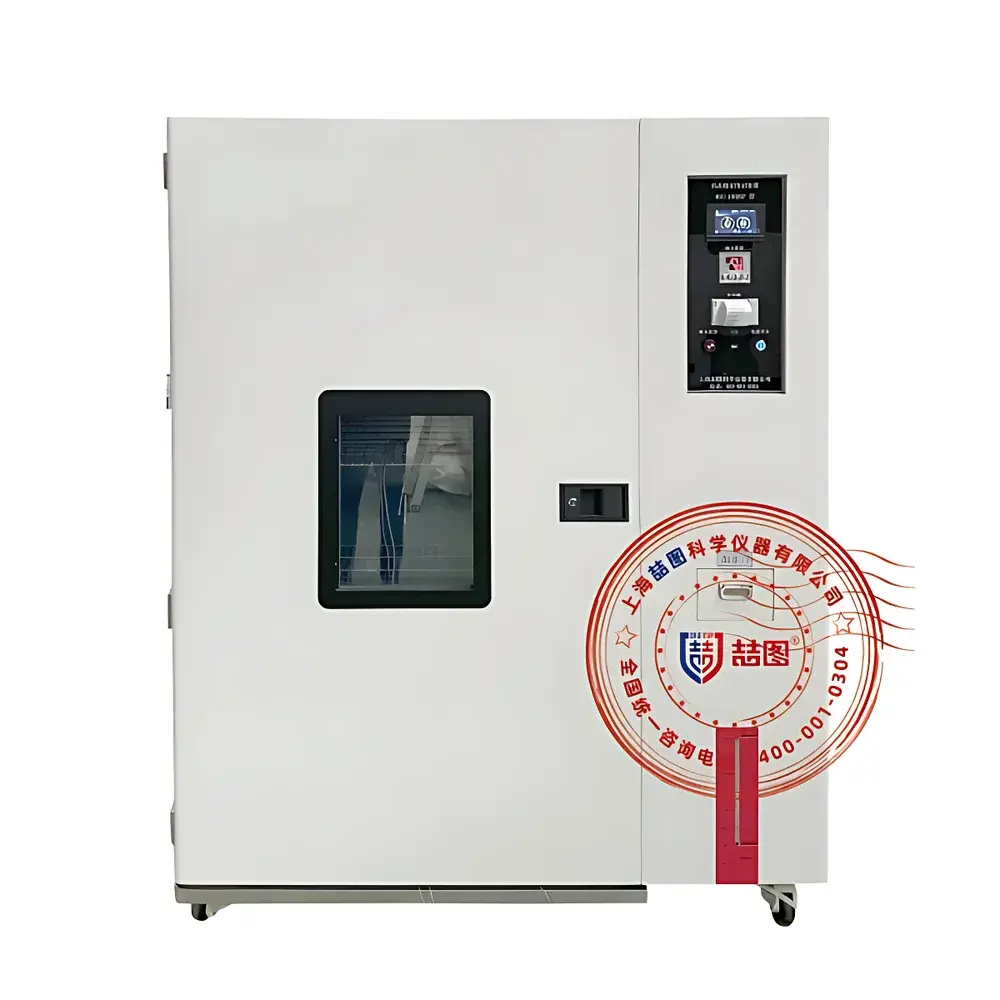

DRETOP GMC2-100-I Multi-Chamber Comprehensive Drug Stability Testing Chamber

Overview

The DRETOP GMC2-100-I Multi-Chamber Comprehensive Drug Stability Testing Chamber is an engineered environmental simulation platform designed for pharmaceutical stability studies in accordance with ICH Q1A(R2), USP , and the Chinese Pharmacopoeia General Chapters 9001 and 9002. It integrates independent multi-chamber architecture with precision-controlled temperature, humidity, and photometric parameters to replicate real-world storage conditions—including long-term, accelerated, intermediate, high-humidity, and photostability testing environments. Unlike single-chamber systems, the GMC2-100-I employs a modular multi-compartment configuration—each chamber operating autonomously—to enable parallel execution of distinct ICH protocols (e.g., 25 °C/60% RH for long-term; 40 °C/75% RH for accelerated testing) without cross-contamination or thermal/hygrometric interference. Its dual-evaporator refrigeration system (I-type configuration) decouples cooling and dehumidification pathways, eliminating the traditional trade-off between temperature ramp rate and humidity stability—a critical requirement for biologics, oral solid dosage forms, and sterile products undergoing regulatory submission.

Key Features

• Modular multi-chamber design: Four independent 100 L chambers housed within a single footprint, supporting concurrent stability protocols under different ICH conditions.
• Trilateral LED illumination system: Full-spectrum white-light LEDs delivering 0–25,000 lx intensity across six discrete levels, calibrated per ICH Q1B photostability requirements and compliant with ISO 10993-12 light exposure guidelines.
• Advanced dual-evaporator climate control: Independent evaporator circuits for thermal regulation and moisture management ensure simultaneous precision control of temperature (±0.5 °C fluctuation) and relative humidity (±3% RH deviation) across all chambers—even during dynamic ramp-and-soak cycles.
• Color TFT touchscreen HMI: Bilingual (English/Chinese) graphical interface with real-time trend visualization, multi-segment programmable profiles (up to 100 programs, each with up to 100 segments), and slope-based ramp control for GxP-aligned protocol execution.
• GMP-grade data governance: Built-in audit trail with time-stamped event logging (parameter changes, user logins, alarms, door openings), electronic signatures, and tamper-evident USB export of CSV/Excel reports—including full program history, deviation logs, and calibration metadata.
• Redundant safety architecture: Triple-layer protection including overtemperature cutoff, compressor overheat shutdown, leakage current interruption, and auto-recovery upon power restoration—ensuring uninterrupted operation during 7×24-hour validation runs.

Sample Compatibility & Compliance

The GMC2-100-I accommodates diverse pharmaceutical sample formats—including blister packs, vials, syringes, ampoules, and bulk powders—within stainless-steel 304 chambers featuring removable, adjustable shelves and radius-corner construction for cleanroom-compatible cleaning validation. Each chamber includes a standard 25 mm test port (optional configurations available) enabling real-time monitoring of internal parameters via external probes while maintaining environmental integrity. The system conforms to ISO 14644-1 Class 8 (100,000) cleanroom compatibility standards and supports routine IQ/OQ/PQ documentation packages. All firmware and software modules are validated per ASTM E2500-13 and aligned with EU GMP Annex 11 requirements for computerized system validation (CSV). Environmental data generated meets FDA 21 CFR Part 11, NMPA “Regulations on Record and Data Management for Pharmaceutical Products,” and WHO TRS 992 Annex 5 criteria for regulatory submissions.

Software & Data Management

Embedded firmware provides native support for Modbus RTU communication over RS485, enabling seamless integration into laboratory MES, LIMS, or SCADA infrastructures. The onboard data logger captures timestamped readings at user-defined intervals (1 s to 60 min resolution) for temperature, humidity, light intensity, and alarm states. Historical datasets are stored locally in non-volatile memory and exportable via USB to CSV or Excel formats—with column headers fully annotated per ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Optional cloud synchronization (via MQTT or HTTPS REST API) supports centralized fleet monitoring and remote exception alerting. Audit logs retain full traceability of all operator actions—including parameter edits, profile activation, and user role modifications—with immutable hashing to prevent post-hoc alteration.

Applications

• ICH-compliant stability studies: Long-term (25 °C/60% RH, 30 °C/60% RH), accelerated (40 °C/75% RH), and intermediate condition (30 °C/65% RH) testing per Q1A(R2).
• Photostability assessment: ICH Q1B-compliant exposure under near-UV and visible light spectra, including forced degradation studies for active pharmaceutical ingredients (APIs) and finished dosage forms.
• Excipient compatibility screening: Controlled evaluation of physical and chemical interactions between APIs and excipients under variable hygrothermal stress.
• GMP batch release support: Real-time environmental monitoring during stability-indicating assay development and shelf-life determination for commercial manufacturing.
• Biologics and advanced therapy medicinal products (ATMPs): Low-temperature stability profiling (down to 0 °C) and high-humidity challenge testing for lyophilized monoclonal antibodies and mRNA formulations.

FAQ

Does the GMC2-100-I meet FDA 21 CFR Part 11 requirements for electronic records and signatures?
Yes—the system implements role-based electronic signatures, automated audit trails with immutable timestamps, and secure user authentication (3-tier access: Operator, Administrator, Engineer) fully compliant with Part 11 Subpart B.
Can individual chambers operate under different temperature/humidity setpoints simultaneously?
Yes—each of the four 100 L chambers features independent PID controllers, allowing concurrent execution of distinct ICH protocols without thermal or moisture cross-talk.
Is the lighting system calibrated to ICH Q1B spectral distribution requirements?
Yes—the trilateral LED array delivers uniform irradiance across the 320–400 nm (UV-A) and 400–800 nm (visible) bands, with spectral output certified per ISO/CIE 17166:2022 and traceable to NIST standards.
What validation documentation is provided with the system?
DRETOP supplies a comprehensive validation package including Factory Acceptance Test (FAT) report, Installation Qualification (IQ) template, Operational Qualification (OQ) protocol with pre-executed test scripts, and Performance Qualification (PQ) guidance aligned with ASTM E2500-13.
How is data integrity maintained during extended unattended operation?
All sensor data is written to redundant flash memory with cyclic redundancy check (CRC) verification; USB exports include digital signatures and SHA-256 hash values to ensure file authenticity and detect unauthorized modification.
