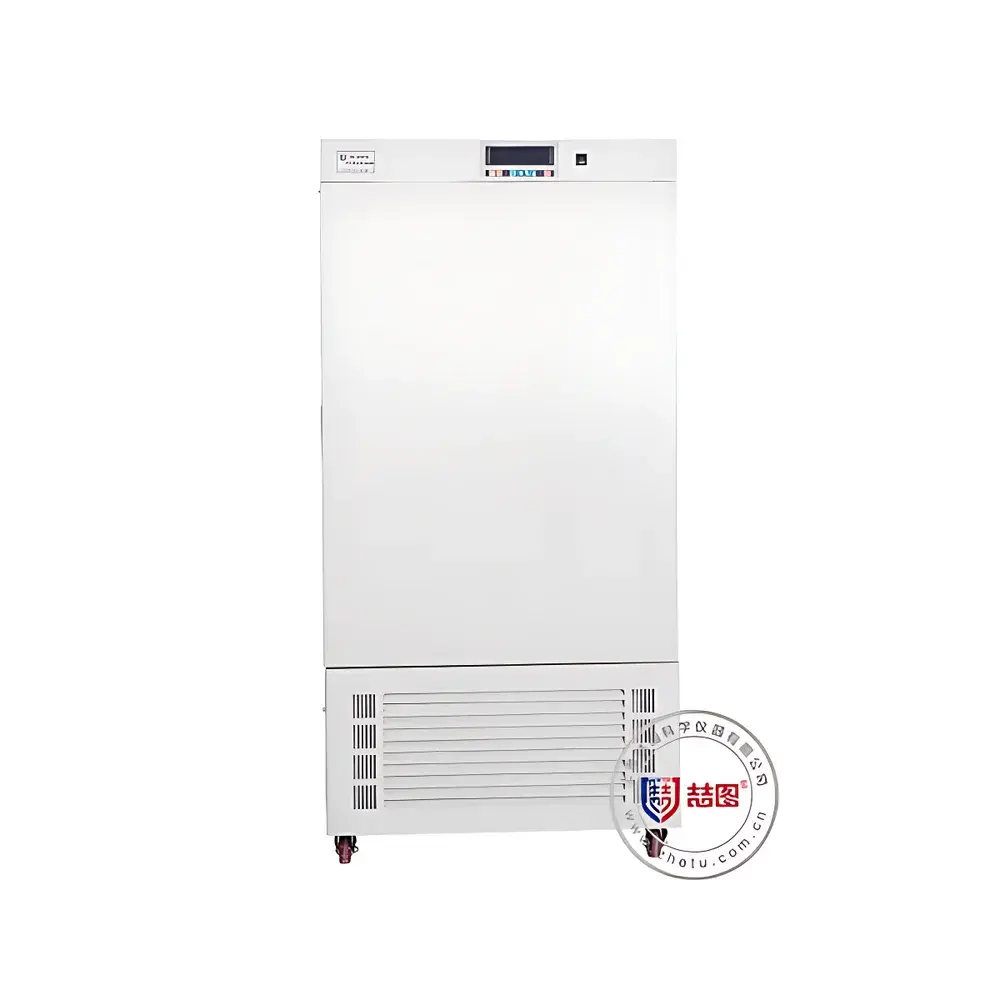

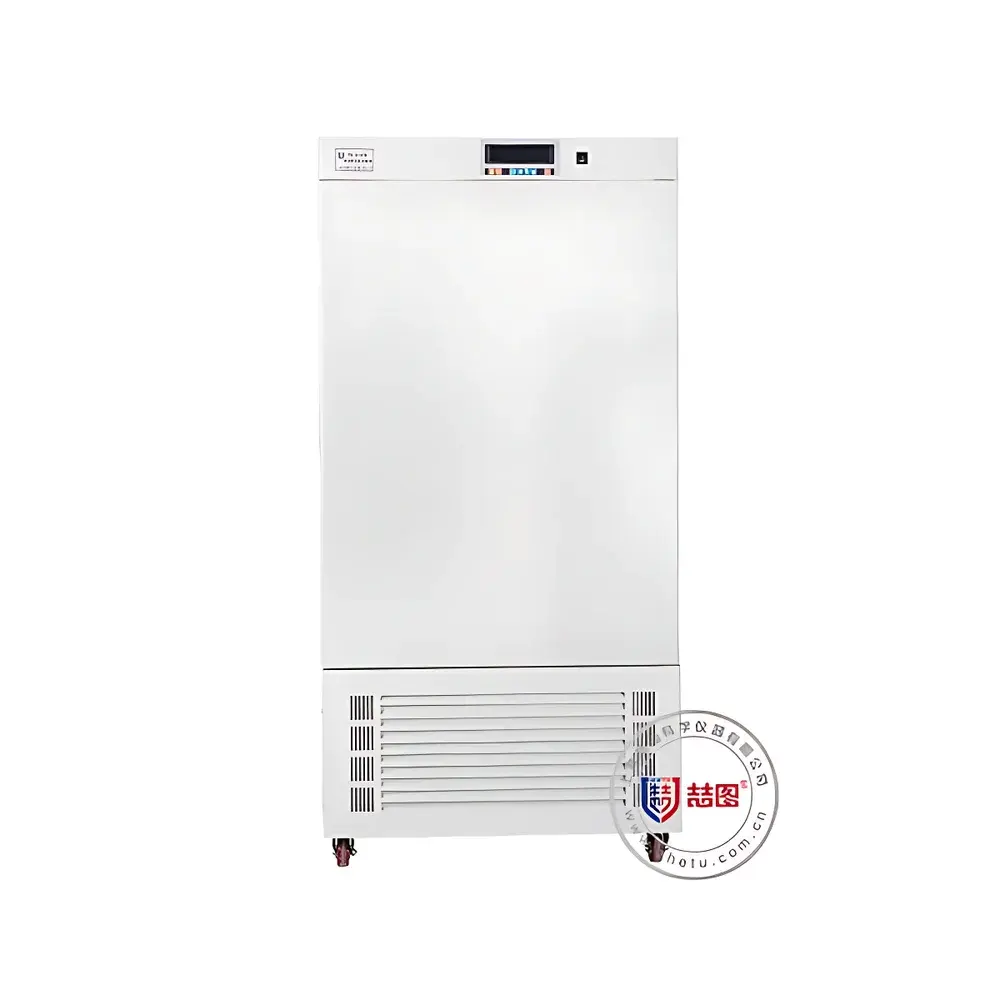

DRETOP GMH-100-II Dual-Chamber Drug Stability Testing Chamber

Overview

The DRETOP GMH-100-II Dual-Chamber Drug Stability Testing Chamber is an engineered environmental simulation system designed specifically for pharmaceutical stability studies in compliance with ICH Q1–Q5 guidelines, USP , and WHO TRS Annex 2. Unlike single-chamber units, its dual independent chamber architecture enables simultaneous execution of two distinct test conditions—such as accelerated (40 °C/75 %RH) and long-term (25 °C/60 %RH) protocols—within a single footprint, eliminating inter-chamber cross-contamination risk and reducing laboratory space requirements. The system employs precision-controlled refrigeration (imported eco-friendly compressors), PID-regulated resistive heating (nickel-chromium alloy elements), and high-stability electronic humidity sensing operating continuously at elevated temperatures—eliminating reliance on maintenance-prone dry/wet bulb assemblies. Airflow is managed via centrifugal forced convection with optimized duct geometry, ensuring ≤±2.5 °C spatial uniformity per ICH-defined zone mapping requirements.

Key Features

• Dual independent chambers with fully isolated thermal, humidification, and illumination control systems—enabling concurrent ICH-compliant protocols without hardware duplication.
• Industrial-grade color touchscreen HMI supporting 1000 user-defined programs (100 segments each), with slope-based ramp/soak temperature–humidity transitions and programmable lighting duty cycles.
• Fully hierarchical access control: Administrator (full configuration), Maintenance Technician (real-time monitoring + logs, no deletions), and Operator (run/stop + read-only data view)—enforcing ALCOA+ data integrity principles.
• Robust environmental resilience: Silicone door gaskets maintain seal integrity across –10 °C to 70 °C; high-efficiency auto-defrost refrigeration sustains uninterrupted operation over 3,000-hour continuous cycles.
• Integrated data assurance architecture: 60-second internal logging (≥3 years retention), USB export, optional RS485 PC connectivity, and micro-printer for GxP-compliant hard-copy records.
• Comprehensive safety layering: Independent mechanical overtemperature cutoff (K-type controller), compressor/fan overload protection, leakage current interruption, and audible/visual alarm escalation with optional SMS notification (B-type add-on).

Sample Compatibility & Compliance

The GMH-100-II accommodates standard pharmaceutical packaging formats—including blister cards, HDPE bottles, glass vials, and secondary cartons—on adjustable stainless-steel shelves (2 per chamber). Its chamber dimensions (500 × 450 × 450 mm per unit) support ICH-recommended sample loading density while maintaining ≥0.3 m/s airflow velocity across all zones. All firmware and data handling workflows adhere to 21 CFR Part 11 requirements: electronic signatures, immutable audit trails (operation log, alarm history, calibration events), and role-based permissions are natively embedded—not retrofitted. Optional 3Q validation packages (IQ/OQ/PQ) include protocol templates, executed reports, and traceable CNAS-certified calibration at user-specified points (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 60 °C/ambient RH).

Software & Data Management

The embedded control software provides real-time visualization of temperature, humidity, and irradiance (when equipped with E-type sensor) via dynamic trend curves. Historical datasets are structured in ISO/IEC 17025–aligned formats: timestamps include UTC offset, values retain original sensor resolution (0.1 °C, 0.1 %RH, 1 lx), and metadata tags identify operator ID, program name, and chamber ID. Export options include CSV (for Excel/Statistica), PDF summary reports (with digital signature fields), and encrypted USB archives compliant with EU Annex 11 data migration standards. Remote monitoring is supported via S-type mobile app (iOS/Android), delivering push notifications for alarms and enabling secure parameter review—without granting remote control rights.

Applications

• ICH Q1A(R3) Accelerated & Long-Term Stability Studies: Simultaneous evaluation of degradation kinetics under multiple stress conditions.
• Photostability Testing per ICH Q5C: Integration-ready with V-type UV-C germicidal modules (254 nm) and multi-spectral LED arrays (R/G/B/V combinations) for wavelength-specific excitation profiling.
• GMP Batch Release Support: Used by QC labs for real-time stability monitoring of commercial batches during shelf-life verification.
• Biologics & mRNA Formulation Development: Precise low-humidity control (down to 20 %RH) supports lyophilized product characterization and cold-chain deviation modeling.
• Regulatory Submission Preparation: Preconfigured test templates align with FDA eCTD Module 5.3.5.2 requirements for stability protocol documentation.

FAQ

Does the GMH-100-II meet ICH Q1–Q5 environmental classification requirements?
Yes. Chamber performance is validated per ICH Q1A(R3) Annex 2: temperature uniformity ≤±2.5 °C, humidity deviation ≤±3 %RH, and illumination homogeneity ≥85 % across defined test zones.
Can the system generate 21 CFR Part 11–compliant electronic records?
Yes. Audit trails record all user actions with timestamps, IP/device IDs, and immutable hashes. Digital signatures and role-based permissions are enforced at firmware level.
What calibration documentation is included?
Standard delivery includes factory calibration certificates. Optional CNAS-accredited certificates are available for specific points (e.g., 25 °C/60 %RH, 40 °C/75 %RH) with uncertainty budgets per ISO/IEC 17025.
Is remote diagnostics supported?
Yes—via secure TLS-encrypted RS485-to-Ethernet gateway (R-type interface) or S-type mobile app, enabling authorized technicians to review live parameters and error logs without physical access.
How is humidity controlled at elevated temperatures without dry/wet bulb drift?
High-temperature-rated capacitive polymer sensors operate continuously up to 85 °C, eliminating hygroscopic wick degradation and recalibration drift inherent in traditional psychrometric systems.
