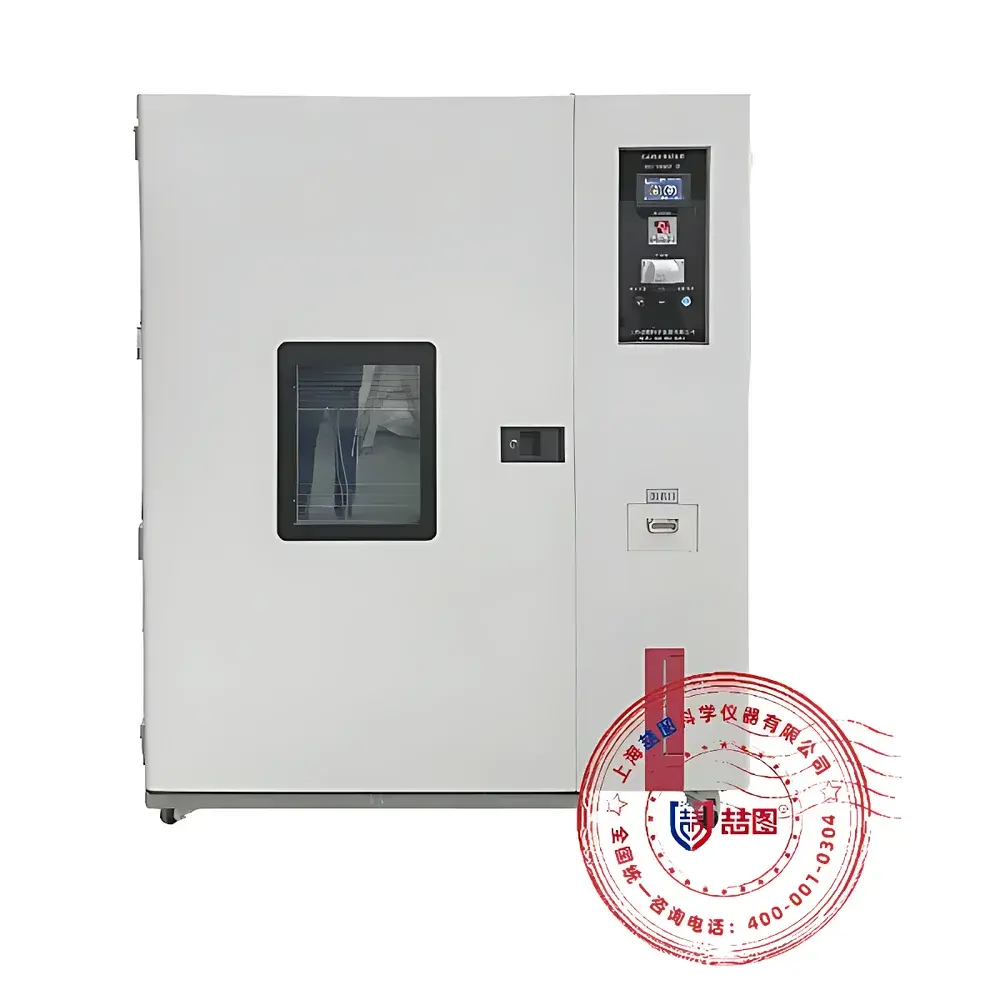

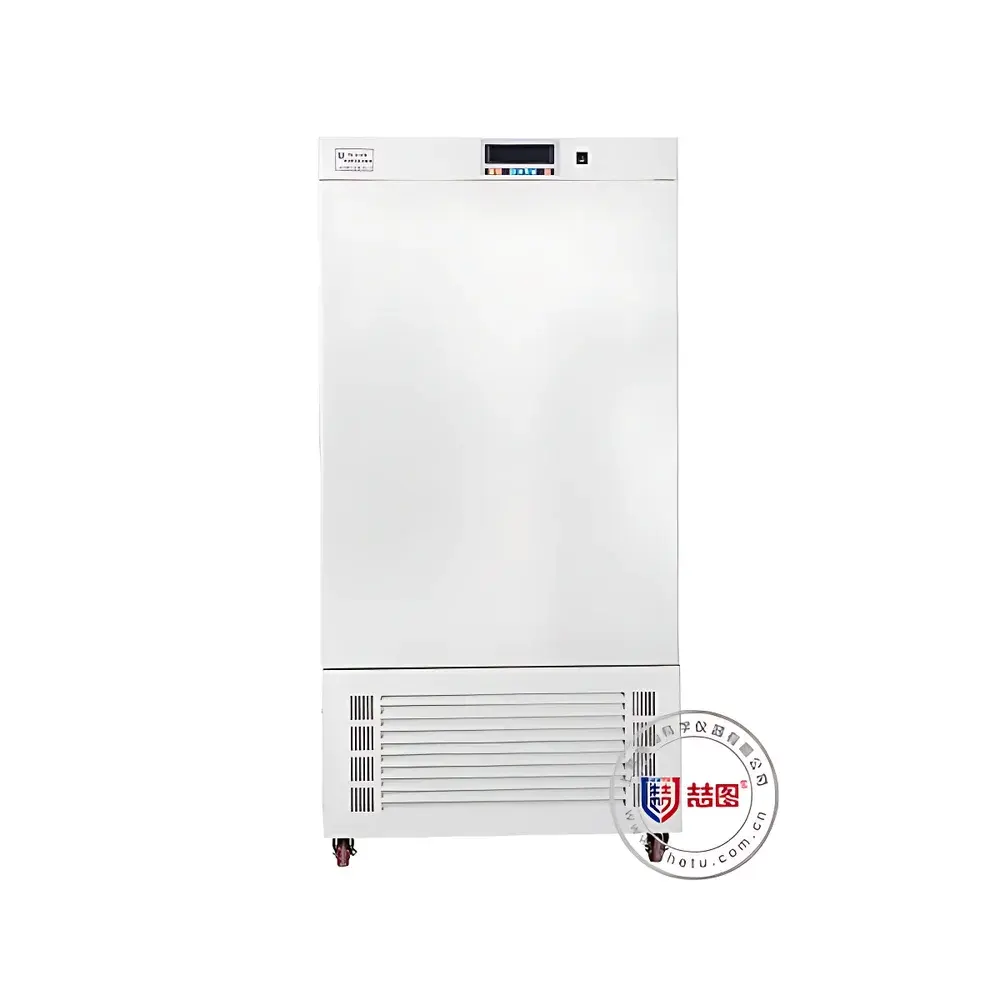

DRETOP GMH-1000 Integrated Drug Stability Testing Chamber

Overview

The DRETOP GMH-1000 Integrated Drug Stability Testing Chamber is a purpose-built environmental simulation system engineered for compliance with ICH Q1–Q5 guidelines and aligned with regulatory expectations for pharmaceutical stability studies under controlled temperature, humidity, and illumination conditions. It operates on a dual-loop control architecture: independent PID-regulated refrigeration, heating, humidification, and lighting subsystems ensure precise, decoupled modulation of each environmental parameter—critical for executing ICH Q1A(R3) long-term (25 °C/60% RH), accelerated (40 °C/75% RH), intermediate (30 °C/65% RH), and photostability (ICH Q5B/Q1B) test protocols. The chamber’s structural design prioritizes thermal inertia minimization and airflow homogeneity, enabling rapid recovery (<15 min) after door opening while maintaining ≤±2.5 °C spatial uniformity across the full 1000 L working volume—validated per ISO 14644-3 and ASTM E2875-22 practices.

Key Features

• Independent dual-stage refrigeration system with imported hermetic scroll compressor, non-CFC R404A/R134a mixed refrigerant, and automated defrost cycle—enabling uninterrupted operation over 720-hour continuous test cycles.
• High-accuracy capacitive humidity sensor rated for continuous operation at elevated temperatures (up to 85 °C), eliminating reliance on maintenance-prone wet-bulb psychrometry.
• Nickel-chromium alloy heating elements combined with high-static-pressure centrifugal air circulation (≥280 m³/h) deliver ≤±0.5 °C temperature stability and ≤±3% RH humidity repeatability.
• 7-inch color touchscreen HMI supporting bilingual (English/Chinese) interface, hierarchical access control (Administrator/Maintenance/Operator), and audit-trail-enabled parameter locking.
• Fuzzy PID + feedforward logic algorithm dynamically compensates for load-induced thermal lag, ensuring <±0.3 °C deviation during ramp-and-soak transitions.
• Robust sealing system using food-grade silicone gasketing maintains chamber integrity across −20 °C to +80 °C ambient extremes; leak rate <0.5% volume/hour per ISO 14644-3 Class 5 verification.
• Integrated safety architecture includes independent mechanical overtemperature cutoff (K-type limiter), compressor/fan overload protection, ground-fault interruption, and audible/visual alarm escalation.

Sample Compatibility & Compliance

The GMH-1000 accommodates diverse pharmaceutical sample formats—including blister packs, vials, ampoules, sachets, and clinical trial batches—on four corrosion-resistant, height-adjustable stainless-steel shelves (load capacity: 25 kg/shelf). Its internal geometry and laminarized airflow path meet WHO TRS 992 Annex 6 requirements for uniform exposure distribution. Optional configurations support full ICH Q1B photostability testing: UV-A (320–400 nm) and visible light (400–800 nm) irradiance modules are calibrated traceably to NIST standards, with real-time lux monitoring and programmable on/off scheduling. For GxP environments, the system supports 21 CFR Part 11-compliant electronic records when paired with optional RS485-to-PC data acquisition and J-type paperless recorder (with encrypted SD card logging and SHA-256 hash verification). Factory-provided 3Q validation packages (IQ/OQ/PQ) include protocol templates, test scripts, and raw data worksheets compliant with EU Annex 15 and FDA Guidance for Industry (2022).

Software & Data Management

Embedded firmware provides native support for time-stamped event logging (system start/stop, door openings, alarms, setpoint changes), with automatic timestamping synchronized to internal RTC (±2 sec/month drift). All operational data—including real-time temperature/humidity/light curves, alarm history, and user action logs—are stored in non-volatile memory with cyclic overwrite protection. USB export enables CSV-formatted extraction of ≥3 years of 60-second-interval datasets. Optional S-type mobile application delivers remote monitoring via TLS 1.2-secured MQTT connection, push notifications for critical faults, and contextual diagnostic overlays (e.g., compressor duty cycle, evaporator superheat). Audit trails comply with ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available.

Applications

• ICH-aligned long-term, accelerated, and stress stability studies for APIs, finished dosage forms, and biologics.
• Photostability assessment per ICH Q5B under UV and visible light exposure regimes.
• Excipient compatibility screening under controlled hygrothermal stress.
• Shelf-life prediction modeling using Arrhenius kinetics and moisture sorption isotherms.
• GMP-compliant storage condition qualification for warehouse mapping and cold chain validation.
• Academic and contract research organization (CRO) use in formulation development, packaging integrity evaluation, and degradation pathway analysis.

FAQ

Does the GMH-1000 meet ICH Q1 requirements for temperature and humidity tolerances?

Yes—the chamber maintains ≤±0.5 °C temperature fluctuation and ≤±3% RH deviation across its full operating range, satisfying ICH Q1A(R3) specifications for long-term and accelerated testing chambers.
Can the system be validated for GMP production environments?

Yes—DRETOP supplies fully documented IQ/OQ/PQ protocols, executed test reports, and optional CNAS-accredited calibration certificates at user-defined test points.
Is remote monitoring and alarm notification supported out-of-the-box?

Standard configuration includes SMS alert capability via optional B-type wireless module; S-type mobile app and RS485 PC integration are available as field-installable options.
What is the maximum allowable sample load without compromising uniformity?

With four fully loaded shelves (100 kg total), spatial uniformity remains within ±2.5 °C and ±3% RH per ISO 14644-3 Annex B. Load distribution must avoid blocking rear wall air inlets or top-mounted condensate drain paths.
How is data integrity ensured during power interruptions?

The system features battery-backed RTC, EEPROM-resident configuration retention, and automatic resume-from-interrupt functionality—including restoration of active program segments and accumulated runtime counters.
