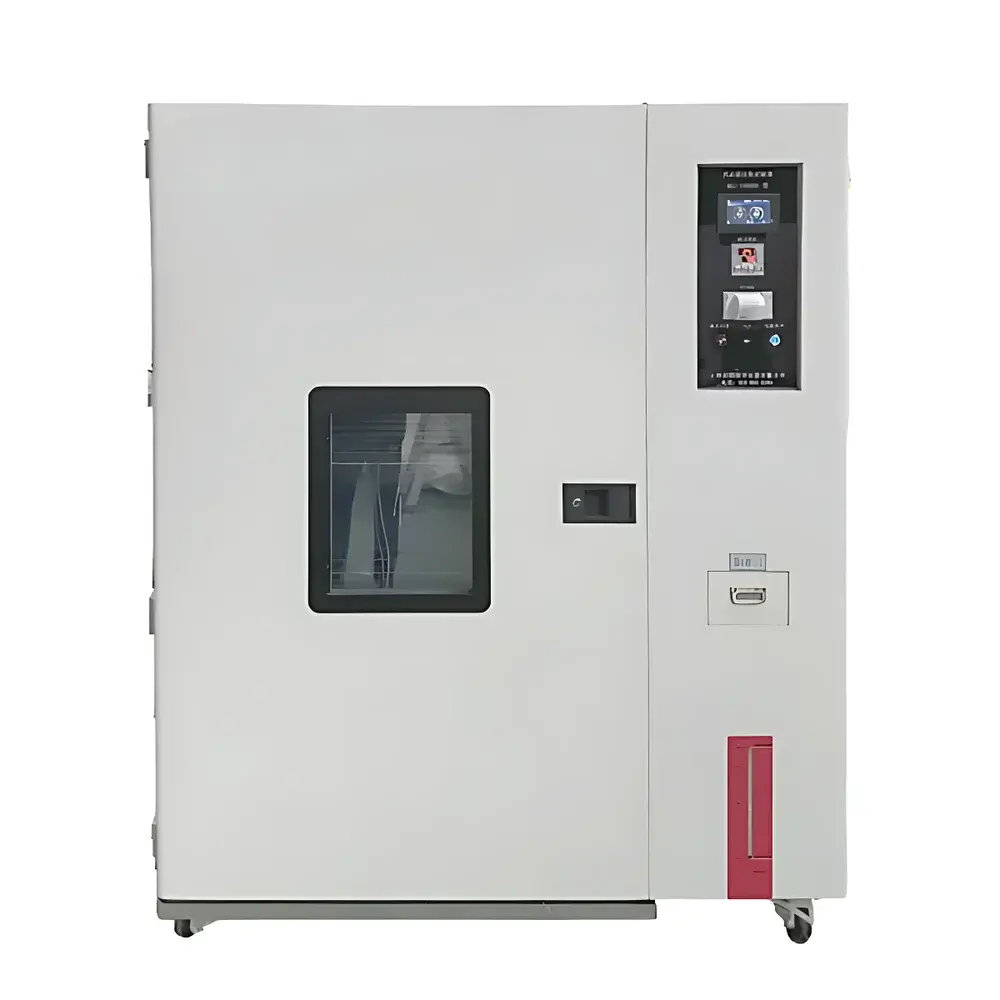

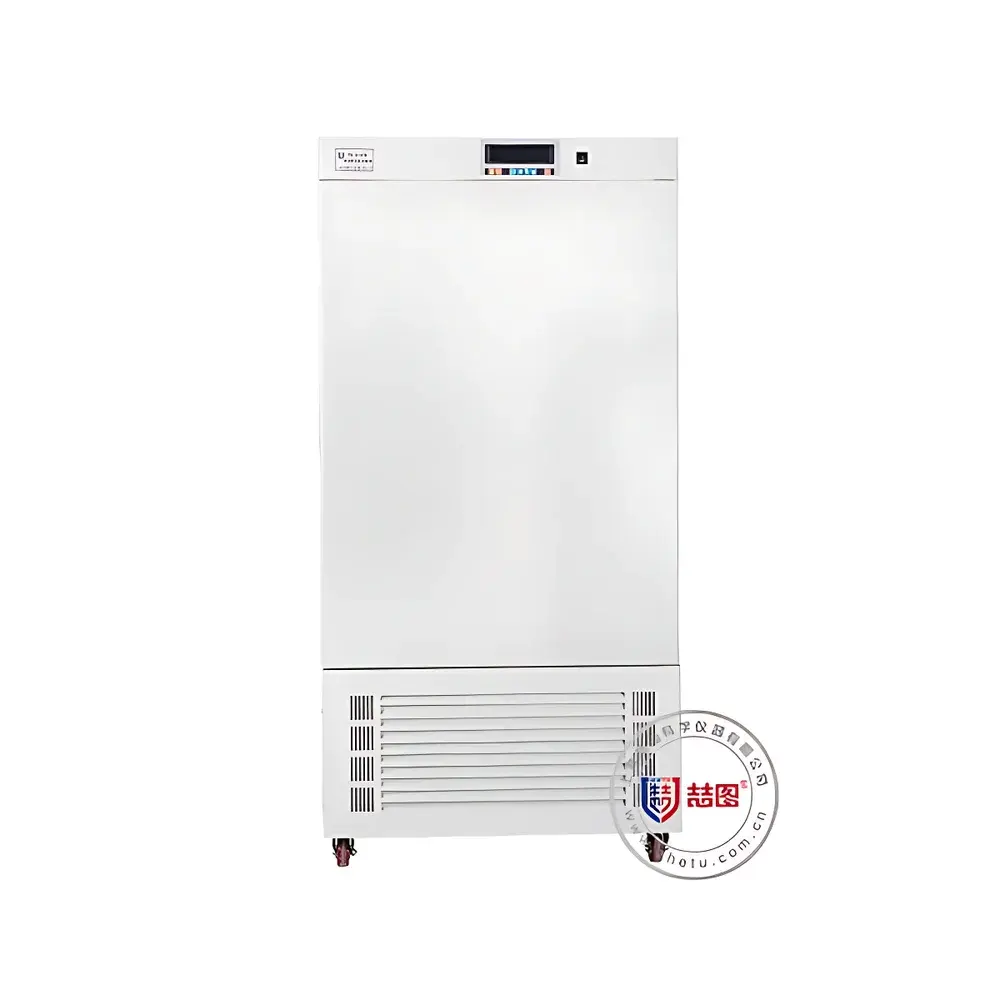

DRETOP GMH-150R Drug Stability Testing Chamber

Overview

The DRETOP GMH-150R Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for pharmaceutical stability studies in accordance with ICH Q1A(R2), Q1B, Q5C, and relevant sections of USP , EP 2.2.45, and ISO 16775. It provides precise, long-term control of temperature, relative humidity, and photometric irradiance—critical parameters required for accelerated, intermediate, long-term, high-humidity, and photostability testing of active pharmaceutical ingredients (APIs), finished dosage forms, and biologics. The chamber employs a dual-loop PID-controlled refrigeration-heating-humidification architecture, with independent regulation of thermal and moisture dynamics to ensure thermodynamic decoupling and eliminate cross-interference during multi-condition cycling. Its chamber design follows ASTM E2709-22 guidance on validation of stability-indicating methods and maintains stable setpoint fidelity under dynamic load conditions typical of regulatory submission batches.

Key Features

• 7-inch full-color capacitive touchscreen HMI with intuitive drag-and-drop programming interface supporting up to 100 user-defined programs, each containing up to 100 segments with ramp/soak profiles for temperature, humidity, and illumination
• Fuzzy logic PID control algorithm with adaptive gain scheduling ensures ±0.5 °C temperature fluctuation and ±2.5 °C uniformity across the 150 L working volume (measured per ISO 16775 Annex B)
• Independent high-efficiency refrigeration circuit using R134a-free scroll compressor (imported), integrated with automatic defrost cycle and nickel-chromium alloy heating elements for rapid thermal recovery post-door opening
• High-stability capacitive humidity sensor operating continuously at elevated temperatures (up to 65 °C), eliminating traditional wet-bulb maintenance and drift-related calibration drift
• Triple-seal silicone door gasket system rated for -20 °C to +80 °C service life; chamber leak rate <0.5 L/min at 25 °C/60 %RH (per ASTM E2875-13)
• Multi-zone forced-air circulation with optimized vane-assisted airflow distribution ensures ≤±1.5 °C spatial deviation at any point within the test zone (verified via 9-point thermocouple mapping)
• Granular access control: Administrator (full configuration), Maintenance Technician (data viewing + diagnostics only), and Operator (run/stop + real-time display only); all actions logged with timestamp and user ID
• Comprehensive safety architecture including overtemperature cutoff (independent mechanical limiter), compressor/fan overload protection, ground-fault interruption, and audible/visual alarm escalation

Sample Compatibility & Compliance

The GMH-150R accommodates standard ICH-compliant sample configurations—including open trays, sealed vials, blister packs, and secondary packaging—on three corrosion-resistant, height-adjustable stainless-steel shelves (304 grade). Its internal geometry conforms to ICH Q5C recommendations for minimum air exchange rates and light exposure homogeneity. Optional UV-C germicidal module (V-type) enables periodic decontamination of recirculated air and condensate surfaces, supporting sterile handling requirements for biologics and cell therapy products. All firmware and data management functions comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, including audit trail integrity, role-based authentication, and immutable event logging. Full 3Q validation packages (IQ/OQ/PQ) are available upon request, aligned with EU GMP Annex 15 and WHO TRS 986.

Software & Data Management

Embedded firmware supports continuous data acquisition at 60-second intervals, storing ≥3 years of time-stamped temperature, humidity, irradiance (if equipped), and operational status data in encrypted onboard flash memory. Data export is restricted to authorized maintenance users via USB or RS485; no deletion or modification capability is granted to non-administrative roles. Optional S-type mobile application enables real-time remote monitoring, push notifications for alarms (including SMS gateway integration), and secure firmware updates. Historical datasets are exportable in CSV and PDF formats compatible with statistical analysis tools (e.g., JMP, Minitab) and electronic lab notebook (ELN) systems. Audit trails record every parameter change, user login/logout, program execution, and alarm event—including source IP address and device MAC ID where network-enabled.

Applications

• ICH Q1A(R2) accelerated stability testing (40 °C/75 %RH, 30 °C/65 %RH)
• ICH Q1B photostability assessment per Option 1 (UV+visible) and Option 2 (visible only) protocols
• Long-term storage condition simulation (25 °C/60 %RH, 30 °C/65 %RH, 5 °C/ambient RH)
• High-humidity stress testing (40 °C/90 %RH) for hygroscopic formulations
• Bracketing and matrixing study support for multi-strength/multi-packaging configurations
• Stability protocol development for biosimilars and advanced therapy medicinal products (ATMPs)
• Environmental qualification of cold chain packaging and shipping containers

FAQ

Does the GMH-150R meet ICH Q1B photostability requirements?
Yes—the optional E-type illumination system delivers 0–25,000 lx output with spectral distribution matching ISO 10977:2016 CIE standard illuminant D65, and includes radiometric calibration traceable to NIM (China National Institute of Metrology).
Can humidity be controlled independently from temperature during ramp phases?
Yes—dual independent control loops allow simultaneous but decoupled modulation of thermal and moisture setpoints, preventing condensation and ensuring compliance with ICH Q1A(R2) Section 2.1.3.
Is 21 CFR Part 11 compliance built-in or add-on?
Full Part 11 functionality—including electronic signatures, audit trail immutability, and role-based access—is embedded in firmware v3.2+; no hardware upgrade required.
What validation documentation is included with shipment?
Standard delivery includes factory-as-tested calibration certificates for temperature and humidity sensors (NIST-traceable), plus installation checklist. IQ/OQ/PQ protocols and executed reports are available as optional deliverables.
How is data integrity ensured during power interruption?
The unit features battery-backed real-time clock and non-volatile memory; all pending logs are preserved during outage, and system resumes operation automatically upon power restoration with full state recovery.
