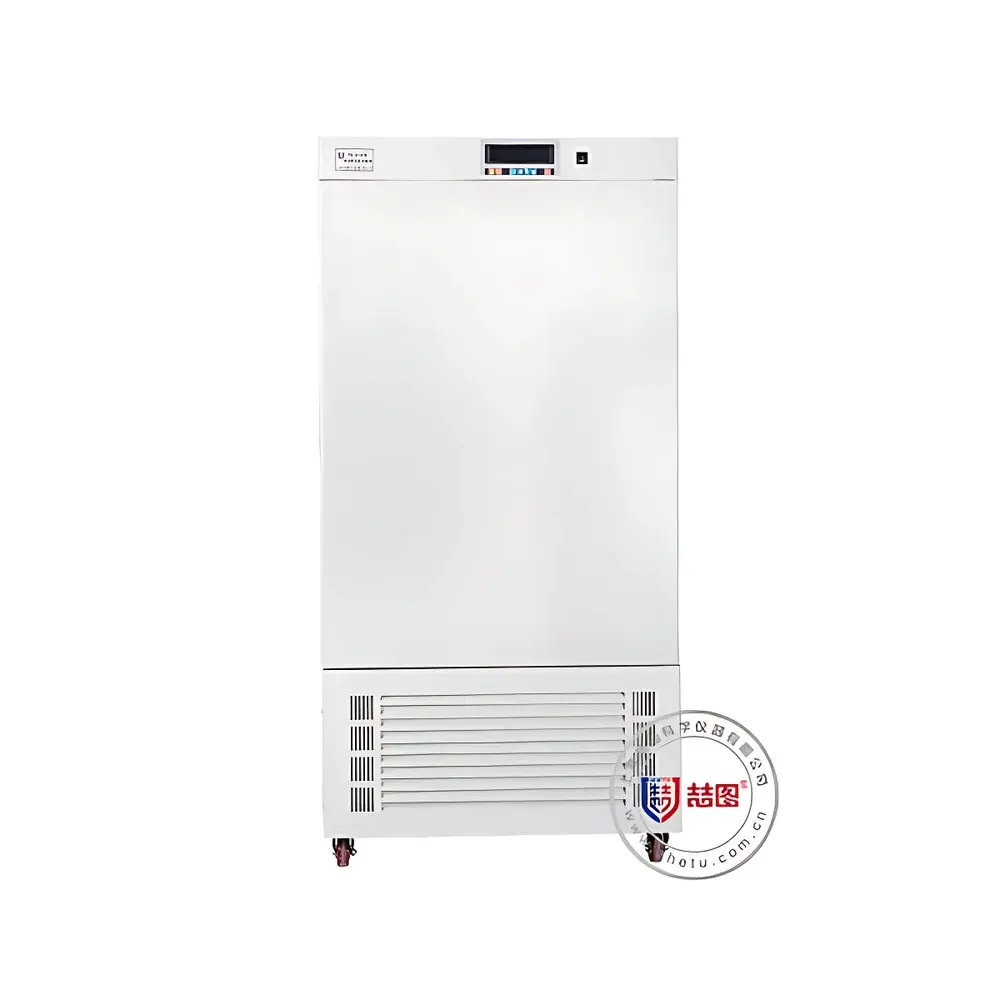

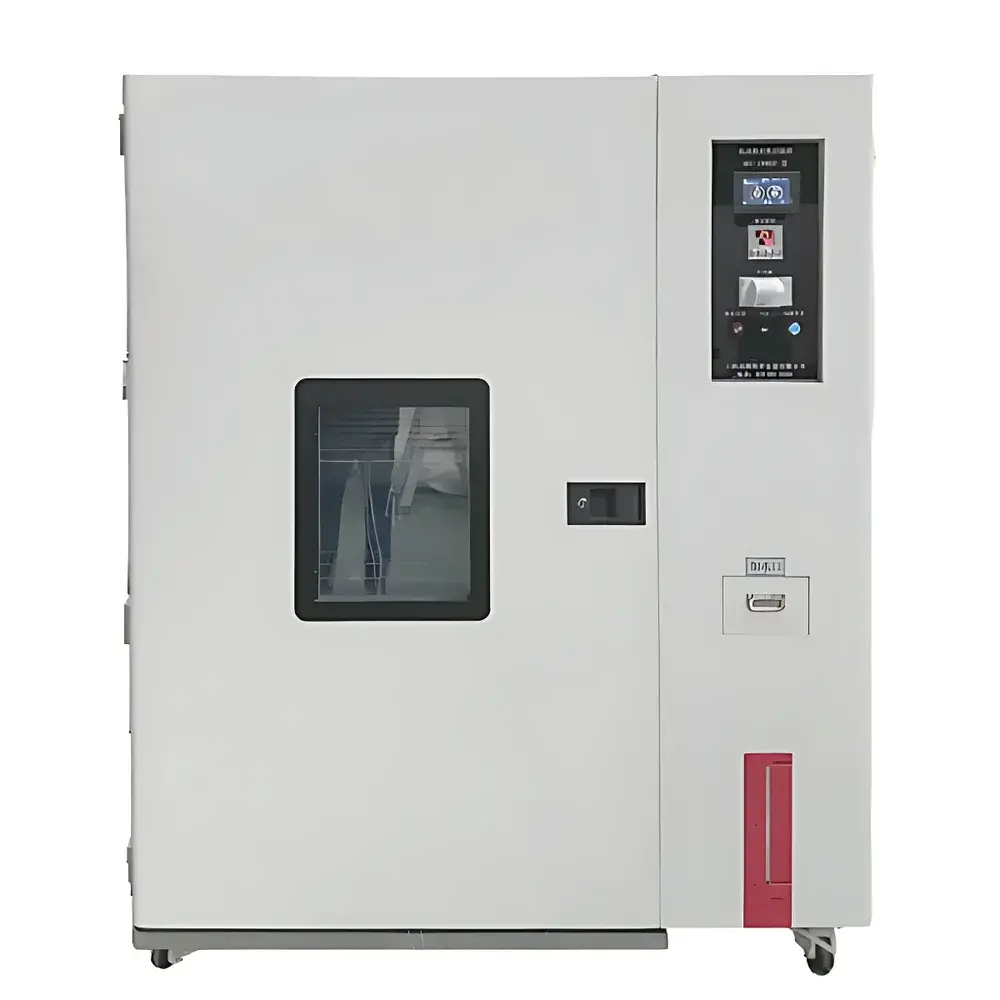

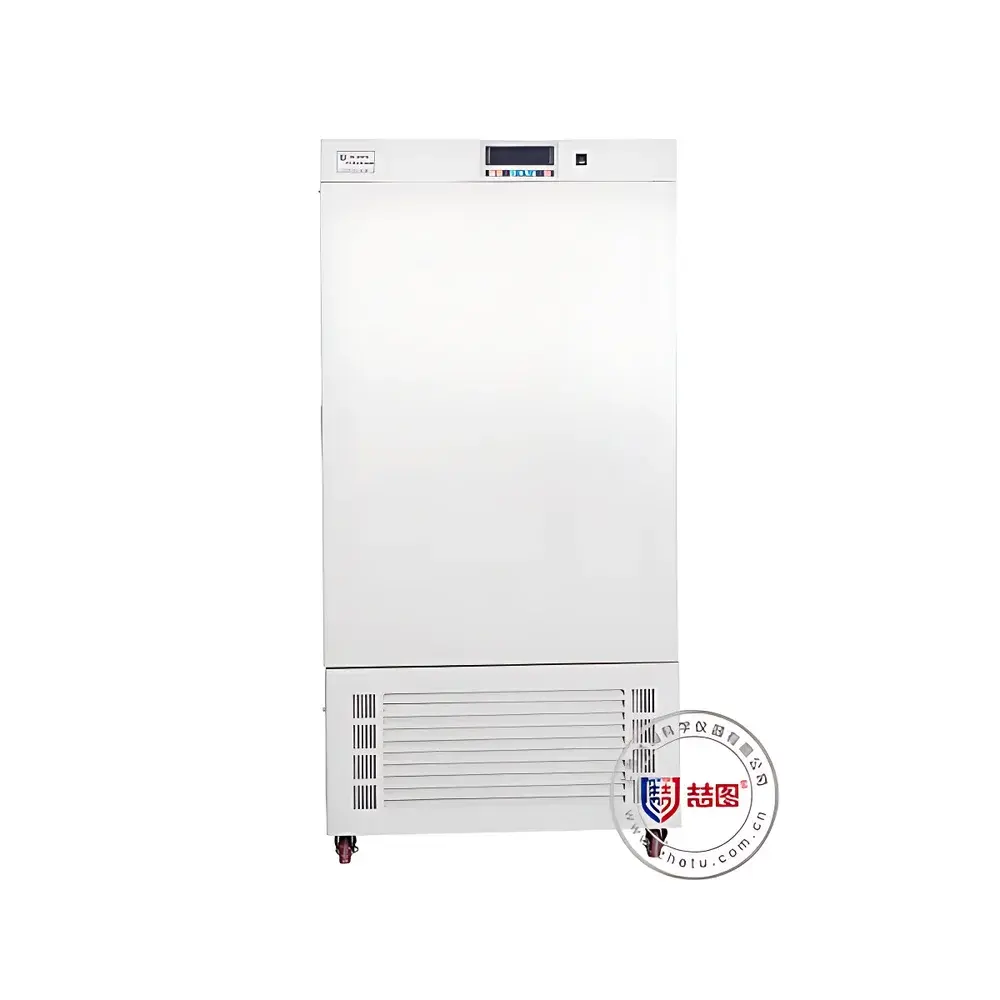

DRETOP GMH-800R Integrated Drug Stability Testing Chamber

Overview

The DRETOP GMH-800R Integrated Drug Stability Testing Chamber is an engineered environmental simulation system designed in strict accordance with ICH Q1A(R2), Q5C, and Q5D guidelines for pharmaceutical stability studies. It provides precise, reproducible control of temperature, relative humidity, and photometric conditions—critical parameters required for accelerated, long-term, intermediate, high-humidity, and photostability testing of active pharmaceutical ingredients (APIs), finished dosage forms, and biologics. The chamber employs a dual-loop PID-controlled refrigeration/heating system, independently regulated humidification and dehumidification circuits, and optional high-fidelity light sources calibrated to ICH Q1B (Option E) spectral requirements. Its robust thermal architecture—including nickel-chromium heating elements, high-efficiency scroll compressors, and optimized forced-air convection—ensures stable setpoint maintenance under dynamic load conditions and door-opening disturbances. Designed for continuous unattended operation over extended durations (≥12 months), the GMH-800R meets GLP and GMP-aligned operational integrity standards for regulated pharmaceutical R&D and QC laboratories.

Key Features

• Full-color capacitive touchscreen HMI with multilingual interface (English/Chinese), hierarchical access control (Administrator, Maintenance, Operator), and password-protected parameter editing
• 1000 programmable test profiles; each profile supports up to 100 time-segmented steps with independent ramp/soak control for temperature, humidity, and illumination
• Independent dual-channel climate control: refrigeration/heating and humidification/dehumidification subsystems operate autonomously to minimize cross-interference and improve response fidelity
• High-stability electronic humidity sensor rated for continuous operation at elevated temperatures—eliminates reliance on traditional dry/wet bulb assemblies requiring frequent maintenance
• Optimized air distribution system with centrifugal blower and aerodynamically tuned ductwork ensures ≤±2.5 °C temperature uniformity (per ISO 16770 Annex B) and rapid recovery (<15 min) after 30-second door opening
• Dual-stage safety architecture: primary microprocessor-based controller + secondary independent mechanical overtemperature limiter (K-type option) with audible alarm and automatic heater cutoff
• Integrated data integrity features: timestamped event logging (system start/stop, alarms, operator actions), tamper-resistant history storage (>3 years at 60 s intervals), and optional SMS alerting (B-type) or mobile app monitoring (S-type)
• Energy-efficient design: R290/R600a refrigerant-compatible compressor, auto-defrost cycle scheduling, and power-loss recovery with state retention

Sample Compatibility & Compliance

The GMH-800R accommodates standard pharmaceutical packaging configurations—including blister packs, HDPE bottles, glass vials, and aluminum foil pouches—on four corrosion-resistant stainless-steel shelves (load capacity: 15 kg/shelf). Its internal chamber (965 × 580 × 1430 mm) maintains spatial uniformity per ICH Q1A(R2) Annex 2 criteria, validated across ≥9 measurement points during PQ execution. Optional accessories enable full regulatory alignment: (1) ICH Q1B-compliant illumination systems (E-type, V-type, multi-spectral RGB/V options) with traceable lux calibration; (2) UV-C germicidal irradiation (V-type) for microbial control in sterile product stability studies; (3) 3Q validation packages (IQ/OQ/PQ) executed per ASTM E2500 and EU Annex 15; (4) CNAS-accredited calibration certificates for user-defined temperature/humidity setpoints (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 5 °C/ambient RH); and (5) optional 21 CFR Part 11–enabled software modules supporting electronic signatures, audit trails, and role-based data export restrictions.

Software & Data Management

The embedded control firmware supports real-time graphical display of temperature, humidity, and illumination trends via dual-axis time-series plots. All operational data—including sensor readings, alarm events, program execution logs, and user activity—are stored locally in non-volatile memory with cyclic overwrite protection. Historical datasets are exportable via USB 2.0 port or RS485 interface (R-type option) to external PCs running Windows-based analysis tools. The optional J-type standalone chart recorder provides redundant analog/digital recording with thermal printout capability. For enterprise integration, the system supports Modbus RTU protocol for SCADA connectivity. When equipped with the Part 11–compliant software package, the platform enforces electronic signature workflows, automated backup verification, and immutable audit trails compliant with FDA, EMA, and PMDA expectations for data reliability.

Applications

The GMH-800R serves core stability assessment functions across the pharmaceutical lifecycle: accelerated degradation studies (40 °C/75 %RH per ICH Q1A), long-term storage condition simulation (25 °C/60 %RH), photostability evaluation (ICH Q1B Option 1 or 2), freeze-thaw cycling protocols, and excipient compatibility screening. It is routinely deployed in formulation development labs, quality control departments, contract research organizations (CROs), and regulatory submission support units. Beyond pharma, the chamber supports stability testing of diagnostic reagents, cell culture media, monoclonal antibodies, mRNA-LNP formulations, and medical device packaging materials subject to ISO 11607 and ASTM F1980 aging protocols.

FAQ

What ICH guidelines does the GMH-800R support?
It is configured to meet ICH Q1A(R2), Q1B, Q5C, and Q5D requirements for temperature, humidity, and light exposure control, with optional accessories enabling full Q1B Option 1 (near-UV/visible) and Option 2 (cool white fluorescent) compliance.
Can the chamber be validated for GMP environments?
Yes—DRETOP provides complete 3Q documentation (IQ/OQ/PQ), CNAS-traceable calibration reports, and optional 21 CFR Part 11–enabled software for electronic records and signatures.
Is remote monitoring available?
Standard RS485 communication enables PC-based supervision; optional S-type mobile application allows real-time status viewing and basic control from iOS/Android devices.
How is data integrity ensured during power failure?
The system retains all active program states and logged data in non-volatile memory and resumes operation automatically upon power restoration, preserving continuity of stability trials.
What maintenance intervals are recommended?
Compressor oil and refrigerant checks every 24 months; humidity sensor recalibration annually; door gasket inspection quarterly; and full PQ requalification every 12–24 months depending on usage intensity and regulatory requirements.
