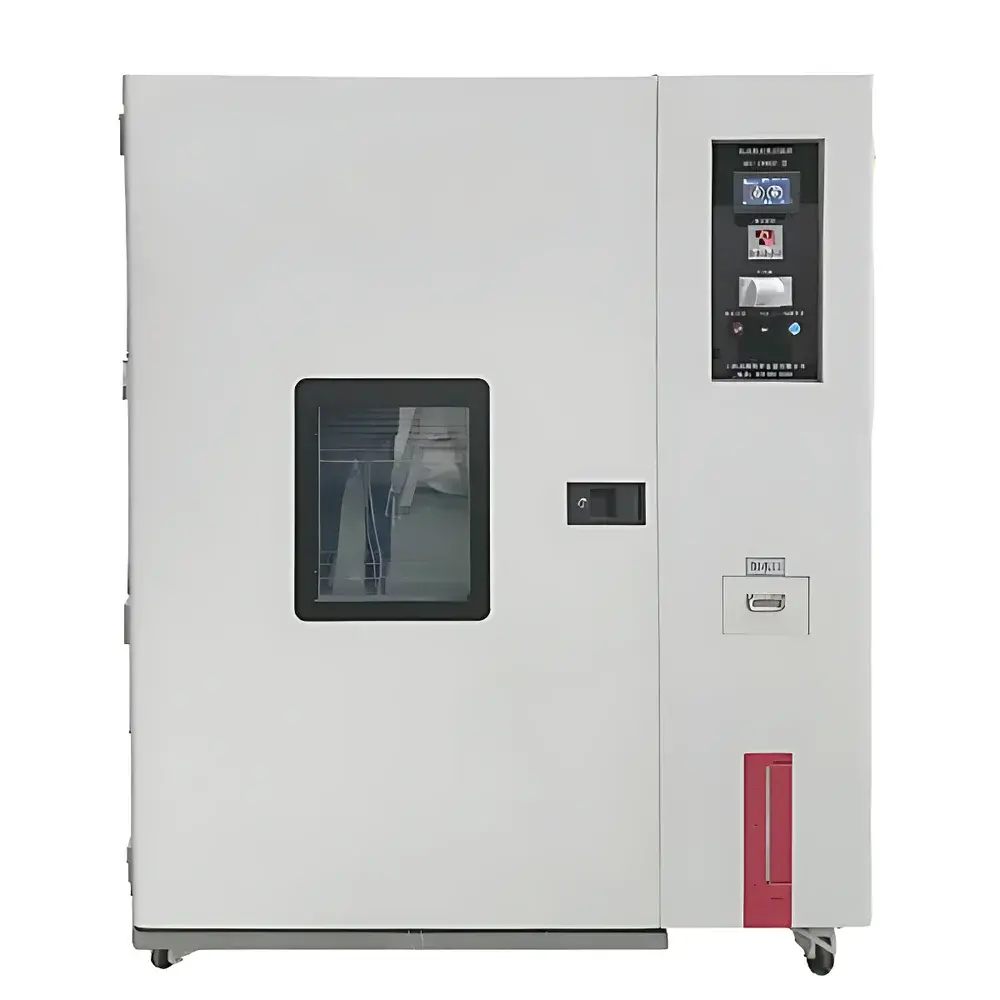

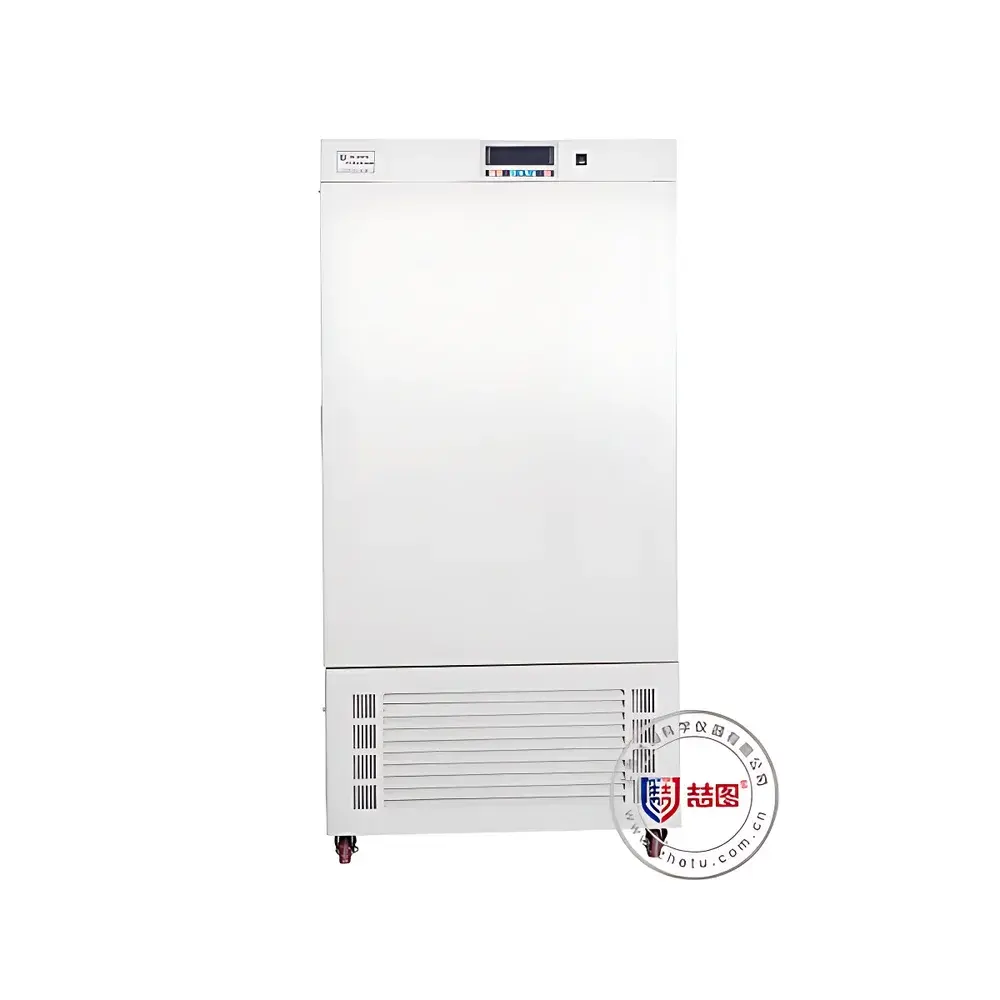

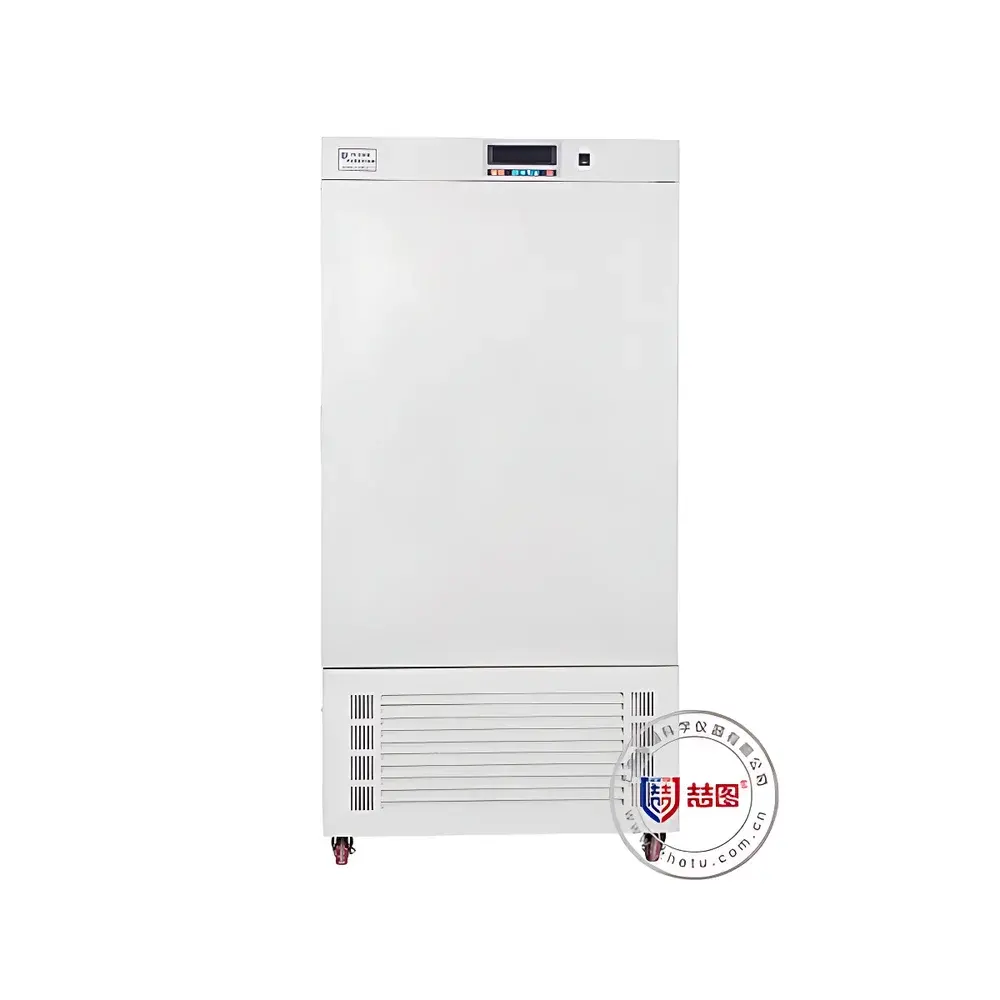

DRETOP MH-400 Pharmaceutical Stability Testing Chamber
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | MH-400 |
| Price Range | USD 7,000 – 8,500 |
| Temperature Control Range | 0–65 °C |
| Temperature Uniformity | ±2.5 °C |
| Temperature Fluctuation | ±0.5 °C |
| Humidity Control Range | 30–95 %RH (customizable to 20–95 %RH) |
| Humidity Deviation | ±3 %RH |
| Illumination Capability | Optional (Lx-adjustable LED or UV modules available) |
| Internal Volume | 400 L |
| Power Supply | AC 220 V / 50 Hz or AC 380 V / 50 Hz |
| Input Power | 3700 W |
| Chamber Dimensions (W×D×H) | 680 × 550 × 1050 mm |
| Shelving | 4 adjustable stainless-steel shelves |
| Data Logging Interval | 60 s (≥3 years continuous storage) |
| Compliance Support | IQ/OQ/PQ documentation, CNAS calibration certificates (selectable temp/humidity points), FDA 21 CFR Part 11–ready software architecture |
Overview
The DRETOP MH-400 Pharmaceutical Stability Testing Chamber is an engineered environmental simulation system designed to meet ICH Q1–Q5 and WHO TRS 953 Annex 2 requirements for drug stability assessment. It operates on a dual-loop, independent control architecture for temperature, humidity, and optional photometric parameters—enabling precise replication of accelerated, long-term, intermediate, high-humidity, and photostability test conditions defined in ICH guidelines. The chamber employs a forced-air convection system with optimized airflow distribution, ensuring uniform thermal and hygric profiles across the entire 400 L working volume. Its refrigeration subsystem utilizes a high-efficiency, fluorine-free compressor with auto-defrost functionality, while heating is delivered via nickel-chromium alloy elements coupled with PID-based fuzzy logic control—achieving stable setpoint maintenance under dynamic load conditions. All operational parameters are governed by a real-time embedded controller compliant with GLP and GMP data integrity principles.
Key Features
- 10.1-inch full-color capacitive touchscreen interface with bilingual (English/Chinese) language toggle and role-based access control—administrator, maintenance technician, and operator tiers with distinct permissions.
- Programmable multi-segment operation: up to 100 user-defined programs, each supporting 100 steps with ramp/soak profiles for temperature, humidity, and illumination intensity (when equipped).
- Independent dual-control loops for heating, cooling, and humidification—minimizing cross-interference and enhancing system reliability during extended unattended runs.
- High-stability electronic humidity sensor rated for continuous operation at elevated temperatures—eliminating maintenance associated with traditional wet-bulb/dry-bulb systems.
- Advanced air circulation design: centrifugal blower with variable-speed drive, precision-calibrated duct geometry, and low-turbulence flow paths—meeting ICH Q1B photostability airflow specifications and reducing door-open recovery time to <5 min (ΔT ≤ ±1.5 °C).
- Dual-stage overtemperature protection: primary PID-controlled heating cutoff plus independent mechanical high-limit thermostat (K-type option) with audible alarm and automatic power disconnection.
- Comprehensive safety architecture: leakage current protection, motor overload detection, compressor high-pressure cutout, and real-time fault diagnostics logged with timestamps.
- Integrated data acquisition: 60-second logging resolution, onboard non-volatile memory for ≥3 years of continuous parameter history (temp, RH, illumination, alarms, operator actions), plus USB export and RS485 Modbus RTU connectivity.
Sample Compatibility & Compliance
The MH-400 accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum tubes—on four corrosion-resistant, height-adjustable stainless-steel shelves. Its internal chamber features silicone rubber gasketing rated for -20 °C to +80 °C service life, maintaining >95 % seal integrity per ISO 14644-1 Class 8 cleanroom compatibility testing. The system supports full 3Q validation: Installation Qualification (IQ) documents verify hardware configuration and utility connections; Operational Qualification (OQ) protocols confirm performance across operational extremes (e.g., 40 °C/75 %RH, 25 °C/60 %RH, 5 °C/80 %RH); Performance Qualification (PQ) verifies spatial uniformity per ASTM E2875-22 Annex A1 (temperature ±2.5 °C, humidity ±3 %RH). Optional CNAS-accredited calibration certificates are available for traceable verification at user-specified points (e.g., 0 °C, 40 °C, 60 °C / 40 %RH, 60 %RH, 80 %RH).
Software & Data Management
Firmware supports audit-trail-enabled data handling aligned with FDA 21 CFR Part 11 requirements: all parameter changes, program edits, manual overrides, and alarm events are immutably timestamped with operator ID. Historical datasets—including real-time trend curves, event logs, and alarm summaries—are exportable in CSV or PDF format via USB or RS485. Optional J-type paperless recorder provides local visualization and encrypted SD-card storage. Remote monitoring is enabled through S-type mobile application (iOS/Android), delivering push notifications for critical alarms and enabling secure remote status checks—not remote control—to preserve data governance integrity. All firmware updates undergo cryptographic signature verification prior to installation.
Applications
The MH-400 serves as a core platform for regulatory-compliant stability studies across preclinical development, clinical trial material qualification, and commercial batch release. It executes ICH Q1A(R3) accelerated testing (40 °C/75 %RH), long-term storage (25 °C/60 %RH), intermediate conditions (30 °C/65 %RH), and high-humidity stress (25 °C/90 %RH). With optional illumination modules (E-type Lx display, V-type UV-C germicidal, or multi-spectral RGB/V combinations), it fulfills ICH Q1B photostability protocols—including Option 1 (near-UV/visible light exposure) and Option 2 (integrated irradiance monitoring). Biotech applications include protein formulation screening, lyophilized product reconstitution stability, and excipient compatibility mapping under controlled oxidative stress environments.
FAQ
Does the MH-400 comply with ICH Q1 and Q5 guidelines for stability testing?
Yes—the chamber’s temperature uniformity (±2.5 °C), humidity accuracy (±3 %RH), and programmable ramp/soak profiles meet ICH Q1A(R3), Q1B, and Q5C specifications when operated within validated parameter ranges.
Can the system generate 21 CFR Part 11–compliant electronic records?
Yes—audit trails, electronic signatures (role-based login), and immutable data logging are natively supported; optional software packages provide full Part 11 feature sets including biometric authentication and electronic record archiving.
What validation documentation is included with purchase?
Standard delivery includes IQ/OQ templates; PQ execution support and certified CNAS calibration reports are available as add-on services.
Is remote monitoring possible without compromising data security?
Yes—S-type mobile app enables read-only status viewing and alarm alerts via TLS-encrypted MQTT; no remote control or configuration changes are permitted from external endpoints.
How is humidity measured and controlled at elevated temperatures?
A high-temperature-rated capacitive polymer sensor operates continuously up to 85 °C, eliminating drift and recalibration needs associated with psychrometric methods.
