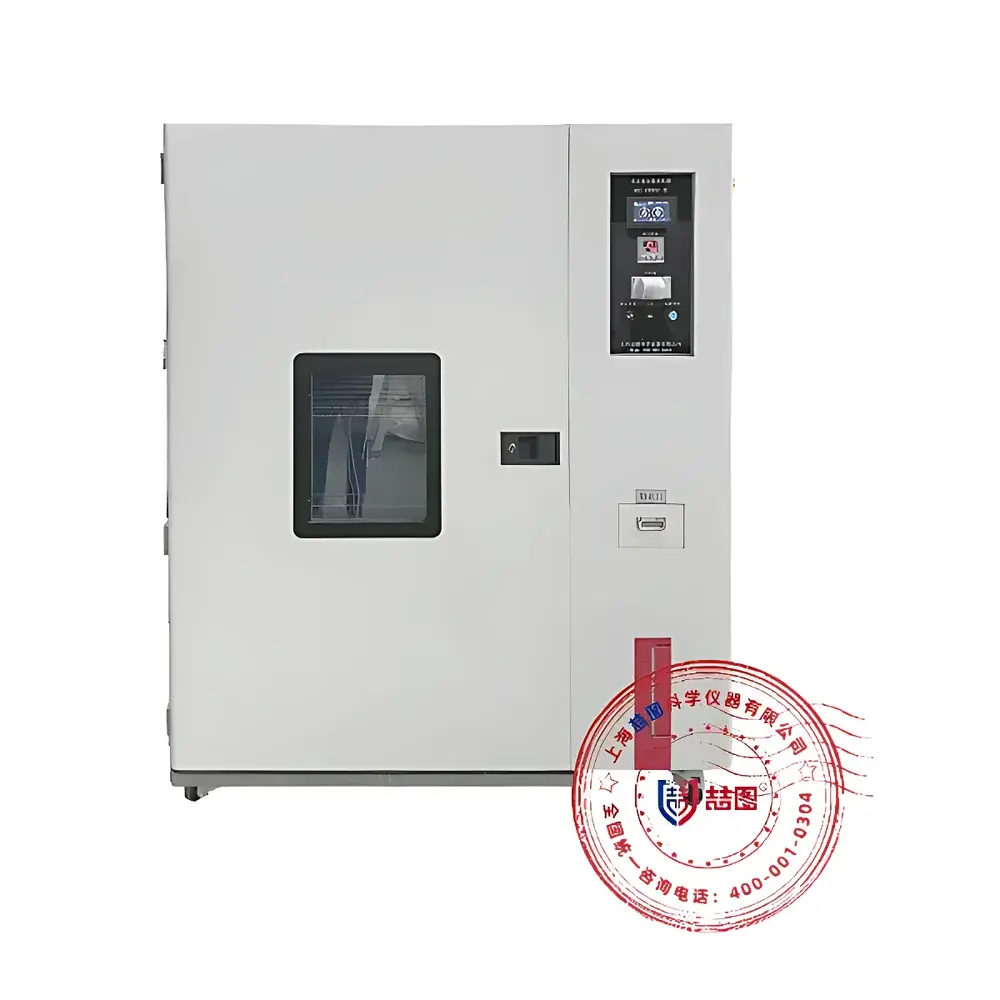

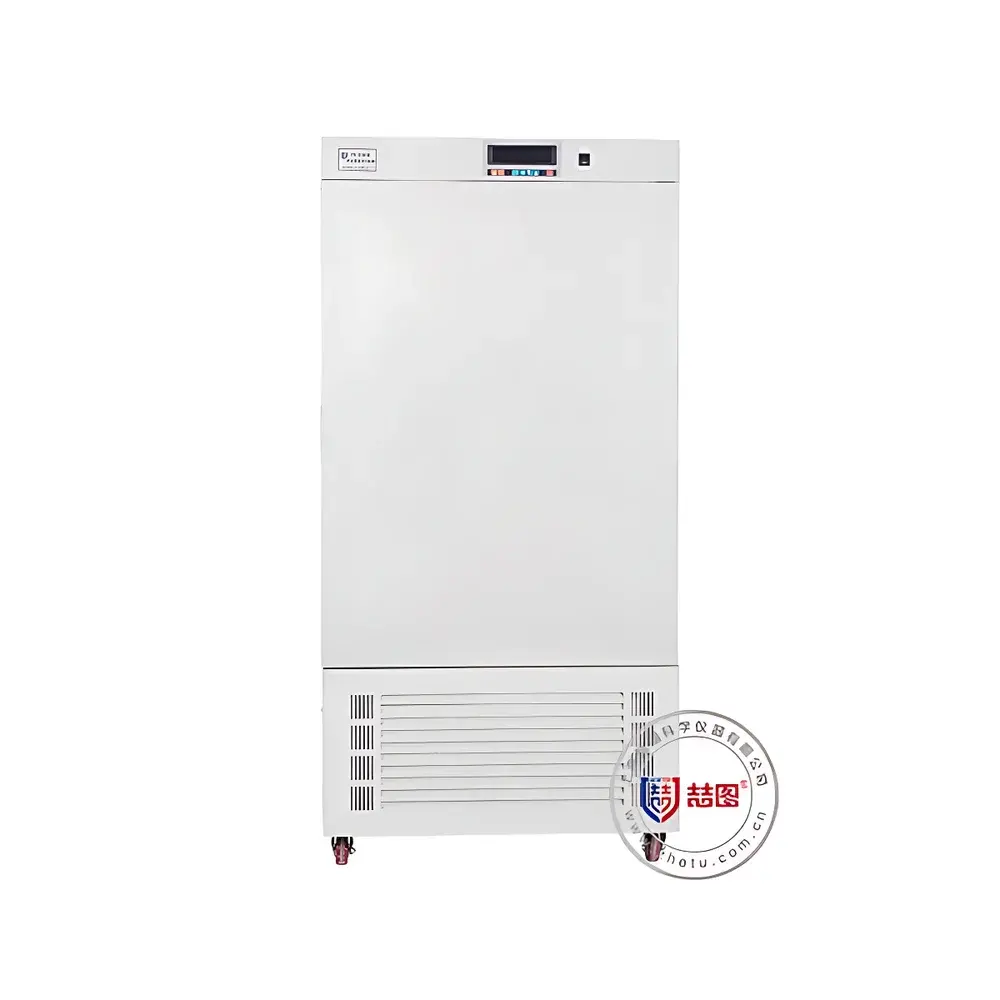

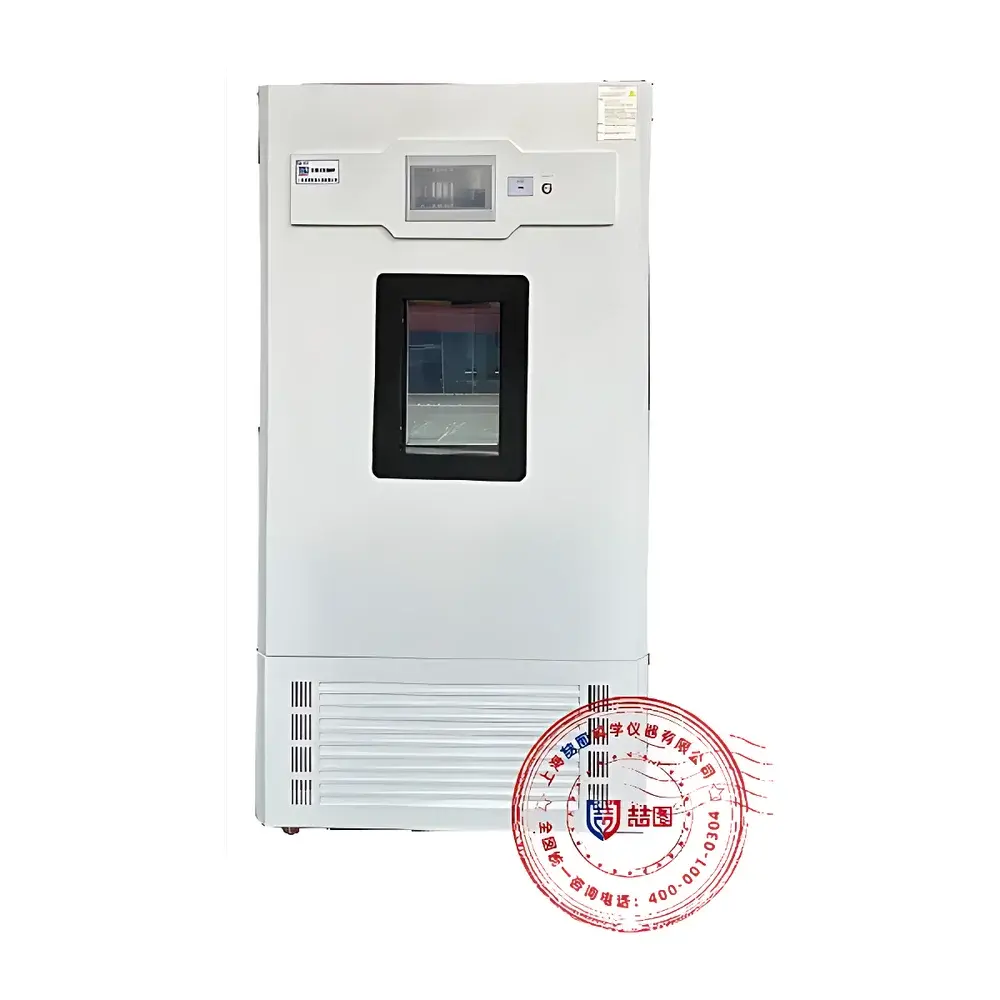

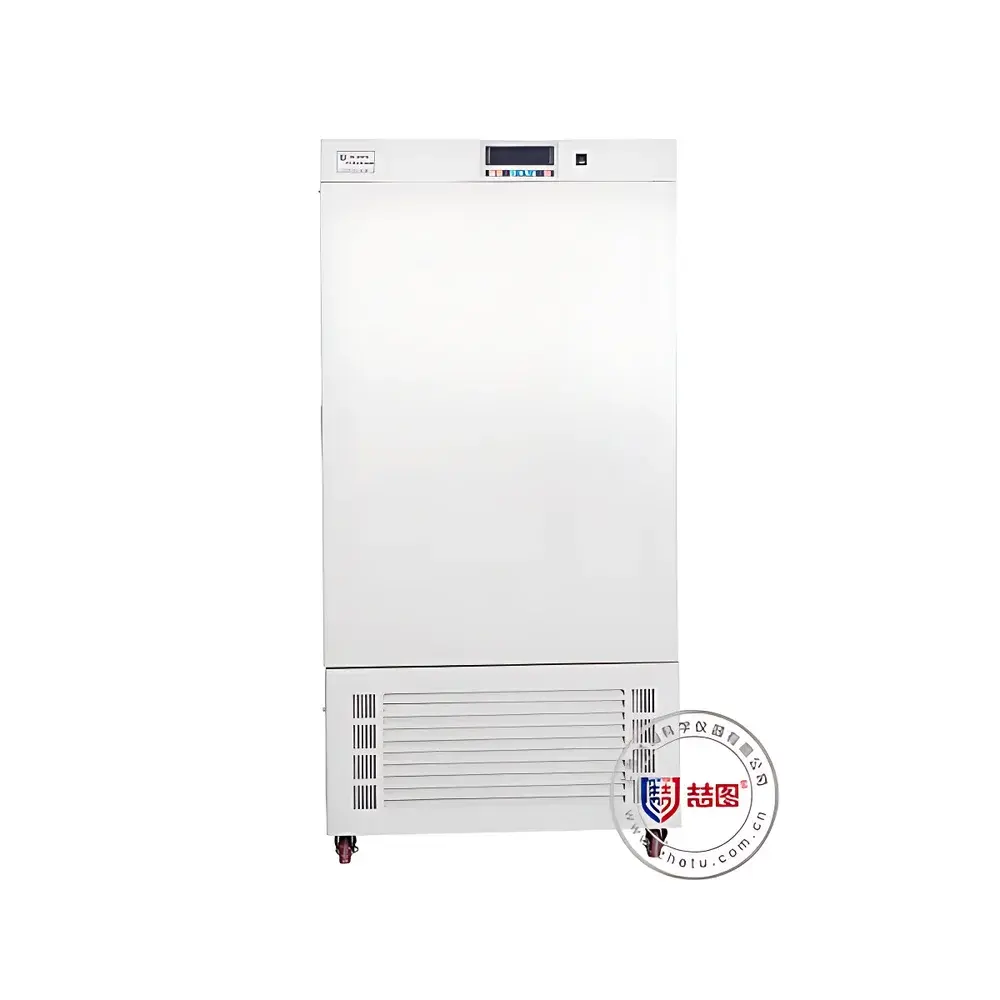

DRETOP MH-800 Pharmaceutical Stability Testing Chamber

Overview

The DRETOP MH-800 Pharmaceutical Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of active pharmaceutical ingredients (APIs), finished dosage forms, and biologics. It operates on a validated dual-loop control architecture—separately regulating temperature, humidity, and optional photometric parameters—to replicate the defined climatic zones outlined in ICH Q1A(R2), Q1B, Q5C, and WHO TRS 953 Annex 2. The chamber maintains thermodynamic equilibrium under continuous operation via high-efficiency refrigeration (R134a-free compressor), precision PID-controlled resistive heating, and dew-point referenced humidity generation. Its structural design prioritizes thermal inertia minimization and air distribution uniformity—critical for meeting ICH-mandated spatial uniformity requirements (<±2.5 °C across working volume) and temporal stability (<±0.5 °C fluctuation over 24 h). Unlike generic climate chambers, the MH-800 integrates pharmaceutical-grade data integrity features—including electronic audit trails, role-based access control, and tamper-evident logging—ensuring full alignment with GMP Annex 11 and ALCOA+ principles.

Key Features

• Industrial-grade 10.1-inch color touchscreen HMI with bilingual (English/Chinese) interface and hierarchical user permissions: Administrator (full configuration), Maintenance Technician (real-time monitoring + diagnostics), and Operator (run/stop + data view only)
• Programmable multi-segment logic: up to 100 programs, each supporting 100 steps with independent ramp/soak profiles for temperature, humidity, and illumination intensity
• Dual independent control loops: refrigeration and humidification systems operate autonomously to prevent cross-interference and improve energy efficiency
• High-stability humidity sensing using high-temperature-rated capacitive sensors—eliminating maintenance-intensive dry/wet-bulb assemblies
• Optimized airflow architecture: centrifugal forced convection with asymmetric ducting ensures ≤±2.5 °C uniformity and <5 min recovery after door opening (per ISO 16770)
• Robust thermal insulation: 120 mm polyurethane foam (CFC-free, λ = 0.022 W/m·K) with silicone rubber door gasket rated for -20 °C to +80 °C service life
• Comprehensive safety suite: independent mechanical over-temperature cutoff (K-type), compressor/fan overload protection, ground-fault interruption, and audible/visual alarm escalation
• Embedded 3-year non-volatile memory: 60-second logging interval yields >15 million timestamped records; supports CSV export via USB or RS485

Sample Compatibility & Compliance

The MH-800 accommodates standard pharmaceutical packaging configurations—including blister packs, HDPE bottles, glass vials, and secondary cartons—across its 800 L working volume. Four adjustable 304 stainless steel shelves (load capacity: 25 kg/shelf) allow flexible vertical spacing. All internal surfaces are electropolished and non-shedding to prevent particulate contamination. The chamber meets mechanical and electrical safety standards per IEC 61010-1 and EMC compliance per IEC 61326-1. Optional 3Q validation packages (IQ/OQ/PQ) include installation verification (e.g., sensor placement, power supply stability), operational testing (ramp rate, recovery time, uniformity mapping per ISO 16770 Annex B), and performance qualification under worst-case load conditions. CNAS-accredited calibration certificates are available for user-defined reference points (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 60 °C/ambient RH). Data management architecture supports 21 CFR Part 11 compliance through electronic signatures, immutable audit logs, and automatic session timeout.

Software & Data Management

The embedded firmware implements deterministic real-time scheduling for all control and logging tasks. Each data record includes timestamp (UTC), parameter values (T, RH, optional lux/UV dose), operator ID, and event flags (door open, alarm trigger, program transition). Historical curves are viewable directly on the HMI with zoom/pan functionality; raw data exports retain ISO 8601 timestamps and SI units. Optional RS485 Modbus RTU interface enables integration with LIMS or SCADA systems. The S-type mobile client (iOS/Android) provides remote status monitoring, push notifications for critical alarms (via SMS/email gateway), and secure firmware update capability. All data transfers use TLS 1.2 encryption. Audit trail entries capture user login/logout, parameter modification, program start/stop, and manual override events—with no provision for deletion or editing.

Applications

• ICH Q1A(R2) long-term stability studies (25 °C/60 %RH, 30 °C/65 %RH) and accelerated testing (40 °C/75 %RH)
• ICH Q1B photostability assessment per Option 1 (near-UV/visible light exposure at ≥200 Wh/m² and ≥1.2 × 10⁶ lx·h)
• High-humidity challenge testing (e.g., 40 °C/90 %RH) for hygroscopic formulations
• Forced degradation studies under controlled thermal/hygrometric stress
• Stability protocol development for biosimilars and mRNA-LNPs requiring precise cold-chain deviation modeling
• Environmental qualification of cleanroom support equipment per ISO 14644-3

FAQ

Does the MH-800 comply with ICH Q1 guidelines for stability testing?
Yes—the chamber’s temperature uniformity (±2.5 °C), stability (±0.5 °C), and humidity control accuracy (±3 %RH) meet ICH Q1A(R2) Annex 1 specifications. Optional photometric modules satisfy Q1B irradiance requirements.
Can the system generate 21 CFR Part 11–compliant electronic records?
Yes—audit trails are immutable, time-stamped, and linked to authenticated users. Electronic signatures, session timeouts, and permission-level restrictions are built into the firmware.
What validation documentation is provided?
Standard delivery includes factory calibration reports. Optional 3Q packages (IQ/OQ/PQ) follow ASTM E2500 and EU GMP Annex 15 frameworks, with test protocols and summary reports signed by qualified personnel.
Is remote monitoring supported without third-party cloud services?
Yes—RS485 Modbus RTU allows direct connection to local network SCADA or LIMS. The S-type mobile app uses encrypted peer-to-peer communication; no data resides on external servers.
How is humidity calibrated and maintained over time?
Capacitive humidity sensors are traceably calibrated against NIST-standard chilled-mirror hygrometers. Drift compensation algorithms adjust for aging effects, and recalibration intervals are tracked in the maintenance log.
