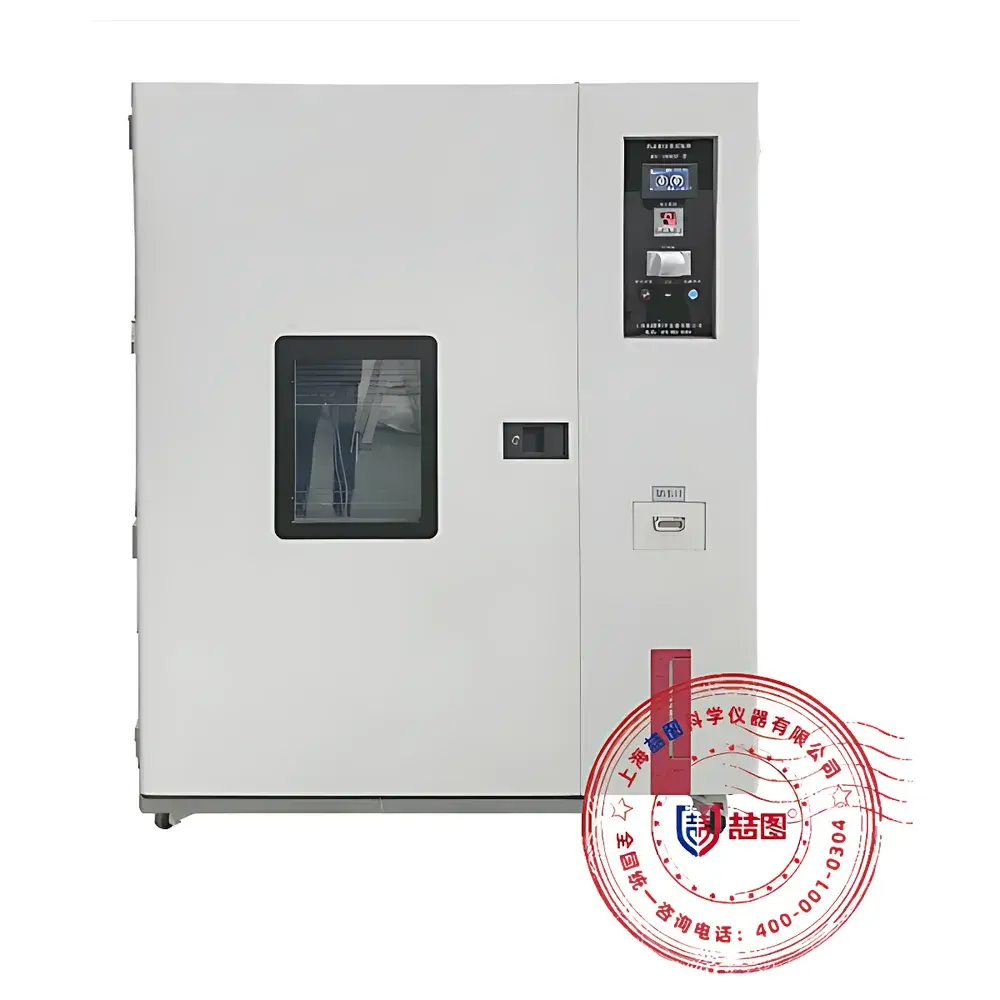

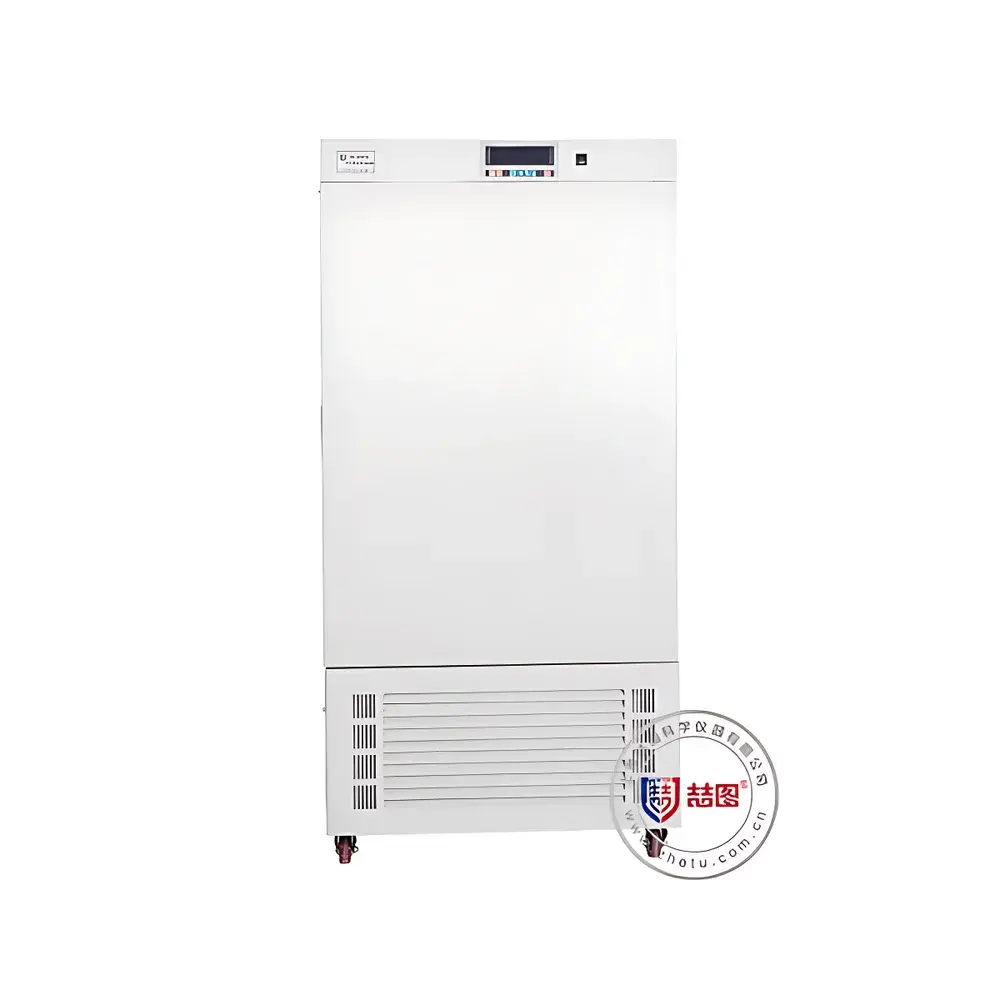

DRETOP MH-J1000 Drug Stability Testing Chamber
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MH-J1000 |
| Price Range | USD 11,200 – 18,200 (based on FOB Shanghai, excluding VAT, shipping & customs) |
| Temperature Control Range | 0–65 °C |
| Temperature Uniformity | ±2.5 °C (at 25 °C, no load) |
| Temperature Fluctuation | ±0.5 °C |
| Humidity Control Range | 30–95 % RH (customizable down to 20 % RH) |
| Humidity Deviation | ±3 % RH |
| Illumination Option | Optional LED-based photometric system (0–25,000 lx, Lx-display, stepless adjustment) |
| Internal Volume | 1000 L |
| Inner Chamber Dimensions (W×D×H) | 900 × 580 × 1600 mm |
| Power Supply | AC 380 V, 50 Hz |
| Total Input Power | 7500 W |
| Programmability | 1000 stored programs, up to 100 segments per program |
| Data Logging | 60-second interval, >3 years continuous storage |
| Compliance Support | IQ/OQ/PQ documentation available |
Overview
The DRETOP MH-J1000 Drug Stability Testing Chamber is a fully integrated, GMP-aligned environmental simulation system engineered for ICH Q1–Q5-compliant pharmaceutical stability studies. It implements precise, independent control of temperature, relative humidity, and optional photometric irradiance—enabling rigorous execution of accelerated testing (40 °C/75 % RH), long-term storage (25 °C/60 % RH), intermediate conditions (30 °C/65 % RH), high-humidity stress (40 °C/90 % RH), and photostability protocols per ICH Q5C and Q1B. The chamber’s dual-loop PID regulation architecture—separately governing refrigeration, heating, humidification, and dehumidification subsystems—ensures thermodynamic stability under dynamic load conditions and minimizes thermal lag during door openings. Its structural design adheres to ISO 14644-1 Class 8 cleanroom-compatible airflow principles, with optimized vertical laminar circulation and low-turbulence air distribution to meet USP uniformity requirements across the full 1000 L working volume.
Key Features
- Industrial-grade 10.1-inch color TFT touchscreen HMI with multilingual UI (English/Chinese toggle), role-based access control (Administrator, Maintenance Technician, Operator), and hierarchical permission management to prevent unauthorized parameter modification.
- Independent dual-channel climate control: high-efficiency scroll compressor (R404A-free, low-GWP refrigerant), NiCr alloy heating elements, and high-stability capacitive humidity sensors rated for continuous operation at elevated temperatures—eliminating dry-wet bulb maintenance.
- Advanced airflow engineering: centrifugal forced convection blower (≥1200 m³/h), silicone rubber door gasket (−70 °C to +150 °C operational range), and re-engineered vertical wind tunnel ensuring ≤±2.5 °C spatial uniformity (per ASTM E2875-22 Annex A1) and <60-second temperature recovery post-door opening.
- Fully programmable logic controller supporting 1000 user-defined test profiles, each with up to 100 time-segmented steps; slope-controlled ramping for temperature/humidity transitions; customizable illumination duty cycles and spectral output (optional multi-wavelength LED arrays: R/G/B/V).
- Comprehensive data integrity suite: internal non-volatile memory storing ≥3 years of 60-second-interval logs (temperature, humidity, illumination, alarms, operator actions); real-time curve visualization; tamper-resistant event logging with timestamped audit trail.
- Integrated safety architecture: dual independent over-temperature cutoff (main controller + K-type backup limiter), compressor/fan overload protection, earth-leakage circuit interruption, automatic defrost cycle, and power-fail recovery with state retention.
Sample Compatibility & Compliance
The MH-J1000 accommodates diverse pharmaceutical sample formats—including blister packs, vials, syringes, sachets, and bulk powder containers—across three adjustable stainless-steel shelves (4 total positions). Its interior chamber (900 × 580 × 1600 mm) complies with ICH Q5C container closure system placement guidelines and supports concurrent multi-condition validation per WHO TRS 992 Annex 5. Regulatory alignment includes configurable 21 CFR Part 11 compliance modules (electronic signatures, audit trail export, user authentication), full IQ/OQ/PQ validation packages traceable to NIST standards, and CNAS-certified calibration reports for user-selected verification points (e.g., 0 °C, 40 °C, 60 °C / 40 % RH, 60 % RH, 80 % RH). Optional UV-C germicidal irradiation (254 nm) mitigates airborne microbial contamination during extended trials, supporting GLP and GMP Annex 1 environmental monitoring requirements.
Software & Data Management
Embedded firmware supports local data capture via standard USB 2.0 port and RS485 Modbus RTU interface for SCADA integration. Optional cloud-connected telemetry enables remote monitoring through secure HTTPS dashboard with TLS 1.3 encryption. All logged parameters—temperature, humidity, illumination intensity, alarm status, and user activity—are structured in CSV/Excel-compatible format with ISO 8601 timestamps. The system generates automated PDF reports compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available), including electronic signature fields for QA sign-off. Historical datasets are exportable without administrative override, satisfying EU Annex 11 and PIC/S PE 009-16 data retention mandates.
Applications
- ICH Q1A(R2)-Q1E accelerated and real-time stability protocols for API and finished dosage forms.
- Photostability assessment per ICH Q1B: UV-visible irradiation mapping, actinometric dosimetry, and dark-control correlation.
- Excipient compatibility screening under controlled hygroscopic stress (e.g., lactose crystallinity shifts at 75 % RH).
- Biologics and mRNA vaccine formulation stability under sub-zero dew point conditions (with optional low-RH configuration).
- Environmental stress testing of packaging systems per ISO 11607-1, including seal integrity validation across thermal-hygric cycles.
- Reference standard storage qualification per USP and Ph. Eur. 2.2.48.
FAQ
Does the MH-J1000 comply with ICH Q1 guidelines for long-term stability testing?
Yes—the chamber maintains ≤±0.5 °C temperature fluctuation and ±3 % RH deviation across its full operating range, meeting ICH Q1A(R2) instrumentation accuracy requirements for Zone IVb (30 °C/65 % RH) and Zone III (30 °C/75 % RH) protocols.
Can the system be validated per GMP Annex 15 requirements?
Absolutely. DRETOP provides complete 3Q documentation (IQ/OQ/PQ), including protocol templates, acceptance criteria traceable to ISO/IEC 17025, and witness-tested performance verification reports signed by qualified engineers.
Is remote monitoring and alarm notification supported?
Yes—via optional GSM SMS gateway or TCP/IP network interface. Critical alarms (e.g., temperature excursion >±2 °C, humidity drift >±5 % RH, door ajar >60 s) trigger immediate notifications to up to five designated personnel.
What calibration options are available for regulatory submissions?
CNAS-accredited calibration certificates are provided for user-specified temperature/humidity setpoints. Traceability is established to national metrology institutes (NIM, China) with uncertainty budgets reported per ISO/IEC 17025:2017 Clause 7.7.
How is data integrity ensured during power interruptions?
The system features battery-backed real-time clock, non-volatile flash memory with wear-leveling, and automatic resumption from last known stable state—including preservation of active program segment, elapsed time, and environmental setpoints—upon power restoration.
