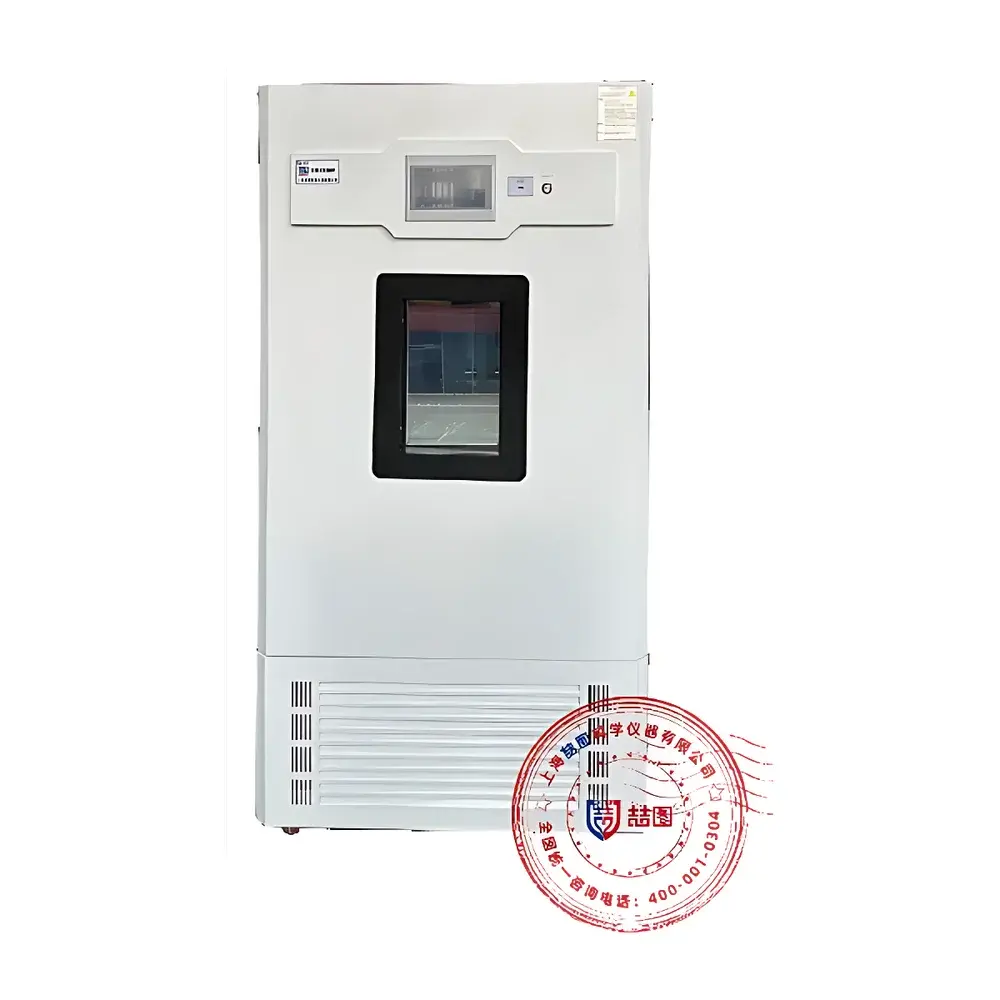

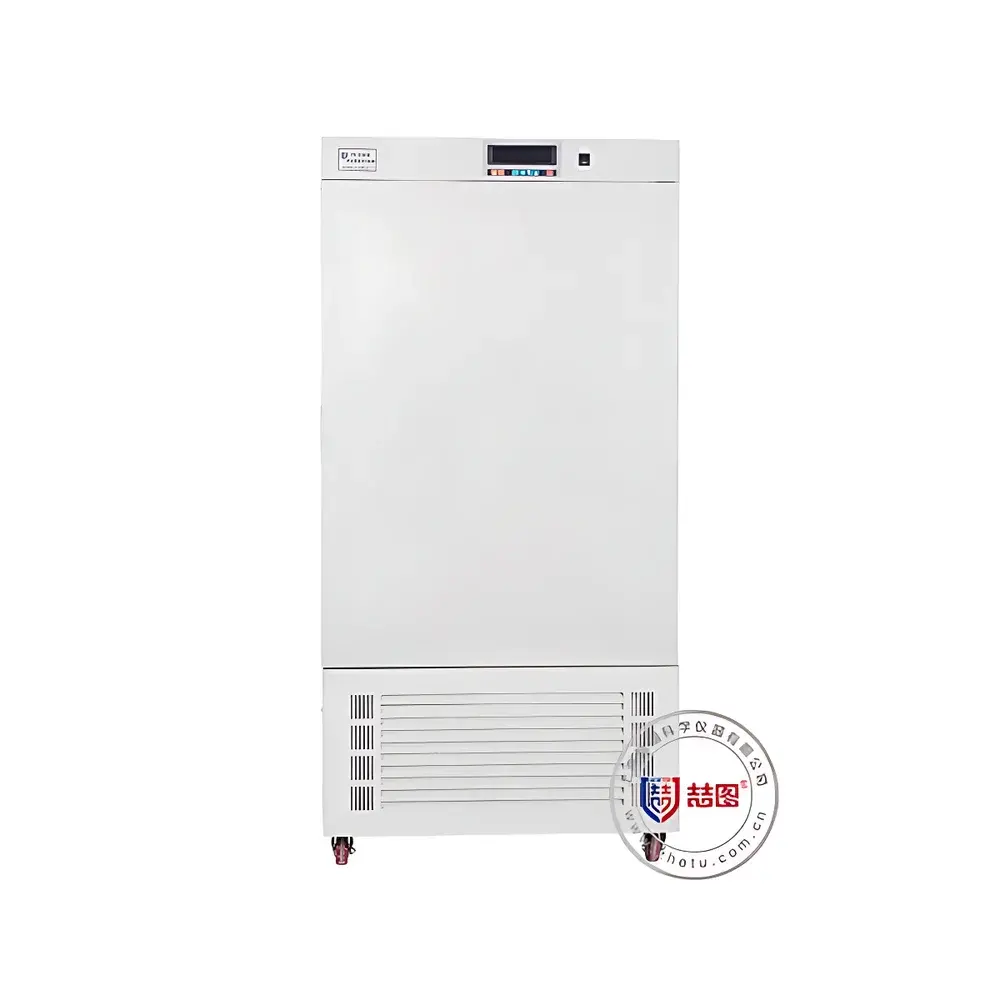

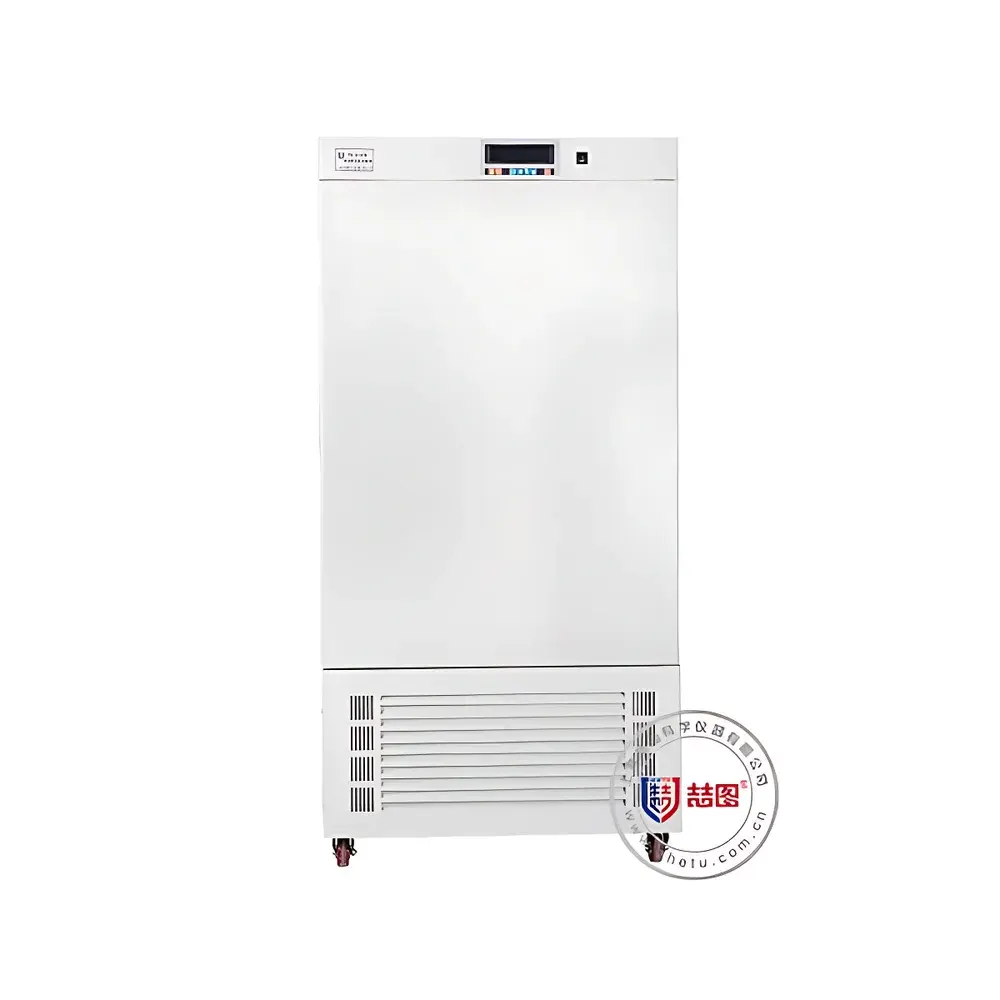

DRETOP MH-J800 Drug Stability Testing Chamber

Overview

The DRETOP MH-J800 Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for pharmaceutical stability studies in accordance with ICH Q1A(R3), Q1B, Q5C, and relevant sections of USP , EP 2.9.40, and ISO 14644-3. It provides precise, reproducible control of temperature (0–65 °C), relative humidity (30–95 %RH), and optional photometric conditions (0–25,000 Lx) to execute accelerated, long-term, intermediate, high-humidity, and photostability testing protocols. The chamber employs a dual-loop PID control architecture with independent thermal and humidification subsystems—ensuring minimal cross-interference during dynamic ramp-and-soak profiles. Its robust stainless-steel inner chamber, silicone door gasketing, and optimized air circulation design meet the stringent uniformity requirements defined in ICH Q5C for biopharmaceutical storage condition mapping.

Key Features

• High-resolution 7-inch color touchscreen HMI with multilingual interface (English/Chinese), role-based access control (Administrator, Maintenance Technician, Operator), and audit-trail-enabled operation logging
• Dual independent control loops: refrigeration/heating and humidification/dehumidification—enabling simultaneous yet decoupled regulation of temperature and RH for improved test fidelity and reduced cycle time
• Fuzzy logic PID temperature control with real-time adaptive correction, supporting ramp rates from 0.1 to 5.0 °C/min and soak stability within ±0.5 °C over 24 h
• High-accuracy capacitive humidity sensor rated for continuous operation at elevated temperatures (up to 85 °C), eliminating wet-bulb maintenance and calibration drift associated with traditional psychrometric systems
• Energy-efficient refrigeration circuit featuring R290 hydrocarbon refrigerant, imported hermetic compressor, auto-defrost cycle, and nickel-chromium heating elements with forced convection airflow (≥1.2 m/s average velocity)
• Integrated data integrity safeguards: 3-year onboard non-volatile memory (60 s logging interval), encrypted event logs (alarms, operator actions, parameter changes), and optional SMS notification via GSM module (B-type accessory)
• Comprehensive safety architecture including over-temperature cutoff (independent K-type limiter), compressor/fan overload protection, leakage current detection, and automatic power recovery after grid interruption

Sample Compatibility & Compliance

The MH-J800 accommodates diverse sample formats—including blister packs, vials, syringes, ampoules, lyophilized powders, and primary packaging materials—across its 800 L working volume (965 × 580 × 1430 mm internal dimensions). Four adjustable stainless-steel shelves provide flexible vertical staging while maintaining ≥90 % volumetric uniformity per ICH Q5C spatial mapping guidelines. All configurations support GxP-aligned validation: full 3Q documentation (IQ/OQ/PQ) is provided upon request, compliant with FDA 21 CFR Part 11 electronic record requirements when paired with optional RS485-to-PC connectivity and timestamped audit trails. CNAS-accredited calibration certificates are available for user-specified temperature/humidity points (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 60 °C/ambient RH).

Software & Data Management

The embedded controller supports two operational modes: programmable multi-segment cycling (up to 100 programs × 100 segments) and fixed-point control. Each program permits independent scheduling of temperature, humidity, illumination duration/intensity, and labeling (e.g., “ICH Q1B Photostability Cycle 1”). Real-time trend visualization includes overlay-capable graphs for T/RH/Lx, with zoom, pan, and cursor interrogation functions. Historical datasets export natively to CSV or Excel via USB port; RS485 integration enables direct acquisition into LIMS or ELN platforms using Modbus RTU protocol. Optional J-type paperless recorder adds local display and SD-card archival, while S-type mobile application delivers remote monitoring, push notifications, and firmware update capability through secure TLS 1.2 encrypted channels.

Applications

This chamber serves as a core platform for regulatory submission-supporting studies across the drug development lifecycle: pre-formulation excipient compatibility screening; API degradation kinetics under thermal stress; comparative stability assessment of generic vs. innovator products; photodegradation pathway identification per ICH Q5B; excipient-driven moisture uptake modeling; and shelf-life estimation via Arrhenius extrapolation. It is equally applicable in biologics manufacturing (cell culture media stability, buffer solution integrity), medical device packaging validation (ISO 11607), and academic pharmacokinetics research requiring controlled environmental perturbation.

FAQ

Does the MH-J800 comply with ICH Q1A(R3) long-term storage condition requirements?
Yes—the chamber maintains ≤±2.5 °C temperature uniformity and ≤±3 %RH humidity deviation across its entire working volume under steady-state conditions at 25 °C/60 %RH and 30 °C/65 %RH, satisfying ICH Q5C verification criteria.
Can humidity be controlled independently of temperature during ramp phases?
Yes—its segregated control architecture allows concurrent but autonomous modulation of both parameters, enabling complex profiles such as “hold at 40 °C while ramping RH from 40% to 75% over 4 h” without thermal overshoot or condensation risk.
Is remote monitoring and alarm notification supported out-of-the-box?
Standard configuration includes RS485 serial interface and USB data export; optional B-type SMS module and S-type iOS/Android app provide real-time alerts and supervisory control.
What validation documentation is included with purchase?
Factory-installed IQ/OQ documentation is supplied; PQ execution requires site-specific installation and user-defined acceptance criteria—DRETOP provides template protocols aligned with ASTM E2500 and ISPE GAMP5.
How is data integrity ensured for FDA 21 CFR Part 11 compliance?
Role-based login, electronic signatures, immutable audit trails, and time-stamped event logs meet foundational Part 11 requirements; full compliance requires implementation of complementary IT infrastructure (e.g., domain authentication, network encryption, backup policy).
