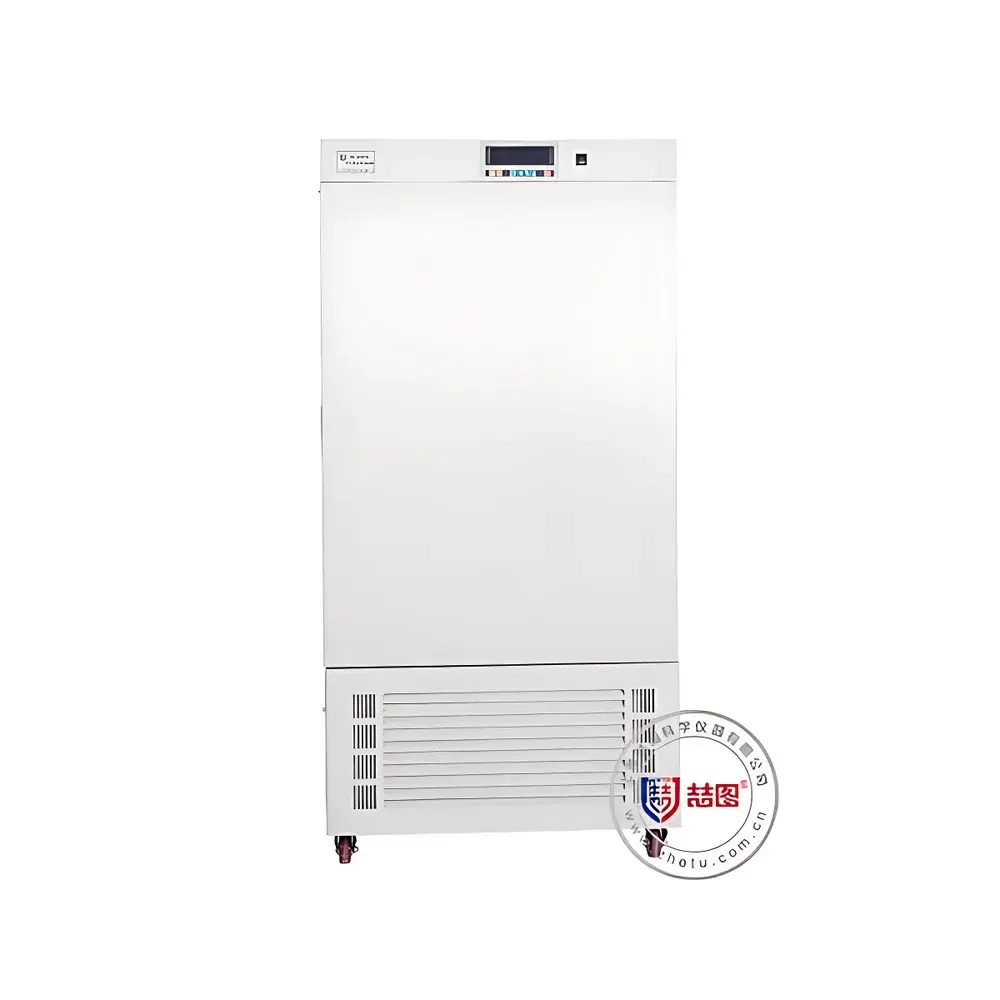

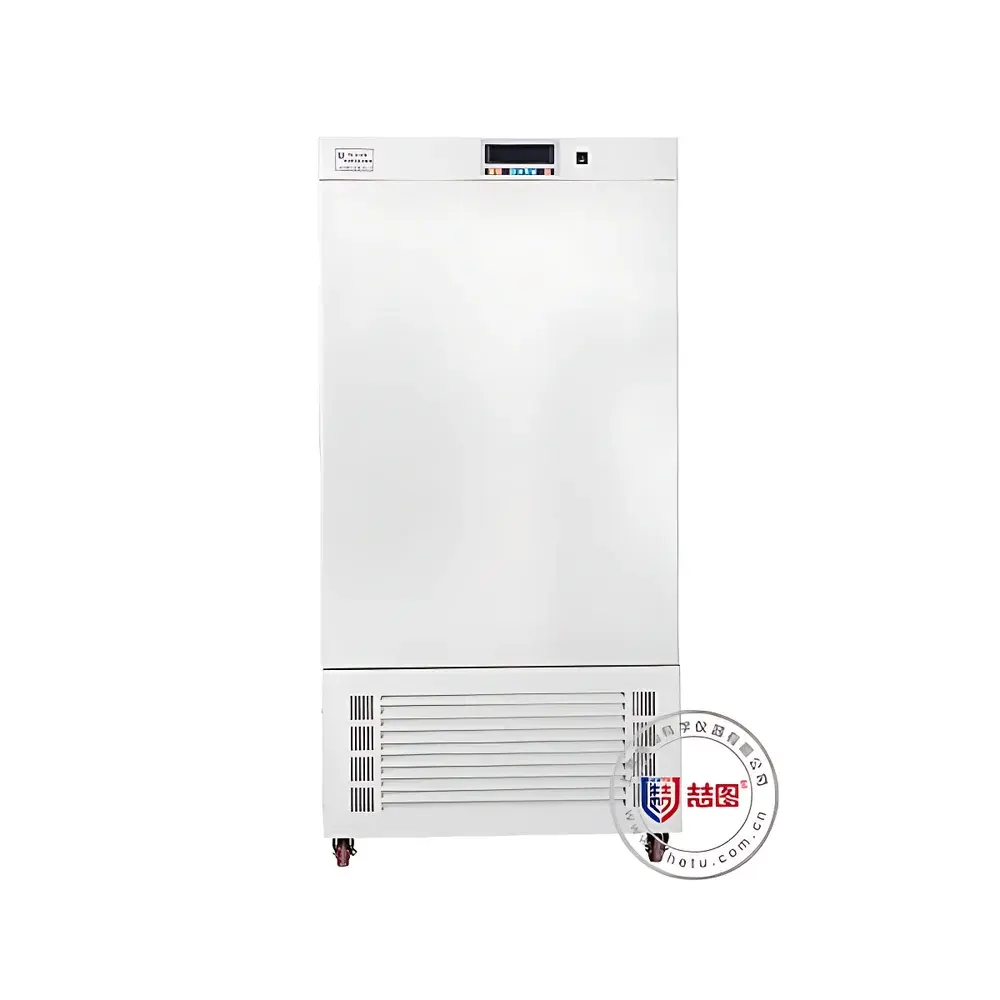

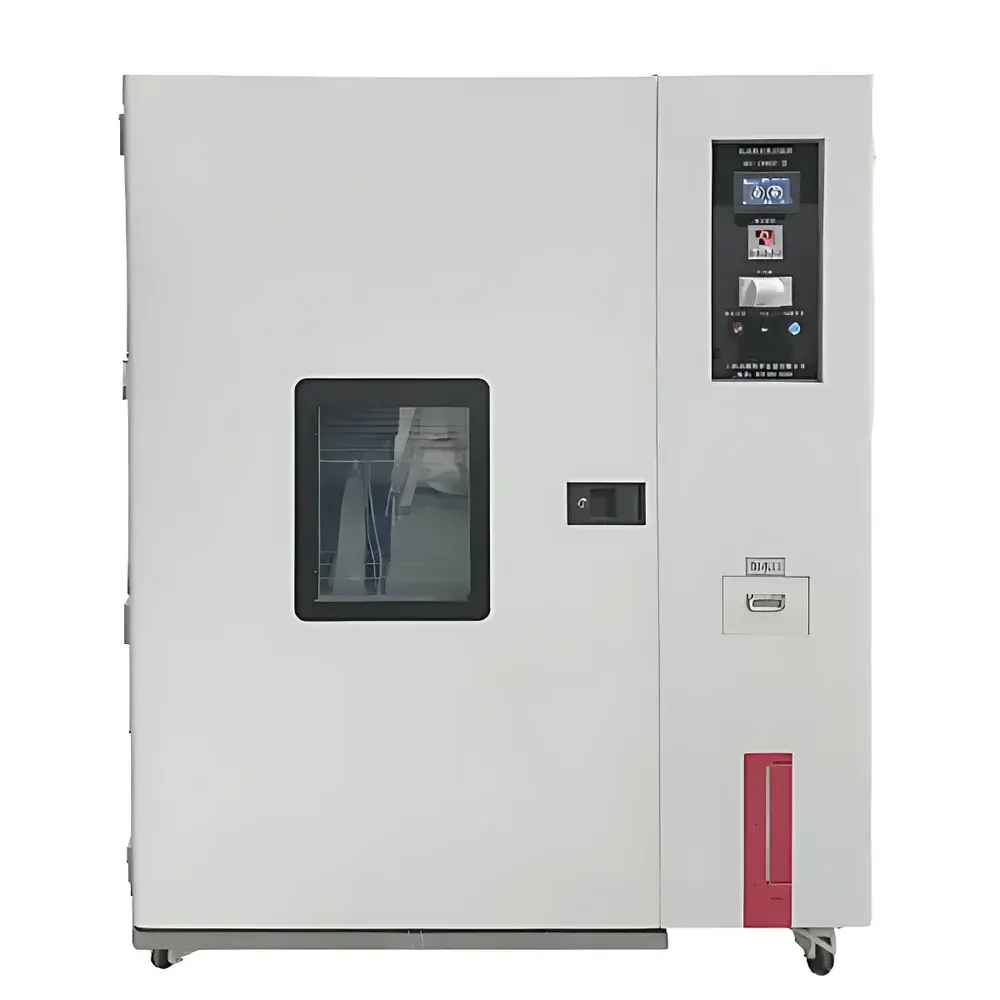

DRETOP MH-J8000 Drug Stability Testing Chamber

Overview

The DRETOP MH-J8000 Drug Stability Testing Chamber is a purpose-engineered environmental simulation system designed to meet the stringent requirements of ICH Q1–Q5 guidelines for pharmaceutical stability testing. It operates on a validated dual-loop control architecture—separately regulating temperature, humidity, and optional illumination—to replicate real-world storage and accelerated stress conditions mandated by regulatory bodies including the FDA, EMA, and PMDA. The chamber employs precision Peltier-assisted cooling combined with high-efficiency scroll compressors (R290 refrigerant), nickel-chromium heating elements, and centrifugal forced-air circulation to maintain thermodynamic equilibrium across its 800 L working volume. Its structural integrity is reinforced by seamless stainless-steel inner chambers, silicone rubber door gaskets rated for −20 °C to +80 °C operation, and optimized airflow ducting that ensures ≤±2.5 °C spatial uniformity per ISO 14644-1 Class 5-compliant validation protocols.

Key Features

• 10.1-inch capacitive color touchscreen interface with multilingual support (English/Chinese) and hierarchical user permissions: Administrator (full system configuration), Maintenance Technician (data review + alarm history), and Operator (run/stop + real-time monitoring only)
• Advanced fuzzy PID algorithm enabling dynamic correction of thermal and hygral drift during multi-segment ramp-and-soak programs—up to 1000 stored protocols, each with 100 editable segments
• Independent humidity control using high-stability electronic capacitive sensors (operable at elevated temperatures), eliminating reliance on maintenance-intensive dry/wet-bulb assemblies
• Energy-optimized refrigeration circuit with auto-defrost cycle management and R290 eco-refrigerant—compliant with EU F-Gas Regulation (EU) No 517/2014 and EPA SNAP program requirements
• Integrated micro-printer (standard) for immediate hard-copy logging of temperature, humidity, timestamp, and alarm events—satisfying ALCOA+ data integrity principles
• Robust fault-protection suite: over-temperature cutoff (dual independent sensors), compressor/fan overload detection, ground-fault interrupter (GFI), and audible/visual alarm escalation
• 60-second resolution internal data logger with non-volatile memory—retaining ≥3 years of continuous operational records without external media
• Optional RS485 Modbus RTU interface for integration into centralized laboratory infrastructure (e.g., SCADA, LIMS, or MES platforms)

Sample Compatibility & Compliance

The MH-J8000 accommodates standard USP and compliant packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum foil pouches—within its adjustable stainless-steel shelving system (4-tier, load-rated to 25 kg per shelf). All internal surfaces are electropolished AISI 304 stainless steel, passivated per ASTM A967, ensuring resistance to corrosion from high-humidity and saline aerosol exposure. The chamber supports full 3Q validation (IQ/OQ/PQ) per ASTM E2500 and Annex 15 of the EU GMP Guide. Optional CNAS-accredited calibration certificates are available for traceable verification at user-specified points (e.g., 25 °C/60 %RH, 40 °C/75 %RH, 50 °C/10 %RH). Data audit trails comply with FDA 21 CFR Part 11 requirements when paired with optional electronic signature modules.

Software & Data Management

Embedded firmware provides native GLP-compliant data governance: immutable event logs (power failures, door openings, setpoint changes), time-stamped alarm histories with root-cause tagging, and role-based access control enforced at the kernel level. Historical datasets export in CSV or PDF format via USB 2.0 port or optional Wi-Fi module. Remote monitoring is enabled through DRETOP’s secure cloud platform (D-Cloud™), supporting SMS alerting (via GSM modem add-on), iOS/Android mobile app (S-type), and TLS 1.2–encrypted web dashboard access. All exported files retain embedded digital signatures and SHA-256 hash verification—meeting WHO TRS 992 Annex 5 and PIC/S PI 011-3 expectations for raw data authenticity.

Applications

• ICH Q1A(R2) long-term (25 °C/60 %RH) and accelerated (40 °C/75 %RH) stability studies
• ICH Q1B photostability testing under Option 1 (near-UV/visible) and Option 2 (cool white fluorescent + near-UV) conditions
• USP excipient compatibility screening under controlled hygroscopic stress
• Biologics storage condition mapping (2–8 °C, 15–25 °C, or frozen cycling)
• GMP batch release hold testing per pharmacopoeial monographs (EP, JP, USP)
• Environmental stress screening for lyophilized formulations and lipid nanoparticles

FAQ

Does the MH-J8000 comply with ICH Q1 guidelines for stability testing?

Yes—the chamber’s temperature uniformity (±2.5 °C), humidity accuracy (±3 %RH), and programmable ramp/soak profiles fully align with ICH Q1A(R2) and Q1B technical requirements.
Can the system be validated for GMP production environments?

Absolutely. DRETOP supplies complete IQ/OQ/PQ documentation packages, including protocol templates, test scripts, acceptance criteria, and summary reports—all structured per ASTM E2500 and EU Annex 15.
Is remote monitoring and alarm notification supported out-of-the-box?

Remote capability requires optional hardware: GSM modem (B-type) for SMS alerts or Wi-Fi module (S-type) for cloud-based dashboards and mobile notifications.
What is the maximum allowable ambient operating temperature for installation?

The unit is rated for ambient conditions between 15 °C and 32 °C at ≤70 %RH; operation outside this range may impair condensation management and long-term compressor reliability.
How is data integrity ensured during power interruptions?

The onboard supercapacitor maintains RAM state for ≥120 seconds during blackout, enabling graceful shutdown and resumption from last valid segment—no data loss occurs below this threshold.
