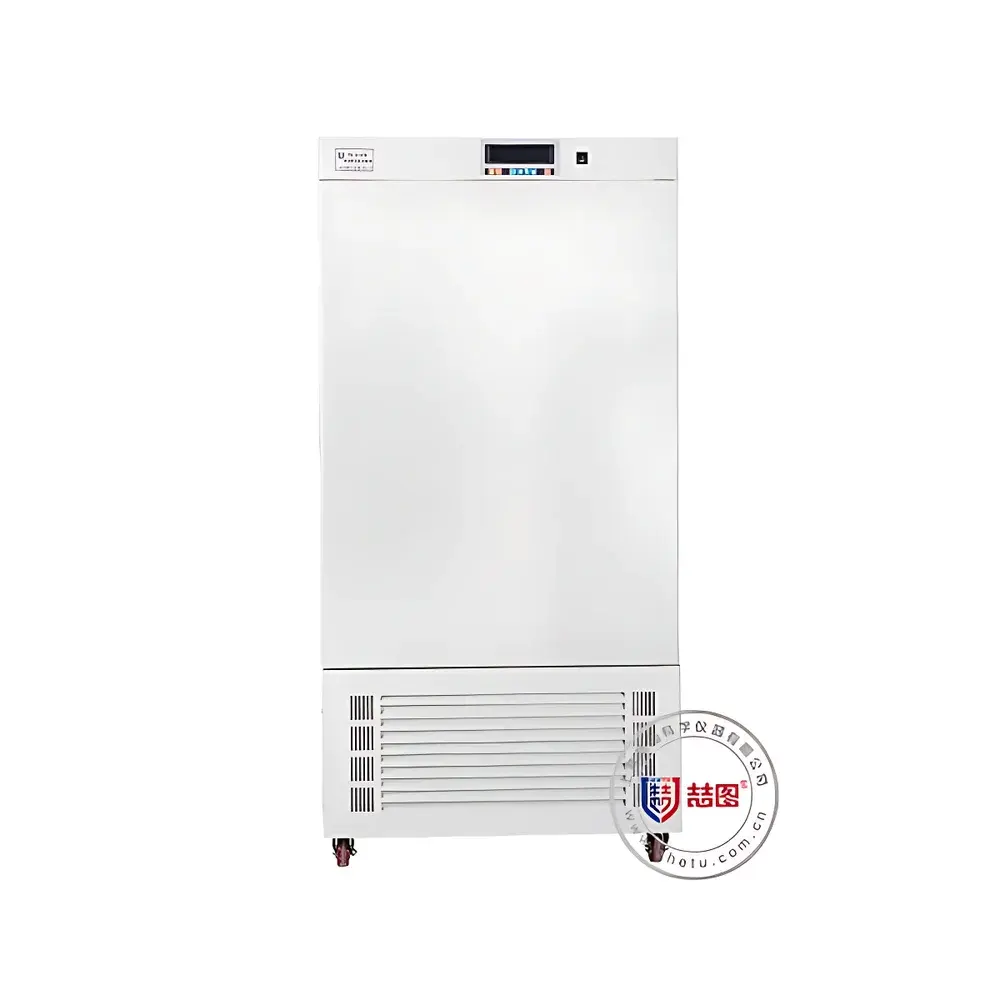

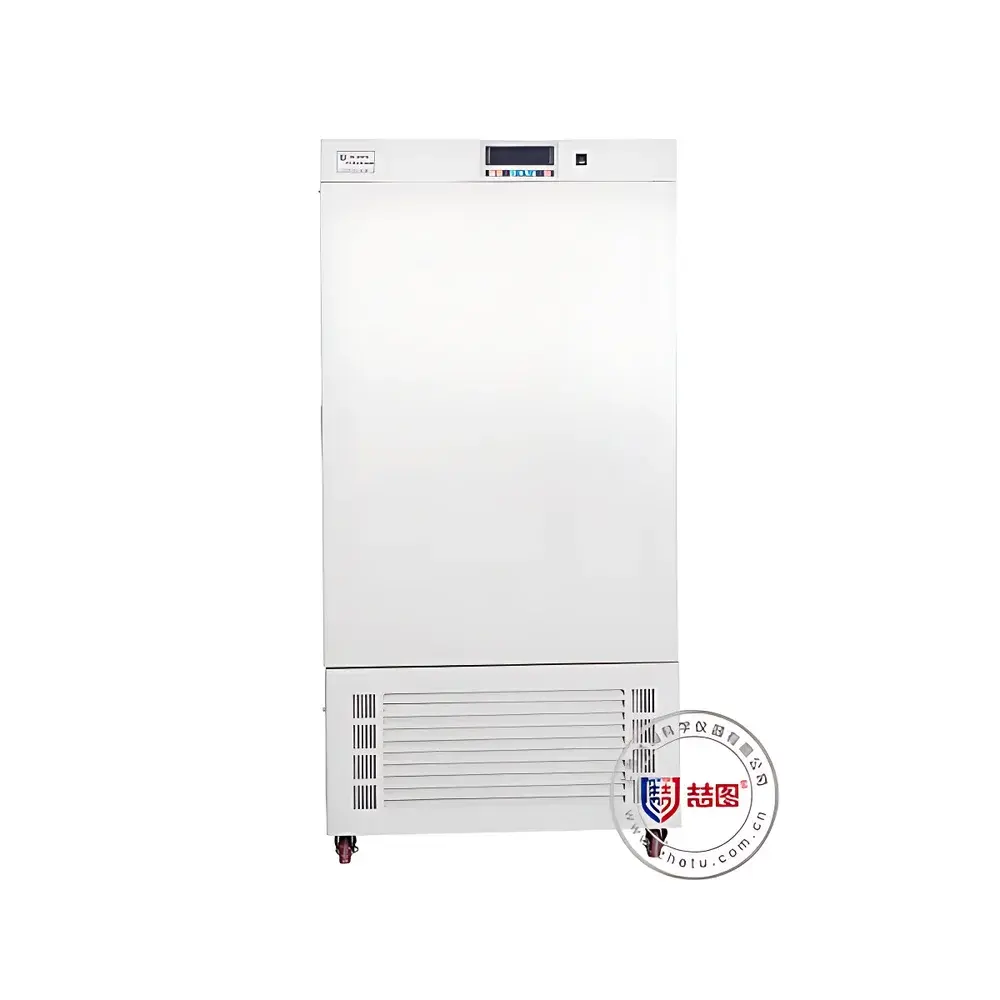

DRETOP MH-V1000 Pharmaceutical Stability Testing Chamber
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | MH-V1000 |
| Voltage | AC 220 V / 50 Hz or AC 380 V / 50 Hz |
| Temperature Range | 0–65 °C |
| Temperature Uniformity | ±2.5 °C to ±3 °C |
| Temperature Fluctuation | ±0.5 °C |
| Humidity Range | 30–95 % RH (customizable down to 20 % RH) |
| Humidity Deviation | ±3 % RH |
| Illumination Capability | Optional (Lx-display, UV sterilization, multi-spectral LED sources) |
| Internal Volume | 1000 L |
| Input Power | 7500 W |
| Chamber Dimensions (W×D×H) | 900×580×1600 mm |
| Shelf Quantity | 4 adjustable stainless-steel shelves |
| Control Interface | Full-color capacitive touchscreen with multilingual (EN/CN) support |
| Programmability | Up to 100 programs, each with up to 100 segments |
| Data Logging | 60-second interval, >3 years continuous storage |
| Compliance Support | IQ/OQ/PQ documentation, CNAS calibration certificates (at user-specified T/RH points), FDA 21 CFR Part 11–ready audit trail via optional RS485 + software |
Overview
The DRETOP MH-V1000 Pharmaceutical Stability Testing Chamber is an ICH Q1-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of drug substances and products under controlled temperature, humidity, and optional photostability conditions. Designed in strict alignment with ICH guidelines—including Q1A(R2), Q1B (photostability), Q5C (biotechnology product stability), and Q5D (cell substrate stability)—the chamber employs a dual-loop PID-controlled refrigeration-heating-humidification architecture to maintain thermodynamic equilibrium across its 1000 L working volume. Its core measurement and control methodology integrates high-accuracy platinum resistance thermometers (PT100), capacitive polymer humidity sensors operating continuously at elevated temperatures, and traceable illumination monitoring (when equipped with E-type Lx sensor). The chamber’s structural design prioritizes thermal inertia minimization, airflow uniformity, and contamination control—critical prerequisites for GLP- and GMP-regulated pharmaceutical development laboratories.
Key Features
- Independent, parallel control loops for temperature, humidity, and (optional) illumination—ensuring precise decoupling of environmental variables during multi-stage ICH protocols.
- Full-color 7-inch capacitive touchscreen HMI with configurable access levels: Administrator (full system configuration), Maintenance Technician (parameter viewing, log export, calibration), and Operator (start/stop, real-time monitoring only).
- Fuzzy logic-enhanced PID algorithm with adaptive gain scheduling—enabling stable ramp-and-soak transitions across wide setpoint ranges (e.g., 25 °C → 40 °C → 50 °C) while maintaining ±0.5 °C fluctuation and ±2.5 °C uniformity per ICH Q1 requirements.
- High-efficiency refrigeration system featuring imported hermetic compressors, auto-defrost cycle management, and nickel-chromium alloy heating elements—optimized for uninterrupted 24/7 operation over 12-month validation cycles.
- Advanced air circulation: Centrifugal forced convection blower with optimized duct geometry ensures <±1.5 °C spatial deviation across all shelf positions; door-open recovery time <12 minutes to re-establish nominal setpoints.
- Robust environmental sealing: Dual-lip silicone door gasket rated for -20 °C to +80 °C service life; internal chamber constructed from electropolished 304 stainless steel with welded seams to prevent microbial harborage.
- Comprehensive data integrity architecture: Onboard non-volatile memory logs temperature, humidity, alarm status, and operator actions at 60-second intervals; supports encrypted USB export and RS485 Modbus RTU communication for integration into LIMS or MES platforms.
Sample Compatibility & Compliance
The MH-V1000 accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and secondary cartons—across four independently adjustable stainless-steel shelves (load capacity: 30 kg/shelf). Its chamber geometry and airflow profile comply with ICH Q1’s recommendation for “uniform exposure” and meet the spatial uniformity criteria defined in ISO 16770:2017 (Environmental testing — Stability chambers — Performance requirements). Optional configurations include UV-C germicidal irradiation (V-type), programmable white-light photostability (E-type), and multi-wavelength LED arrays (R/G/B/V) calibrated per ICH Q1B Annex 3. All units ship with factory-verified 3Q documentation (IQ/OQ/PQ) aligned with EU Annex 15 and USP , and optional CNAS-accredited calibration reports are available for user-defined T/RH validation points (e.g., 25 °C/60 % RH, 40 °C/75 % RH, 60 °C/95 % RH).
Software & Data Management
The embedded controller firmware implements ALCOA+ principles: Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available. Audit trails record every parameter change, user login/logout, alarm event, and manual override—with immutable timestamps and operator ID tagging. Optional PC-based DRETOP Stability Suite (v3.2+) provides graphical trend analysis, statistical process control (SPC) charts (X-bar R), automated PDF report generation compliant with FDA 21 CFR Part 11 (electronic signatures, role-based permissions, electronic records retention), and seamless export to CSV, Excel, or XML for regulatory submission. Remote monitoring is supported via S-type mobile app (iOS/Android) with push notifications for critical alarms—including temperature excursion, compressor failure, or door ajar—and SMS alerting (B-type module) with configurable recipient lists.
Applications
- ICH Q1A(R2) Accelerated Stability Testing (40 °C/75 % RH, 30 °C/65 % RH)
- ICH Q1B Photostability Testing (Option E + V modules; UV-A, visible light, near-IR spectral bands)
- Long-Term Storage Simulation (25 °C/60 % RH, 30 °C/65 % RH, or refrigerated 5 °C conditions)
- High-Humidity Stress Testing (up to 95 % RH at 40 °C)
- Forced Degradation Studies (e.g., oxidative, hydrolytic, thermal stress under controlled O2/RH environments)
- Biologics and mRNA Vaccine Stability Assessment (with optional low-temperature upgrade kits)
- Excipient Compatibility Screening under variable RH gradients
FAQ
Does the MH-V1000 comply with FDA 21 CFR Part 11 requirements?
Yes—when configured with the optional RS485 interface and DRETOP Stability Suite v3.2+, the system supports electronic signatures, audit trail review, and role-based access control meeting Part 11 technical and procedural criteria.
Can humidity be maintained at 20% RH?
Standard range is 30–95% RH; however, custom dehumidification modules enable stable operation down to 20% RH upon request—validated per ISO 16770 Annex C.
Is third-party IQ/OQ/PQ support available?
DRETOP provides full GMP-aligned 3Q documentation packages; certified field qualification by qualified vendors (e.g., NSF, SGS, or client-designated CROs) is supported with pre-validated test protocols.
What is the maximum allowable load weight per shelf?
Each of the four stainless-steel shelves supports up to 30 kg uniformly distributed load without compromising airflow or temperature uniformity.
How is calibration traceability ensured?
All temperature and humidity sensors are individually calibrated against NIST-traceable standards; CNAS-certified calibration certificates (per ISO/IEC 17025) are available for any combination of T/RH validation points.
