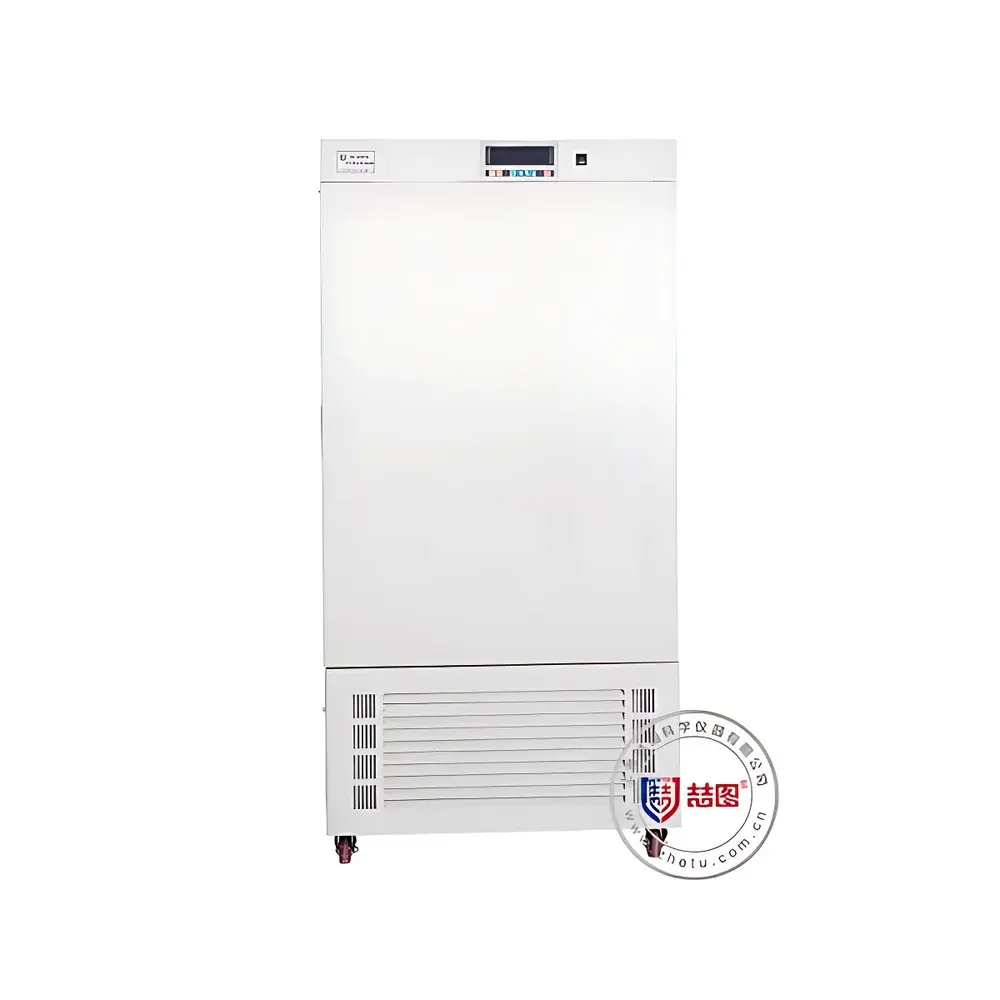

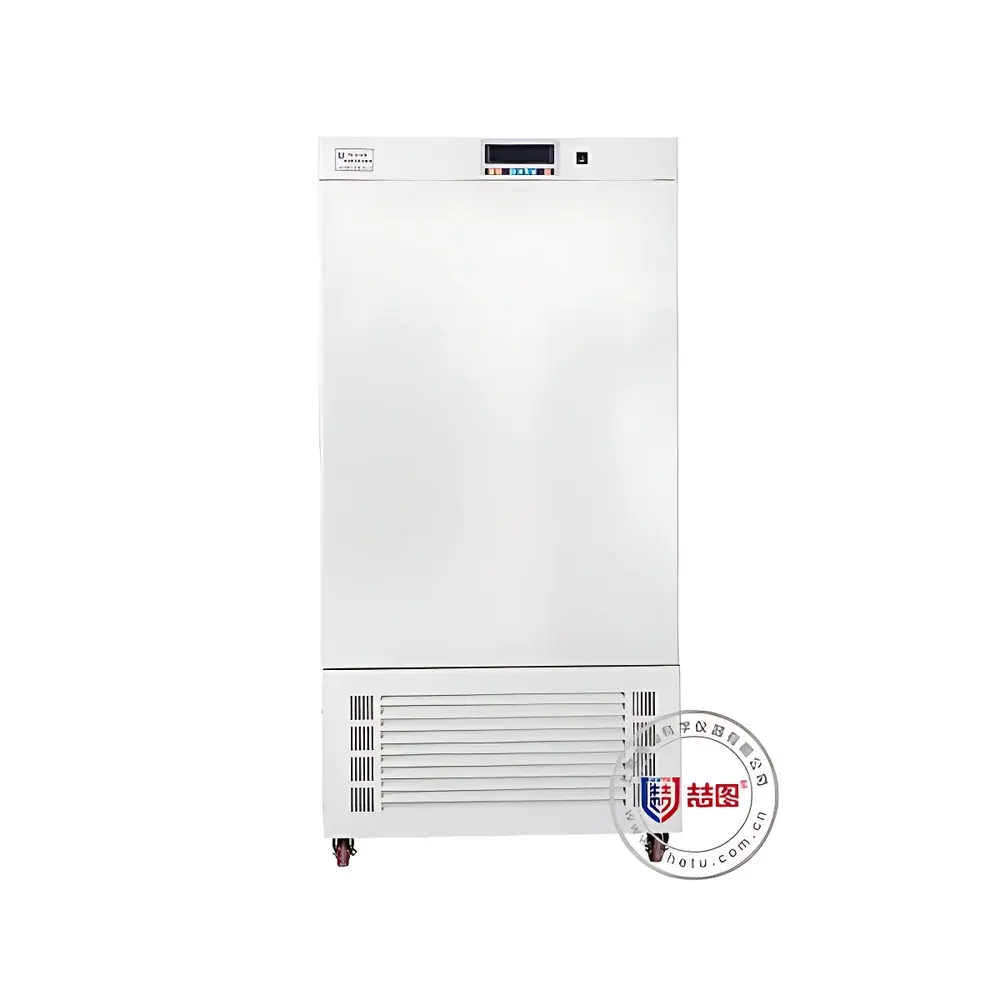

DRETOP MH-V250 Pharmaceutical Stability Testing Chamber

Overview

The DRETOP MH-V250 Pharmaceutical Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for rigorous long-term, accelerated, and stress-condition stability studies of pharmaceutical products in accordance with ICH Q1A(R3), Q1B, Q5C, and relevant sections of USP , EP 2.2.45, and ISO 14644-1. It operates on a dual-loop precision control architecture—separately regulating temperature, relative humidity, and optional photometric exposure—to replicate defined climatic zones (e.g., Zone IVa: 30 °C/65 % RH; Zone III: 30 °C/75 % RH) and forced degradation conditions (e.g., high-humidity challenge at 40 °C/75 % RH or photostability per ICH Q5B). The chamber employs a forced-air convection system with optimized airflow distribution, ensuring spatial uniformity across the full 250 L working volume and minimizing thermal lag during door openings—critical for maintaining protocol integrity in GLP-regulated laboratories.

Key Features

• Independent dual-channel PID control for temperature and humidity, enabling simultaneous yet decoupled regulation to minimize cross-interference and improve setpoint recovery time.
• High-stability refrigeration circuit featuring imported hermetic compressor, auto-defrost cycle, and low-GWP R134a refrigerant—designed for uninterrupted operation over 7,200+ hours per year under continuous load.
• Humidity sensing via high-accuracy capacitive polymer sensor rated for continuous operation at elevated temperatures (up to 65 °C), eliminating reliance on maintenance-prone wet-bulb/dry-bulb systems.
• 7-inch resistive touchscreen HMI with multilingual UI (English/Chinese toggle), hierarchical access control (Administrator / Maintenance / Operator roles), and tamper-resistant parameter locking.
• Nichrome wire heating elements coupled with high-CFM centrifugal blower ensure rapid thermal ramping and ±2.5 °C uniformity (measured per ASTM E2884-13 at 9 test points).
• Triple-sealed silicone gasket door design maintains chamber integrity across −20 °C to +65 °C ambient extremes; leak rate <0.5 L/min at 50 Pa differential pressure.
• Fault-tolerant safety architecture: independent mechanical overtemperature cutoff (K-type), real-time compressor/fan current monitoring, ground-fault interruption, and audible/visual alarm escalation.
• Embedded data logger with non-volatile flash memory—records timestamped T/RH values every 60 seconds, supporting >3 years of continuous traceability without external media.

Sample Compatibility & Compliance

The MH-V250 accommodates standard pharmaceutical packaging formats—including blister cards, HDPE bottles, glass vials, and secondary cartons—on four adjustable stainless-steel shelves (load capacity: 15 kg/shelf). Its internal geometry complies with ICH Q5C recommendations for sample placement density and air exchange requirements. All firmware and hardware configurations support 21 CFR Part 11 compliance when paired with optional RS485-to-PC interface (R-type) and validated software suite, delivering electronic signatures, audit trails, and role-based data export restrictions. Optional 3Q validation packages (IQ/OQ/PQ) are provided per GMP Annex 15 and EU GMP Part II guidelines, including installation verification of sensor mounting, operational mapping of worst-case zones, and performance qualification across full range (0–65 °C / 20–95 % RH). CNAS-accredited calibration certificates are available for user-defined reference points (e.g., 25 °C/60 % RH, 40 °C/75 % RH).

Software & Data Management

The embedded controller supports local data visualization via real-time trend graphs (T/RH vs. time), historical curve replay, and event-annotated log export (CSV format). System logs retain all operator actions—including mode changes, program edits, and alarm acknowledgments—with immutable timestamps. When equipped with the S-type mobile client, authorized personnel can monitor chamber status remotely via iOS/Android app, receive push notifications for critical alarms (e.g., deviation >±1.0 °C for >10 min), and initiate emergency hold commands. For centralized lab management, the R-type RS485 interface enables integration into LIMS or SCADA platforms using Modbus RTU protocol. All data exports include digital watermarking and SHA-256 hash verification to satisfy ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• ICH Q1A(R3)-mandated long-term stability studies (25 °C/60 % RH, 30 °C/65 % RH) for registration batches.
• Accelerated stability protocols (40 °C/75 % RH) to predict shelf life and identify degradation pathways.
• Photostability testing per ICH Q5B using optional E-type Lx-controlled LED array (0–25,000 Lx, spectral output compliant with ISO 10977).
• Humidity stress testing for hygroscopic APIs and moisture-sensitive formulations (e.g., lyophilized biologics).
• Excipient compatibility screening under controlled T/RH gradients.
• GMP-compliant stability storage for retained samples during commercial release.
• Biological product stability assessment per WHO TRS 1015 Annex 5 and FDA Guidance for Industry: Stability Testing of Biological Products.

FAQ

Does the MH-V250 meet ICH Q1B photostability requirements?
Yes—when configured with the optional E-type illumination system (Lx-display, spectrally matched LEDs), it satisfies ICH Q1B Option 1 (UV and visible light exposure) and supports Option 2 (near-UV only) through programmable intensity limiting.
Can humidity be maintained reliably at 20% RH?
Standard configuration supports 30–95% RH; 20–95% RH is available as a factory-customized option using enhanced desiccant-assisted dehumidification and recalibrated sensor calibration.
Is remote monitoring and alarm notification supported out-of-the-box?
Basic SMS alerting requires the B-type wireless alarm module; however, cloud-based email/push alerts are enabled via the S-type mobile client when connected to local Wi-Fi or Ethernet.
What validation documentation is included by default?
Factory calibration report (traceable to NIM, China) and electrical safety test certificate are shipped standard. Full 3Q validation kits (IQ/OQ/PQ protocols + execution records) are optional add-ons, pre-validated for common ICH conditions.
How is data integrity ensured during power failure?
The device features battery-backed real-time clock and non-volatile memory—ensuring no data loss during brownouts. Upon power restoration, it resumes logging from the last valid timestamp and triggers “power recovery” event in the audit trail.
