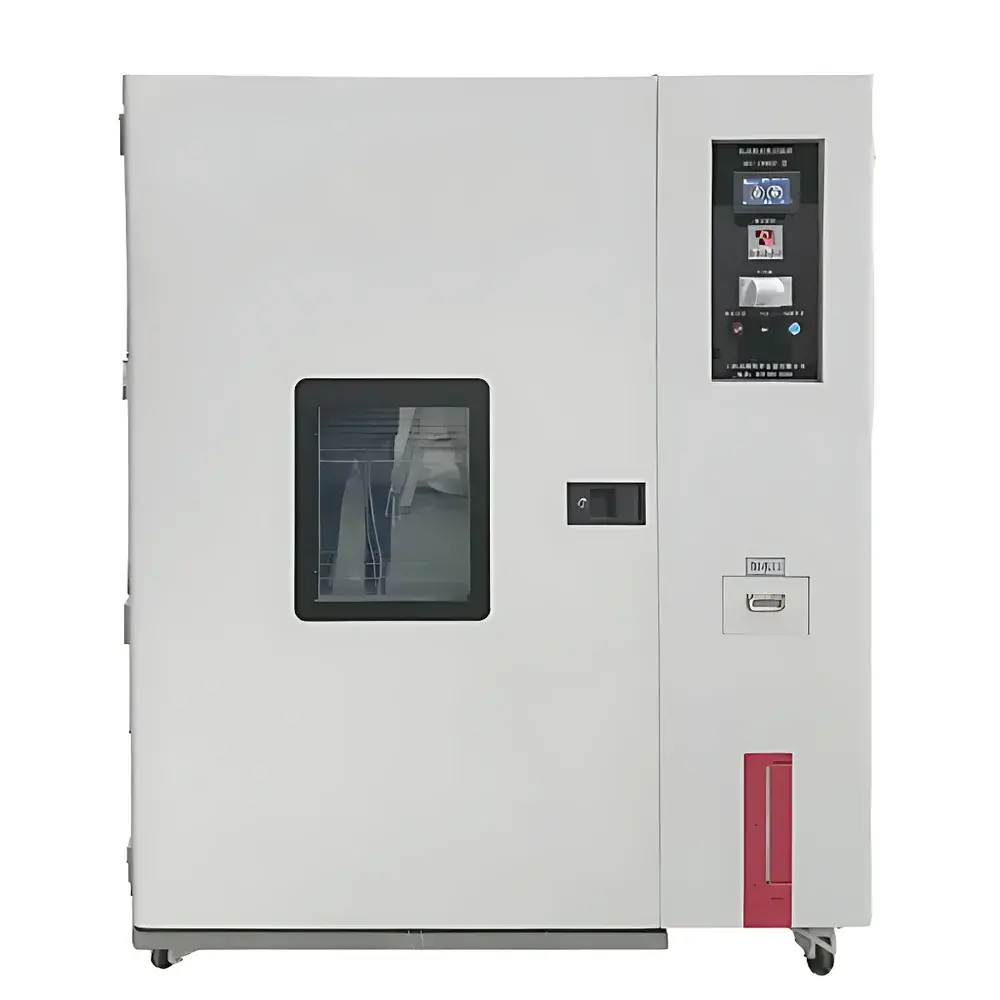

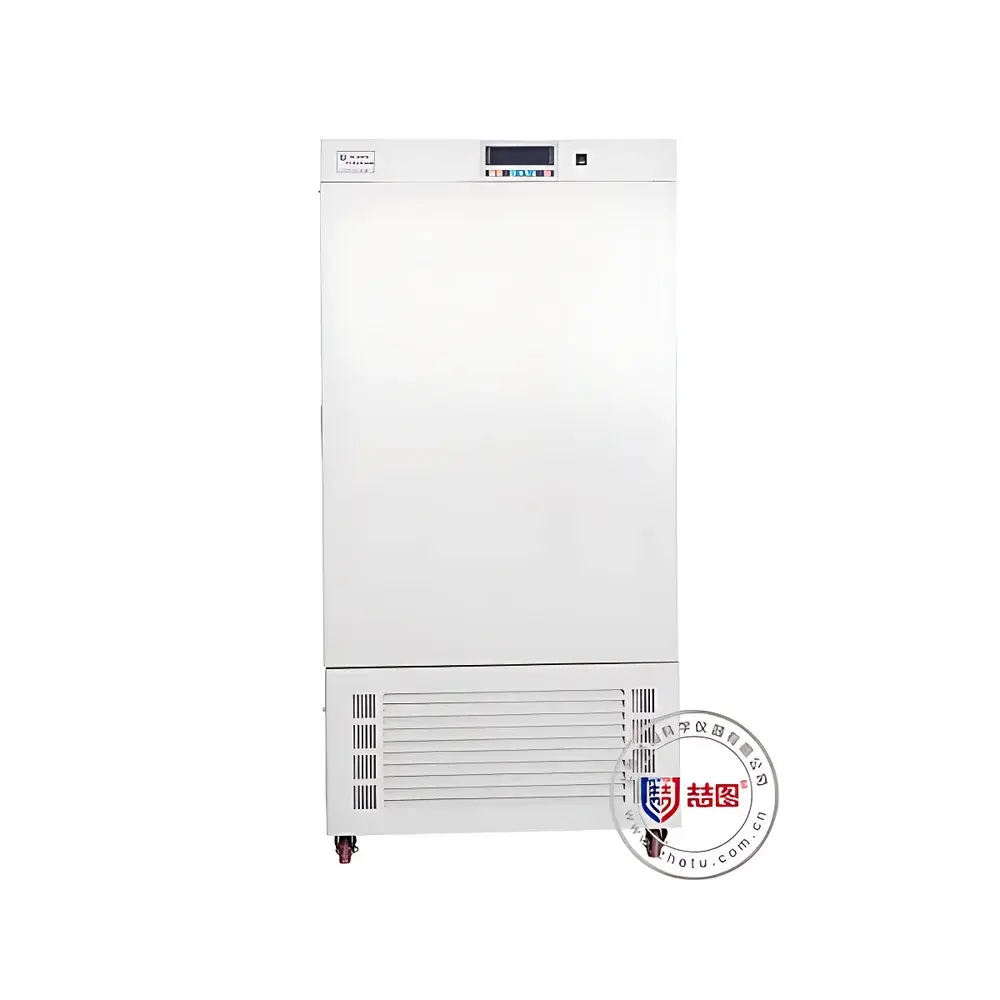

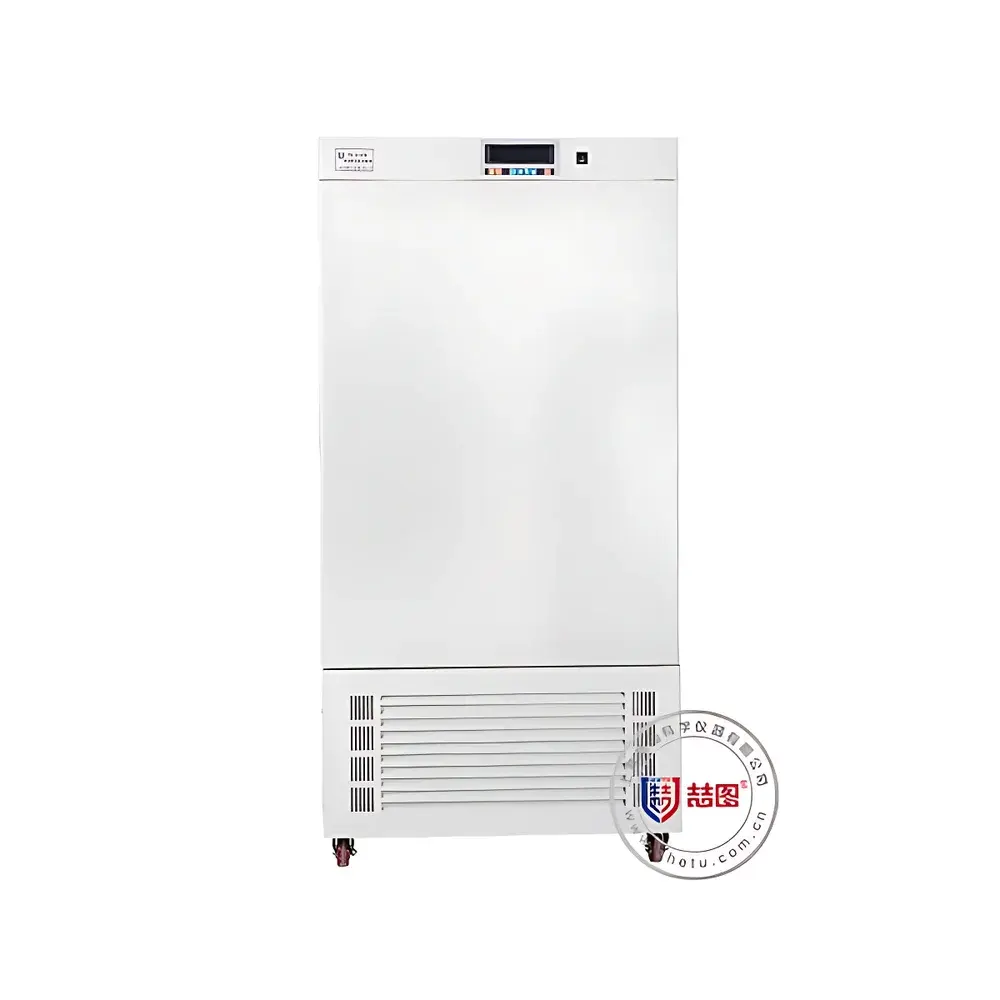

DRETOP MSC-1500GSP Drug Stability Testing Chamber

Overview

The DRETOP MSC-1500GSP Drug Stability Testing Chamber is an engineered environmental simulation system designed explicitly for pharmaceutical stability studies in compliance with ICH Q1A(R3), Q1B, Q5C, and relevant sections of USP , EP 2.2.43, and Chinese Pharmacopoeia 2015 Edition Chapter 9001. It operates on a validated dual-chamber thermal-hygrometric control architecture, integrating precision temperature regulation (0–65 °C, ±0.5 °C fluctuation), programmable relative humidity (40–95 % RH, ±3 % RH deviation), and photometrically traceable illumination (0–6000 lx, calibrated via integrated silicon photodiode sensor). Unlike generic climate chambers, the MSC-1500GSP implements ICH-defined test conditions—including long-term (25 °C ±2 °C / 60 % RH ±5 %), accelerated (40 °C ±2 °C / 75 % RH ±5 %), and photostability (4500 lx ±500 lx)—within a single, continuously monitored enclosure. Its forced-air circulation system employs toroidal airflow geometry to achieve spatial uniformity across the full 1500 L working volume, minimizing gradient-induced variability in degradation kinetics.

Key Features

• Dual independent compressor system with automatic load balancing and seamless switchover—enabling uninterrupted operation over extended cycles (>12 months) without manual defrost intervention.
• High-stability microprocessor-based controller with PID auto-tuning, supporting up to 100 programs × 1000 steps × 999 cycles; each segment configurable for duration (up to 99 h 59 min), ramp rate, and hold conditions.
• Electropolished mirror-finish stainless steel interior (AISI 304) with radius-corner construction (R ≥ 15 mm) for ISO Class 5-compatible cleaning validation and residue-free decontamination.
• Integrated photometric control loop using NIST-traceable illuminance sensors—compensating for lamp aging and spectral drift in real time to maintain target irradiance within ±5 % tolerance.
• Redundant safety architecture: independent mechanical over-temperature cutoff (±2 °C offset from setpoint), audible/visual alarm for humidity excursions, door-open detection, power-fail recovery, and sensor fault diagnostics.
• 25 mm diameter access port (standard, side-mounted) fitted with silicone gasket and brass compression collar—compatible with external probes, data loggers, or gas sampling lines per ASTM E2912.

Sample Compatibility & Compliance

The MSC-1500GSP accommodates diverse pharmaceutical sample formats—including blister packs, HDPE bottles, glass vials, lyophilized trays, and primary packaging assemblies—on adjustable stainless steel shelves (4-tier configuration, load-rated to 25 kg/shelf). Its chamber geometry and airflow profile have been verified per ISO 14644-3 Annex B for particulate homogeneity and per ICH Q5C Annex 1 for thermal mapping (IQ/OQ/PQ protocols supported). The system meets design requirements for FDA 21 CFR Part 11-compliant electronic records when paired with optional RS485 interface and validated data acquisition software. All wetted components comply with USP for extractables profiling, and humidity generation uses demineralized water feed to prevent mineral deposition on optical surfaces or sensor elements.

Software & Data Management

The embedded 7-inch color touchscreen HMI runs a deterministic real-time OS with dual-language UI (English/Chinese, user-selectable at boot). Operational parameters, alarm logs, and environmental traces are stored internally (≥1 year at 1-min resolution) and exportable via USB 2.0 to CSV or Excel-compatible .xlsx format. Optional PC-based software provides audit trail functionality (user ID, timestamp, action type), electronic signature support, and automated report generation aligned with ALCOA+ principles. When connected via RS485, the chamber supports Modbus RTU protocol for integration into MES/LIMS environments (e.g., LabVantage, STARLIMS) and enables remote monitoring under GxP-controlled network segmentation.

Applications

• ICH-aligned long-term and accelerated stability studies per Q1A(R3) for registration dossiers (IND, NDA, MAA).
• Photostability assessment per Q1B: Option A (near-UV + visible), Option B (visible only), and Option C (forced degradation under controlled irradiance).
• Excipient compatibility screening under variable hygrothermal stress to identify moisture-mediated degradation pathways.
• Package integrity evaluation during cyclic humidity exposure (e.g., 75 % RH → 25 % RH transitions) simulating warehouse transit conditions.
• Biologics stability monitoring at sub-zero dew point conditions (via optional low-humidity mode) for lyophilized mAb formulations.
• Reference standard storage under certified ambient conditions (25 °C / 60 % RH) per USP .

FAQ

Does the MSC-1500GSP meet ICH Q1B photostability requirements for Option A testing?
Yes—the integrated 0–6000 lx digital illumination control system maintains ±5 % irradiance accuracy across the full spectrum (320–400 nm UV-A + 400–800 nm visible), with real-time correction for lamp output decay.
Can temperature and humidity be controlled independently during combined stress testing?
Yes—dual-loop control architecture decouples refrigeration, heating, and steam humidification subsystems, enabling simultaneous yet independent regulation per ICH Q1A(R3) Table 2 conditions.
Is the chamber suitable for GMP-regulated stability programs requiring 21 CFR Part 11 compliance?
When configured with optional RS485 interface, validated software, and role-based user accounts, the system supports electronic signatures, audit trails, and data integrity controls required for regulated submissions.
What validation documentation is supplied with the unit?
Factory-issued IQ/OQ protocols (ASTM E2500-based), as-built drawings, calibration certificates for temperature/humidity/illumination sensors (NIST-traceable), and material compliance declarations (RoHS, REACH, USP ) are included.
How is uniformity verified across the 1500 L chamber volume?
Thermal and hygrometric mapping is performed using ≥15 calibrated thermocouples/hygrometers per ICH Q1A(R3) Annex 2, with results documented in the User Requirement Specification (URS) and executed during site commissioning.
