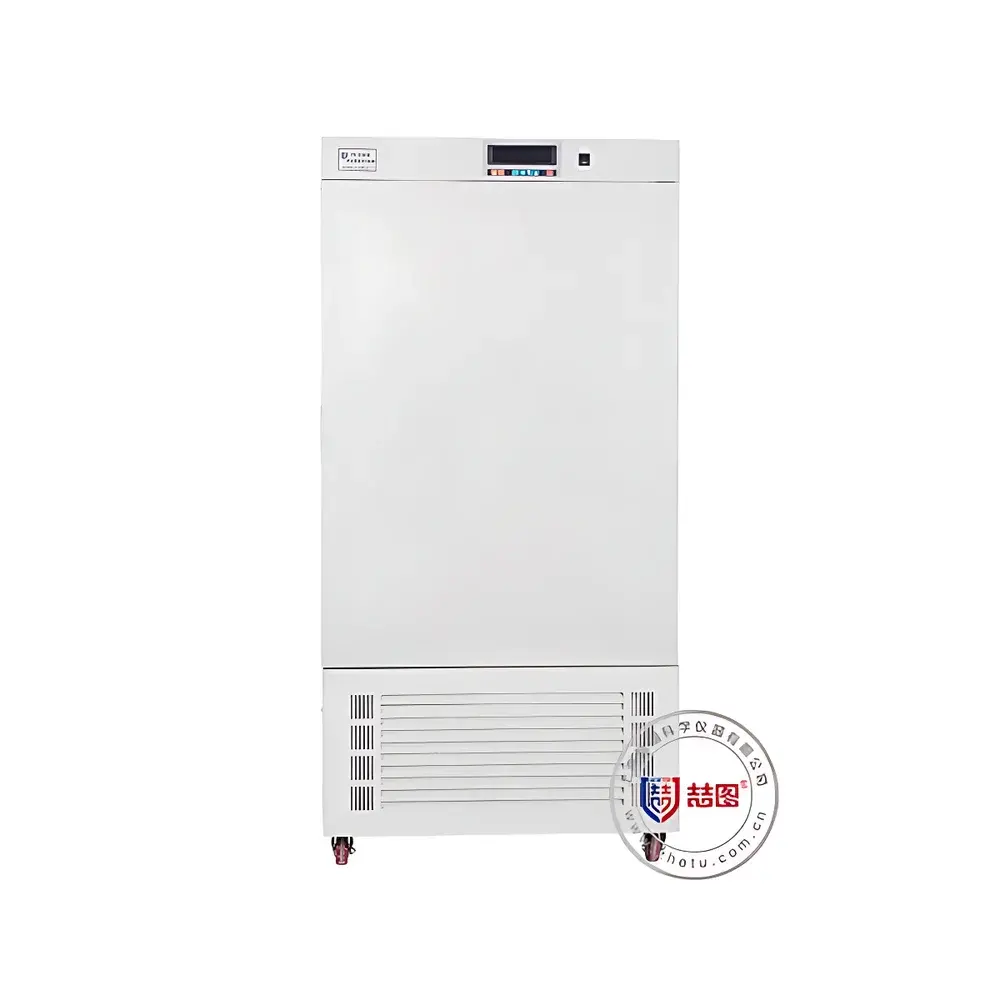

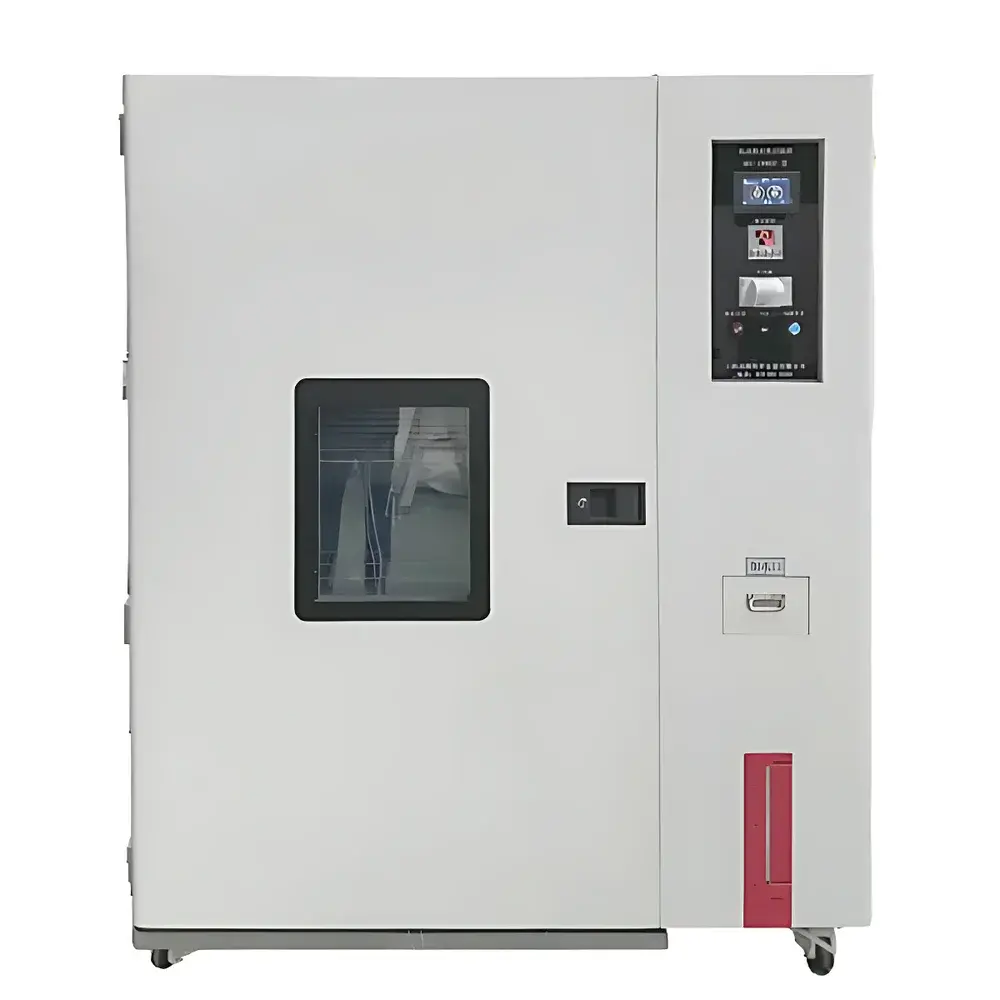

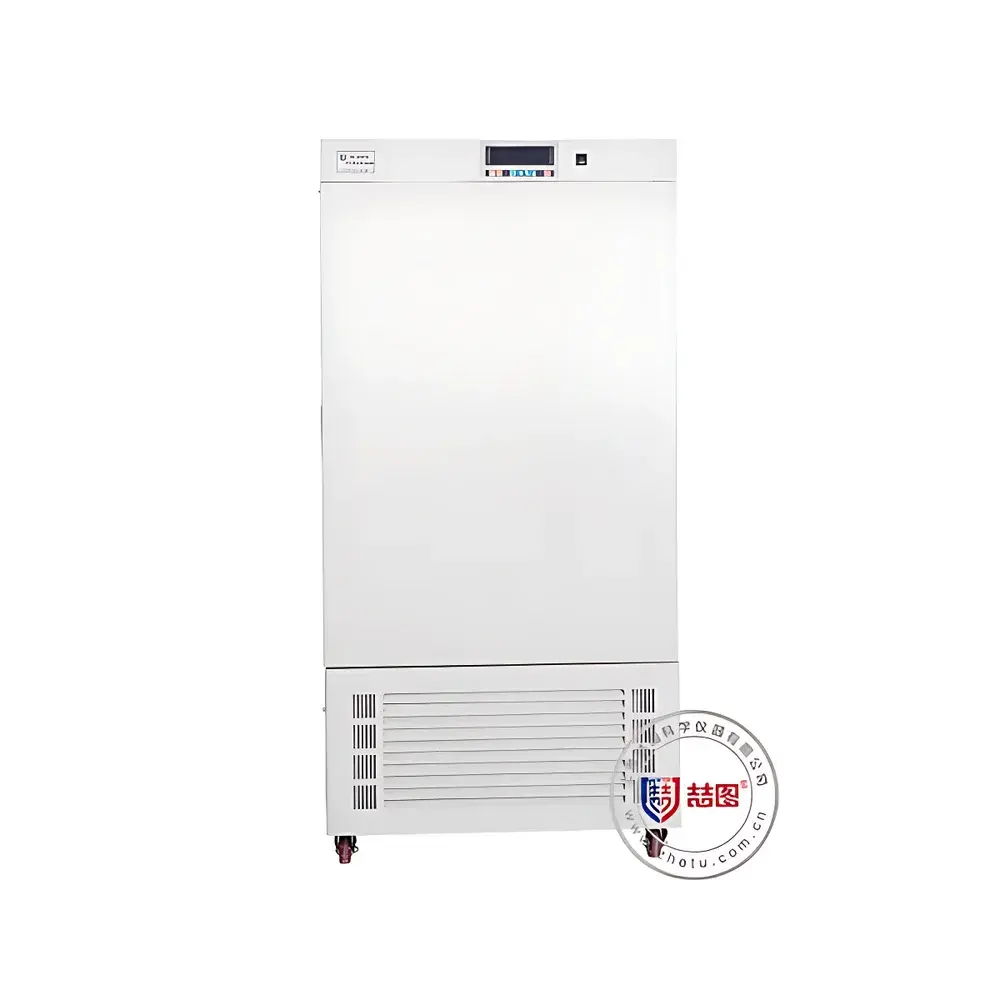

DRETOP MSC-1500SP Drug Stability Testing Chamber

Overview

The DRETOP MSC-1500SP Drug Stability Testing Chamber is an engineered environmental simulation system designed to meet the stringent requirements of pharmaceutical stability testing as defined by ICH Q1A(R3), Q1B, Q5C, and relevant national pharmacopoeial standards—including the Chinese Pharmacopoeia (2015 Edition) and GB/T 10586–2006. It operates on a validated dual-chamber thermodynamic architecture that independently regulates temperature, relative humidity, and photometric irradiance—enabling precise replication of long-term, accelerated, intermediate, high-humidity, and photostability test conditions per ICH guidelines. The chamber employs forced-air convection via a ring-shaped airflow duct system, ensuring uniform thermal and hygric distribution across the full 1500 L working volume. Its dual-compressor refrigeration subsystem supports uninterrupted operation for ≥6 months without manual defrost intervention—a critical requirement for continuous stability studies mandated under FDA 21 CFR Part 11 and EU Annex 11 compliance frameworks.

Key Features

• Dual independent compressor system with automatic load-balancing and seamless switchover—eliminates single-point failure risk and ensures uninterrupted thermal/hygrometric control during extended trials.
• High-precision P.I.D. auto-tuning controller with graphical color touchscreen interface; supports up to 100 programs, each comprising 1000 programmable steps and 999 cycles; time resolution down to 1 minute.
• Integrated illumination subsystem featuring calibrated photometric sensors (0–6000 lx range) with real-time feedback control—maintains ±50 lx accuracy over time and compensates for LED/lamp spectral decay.
• Corrosion-resistant mirror-finish stainless-steel interior (SUS304), radius-cornered construction, and removable adjustable shelves—designed for ISO Class 7 cleanroom compatibility and routine sanitization.
• Multi-layer safety architecture: independent over-temperature cut-off, audible/visual alarms for T/RH deviation, door-open detection, power-loss recovery, leak-current protection, dry-heater safeguard, and sensor fault diagnostics.
• Standard 25 mm diameter access port (side-mounted) with silicone gasket—facilitates in-situ probe insertion for external data acquisition or process validation.

Sample Compatibility & Compliance

The MSC-1500SP accommodates diverse pharmaceutical sample formats—including blister packs, vials, ampoules, sachets, and bulk powders—on four adjustable stainless-steel shelves (load capacity: 25 kg/shelf). Its operational envelope satisfies all ICH-specified stability protocols: long-term (25 °C ±2 °C / 60 %RH ±5 %), accelerated (40 °C ±2 °C / 75 %RH ±5 %), and photostability (≥1.2 million lux·hr visible + ≥200 W/m² UV). Humidity sensing utilizes high-stability capacitive sensors rated for continuous operation at elevated temperatures—avoiding drift associated with traditional wet-bulb systems. All hardware and firmware comply with electromagnetic compatibility (EMC) per IEC 61326-1 and electrical safety per IEC 61010-1. Documentation packages include Factory Acceptance Test (FAT), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) templates aligned with GMP Annex 15.

Software & Data Management

The embedded controller logs timestamped temperature, humidity, and irradiance values at user-defined intervals (1–60 min), storing ≥30 days of raw data internally. Export options include USB-stored CSV files compatible with Excel, PDF reports with digital signatures, and real-time streaming via RS485 to third-party LIMS or SCADA platforms. Optional software modules provide audit-trail functionality compliant with 21 CFR Part 11—supporting electronic signatures, role-based access control, and immutable record retention. Data integrity safeguards include cyclic redundancy checks (CRC), write-protection locks, and automatic backup upon power interruption.

Applications

This chamber serves as a primary tool for regulatory submission support across drug development phases: pre-formulation screening, excipient compatibility assessment, packaging integrity evaluation, shelf-life determination, and post-approval change management. It is routinely deployed in QC/QA laboratories of API manufacturers, CDMOs, biotech firms, and academic pharmacokinetics research centers. Secondary applications include stability testing of medical devices (ISO 11607), diagnostic reagents (CLIA), and cell therapy cryopreservation media under controlled ambient stress.

FAQ

Does the MSC-1500SP support 21 CFR Part 11 compliance?
Yes—when equipped with optional audit-trail software, it provides electronic signature capability, user authentication, and tamper-evident data archiving.
What is the maximum allowable ambient room temperature for stable operation?
The unit requires ambient conditions ≤30 °C and ≤70 %RH for optimal performance at 40 °C/75 %RH setpoints.
Can humidity be maintained at 95 %RH while operating at 65 °C?
No—maximum humidity at 65 °C is limited to ~70 %RH due to saturation constraints; the specified 40–95 %RH range applies within 20–50 °C.
Is UV sterilization integrated or optional?
Ultraviolet germicidal irradiation (254 nm) is available as a factory-installed option, mounted centrally on the ceiling panel.
How frequently must the humidity sensor be recalibrated?
Annual calibration is recommended using NIST-traceable saturated salt solutions; the system supports user-initiated zero/span verification.
