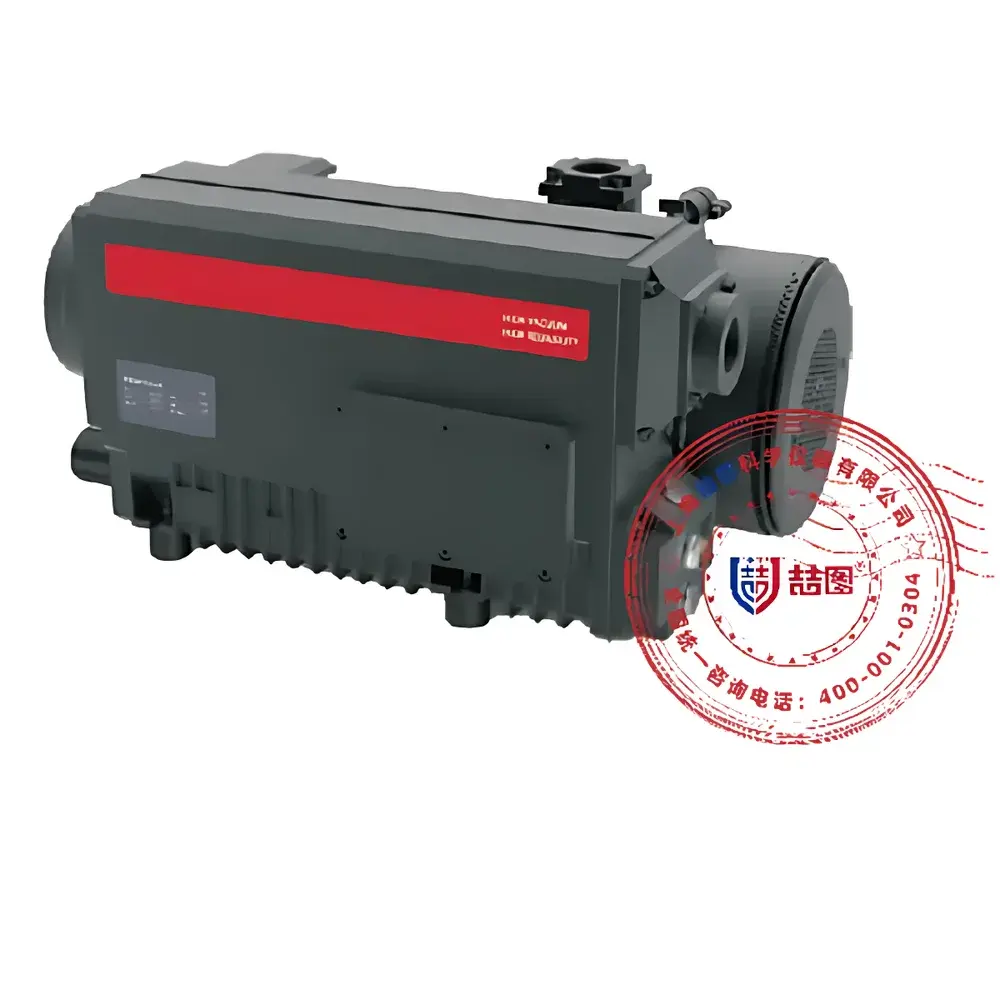

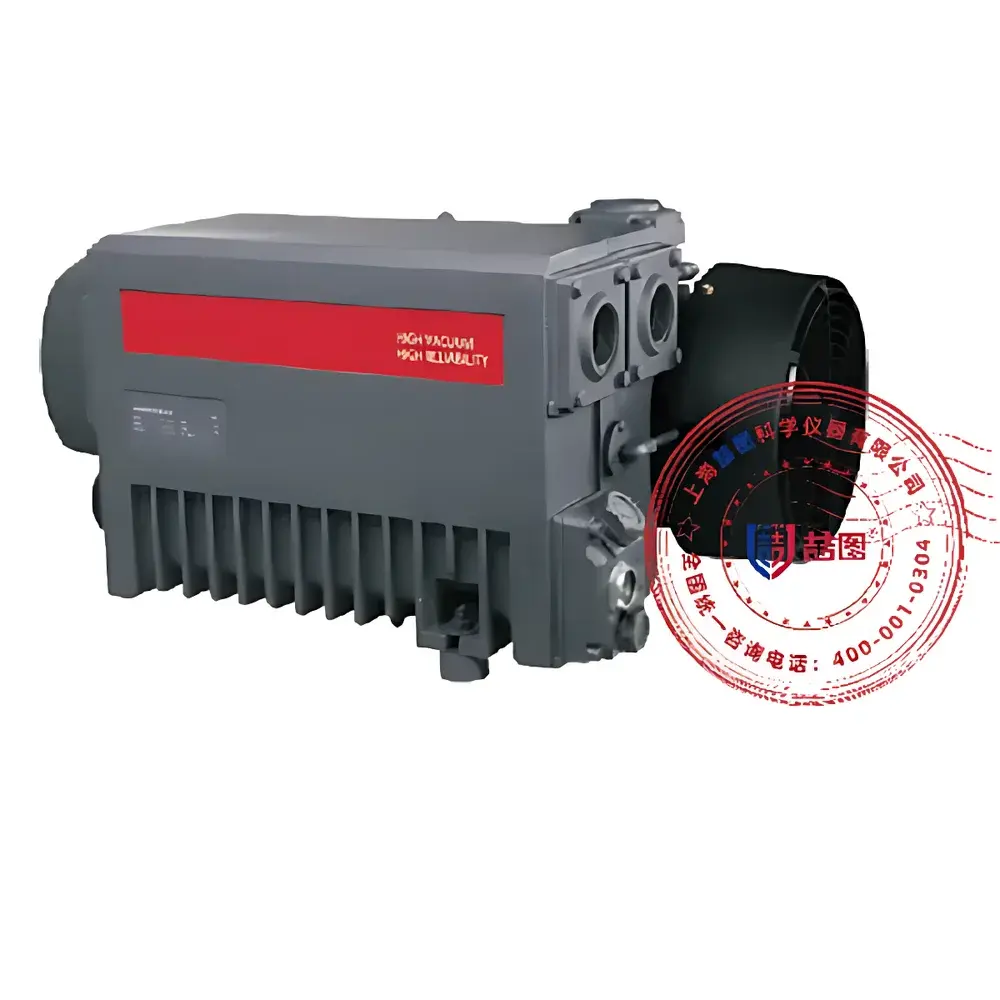

DRETOP NEX-20 Single-Stage Rotary Vane Vacuum Pump

Overview

The DRETOP NEX-20 is a single-stage oil-lubricated rotary vane vacuum pump engineered for reliable, continuous operation in the low-to-medium vacuum range (10⁵ Pa to 2 mbar). It operates on the principle of positive displacement via rotating vanes that slide radially within an eccentrically mounted rotor, creating variable-volume chambers that expand to draw gas in and compress it toward the exhaust port. Designed for laboratory and light industrial applications—including vacuum drying, rotary evaporation, filtration, degassing, and as a forepump for high-vacuum systems—the NEX-20 delivers stable performance under fluctuating inlet pressures and moderate vapor loads. Its robust cast-alloy cylinder block, precision-machined rotor assembly, and optimized vane geometry ensure minimal wear and high volumetric efficiency across extended duty cycles.

Key Features

• Integrated Cylinder Construction: Monoblock cylinder housing enhances structural rigidity and thermal stability, reducing vibration and improving long-term dimensional integrity under cyclic thermal loading.
• Multi-Position Gas Ballast Valve: Adjustable gas ballast mechanism enables controlled admission of atmospheric air into the compression chamber, facilitating efficient removal of condensable vapors—particularly water vapor—without compromising ultimate vacuum significantly.
• Forced Oil Circulation System: Built-in gear-type oil pump and constant-pressure oil delivery circuit maintain consistent lubrication film thickness on bearings, vanes, and stator surfaces—even at inlet pressures up to 10 Torr—extending service life and minimizing dry-start risk.
• Dual-Stage Sealing Architecture: Fluoroelastomer (FKM) shaft seals and static gaskets provide superior resistance to hydrocarbon solvents, mild acids, and oxidizing agents, effectively preventing oil leakage and maintaining system cleanliness.
• Air-Cooled Thermal Management: Optimized finned motor housing and internal airflow pathways dissipate heat passively—eliminating dependency on external water cooling and enabling deployment in mobile labs, cleanrooms, or facilities with limited utility infrastructure.
• Anti-Backstreaming Design: Integrated non-return valve and oil trap geometry prevent backflow of lubricant into the vacuum chamber during power interruption or shutdown, safeguarding downstream instrumentation such as mass spectrometers, electron microscopes, or optical coating chambers from oil contamination.
• High-Efficiency Mist Separator: Integrated coalescing oil mist filter reduces discharged aerosol content to <0.5 mg/m³, meeting ISO 8573-1 Class 4 particulate standards and supporting compliance with occupational health and environmental emission regulations.

Sample Compatibility & Compliance

The NEX-20 is compatible with non-reactive, non-polymerizing gases and vapors typical in academic research and pharmaceutical pilot-scale processing. It is not intended for use with aggressive halogenated compounds, strong oxidizers (e.g., Cl₂, O₃ above 100 ppm), or highly corrosive media such as HF or aqua regia—applications requiring chemical resistance should consider the DRETOP NEX-DF series (316L stainless steel springs, FKM elastomers, coated pump body). The pump conforms to IEC 60034-1 (rotating electrical machines), EN 61000-6-3 (EMC emissions), and meets CE marking requirements for machinery safety (2006/42/EC). Its design supports GLP-compliant operation when integrated into validated vacuum systems, with traceable maintenance logs and oil change records aligning with ISO/IEC 17025 quality management expectations.

Software & Data Management

While the NEX-20 operates as a standalone mechanical device without embedded digital controls, its analog interface supports integration into automated vacuum systems via external pressure transducers (e.g., Pirani or capacitance manometers) and programmable logic controllers (PLCs). Optional analog voltage outputs (0–10 V) for motor current and temperature monitoring enable real-time trending in SCADA platforms. When deployed in regulated environments—such as pharmaceutical manufacturing per FDA 21 CFR Part 11—the pump’s operational parameters (runtime, oil change intervals, pressure profiles) are documented externally through electronic lab notebooks (ELNs) or MES systems, ensuring audit-ready traceability for IQ/OQ/PQ validation protocols.

Applications

• Laboratory Research: Rotary evaporation (RotaVap), vacuum concentration of biological samples, freeze-dry cycle support, vacuum desiccation of hygroscopic reagents, and pre-evacuation of gloveboxes or analytical instrument chambers.
• Materials Science: Vacuum impregnation of composites (e.g., carbon fiber preforms), resin transfer molding (RTM) prepreg degassing, and thermal treatment atmosphere control in inert-gas furnaces.
• Electronics Manufacturing: Forepumping for diffusion pumps and turbomolecular pumps used in physical vapor deposition (PVD), sputtering, and electron-beam evaporation systems.
• Chemical & Pharmaceutical: Solvent recovery under reduced pressure, vacuum filtration of crystalline APIs, and vacuum-assisted drying of lyophilized formulations.
• Quality Control Labs: Supporting ASTM D2873 (vacuum distillation of petroleum products), USP (vacuum drying loss), and ISO 29463-3 (filter testing under controlled vacuum conditions).

FAQ

What is the recommended oil change interval for the NEX-20 under continuous operation?
Under standard laboratory conditions (8 h/day, ambient temperature ≤30°C, non-condensing gas load), oil replacement is advised every 500 operating hours or semiannually—whichever occurs first. Extended intervals require oil analysis per ASTM D92 or D97.
Can the NEX-20 be used with a cold trap to improve water vapor handling?
Yes. Installing a liquid nitrogen or dry ice–cooled condenser upstream significantly improves pumping efficiency for high-humidity samples and extends oil service life by reducing vapor load on the pump.
Is the NEX-20 suitable for vacuum packaging applications?
It is appropriate for low-throughput benchtop packaging of moisture-sensitive materials but not rated for continuous-duty industrial packaging lines; higher-capacity dual-stage models (e.g., NEX-D24) are recommended for production environments.
Does the pump include a built-in vacuum gauge?
No. A separate vacuum gauge (e.g., thermocouple or Pirani sensor) must be installed in the vacuum line for accurate pressure monitoring.
What certifications does the NEX-20 carry for international shipping?
The unit complies with CE, RoHS, and REACH directives; export documentation includes EAC (Eurasian Customs Union) conformity for CIS markets and KC mark readiness for South Korea upon request.
