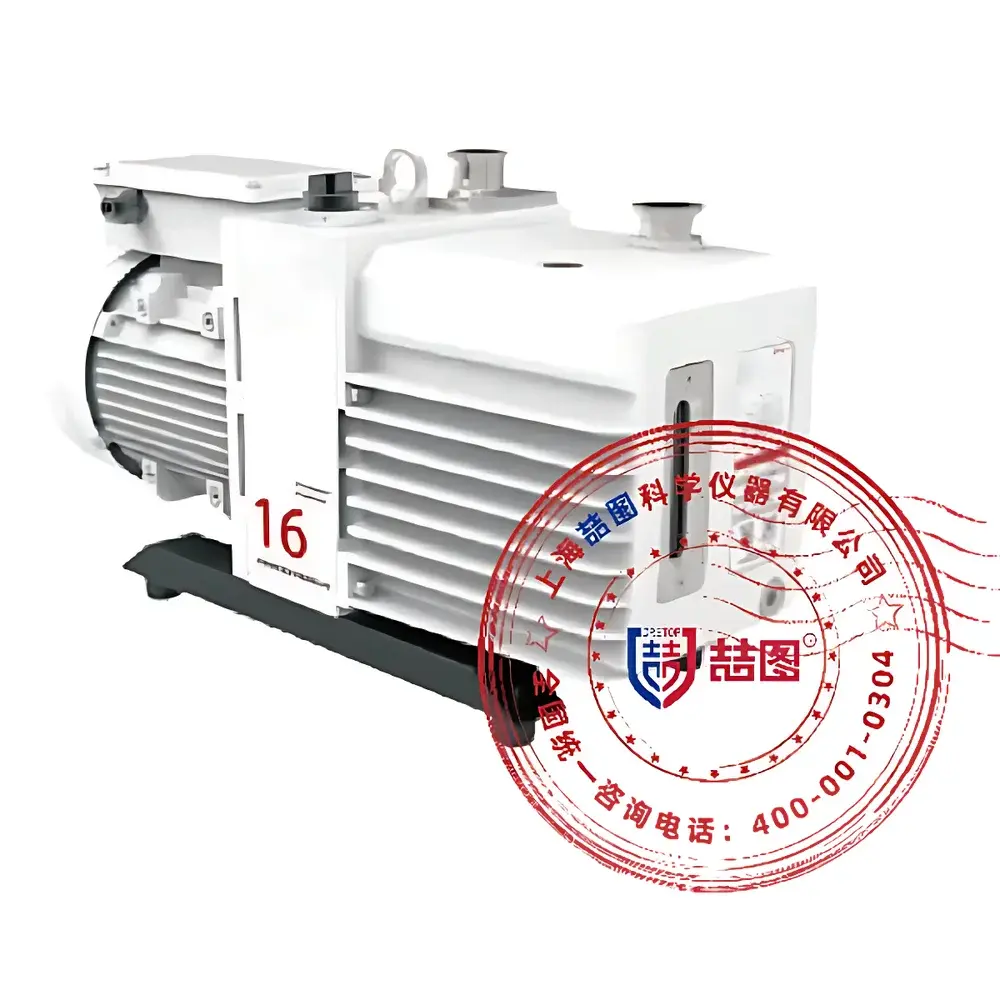

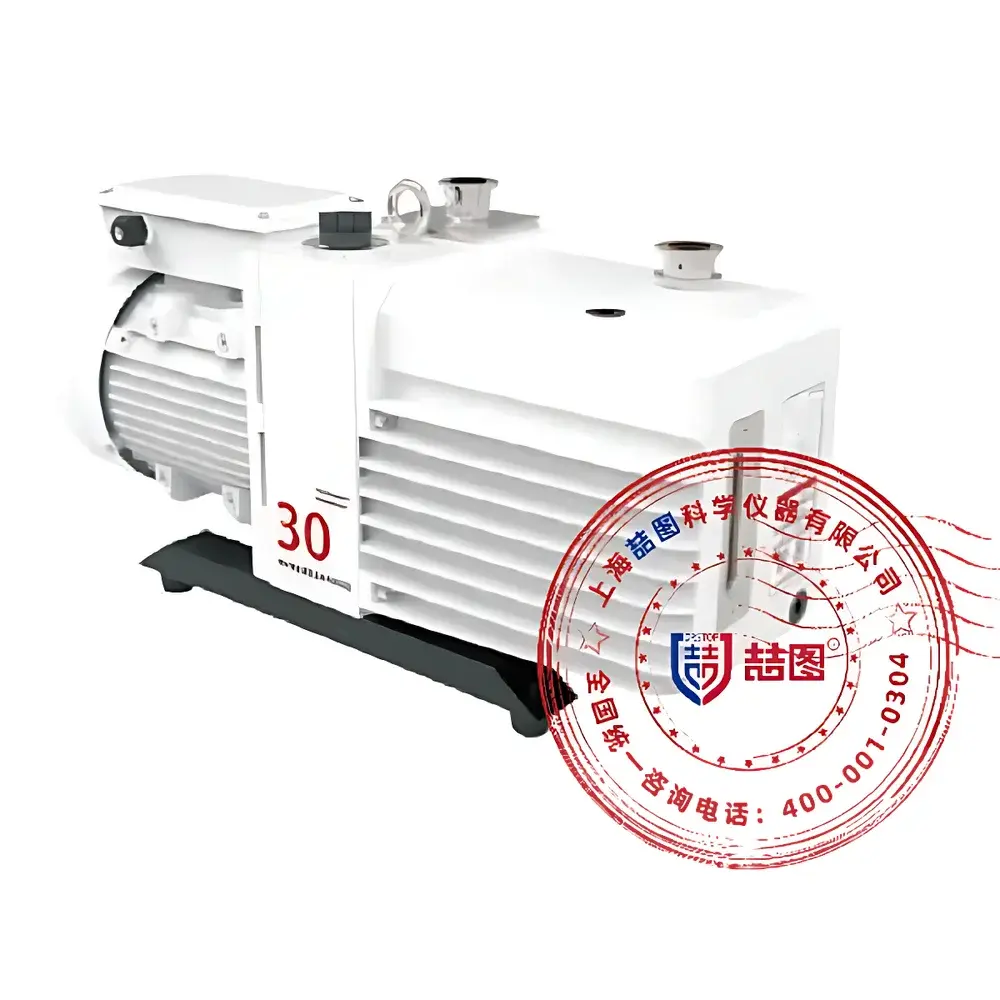

DRETOP NEX-D8 Dual-Stage Rotary Vane Vacuum Pump

Overview

The DRETOP NEX-D8 is a dual-stage oil-lubricated rotary vane vacuum pump engineered for stable, continuous operation in the low-to-medium vacuum range (10⁻¹ to 10¹ Pa). Based on the fundamental principle of positive displacement via rotating vanes within an eccentrically mounted rotor, the NEX-D8 achieves consistent volumetric pumping performance through precise mechanical compression and sequential gas transfer across two stages. Its design prioritizes operational robustness under variable inlet pressures — including humid or mildly condensable gas loads — making it suitable as a standalone roughing pump or as a forepump for high-vacuum systems such as diffusion pumps, turbomolecular pumps, or cryogenic traps. The pump complies with IEC 60034 (rotating electrical machines) and meets CE marking requirements for electromagnetic compatibility (EMC) and low-voltage directive conformity.

Key Features

• Two-Stage Compression Architecture: Enables deeper ultimate vacuum (≤10 Pa with gas ballast activated; ≤0.5 Pa without) compared to single-stage equivalents, while maintaining high pumping efficiency at intermediate pressures.
• Integrated Gas Ballast System: Adjustable multi-position gas ballast valve allows controlled admission of atmospheric air into the second stage, facilitating efficient removal of water vapor and other condensable gases without compromising long-term oil integrity.
• Forced Lubrication Circuit: Equipped with an internal gear-type oil pump and constant-pressure oil delivery mechanism, ensuring full hydrodynamic lubrication of vanes, rotor bearings, and stator surfaces even at elevated inlet pressures (up to 10 Torr).
• Dual Anti-Backstreaming Design: Automatic oil-line shutoff upon power loss or shutdown, combined with reverse-gas-pulse action through the gas ballast channel, prevents oil back-diffusion into the vacuum chamber — critical for protecting sensitive downstream instrumentation (e.g., mass spectrometers, electron beam welders, optical coating chambers).
• Fluoroelastomer (FKM) Sealing System: All static and dynamic seals utilize high-purity FKM elastomers, offering superior resistance to oxidation, hydrocarbon degradation, and thermal aging versus standard nitrile rubber.
• Passive Air-Cooled Thermal Management: Optimized finned housing geometry and thermally efficient motor winding enable stable operation without external water cooling — reducing installation footprint and eliminating coolant maintenance cycles.
• High-Efficiency Oil Mist Filter: Integrated coalescing filter reduces discharged oil aerosol concentration to <5 mg/m³, supporting compliance with ISO 8573-1 Class 4 particulate limits and local occupational health regulations.

Sample Compatibility & Compliance

The NEX-D8 is compatible with non-corrosive, non-reactive, and non-particulate gas loads typical of laboratory and light industrial applications. It is not rated for use with halogenated solvents, strong acids (e.g., HCl, HF), oxidizers (e.g., Cl₂, O₃ beyond trace concentrations), or abrasive dusts. For weakly corrosive environments (e.g., pharmaceutical drying with residual ethanol/water mixtures or semiconductor process chambers with low-concentration SO₂), the chemically enhanced NEX-DF8 variant — featuring 316L stainless steel springs and fluoropolymer-coated cast iron housing — is recommended. The pump conforms to GLP-relevant operational traceability when paired with optional analog pressure monitoring interfaces and supports audit-ready documentation workflows per FDA 21 CFR Part 11 when integrated into validated vacuum control systems.

Software & Data Management

While the NEX-D8 operates as a stand-alone electromechanical device without embedded firmware or digital connectivity, its mechanical interface supports integration into centralized vacuum management platforms via 0–10 V analog input/output signals (optional accessory module required). These signals enable real-time monitoring of motor current draw (proxy for load condition), oil temperature (via PT100 sensor port), and vacuum level (when coupled with a compatible Pirani or capacitance manometer). All control logic remains externally hosted, preserving deterministic response behavior and simplifying validation under ISO/IEC 17025 or GMP Annex 11 frameworks. Maintenance logs — including oil change intervals, filter replacement dates, and gas ballast usage frequency — are maintained manually per manufacturer-specified service schedules.

Applications

• Laboratory Sample Preparation: Rotary evaporation, vacuum concentration, freeze-drying support, and degassing of HPLC mobile phases or GC carrier gases.
• Analytical Instrument Support: Rough pumping for mass spectrometry ion sources, residual gas analyzers, and surface analysis tools requiring stable 1–100 Pa backing pressure.
• Electronics Manufacturing: Pre-vacuum conditioning prior to sputtering, e-beam evaporation, and wafer-level packaging processes.
• Materials Processing: Vacuum impregnation of composites, resin transfer molding, and thermal treatment of ceramics and metallic alloys.
• Chemical & Pharmaceutical Production: Solvent recovery, vacuum filtration, and batch drying of APIs under cGMP-aligned process conditions.
• Research Infrastructure: Front-end pumping for ultra-high vacuum test stands, space simulation chambers, and low-pressure plasma experiments.

FAQ

What is the recommended oil change interval for the NEX-D8?
Under continuous operation at ambient temperatures ≤35°C and with clean, dry gas loads, oil replacement is advised every 3,000 operating hours or annually — whichever occurs first. More frequent changes are required when processing condensable vapors or operating near maximum duty cycle.
Can the NEX-D8 be used as a forepump for a turbomolecular pump?
Yes. With a nominal ultimate pressure of ≤0.5 Pa (gas ballast closed) and pumping speed of 2.2 L/s at 10 Pa, the NEX-D8 satisfies the forepressure requirements of most benchtop and mid-range turbomolecular pumps rated up to 300 L/s.
Is the NEX-D8 compatible with ISO-KF vacuum fittings?
Yes. Standard configuration includes KF16 inlet and KF25 outlet flanges, conforming to ISO 2861 and DIN 28403 specifications.
Does the pump include built-in overload protection?
Yes. Integrated thermal cutout switches monitor stator winding temperature and interrupt power if safe operating thresholds are exceeded, complying with IEC 60335-1 safety standards.
What certifications does the NEX-D8 hold?
CE-marked per EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU compliant; EMC tested to EN 61326-1:2013 Class A.
