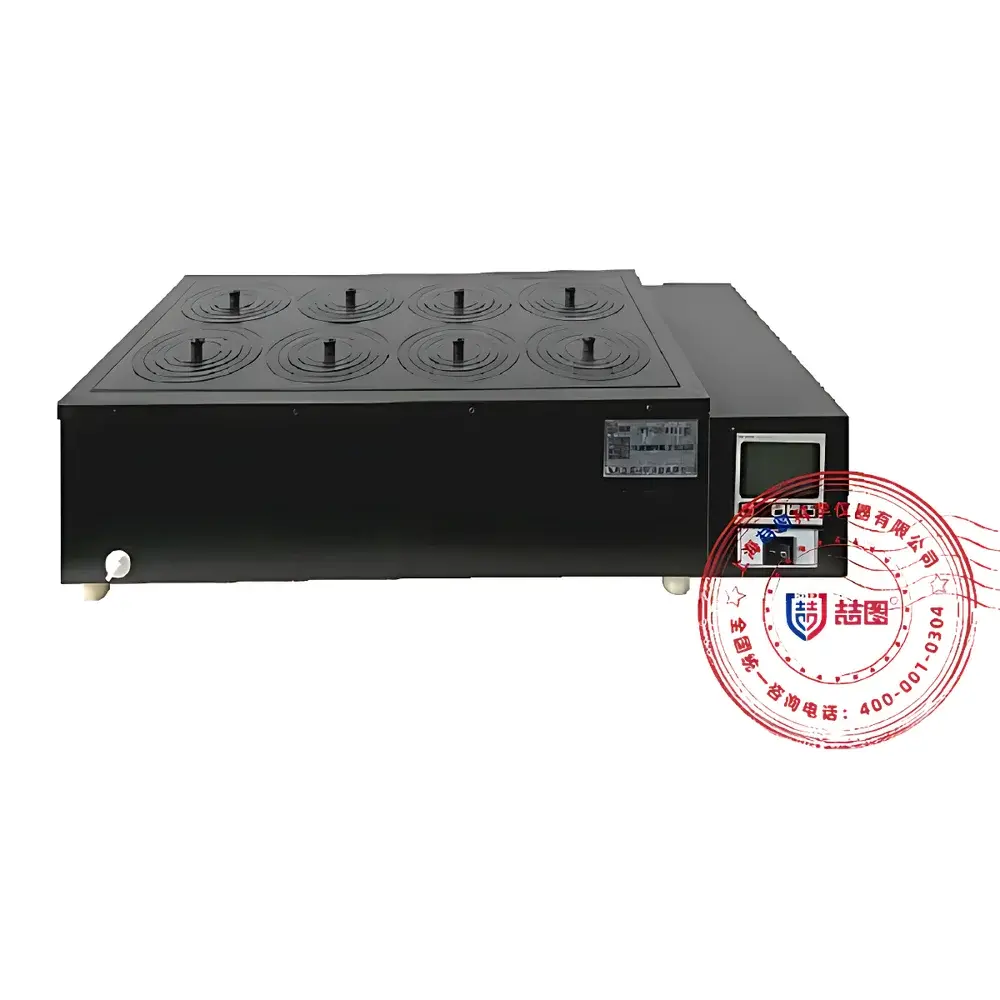

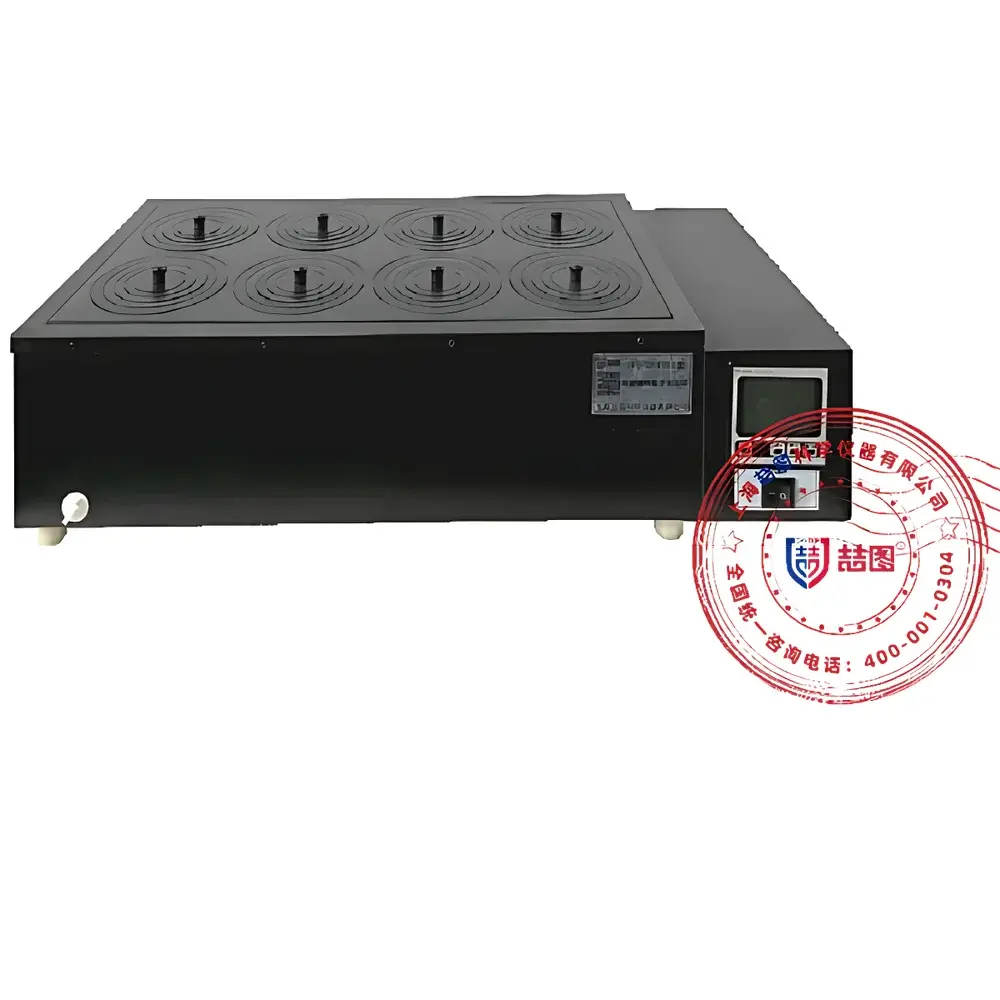

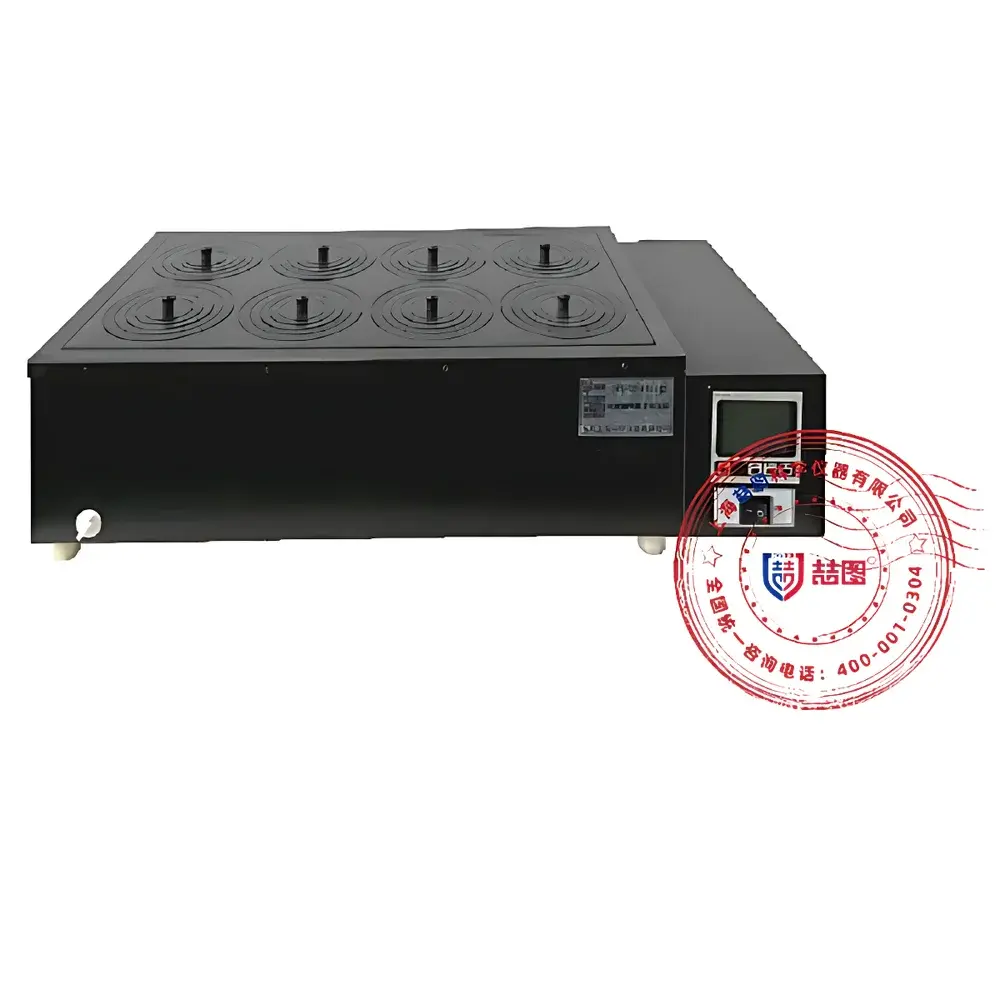

DRETOP NWS-8-20 Acid- and Alkali-Resistant Water Bath

Overview

The DRETOP NWS-8-20 Acid- and Alkali-Resistant Water Bath is a precision-engineered constant-temperature heating platform designed for demanding laboratory environments where chemical compatibility, thermal stability, and operational reliability are critical. Operating on resistive heating principles with PID-controlled thermal regulation, the unit maintains uniform liquid-phase temperature distribution across its 20-liter stainless-steel bath chamber—enabling reproducible evaporation, dissolution, enzymatic incubation, sample conditioning, and gentle thermal processing of sensitive reagents or biological matrices. Its construction adheres to fundamental thermodynamic design criteria for water baths: minimized thermal gradient (≤0.3°C across bath plane per ISO 17025 verification protocols), low thermal inertia, and rapid heat-up response (typical 25°C → 95°C in <22 min at full power). Unlike standard water baths, the NWS-8-20 integrates dual-layer corrosion mitigation—electropolished 304 stainless steel interior combined with optional PTFE-coated variants validated per ASTM B117 neutral salt spray testing (≥500 hr exposure without pitting or coating delamination).

Key Features

• Microprocessor-based PID temperature controller with dual digital display: real-time bath temperature and setpoint, both resolved to 0.1°C;
• High-stability Pt100 sensor array with ±0.2°C calibration traceability (NIST-traceable certificate available upon request);
• Integrated dry-run protection: automatic heater cutoff and audible/visual alarm when liquid level falls below minimum operational threshold;
• Intelligent power-loss recovery: EEPROM-backed parameter retention ensures uninterrupted operation after grid interruption—preserves setpoint, timer status, and ramp profiles;
• Configurable over-temperature alarm: user-defined deviation threshold (adjustable in 0.1°C increments) triggers immediate heating disablement and event logging;
• Ergonomic stainless-steel chamber with removable perforated support grid and modular silicone-rubber collar inserts for secure accommodation of flasks ranging from 25 mL to 5 L;
• Front-panel programmable timer (1–9999 minutes) with auto-shutdown function for unattended overnight protocols.

Sample Compatibility & Compliance

The NWS-8-20 accommodates glassware, borosilicate reaction vessels, stainless-steel containers, and PTFE-lined digest tubes without risk of leaching or surface degradation. Its electropolished 304SS inner tank meets FDA-compliant surface roughness requirements (Ra ≤ 0.8 µm), while optional PTFE-coated variants satisfy stringent ISO 15190:2020 criteria for corrosion-resistant laboratory equipment used in regulated QC/QA workflows. The system supports GLP/GMP-aligned documentation via optional RS-232/USB data export (CSV format) and complies with IEC 61010-1:2010 safety standards for laboratory electrical equipment. It is routinely deployed in applications requiring adherence to USP , ASTM E2500, and ISO/IEC 17025 method validation frameworks.

Software & Data Management

While the base NWS-8-20 operates via embedded firmware without external software dependency, optional connectivity modules enable integration into centralized lab infrastructure. An RS-232 interface permits bidirectional communication with LIMS or ELN platforms using ASCII command protocol (e.g., “TEMP?”, “SET 85.0”, “ALARM 0.3”). Optional 30-segment programmable controller (sold separately) supports time-temperature profiling compliant with ASTM D341 viscosity-temperature correlation studies. All temperature events—including alarms, power cycles, and manual overrides—are timestamped and stored in non-volatile memory (≥10,000 entries) for audit trail generation under 21 CFR Part 11 requirements when paired with validated electronic signature software.

Applications

• Controlled-rate solvent evaporation in pharmaceutical formulation development;
• Enzyme kinetic assays requiring precise thermal equilibration (e.g., lipase, amylase activity at 37°C or 60°C);
• Pre-analytical sample conditioning for ICP-MS, HPLC, or GC sample introduction systems;
• Acid digestion preparation (HNO₃/HF/HClO₄ mixtures) in environmental heavy metal analysis;
• Calibration of liquid-in-glass thermometers and RTDs against reference standards;
• Stability testing of polymer emulsions and colloidal dispersions under accelerated aging conditions.

FAQ

Is the NWS-8-20 suitable for oil bath operation?
Yes—the unit is rated for use with silicone oils and mineral oils up to 100°C; however, maximum oil fill level must remain ≥2 cm below overflow edge to prevent thermal expansion overflow.
Can the PTFE coating be applied post-purchase?
No—PTFE lining is applied during tank fabrication and requires specialized curing; it must be specified at time of order.
Does the device support external temperature probe input for sample-specific monitoring?
Not natively; the system uses internal bath-sensing only. For sample-core temperature feedback, a separate calibrated probe and external PID controller are required.
What maintenance intervals are recommended for long-term stability?
Biannual verification of temperature uniformity (per ISO 17025 Annex C) and annual recalibration of the Pt100 sensor by an accredited metrology lab are advised.
Is the drain valve compatible with standard laboratory tubing connectors?
Yes—the bottom-mounted brass drain valve accepts 8 mm OD polyethylene or silicone tubing with compression fitting.
