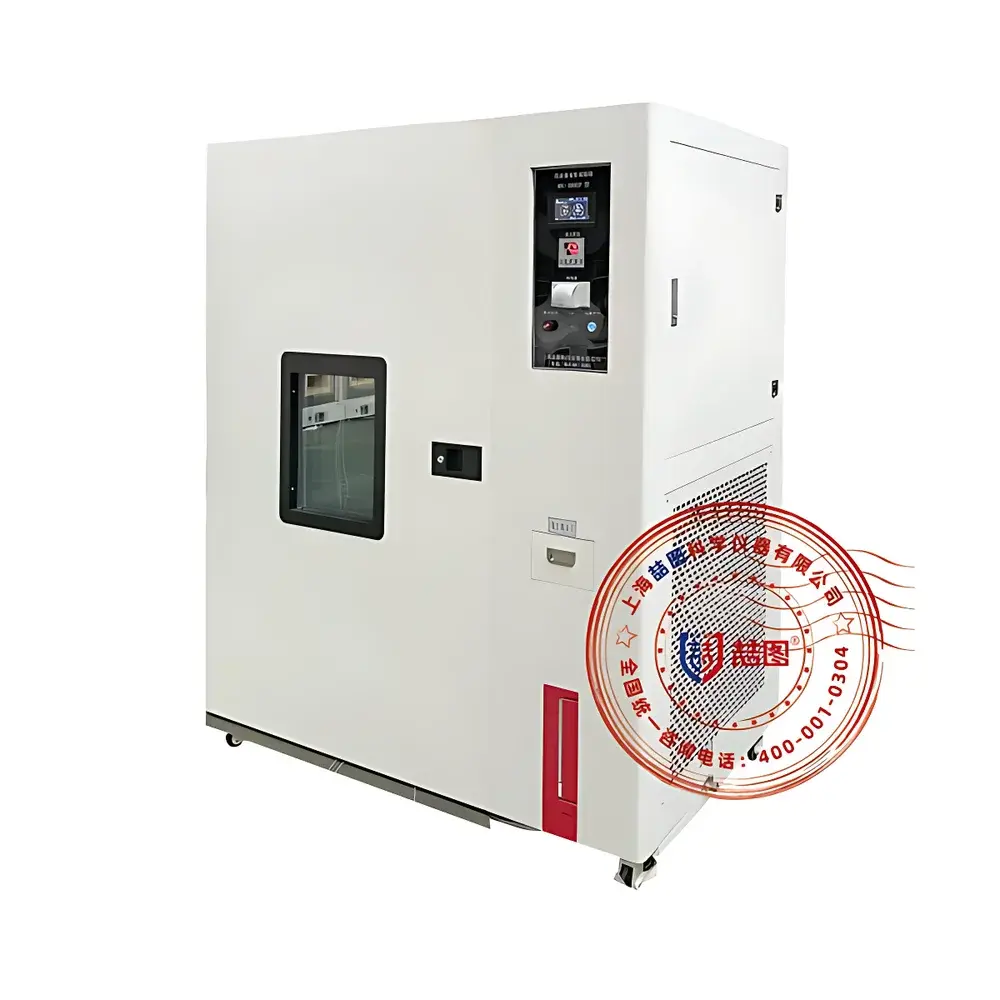

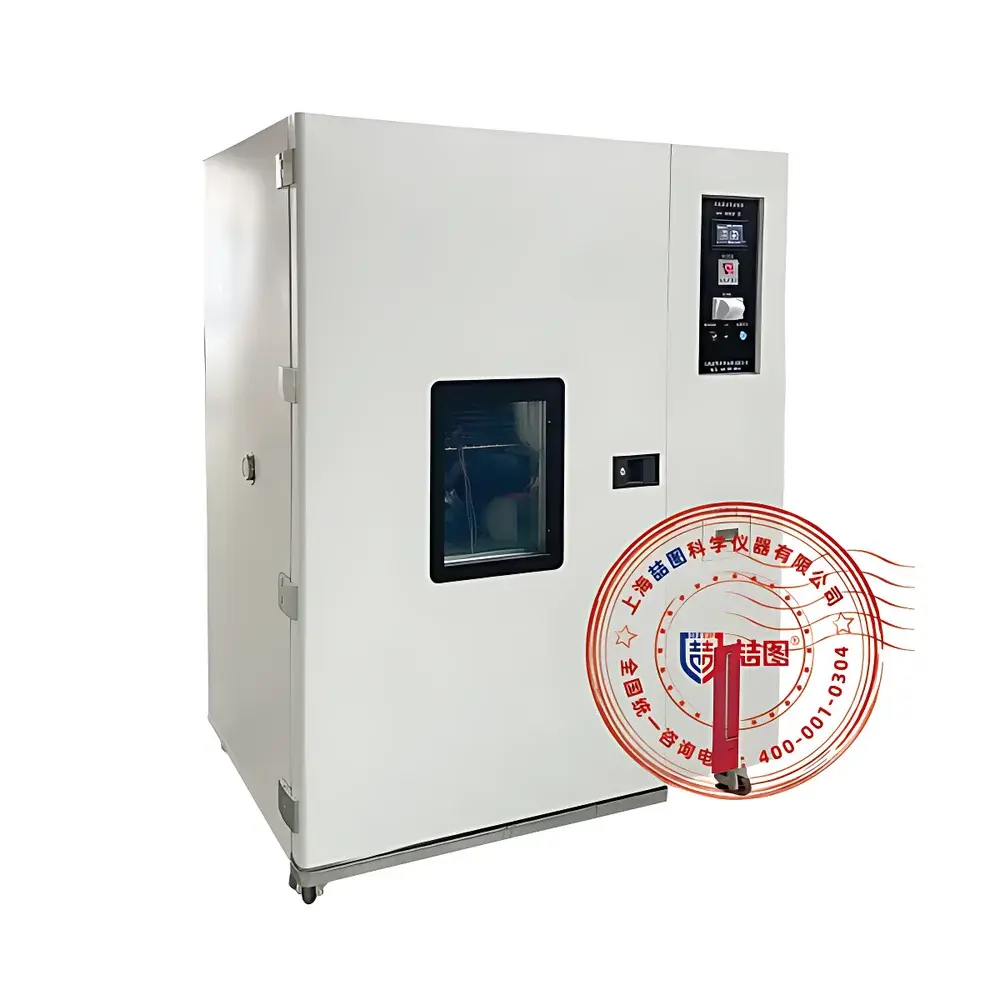

DRETOP QGMC-250VS-II High-Intensity Light Drug Stability Testing Chamber

Overview

The DRETOP QGMC-250VS-II High-Intensity Light Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for pharmaceutical stability studies under regulated GxP conditions. It implements a closed-loop, multi-parameter control architecture to simultaneously regulate temperature (0–65 °C), relative humidity (30–95 %RH), and photometric irradiance (0–30,000 lx) with metrological traceability and operational continuity. Unlike generic climate chambers, the QGMC-250VS-II integrates vertical LED illumination—mounted on adjustable stainless-steel shelves—to eliminate direct beam exposure while ensuring uniform photon flux distribution across stacked sample trays. Its dual-compressor refrigeration system (II-type configuration) enables uninterrupted operation during automatic defrost cycles, maintaining thermal-hygrometric stability within ±0.5 °C fluctuation and ±1.5 °C uniformity—critical for long-term stability protocols requiring 12-month continuous monitoring at +25 °C/60 %RH or +30 °C/60 %RH per ICH Q1A(R3). The chamber’s structural design—including 304 stainless steel interior, radius-corner geometry, and removable perforated shelves—meets ISO 14644-1 Class 8 cleanroom compatibility and supports routine cleaning validation per EU Annex 1 and FDA Process Validation Guidance.

Key Features

• Dual-Compressor Redundancy: II-type configuration features primary and backup compressors with automatic failover; ensures zero interruption during compressor maintenance or fault events—validated for 7×24-hour operation under GMP-critical workflows.
• Vertical LED Illumination System: SMT-mounted aluminum PCB light arrays deliver calibrated, spectrally stable white light (CCT 5000–6500 K) with digital lux feedback control; avoids shadowing and thermal load imbalance inherent in top-down lighting.

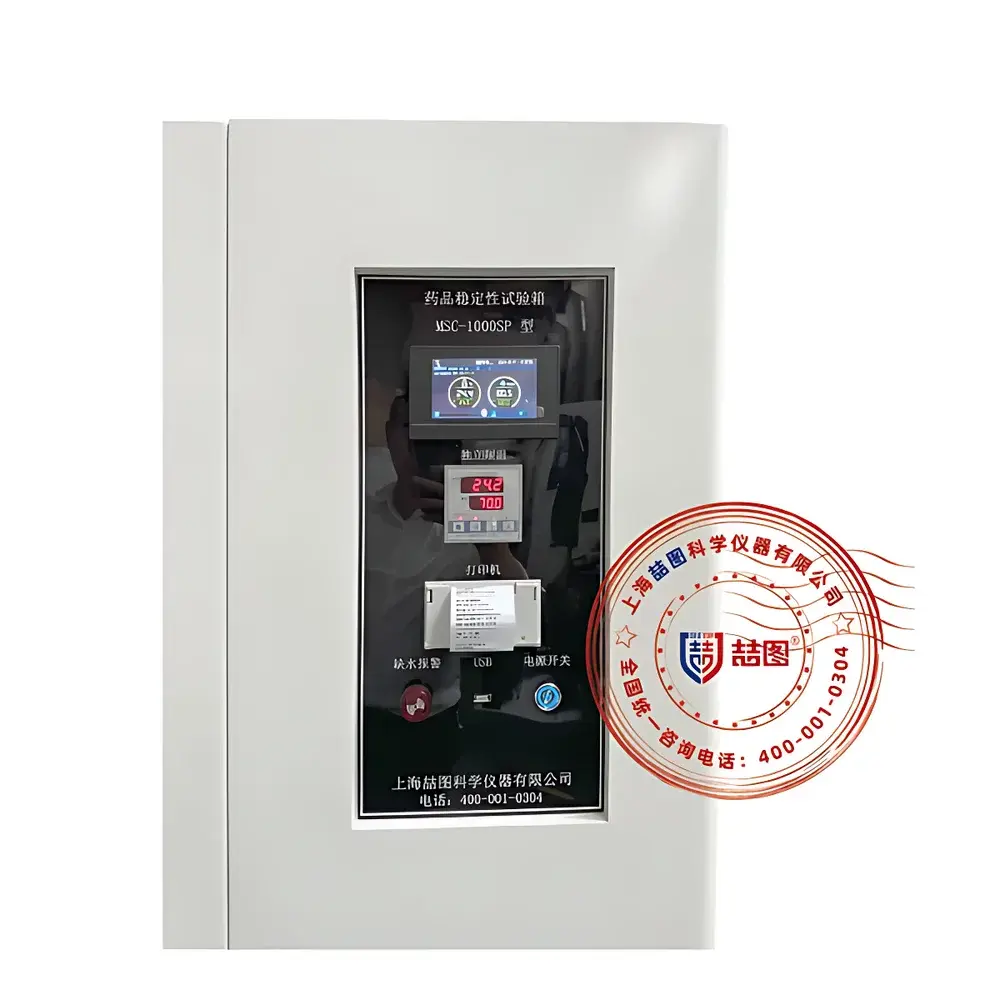

• GMP-Ready Control Architecture: 7-inch capacitive touchscreen with role-based access (Operator/Administrator/Engineer), configurable audit trail logging, and parameter lockout upon entry confirmation—fully aligned with 21 CFR Part 11 electronic record requirements.
• PID Self-Tuning Climate Control: Adaptive algorithm optimizes heating (NiCr alloy resistive elements) and cooling (R134a-free eco-compressor) response; supports ramp-soak profiles, slope-controlled transitions, and up to 999 programmable sequences (100 segments each).
• Full Lifecycle Data Integrity: Onboard memory stores timestamped temperature/humidity/illumination values and alarm events; one-touch USB export generates CSV/Excel files with embedded metadata (user ID, action type, timestamp) for ALCOA+ compliance.

Sample Compatibility & Compliance

The QGMC-250VS-II accommodates standard pharmaceutical packaging formats—including blister cards, HDPE bottles, glass vials, and lyophilized trays—within its 250 L working volume (580 × 500 × 850 mm internal dimensions) and three-tier adjustable shelf system. All wetted surfaces are electropolished 304 stainless steel, resistant to ethanol, isopropanol, and hydrogen peroxide vapor—enabling compatibility with cleaning validation protocols per PDA Technical Report No. 29. The chamber satisfies key regulatory references: ICH Q1A(R3) for accelerated (+40 °C/75 %RH, 6 months), long-term (+25 °C/60 %RH, 12 months), and photostability testing (Option 2: 1.2 million lux·hr visible + 200 watt·hr/m² UV); USP “Stability Considerations for Pharmaceutical Products”; and the 2015 Chinese Pharmacopoeia Chapter 9001. Optional IQ/OQ/PQ documentation packages support formal qualification under FDA, EMA, and NMPA inspection frameworks.

Software & Data Management

Embedded firmware provides native Modbus RTU over RS485 for seamless integration into laboratory MES, SCADA, or LIMS platforms. Real-time data streaming supports trend visualization, deviation alerts, and automated PDF report generation—including calibration certificates (CNAS-accredited), temperature mapping summaries, and humidity deviation histograms. Optional cloud gateway module enables remote status monitoring via encrypted TLS 1.2 connection, with role-limited web dashboard access for QA managers. All data exports include cryptographic hash signatures and immutable timestamps to satisfy FDA 21 CFR Part 11 Subpart B §11.10(a) requirements for electronic records and §11.300 for electronic signatures.

Applications

• ICH Q5C biologics stability assessment under thermal stress (e.g., monoclonal antibodies at +5 °C/+25 °C/+40 °C)
• Photostability screening of photosensitive APIs (e.g., tetracyclines, nitrofurantoin, chlorpromazine) per ICH Q1B Option 1 and Option 2
• Accelerated stability testing of solid oral dosage forms per USP and WHO TRS 1010 Annex 9
• Humidity-induced degradation kinetics studies (hydrolysis, oxidation) using programmable RH ramps from 30 % to 95 %RH
• Reference standard storage verification under controlled ambient conditions compliant with USP

FAQ

Does the QGMC-250VS-II meet ICH Q1B photostability requirements?
Yes—the vertical LED array delivers uniform irradiance across the sample zone at 4500 ± 500 lx (Option 1) and supports extended exposure up to 1.2 million lux·hr (Option 2), with real-time lux monitoring and auto-compensation for LED lumen depreciation.
Can historical data be exported in a format acceptable for FDA audit submission?
Yes—U disk export generates timestamped CSV/Excel files containing all measured parameters, user actions, alarm logs, and system events, with metadata fields required for ALCOA+ compliance (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring).
Is the dual-compressor system field-serviceable without chamber downtime?
Yes—compressors are independently plumbed and electrically isolated; maintenance or replacement of either unit can occur while the other maintains full environmental control, verified by continuous temperature/humidity deviation logs.
What validation support is available for GMP-regulated environments?
DRETOP provides optional IQ/OQ/PQ documentation kits—including protocol templates, acceptance criteria, test scripts, and summary reports—aligned with ASTM E2500-13 and ISO/IEC 17025:2017, plus on-site qualification support by certified engineers.
How is light source aging compensated during multi-month stability runs?
The integrated photometric sensor continuously measures actual lux output; firmware dynamically adjusts LED drive current to maintain setpoint irradiance within ±3 % tolerance over 10,000 hours of operation—traceable to NIST-calibrated reference standards.
