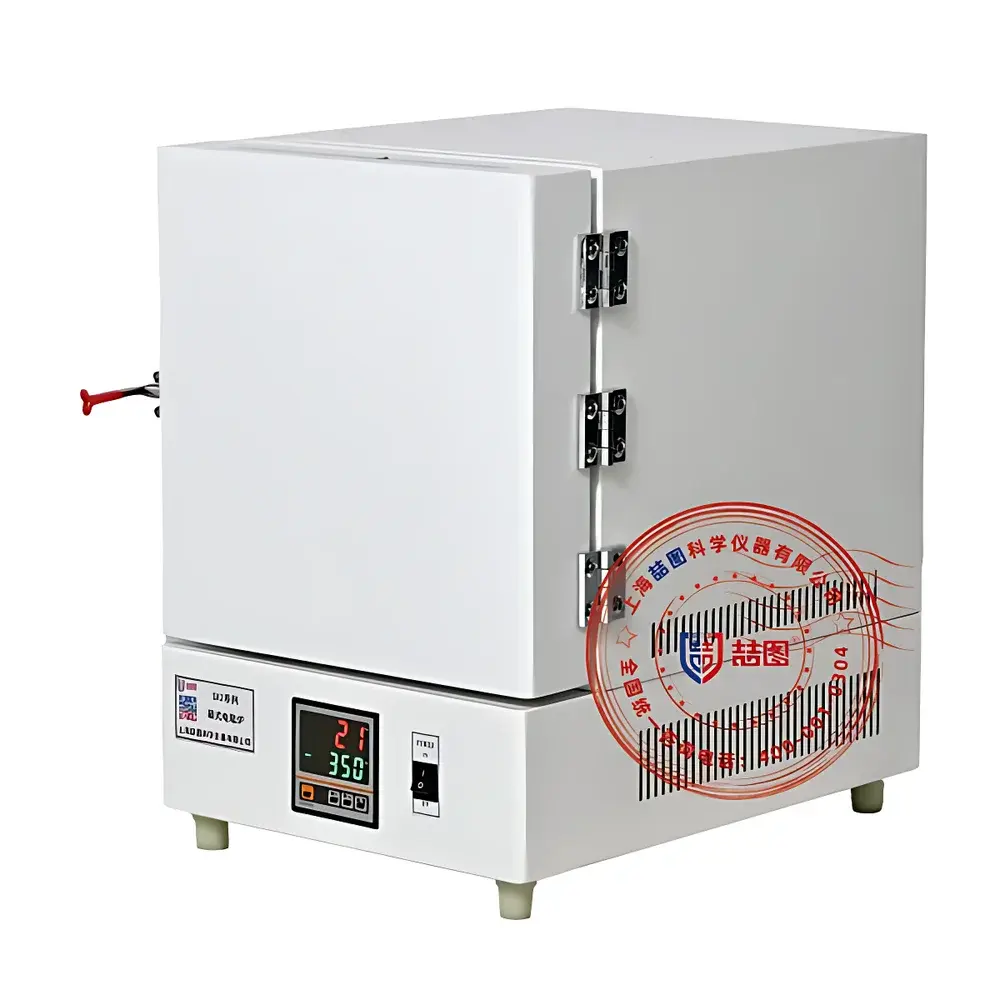

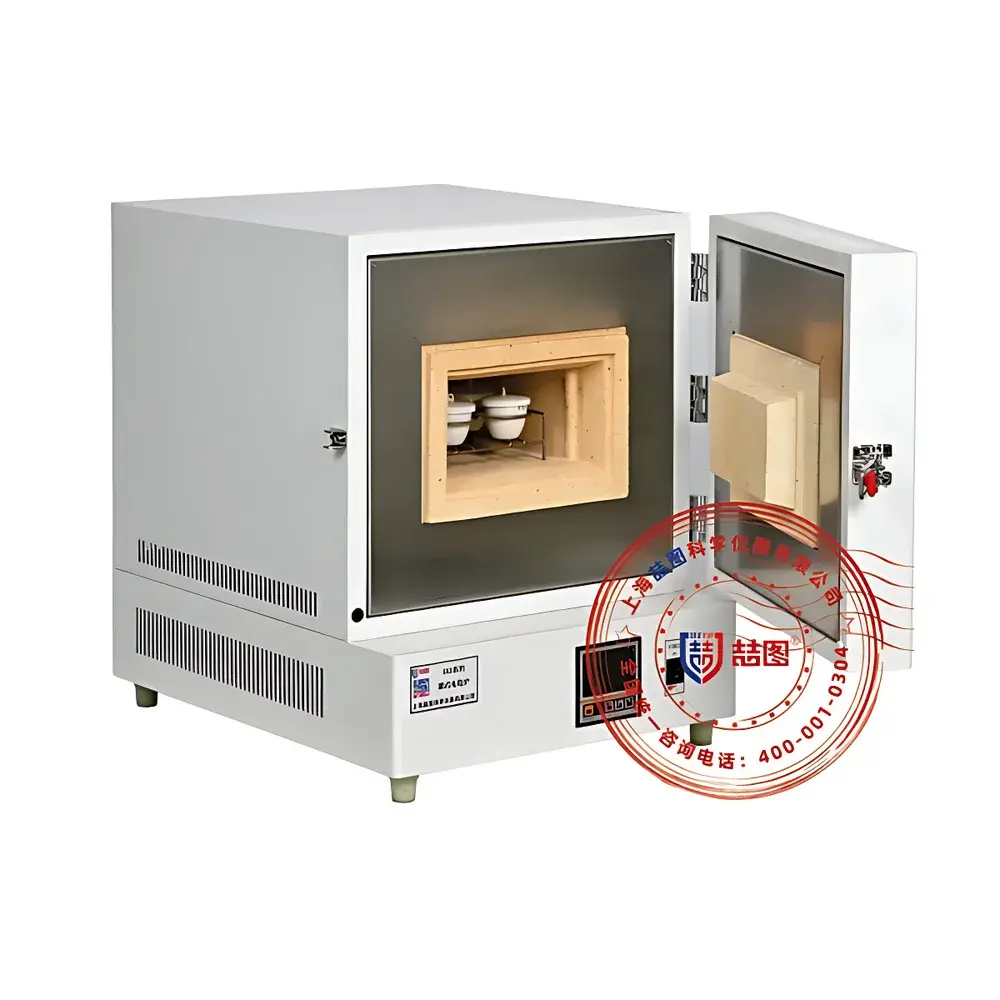

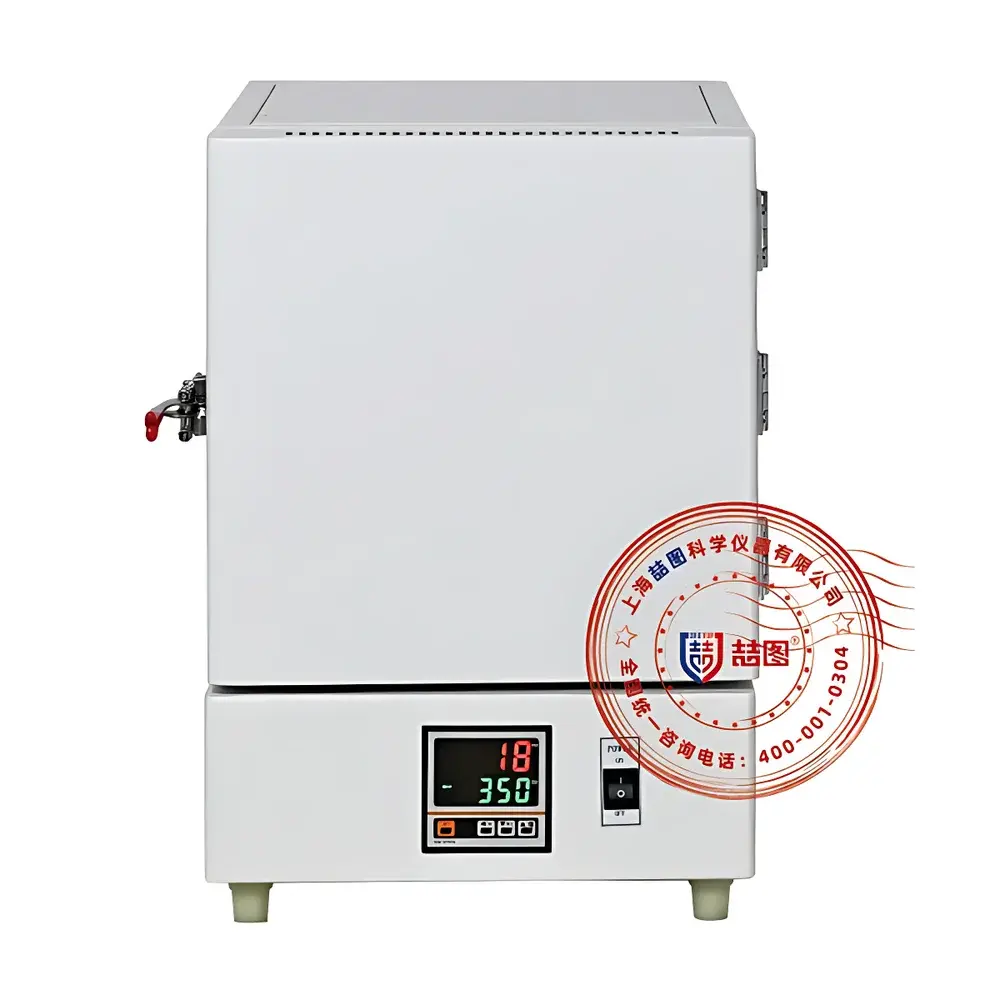

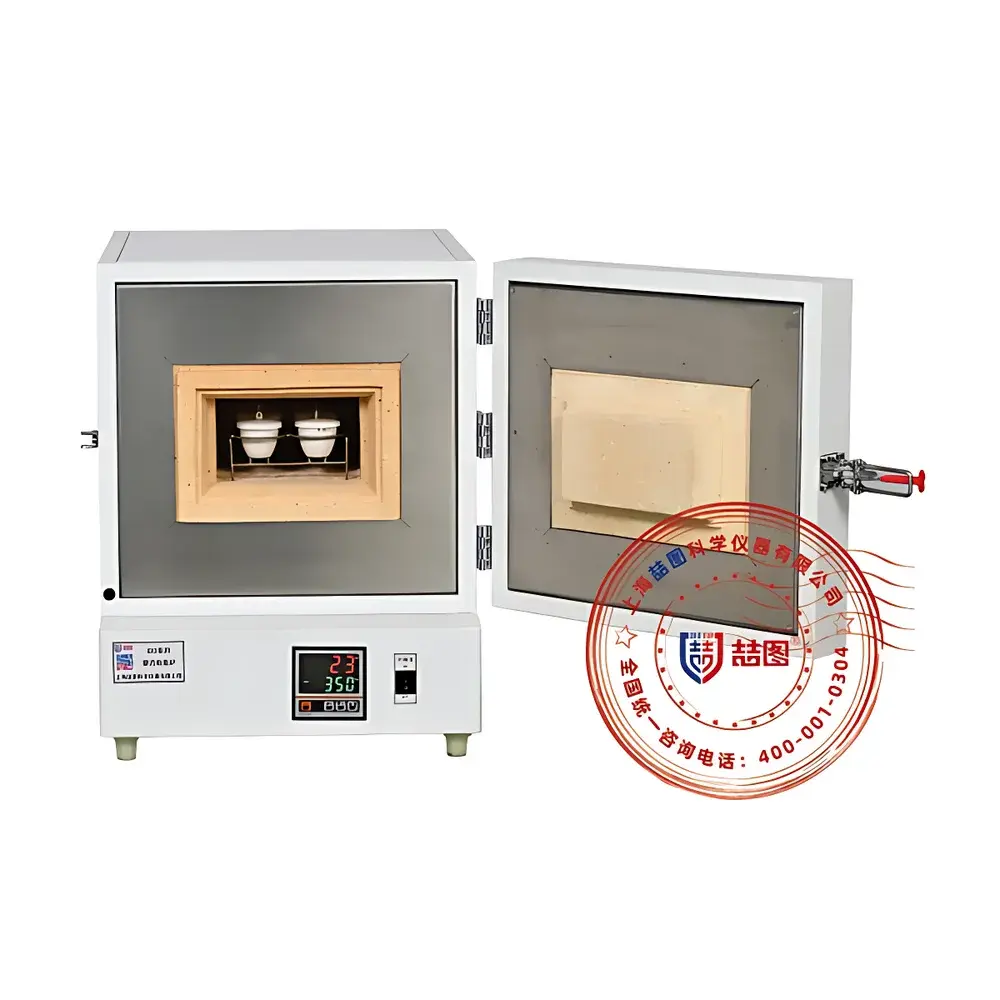

DRETOP S13-7P Programmable High-Temperature Box-Type Muffle Furnace

Overview

The DRETOP S13-7P is a programmable high-temperature box-type muffle furnace engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. Operating on resistive heating principles via silicon carbide (SiC) rod elements, it delivers stable, repeatable temperature profiles across a working range of ambient +50°C to 1300°C. Unlike tube furnaces, its sealed, insulated chamber design isolates samples from external atmosphere while enabling uniform three-sided radiant heating—critical for applications requiring consistent thermal history, such as ashing, calcination, heat treatment, and gravimetric analysis. The furnace conforms to standard laboratory safety and operational expectations for Class I electrical equipment under IEC 61010-1 and incorporates structural features aligned with ISO/IEC 17025-compliant thermal validation practices.

Key Features

• Triple-wall radiant heating architecture ensures superior temperature uniformity (±3°C at 1300°C across the 7 L chamber), verified per ASTM E220 calibration methodology.
• Microprocessor-based PID controller with auto-tuning capability, supporting ramp-soak programming with up to 30 segments, adjustable ramp rates (0.1–20°C/min), and automatic termination upon completion.
• Integrated door-interlock safety system: power to heating elements is cut immediately upon door opening; resumption occurs only after full closure and user confirmation—eliminating thermal shock and operator exposure risk.
• Dual-stage over-temperature protection: primary limit set at 1350°C via independent thermocouple circuit, secondary mechanical cutoff at 1400°C; additionally supports thermocouple break (open-circuit) detection and phase-loss monitoring.
• High-efficiency insulation using vacuum-microporous ceramic fiber board (density: 220 kg/m³), reducing surface temperature to <50°C at 1300°C operation and lowering standby power consumption by ~35% versus conventional refractory brick designs.
• Front-panel digital display with real-time temperature readout, voltage/current monitoring, and status indicators for heater, alarm, and program execution states.

Sample Compatibility & Compliance

The S13-7P accommodates standard crucibles (alumina, quartz, platinum, or stainless steel) up to Ø80 mm × 60 mm height, compatible with ASTM D3174 (ash content), D3175 (volatile matter), and D3176 (ultimate analysis) for coal and biomass. Its inert, oxidation-resistant chamber enables controlled oxidative decomposition without catalytic interference—making it suitable for USP residue on ignition testing and EPA Method 2540B total solids determination. All electrical components meet CE marking requirements (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU); structural design follows GLP-relevant traceability standards, including audit-ready event logging when paired with optional RS485 interface.

Software & Data Management

While the base model operates via standalone front-panel programming, optional RS485 Modbus RTU connectivity allows integration into centralized lab management systems (LIMS) or SCADA platforms. When equipped with the PV-II series touchscreen upgrade, users gain access to time-stamped temperature curve export (CSV), multi-level password-protected configuration (Engineer/Admin/Operator), and electronic signature support compliant with FDA 21 CFR Part 11 Annex 11 requirements. All firmware versions are version-controlled and field-upgradable via USB port—ensuring long-term regulatory alignment and metrological traceability.

Applications

• Thermal pre-treatment of environmental samples (soil, sludge, filter media) prior to heavy metal extraction per EPA SW-846 Method 3010A.
• Pharmaceutical residual solvent removal and excipient degradation studies under ICH Q1A(R2) stability protocols.
• Cement clinker phase analysis via controlled heating cycles to simulate kiln conditions (ASTM C114).
• Calibration of thermogravimetric analyzers (TGA) using certified reference materials (CRMs) traceable to NIST SRM 720e.
• Heat treatment of small metallic specimens (e.g., NiTi shape-memory alloys) where precise dwell time and cooling rate control influence microstructural evolution.

FAQ

What is the maximum recommended continuous operating temperature?
The furnace is rated for continuous operation at 1300°C. Extended use above 1250°C requires periodic verification of SiC rod resistance and thermocouple drift per manufacturer’s maintenance schedule.
Is inert gas purging supported?
Yes—optional inert gas inlet valve (0–5 L/min flow rate) can be installed to create reducing or oxygen-free atmospheres; compatible with nitrogen, argon, or forming gas mixtures.
Can temperature uniformity be validated internally?
Yes—the chamber geometry and three-zone heating layout allow placement of up to five Class 1 platinum resistance thermometers (PRTs) per IEC 60584-2 for mapping; validation reports may be generated using third-party software or DRETOP’s optional data logger module.
What maintenance intervals are recommended?
Visual inspection of SiC rods and furnace door gasket every 200 operating hours; thermocouple recalibration annually or after 500 thermal cycles; ceramic fiber integrity assessment every 2 years under typical lab usage.
Does the unit comply with energy efficiency regulations?
It meets China’s GB 30253-2013 minimum energy performance standard for industrial electric furnaces and exceeds EU Ecodesign Directive (EU) 2019/2020 Tier 2 requirements for standby power (<0.5 W).
