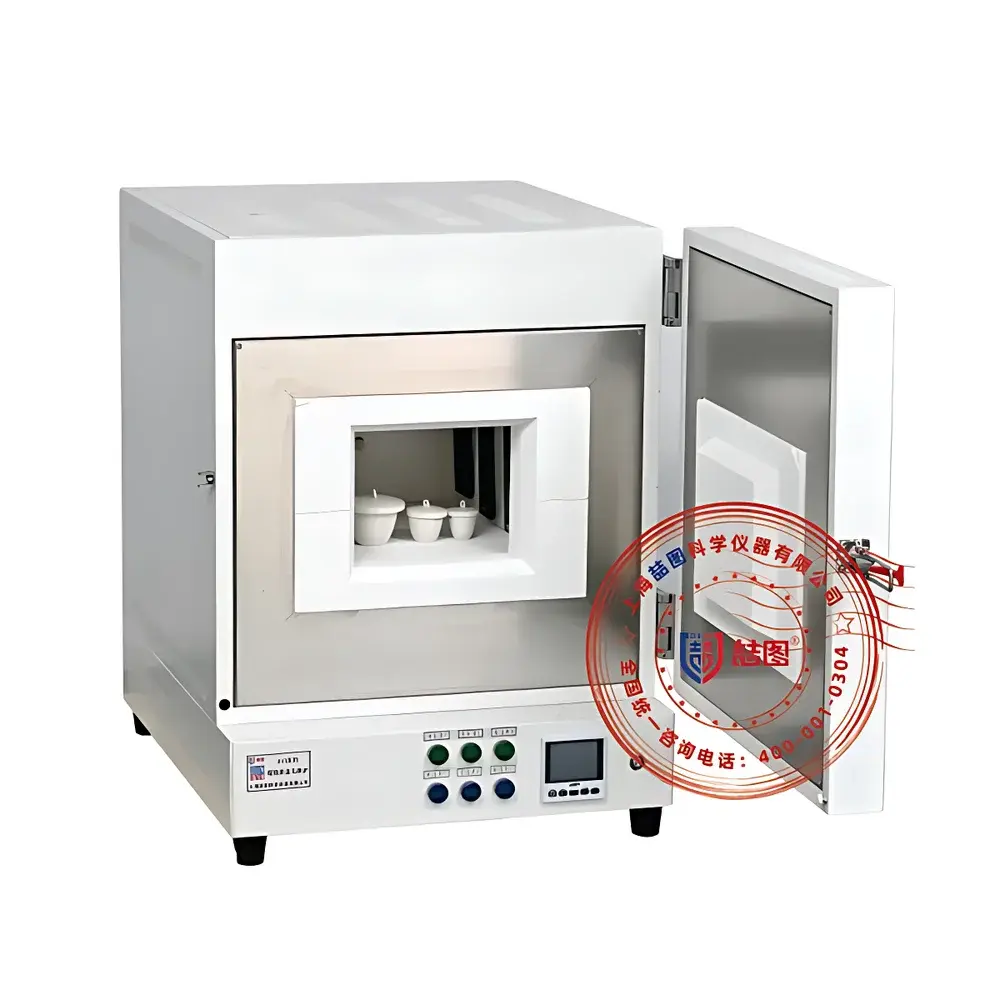

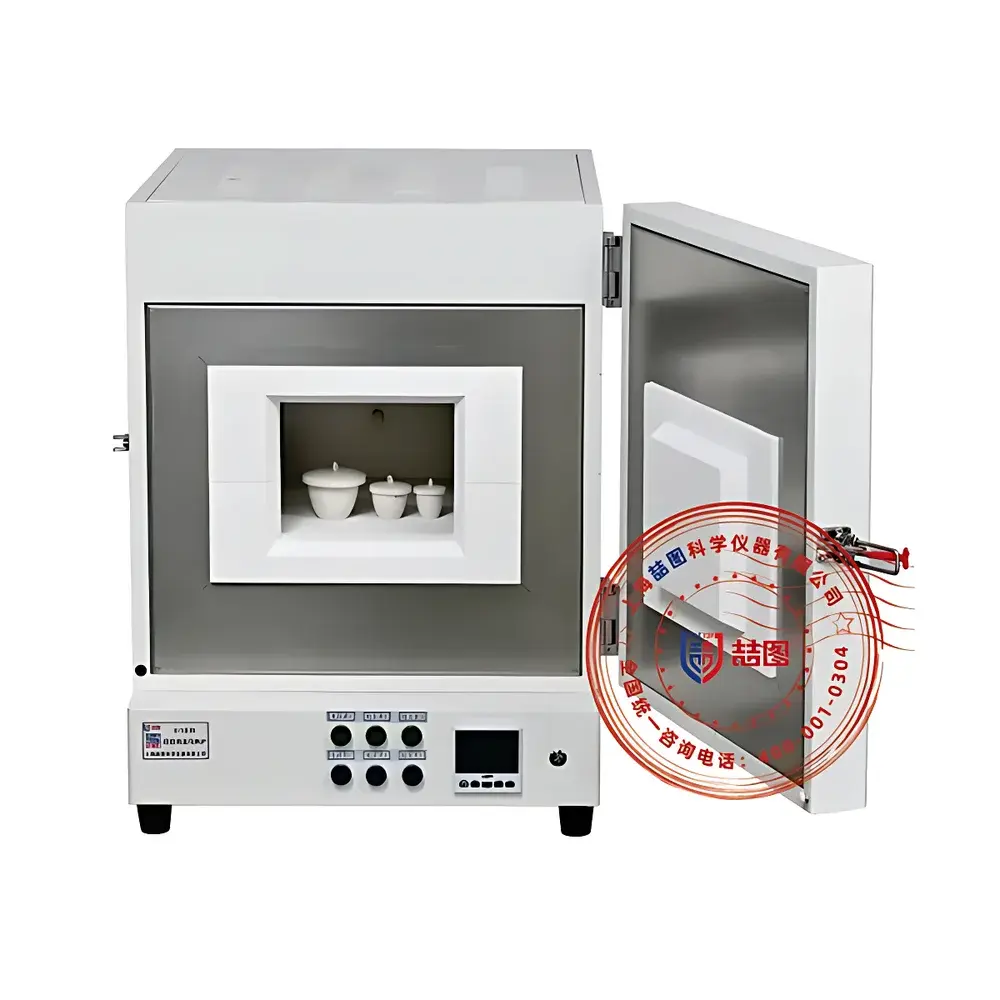

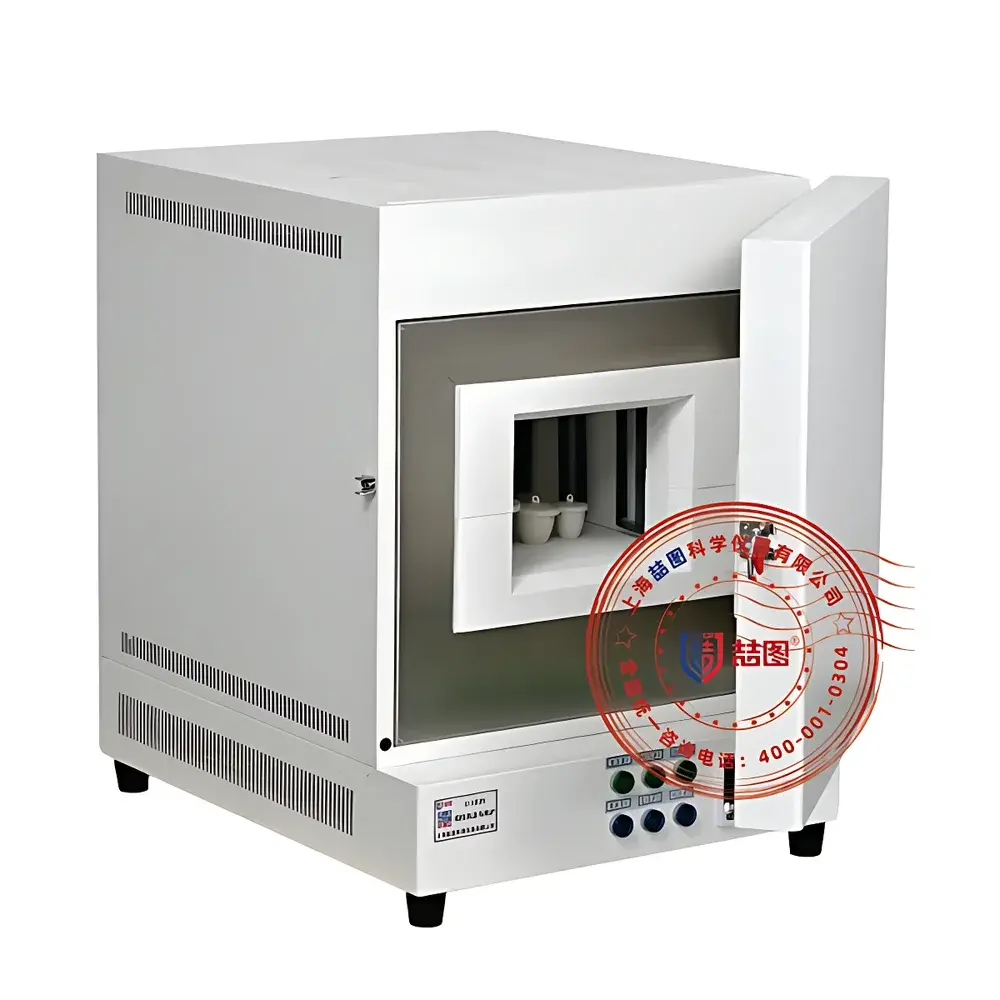

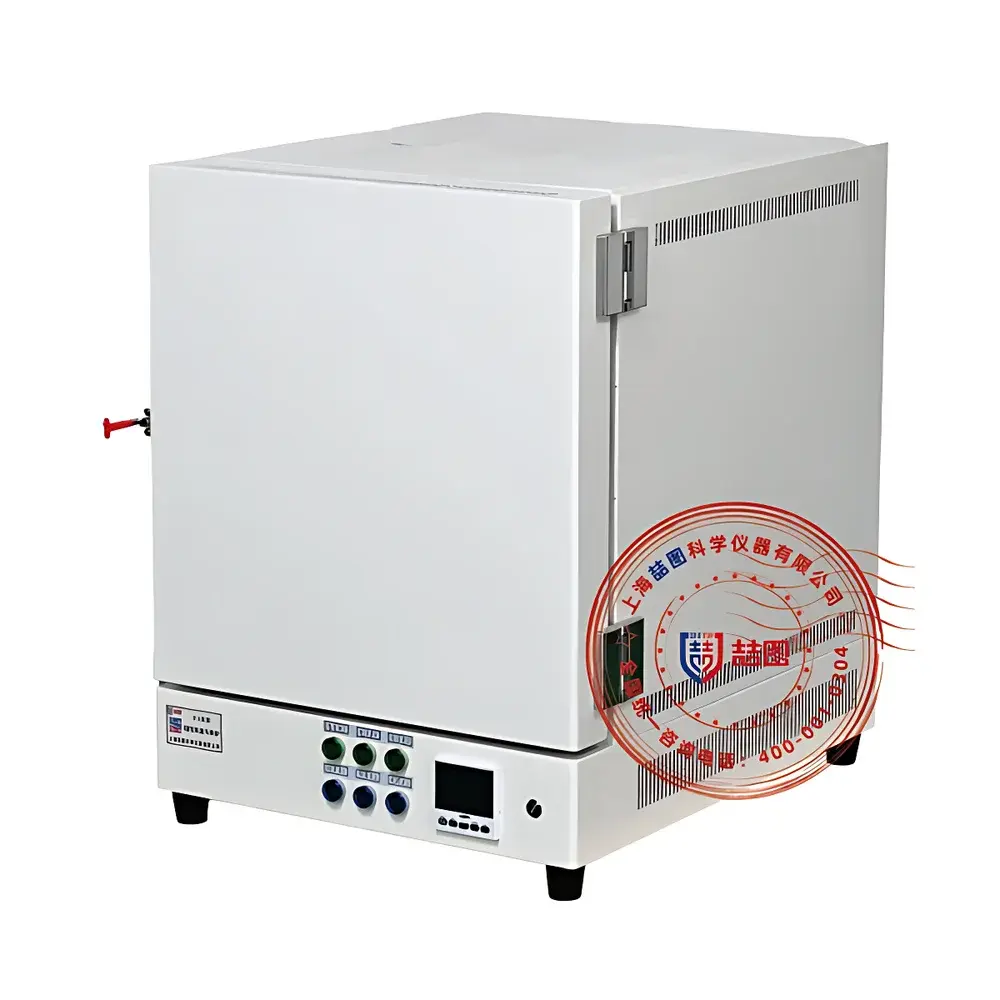

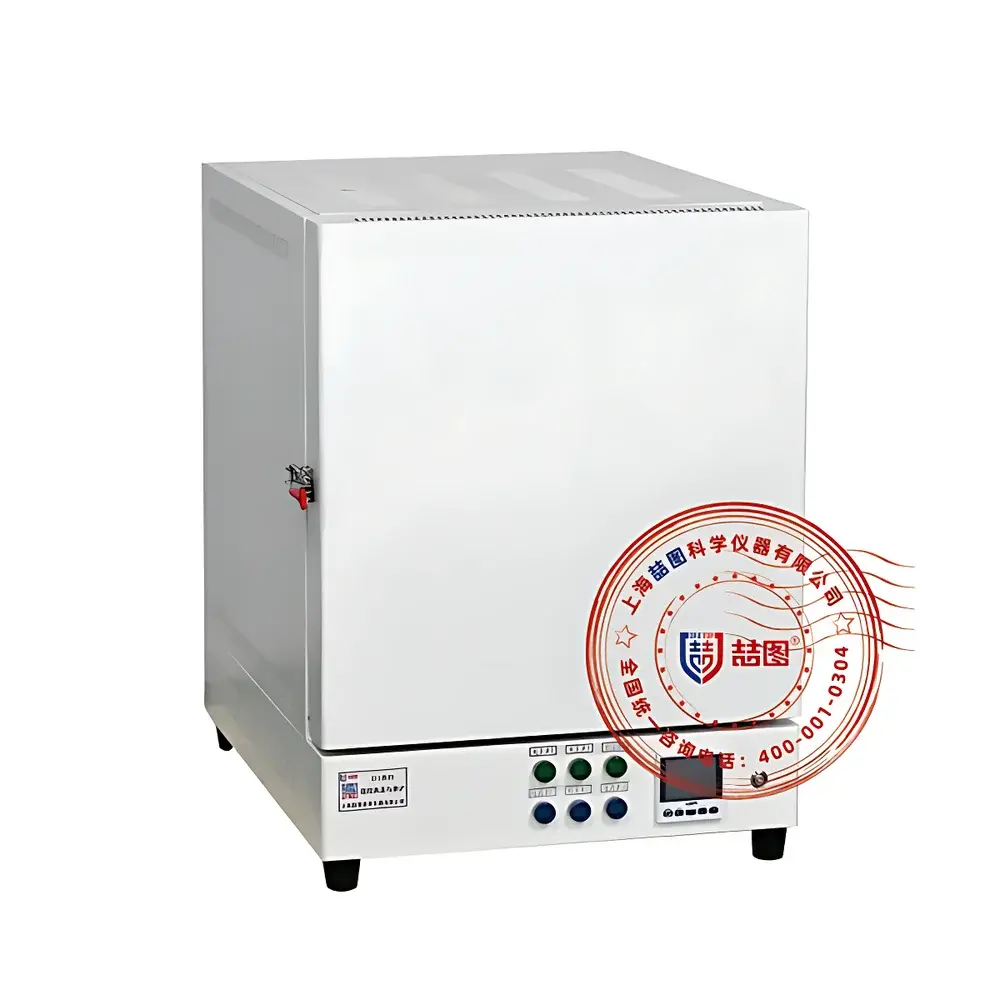

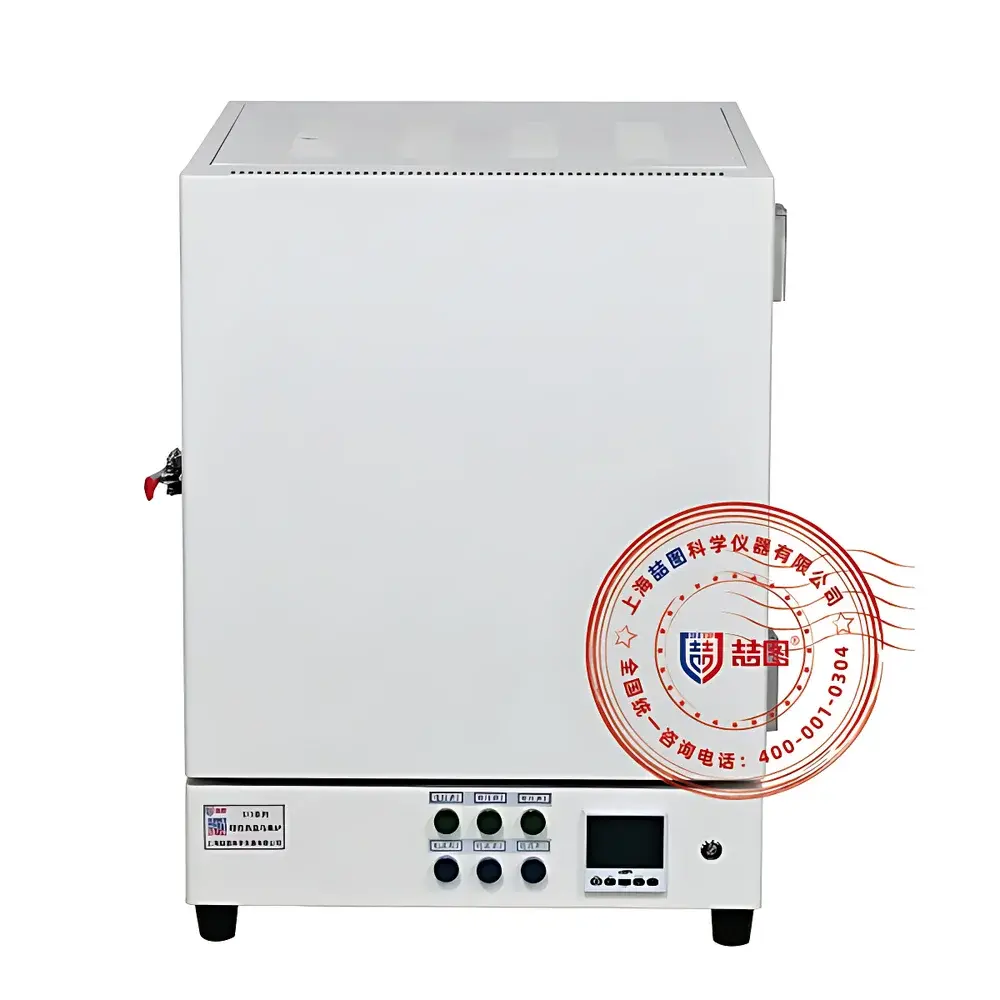

DRETOP S13-7PV Programmable High-Temperature Muffle Furnace

Overview

The DRETOP S13-7PV Programmable High-Temperature Muffle Furnace is a precision-engineered box-type thermal processing system designed for repeatable, programmable heat treatment under controlled atmospheric conditions. Operating on the principle of resistive heating via silicon carbide (SiC) rod elements embedded in three-walled ceramic fiber insulation, the furnace delivers uniform radiant heat distribution across its 7 L chamber—enabling consistent thermal profiles essential for materials annealing, ashing, calcination, and pre-treatment protocols in regulated laboratory environments. Its operational range spans from ambient +50 °C to 1300 °C, with a certified control accuracy of ±1 °C—meeting baseline requirements for ASTM E1142 (Standard Practice for Calibration of High-Temperature Furnaces), ISO/IEC 17025-compliant thermal validation, and USP heavy metal testing workflows.

Key Features

• Three-wall SiC rod heating architecture ensures rapid, symmetrical heat transfer and minimizes axial/radial thermal gradients—critical for reproducible sintering, ash content determination, and灰熔点 (ash fusion temperature) analysis.
• Industrial color touchscreen controller with PID auto-tuning capability supports multi-segment ramp-soak programs, real-time curve visualization, and user-defined cooling rate profiles—fully compliant with GLP audit trail requirements when paired with optional data logging modules.
• Dual-stage safety architecture includes over-temperature cutoff (OTC), thermocouple break detection, phase loss monitoring, and door-interlocked power interruption—preventing uncontrolled thermal exposure during sample insertion or inspection.
• Vacuum-microporous ceramic fiber insulation (density: ~220 kg/m³) reduces standby heat loss by >40% versus traditional refractory brick linings; combined with stainless steel inner sealing flanges (2 mm thickness), it enables rapid cool-down cycles without compromising chamber integrity.
• Integrated environmental temperature compensation algorithm dynamically adjusts initial ramp parameters based on ambient sensor input—reducing time-to-target by up to 12% compared to fixed-setpoint controllers under variable lab conditions.

Sample Compatibility & Compliance

The S13-7PV accommodates standard crucibles (Al₂O₃, Pt, graphite, and high-purity silica), petri dishes, and small-part fixtures up to 120 mm in height. Its 150 × 300 × 150 mm chamber supports ASTM D3174 (ash content in coal), ASTM C114 (cement chemical analysis), USP loss on drying, and EPA Method 2540B (total solids ignition). The furnace conforms to IEC 61000-6-3 (EMC emissions), UL 61010-1 (safety for electrical equipment), and CE marking directives for laboratory instrumentation. Optional inert gas inlet (N₂/Ar) and exhaust chimney enable controlled-atmosphere operation per ISO 8501-3 for oxidation-sensitive samples.

Software & Data Management

The embedded controller logs timestamped temperature data at 1-second intervals, storing ≥10,000 records internally. USB export (CSV format) and RS485 Modbus RTU protocol support integration with LIMS or SCADA platforms. Optional firmware upgrade enables 21 CFR Part 11–compliant electronic signatures, role-based access control (engineer/operator/auditor tiers), and immutable audit trails—including parameter change history, alarm events, and door-open duration tracking. No cloud dependency: all data remains on-device unless explicitly exported.

Applications

• Pharmaceutical QC: Residue-on-ignition testing per USP , catalyst recovery from API synthesis residues, and excipient thermal stability screening.
• Environmental labs: Total suspended solids (TSS) and volatile suspended solids (VSS) quantification per EPA 160.2; heavy metal digestion residue ashing prior to ICP-MS analysis.
• Materials science: Pre-sintering of ceramic green bodies, binder burnout in metal injection molding (MIM), and thermal aging of polymer composites.
• Fuel analysis: ASTM D3172 moisture/ash/volatile matter determination in coal and biomass feedstocks; ash fusion temperature mapping using ISO 540.
• Academic research: Solid-state reaction kinetics studies, phase transformation onset detection via in-situ TGA coupling, and calibration standard preparation for differential scanning calorimetry (DSC).

FAQ

What thermocouple type is used for temperature sensing?
Type S (Platinum/Rhodium 10%) thermocouples are factory-installed and calibrated traceable to NIST SRM 1749, with dual-point verification at 600 °C and 1200 °C.
Can the furnace operate under vacuum or inert gas atmosphere?
Yes—optional gas inlet port (¼” NPT) and exhaust chimney allow continuous purge with N₂ or Ar; vacuum operation requires external pump and custom flange adaptation (not included).
Is the controller compatible with third-party SCADA systems?
Yes—Modbus RTU over RS485 is natively supported; register maps and communication protocols are documented in the technical manual provided with shipment.
What maintenance is required for long-term reliability?
Annual verification of thermocouple drift and SiC rod resistance (±5% tolerance); biannual cleaning of ceramic fiber seams with dry air; no lubrication or consumable replacement needed within first 5 years of normal use.
Does the unit include validation documentation for GMP environments?
Factory IQ/OQ documentation is available upon request; PQ templates aligned with Annex 15 and ASTM E2500-22 are included in the optional Validation Support Package.
