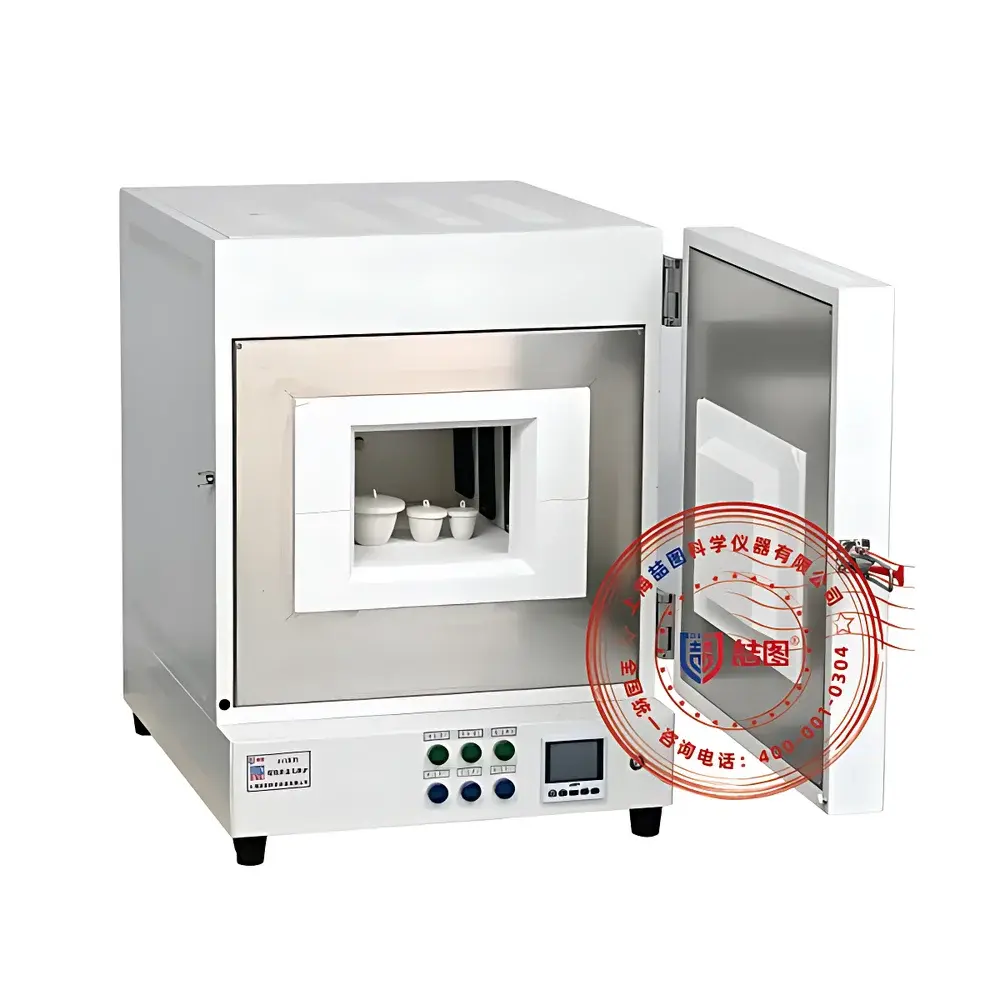

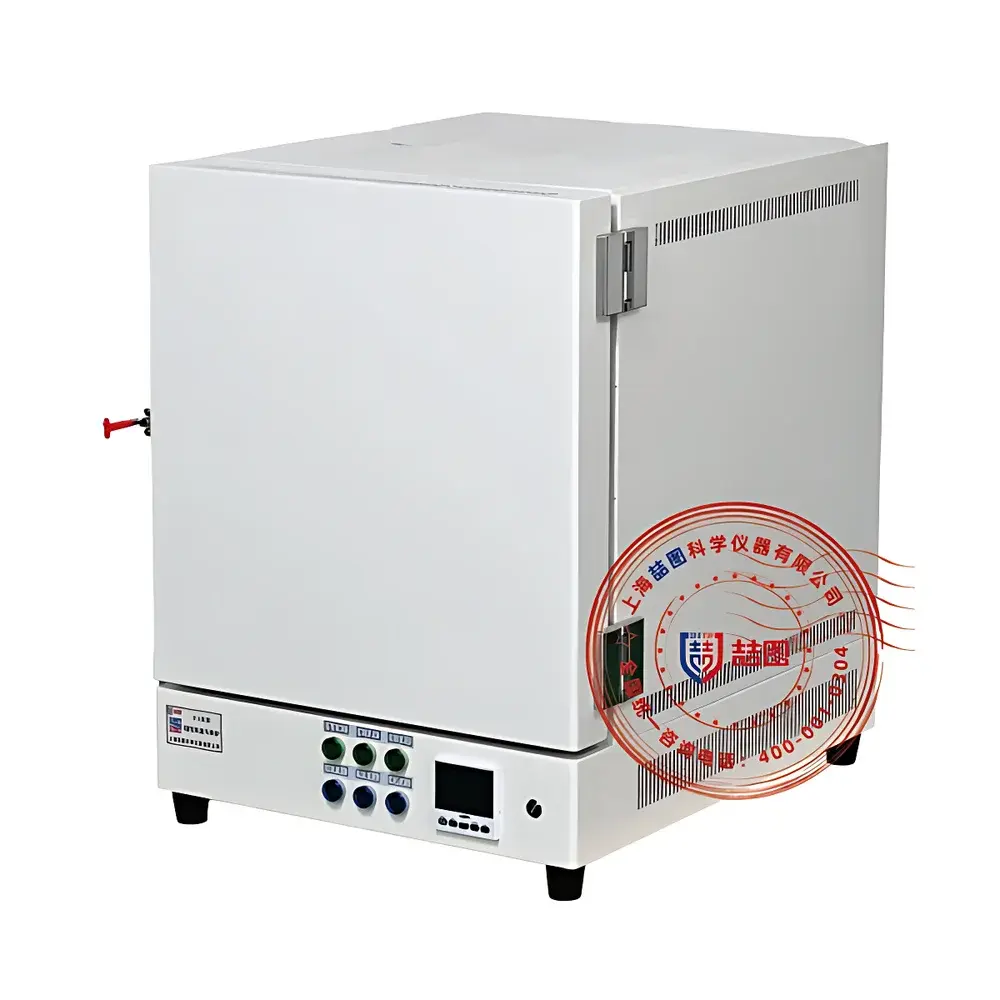

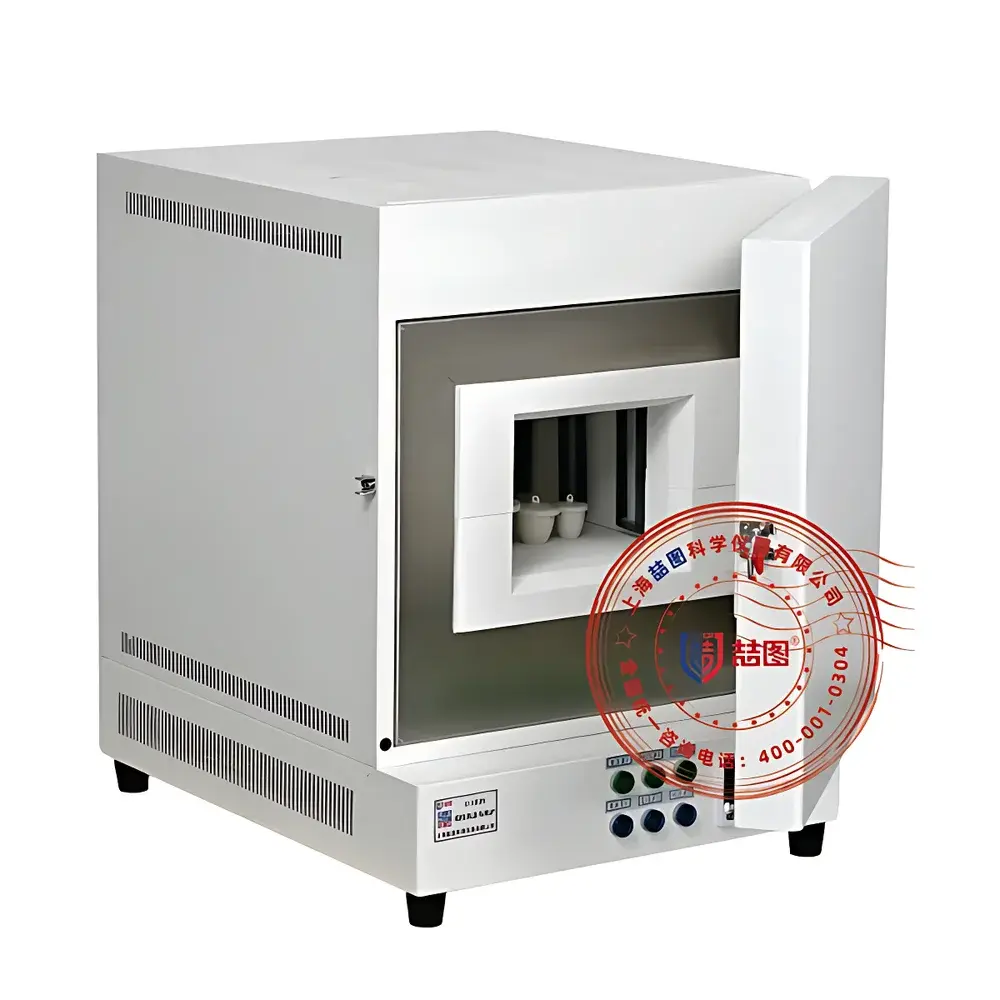

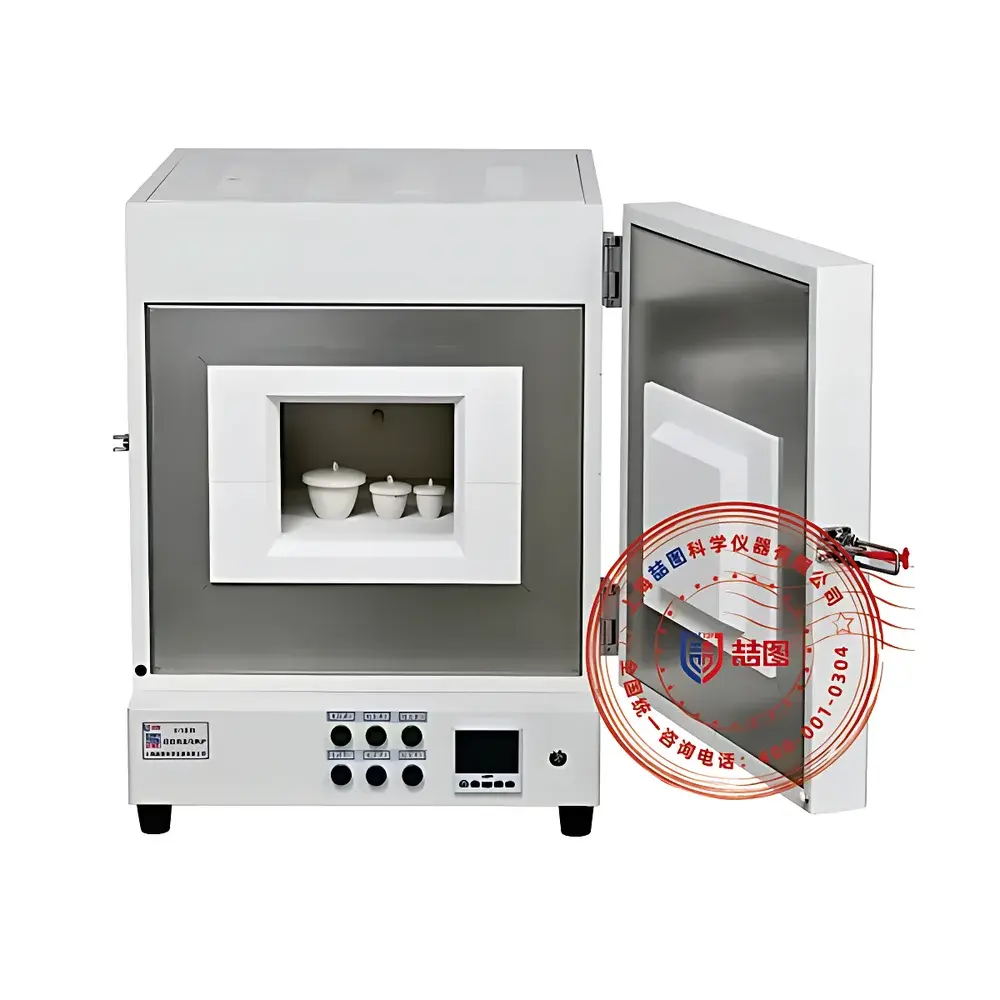

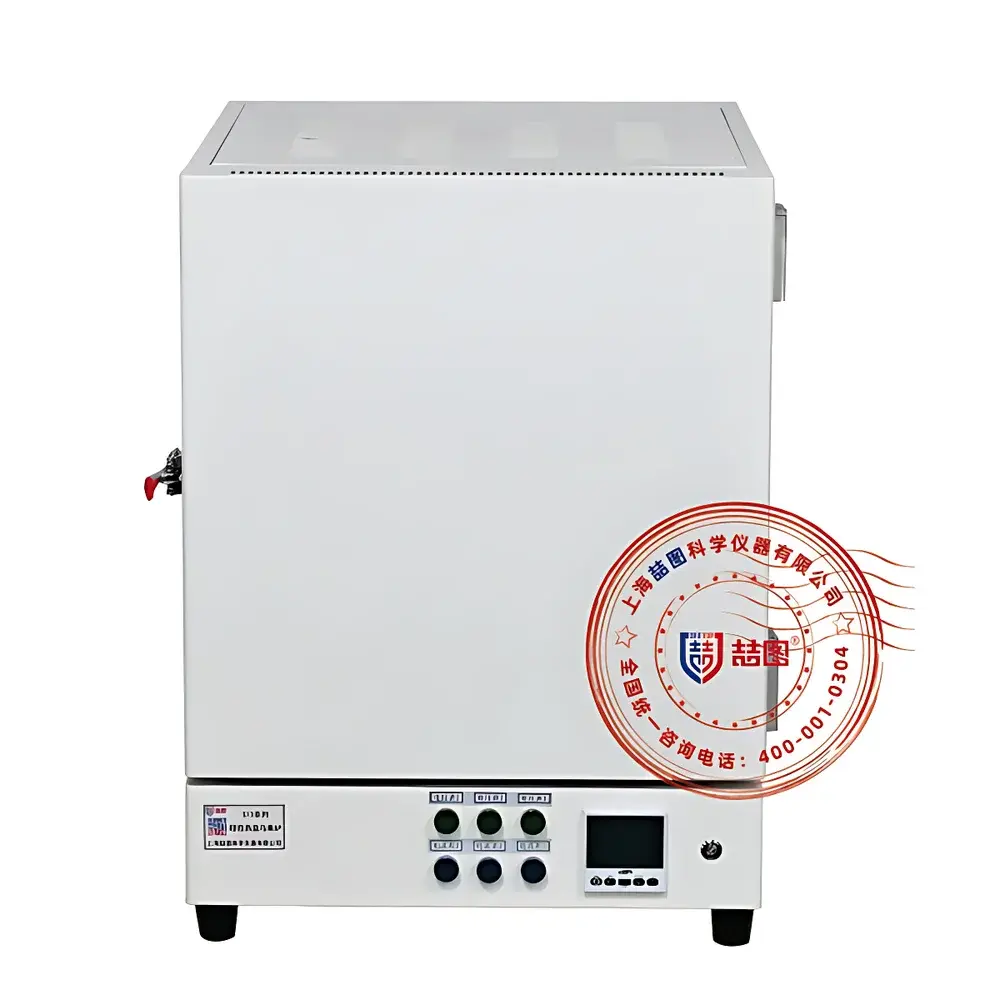

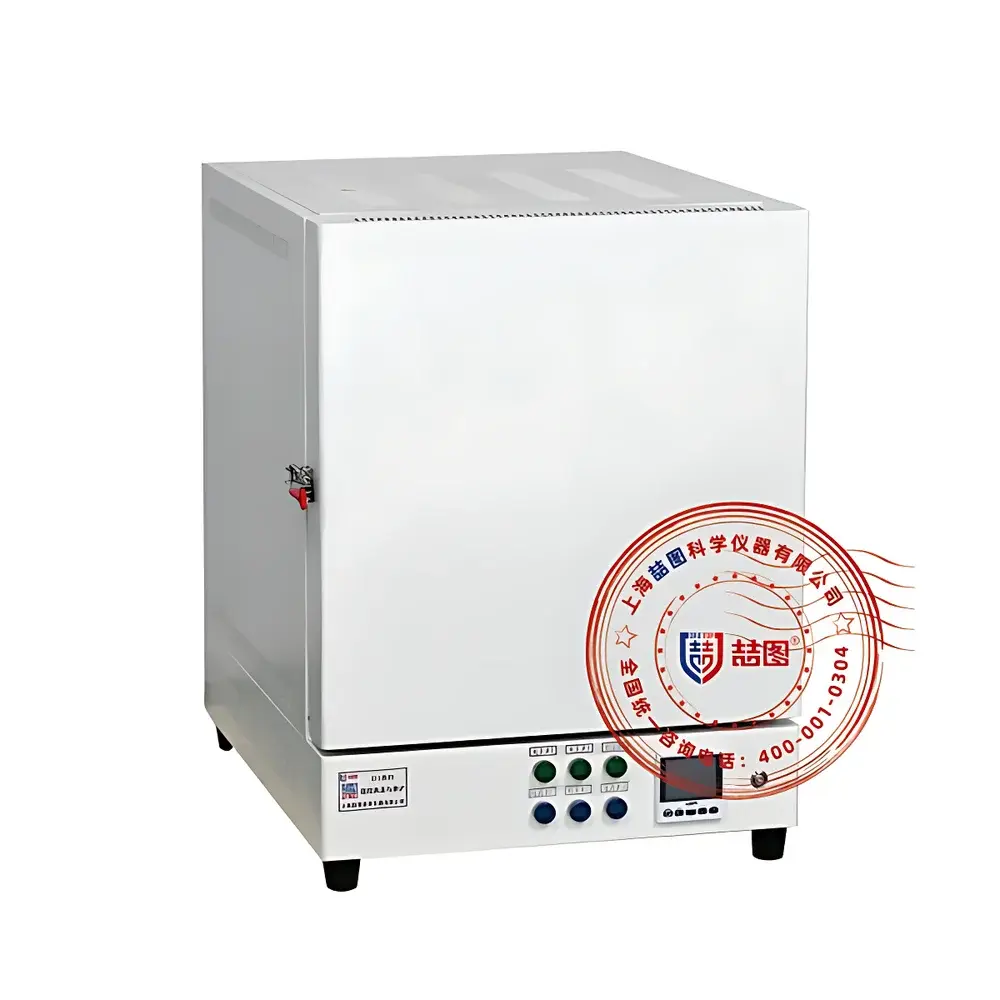

DRETOP S14-18PV Programmable High-Temperature Muffle Furnace

Overview

The DRETOP S14-18PV Programmable High-Temperature Muffle Furnace is an industrial-grade box-type thermal processing system engineered for precise, repeatable, and traceable heat treatment in research laboratories, quality control environments, and production support facilities. Operating on the principle of radiant heating via silicon carbide (SiC) rod elements embedded in all three heated walls (front, back, and top), the furnace delivers uniform thermal distribution across its 20 L nominal chamber volume. Its maximum operating temperature of 1400 °C enables applications ranging from ashing and calcination to sintering, annealing, and thermal gravimetric pre-treatment. Designed in accordance with fundamental thermal engineering principles—including Fourier conduction modeling, Stefan-Boltzmann radiation balance, and convective loss mitigation—the S14-18PV achieves ±1 °C temperature stability under steady-state conditions, verified per ASTM E220 calibration protocols using NIST-traceable thermocouples.

Key Features

• Triple-wall radiant heating architecture ensures exceptional temperature uniformity (±3 °C across working zone at 1400 °C), validated by ISO/IEC 17025-compliant mapping procedures.
• Intelligent PID controller with auto-tuning capability, integrated deviation alarm (±5 °C upper/lower limit), and programmable ramp-hold-cool profiles—up to 30 segments per program.
• Door-interlocked safety circuit: power disengages immediately upon door opening; resumes automatically upon secure closure—compliant with IEC 61000-6-2 EMC and EN 60519-2 electrical safety standards.
• Vacuum-microporous ceramic fiber insulation (density: 220 kg/m³) reduces standby heat loss by >40% compared to traditional refractory brick linings, contributing to energy efficiency per ISO 50001 guidelines.
• Robust mechanical construction: phosphate-treated steel housing with high-temp epoxy powder coating; reinforced ceramic fiber board chamber with 2 mm stainless steel inner flange for corrosion resistance and easy cleaning after ash residue exposure.
• Real-time electrical monitoring: front-panel digital voltmeter and ammeter provide continuous feedback on supply integrity—critical for GLP/GMP audit trails and preventive maintenance scheduling.

Sample Compatibility & Compliance

The S14-18PV accommodates standard crucibles (alumina, quartz, platinum, and silicon carbide), ceramic boats, and custom fixtures up to 250 mm width × 400 mm depth × 180 mm height. It supports standardized test methods including ASTM D3174 (ash content in coal), ASTM C114 (cement chemical analysis), USP (residue on ignition), and ISO 1171 (determination of ash in solid mineral fuels). The furnace’s temperature stability and repeatability meet the requirements for method validation under FDA 21 CFR Part 11 when paired with optional data logging modules (RS485/USB) and audit-trail-enabled software. All electrical components conform to CE marking directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive).

Software & Data Management

The built-in color touchscreen controller supports multi-level user access (operator, technician, administrator) with password protection and configurable permission sets. Temperature profiles are stored internally (≥100 programs) and exportable via USB to CSV format for external analysis. Optional RS485 Modbus RTU interface enables integration into SCADA or LIMS platforms. When equipped with the optional data logger module, the system generates time-stamped records compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available)—supporting full traceability for ISO/IEC 17025 accreditation and pharmaceutical process validation.

Applications

• Thermal analysis sample preparation: ashing of biological tissues, pharmaceutical excipients, and environmental filters per EPA Method 1631 and ISO 11464.
• Inorganic residue quantification in food, feed, and agricultural products (AOAC 942.05, ISO 2171).
• High-temperature pretreatment of catalyst supports, battery cathode precursors, and ceramic green bodies prior to sintering.
• Calibration and verification of thermocouples and reference materials in metrology labs (in conjunction with secondary standard thermocouples).
• Controlled atmosphere experiments when coupled with inert gas inlet valve and exhaust chimney (optional accessories).

FAQ

What is the recommended maintenance interval for the silicon carbide heating elements?
Silicon carbide rods typically exhibit service life exceeding 2,000 hours at ≤1350 °C; inspection is advised every 500 operational hours for visible cracking or resistance drift (>10% deviation from baseline).

Can the S14-18PV be operated under inert or reducing atmospheres?
Yes—when fitted with the optional inert gas inlet valve and exhaust chimney, it supports nitrogen, argon, or forming gas (5% H₂/95% N₂) purging; however, prolonged use above 1200 °C in reducing environments may accelerate SiC oxidation and requires periodic atmosphere purity verification.

Is the temperature uniformity specification validated across the entire chamber volume?
Yes—uniformity mapping is performed at three critical setpoints (800 °C, 1100 °C, and 1400 °C) using nine-point sensor arrays per IEC 60068-3-5, with results documented in the出厂 calibration certificate supplied with each unit.

Does the touchscreen controller support data export for regulatory submissions?
Yes—CSV-formatted temperature/time logs include timestamps, operator ID, program name, and event flags (e.g., door open, alarm trigger), satisfying documentation requirements for FDA 21 CFR Part 11 and EU Annex 11 compliance when used with enabled electronic signature functionality.
