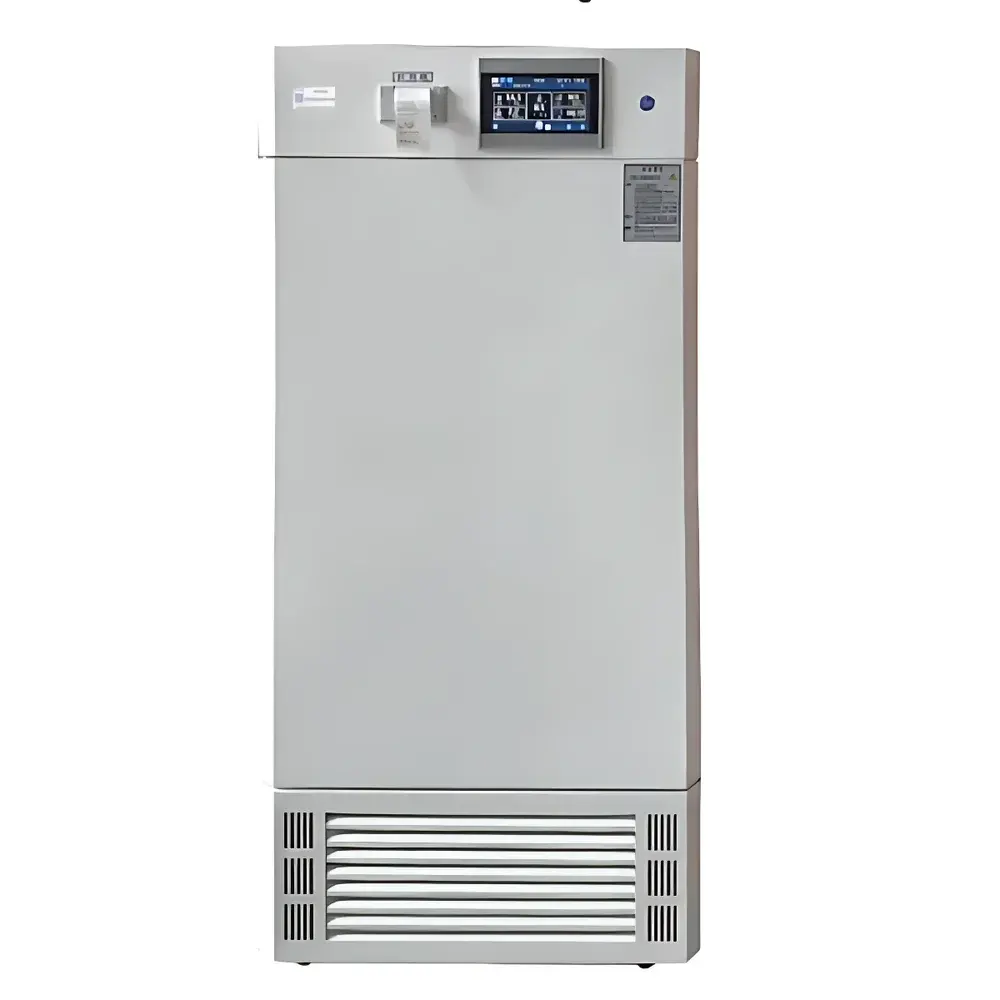

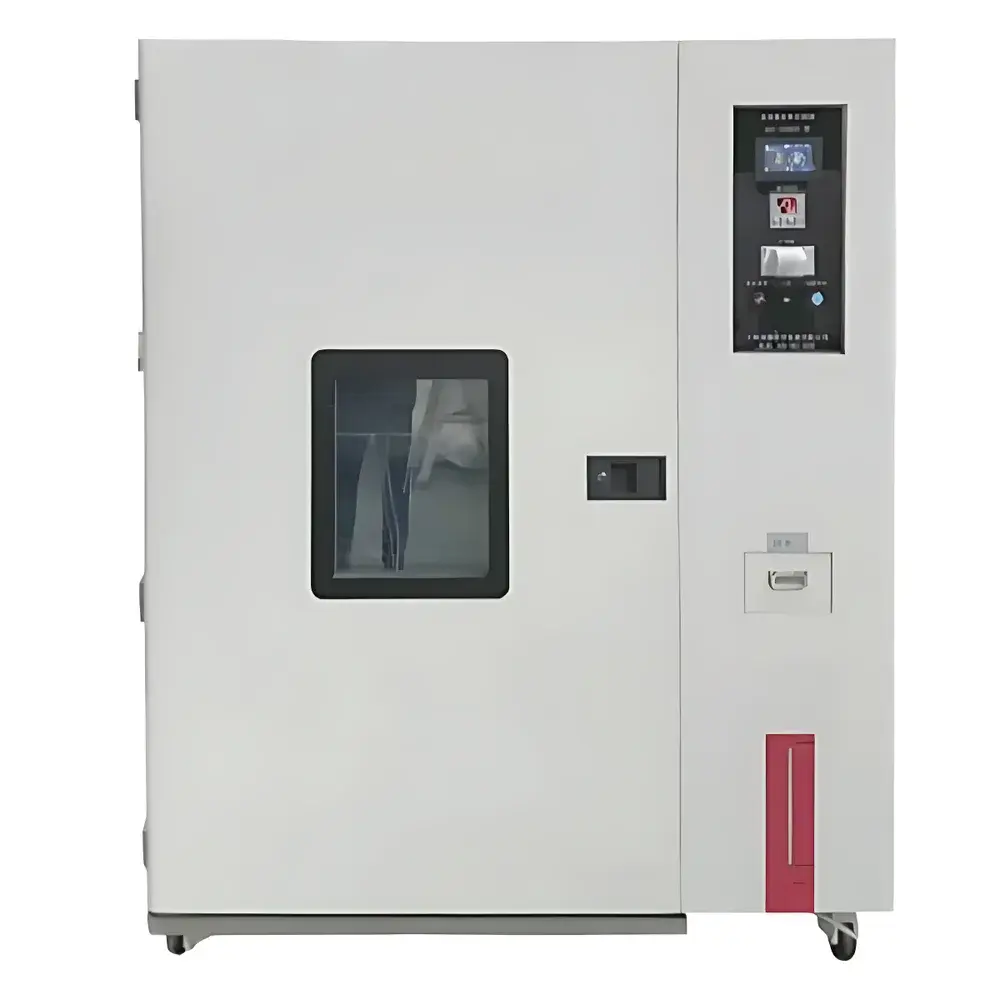

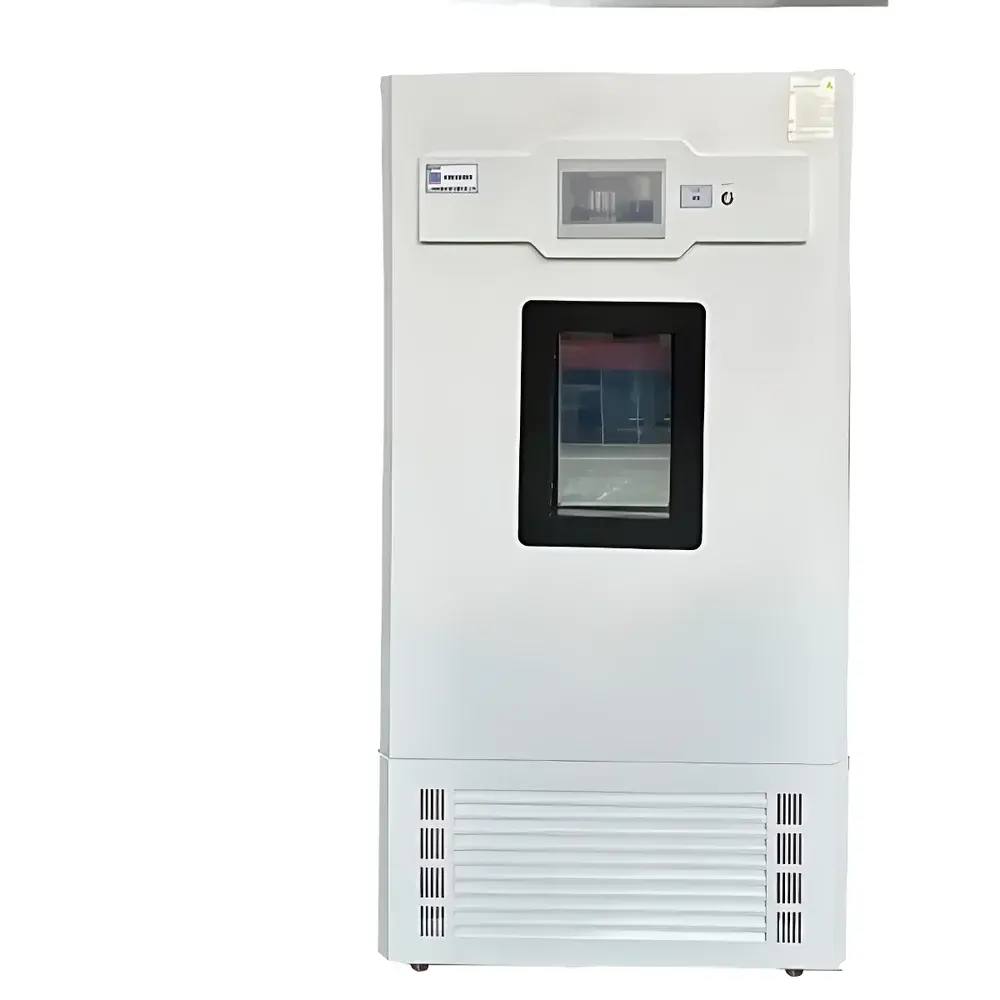

DRETOP STA-Vert-150S-II Vertical Illumination Drug Stability Testing Chamber

Overview

The DRETOP STA-Vert-150S-II is a vertically configured, GMP-compliant drug stability testing chamber engineered for regulatory-grade pharmaceutical stability studies in accordance with ICH Q1, USP <1150>, and the Chinese Pharmacopoeia (2015 Edition). It integrates precise temperature control (0–65 °C), humidity regulation (30–95% RH, optionally extendable to 20–98% RH), and programmable vertical LED illumination (0–25,000 lx) within a single compact 150 L workspace. Unlike conventional horizontal-light chambers, its top-mounted layered illumination system ensures uniform photometric exposure across multiple adjustable stainless-steel shelves—critical for photostability testing per ICH Q5C and ICH Q1B. The chamber employs dual independent PID-controlled loops for temperature and humidity, eliminating cross-coupling effects and enabling simultaneous, stable maintenance of demanding test conditions such as 40 °C/75% RH (accelerated), 25 °C/60% RH (long-term), and 4500 ±500 lx (photostability). Its architecture supports uninterrupted operation over extended cycles (≥6 months), meeting FDA 21 CFR Part 11 and EU Annex 11 requirements for data integrity and auditability.

Key Features

• Dual-Compressor Redundant Cooling System: Two hermetically sealed, eco-friendly compressors operate in alternating mode with automatic load balancing—ensuring continuous thermal performance, minimizing condensate accumulation, and extending mean time between failures (MTBF > 100,000 hours).
• Vertical Illumination Architecture: Top-tier LED light array with micro-adjustable shelf positioning enables non-direct, uniform irradiance distribution; compatible with UV (320–400 nm), visible (400–760 nm), and near-infrared (760–1000 nm) spectral configurations.
• GMP-Ready Touch Interface: 7-inch color TFT touchscreen with bilingual (English/Chinese) GUI, real-time graphical display of temperature/humidity/light curves, and three-tier user access control (Operator/Administrator/Engineer) supporting ALCOA+ compliant audit trails.
• Independent Humidity Control: Dedicated digital humidity module decoupled from heating/cooling circuits reduces energy consumption by up to 22% and improves long-term RH stability (±3–5% RH deviation).
• Robust Mechanical Design: 304 stainless-steel interior with radius-cornered construction, IP54-rated silicone gasket sealing, and removable perforated shelves—all validated for cleaning verification under ISO 14644 and EU GMP Annex 15.
• Fail-Safe Protection Suite: Triple-layer safety includes overtemperature cutoff (dual independent sensors), leakage current interruption, compressor overheat shutdown, and power-loss memory with auto-resume functionality.

Sample Compatibility & Compliance

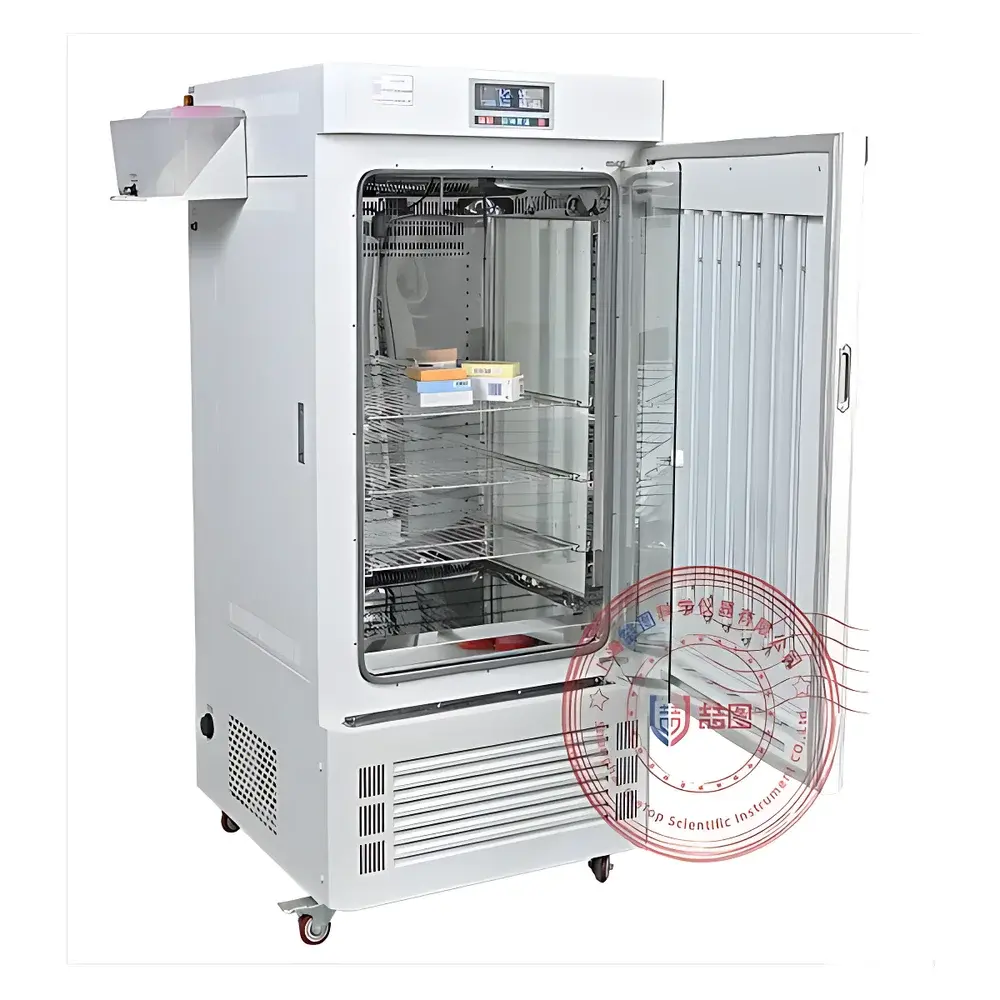

The STA-Vert-150S-II accommodates standard pharmaceutical packaging formats—including blister packs, amber vials, HDPE bottles, and lyophilized trays—across three adjustable 304 stainless-steel shelves (max. load: 30 kg total). Its internal dimensions (500 × 400 × 750 mm W×D×H) support ICH-recommended sample spacing and airflow clearance. All operational parameters comply with ASTM E2083-22 (standard practice for stability testing), ISO 14644-1 Class 8 cleanroom-compatible air filtration, and GB/T 10586–2006 environmental test chamber specifications. Optional CNAS-accredited multi-point calibration certifies temperature accuracy (±0.5 °C at 0/60/121 °C) and humidity traceability (±2% RH at 15 °C/40% RH and 20 °C/60% RH), fulfilling GLP/GMP instrument qualification (IQ/OQ/PQ) prerequisites.

Software & Data Management

Equipped with embedded firmware supporting up to 999 multi-segment programs (100 segments per program), the chamber logs timestamped temperature, humidity, illumination intensity, alarm events, and user actions continuously. Data is stored internally and exportable via USB to Excel (.xlsx) or CSV format—including full metadata (operator ID, parameter setpoints, deviations, electronic signatures). The optional RS485 Modbus RTU interface enables bidirectional integration with LIMS, MES, or SCADA systems. Cloud-ready remote monitoring (via web portal or mobile app) supports real-time parameter adjustment, push notifications, and over-the-air firmware updates—all encrypted using TLS 1.2. Built-in paperless recorder meets FDA 21 CFR Part 11 requirements for attributable, legible, contemporaneous, original, accurate, complete, consistent, and enduring records.

Applications

• ICH Q1A(R2)-compliant accelerated and long-term stability studies for APIs and finished dosage forms
• Photostability assessment per ICH Q5C under controlled irradiance (e.g., 1.2 million lux·hr visible + 200 watt·hr/m² UV)
• High-humidity stress testing (e.g., 95% RH at 25 °C) for hygroscopic compound evaluation
• Stability protocol development for biologics, vaccines, and sterile products requiring strict thermal-hygrometric fidelity
• Method validation support for dissolution, assay, and impurity profiling under defined environmental stressors
• Environmental simulation for packaging integrity testing (e.g., moisture vapor transmission rate correlation)

FAQ

Does the STA-Vert-150S-II meet ICH Q1 guidelines for long-term stability testing?

Yes—it maintains 25 °C ±2 °C and 60% RH ±5% RH continuously for ≥12 months with documented temperature uniformity (±1.5 °C) and humidity stability (±3–5% RH), satisfying ICH Q1A(R2) acceptance criteria.
Can the chamber be validated for GMP compliance?

Yes—optional GMP 3Q Validation Kit includes IQ/OQ/PQ protocols, calibration templates, and electronic report generation tools aligned with EU Annex 15 and WHO TRS 986.
What illumination spectra are supported out-of-the-box?

Standard configuration includes full-spectrum white LED (400–760 nm); optional tri-band modules add UV (320–400 nm) and NIR (760–1000 nm) channels with independent digital intensity control.
Is remote access available without on-site IT infrastructure?

Yes—the optional 4G cellular gateway enables secure cloud connectivity without local network configuration, supporting global remote supervision via HTTPS-secured web dashboard.
How is data integrity ensured during power interruptions?

All sensor readings, program states, and user actions are written to non-volatile flash memory every 10 seconds; upon recovery, the system resumes the exact segment and setpoint without data loss or manual reinitialization.
