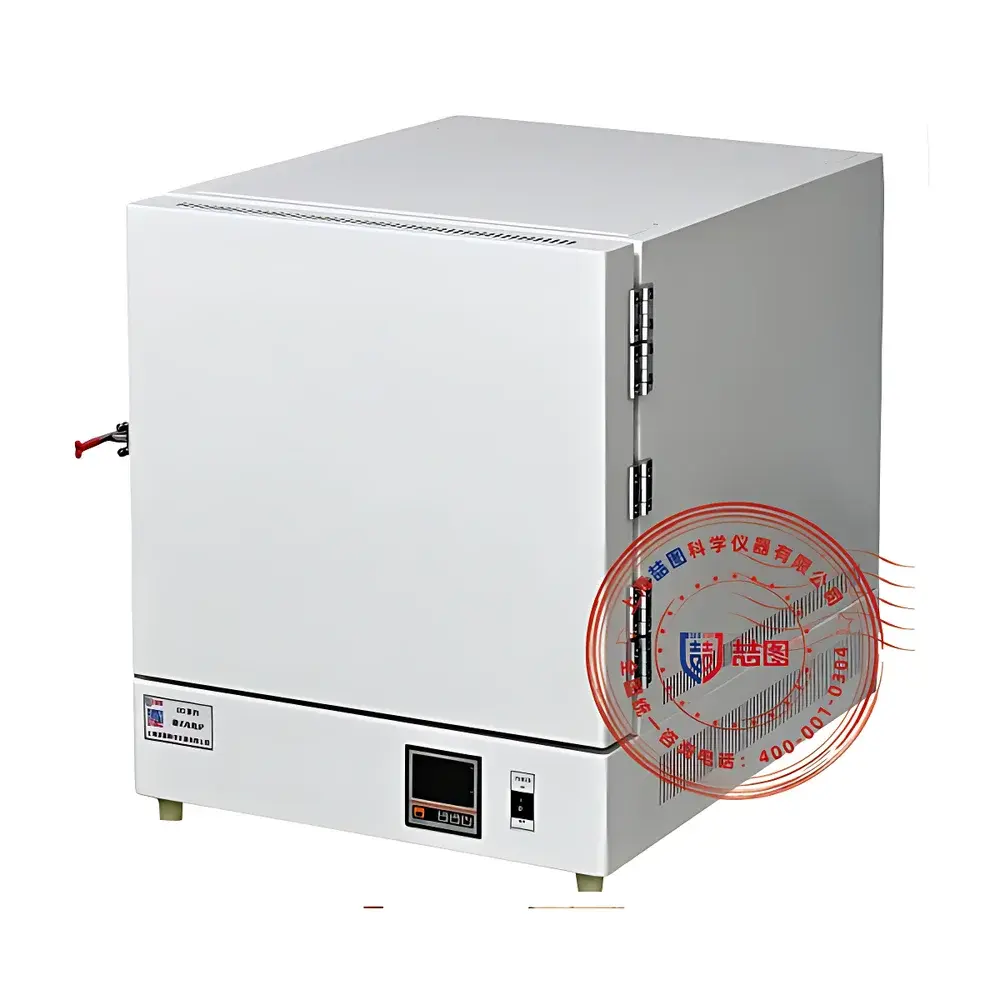

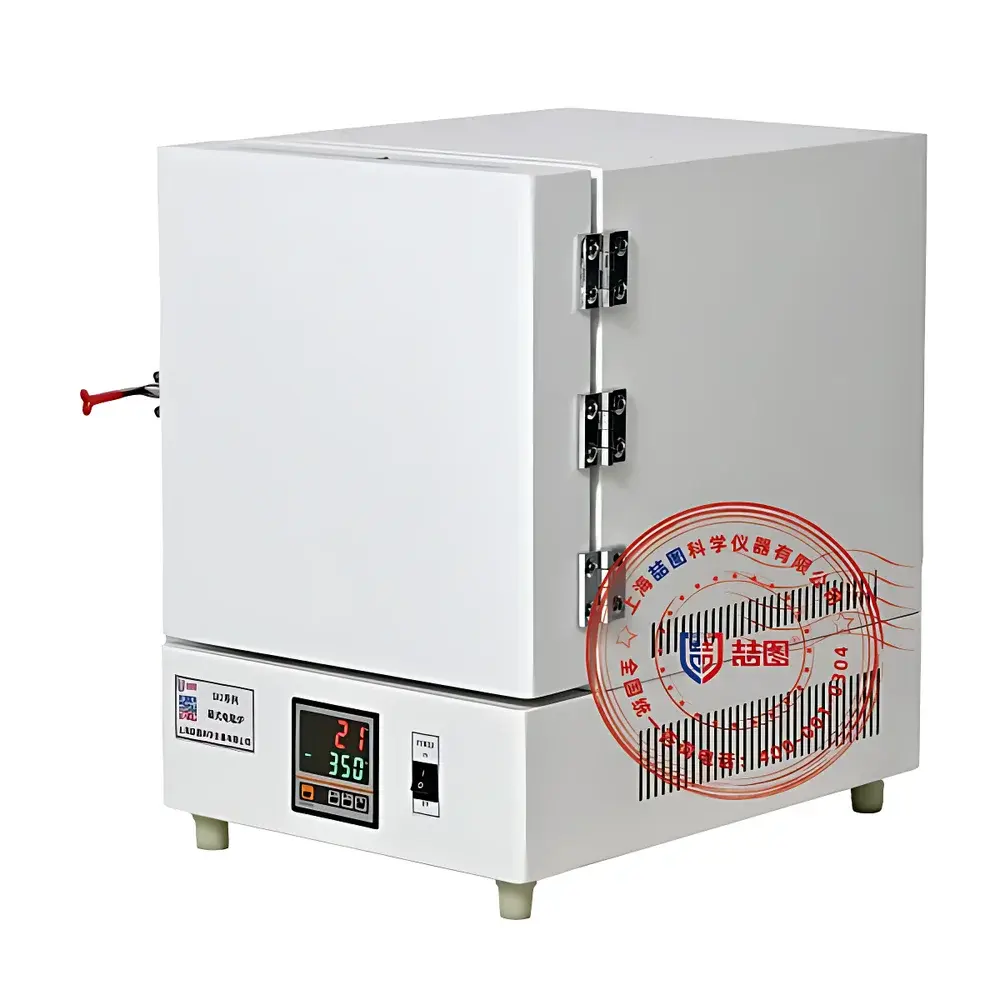

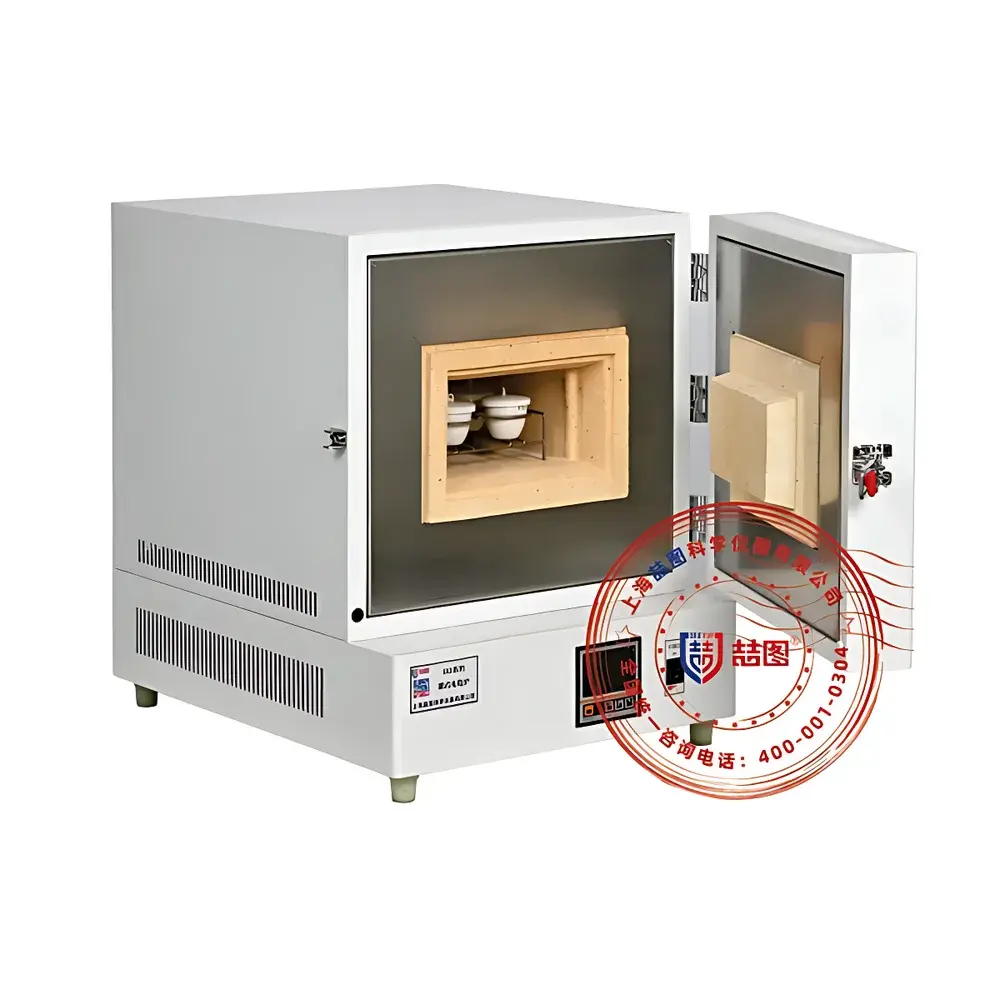

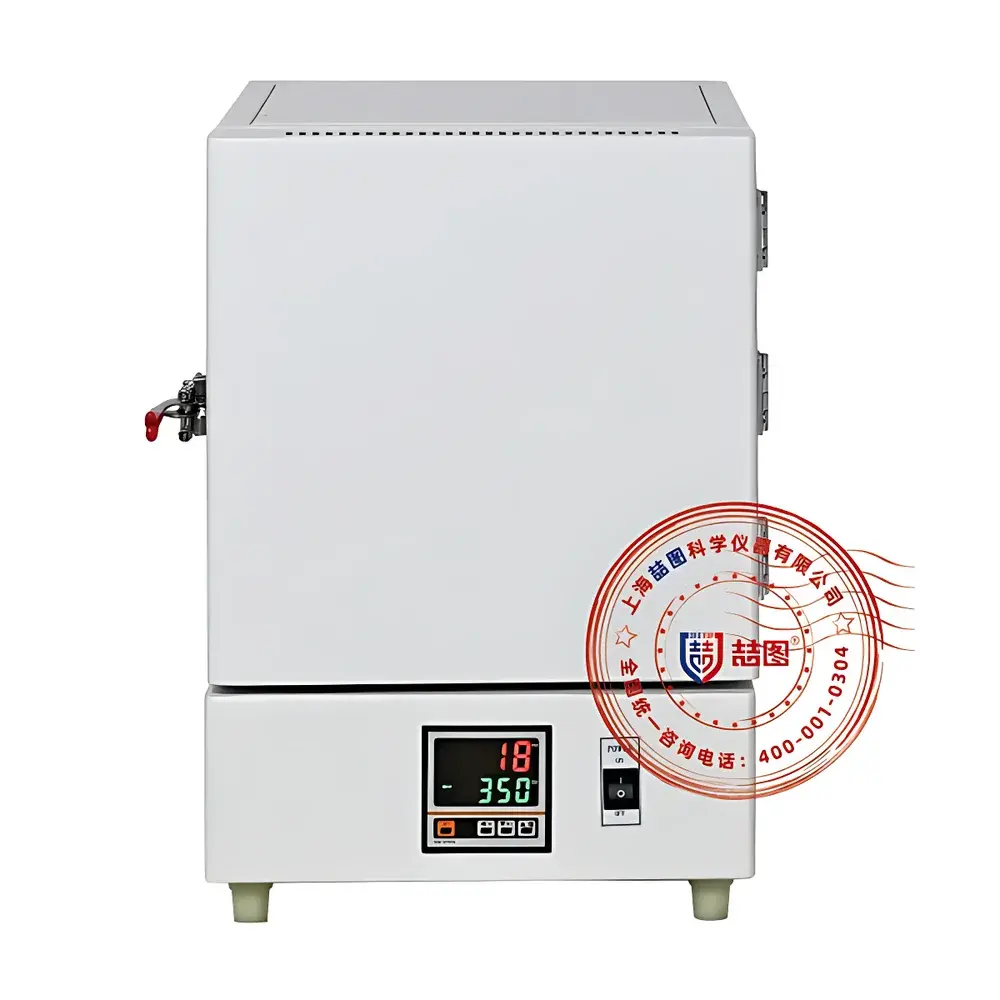

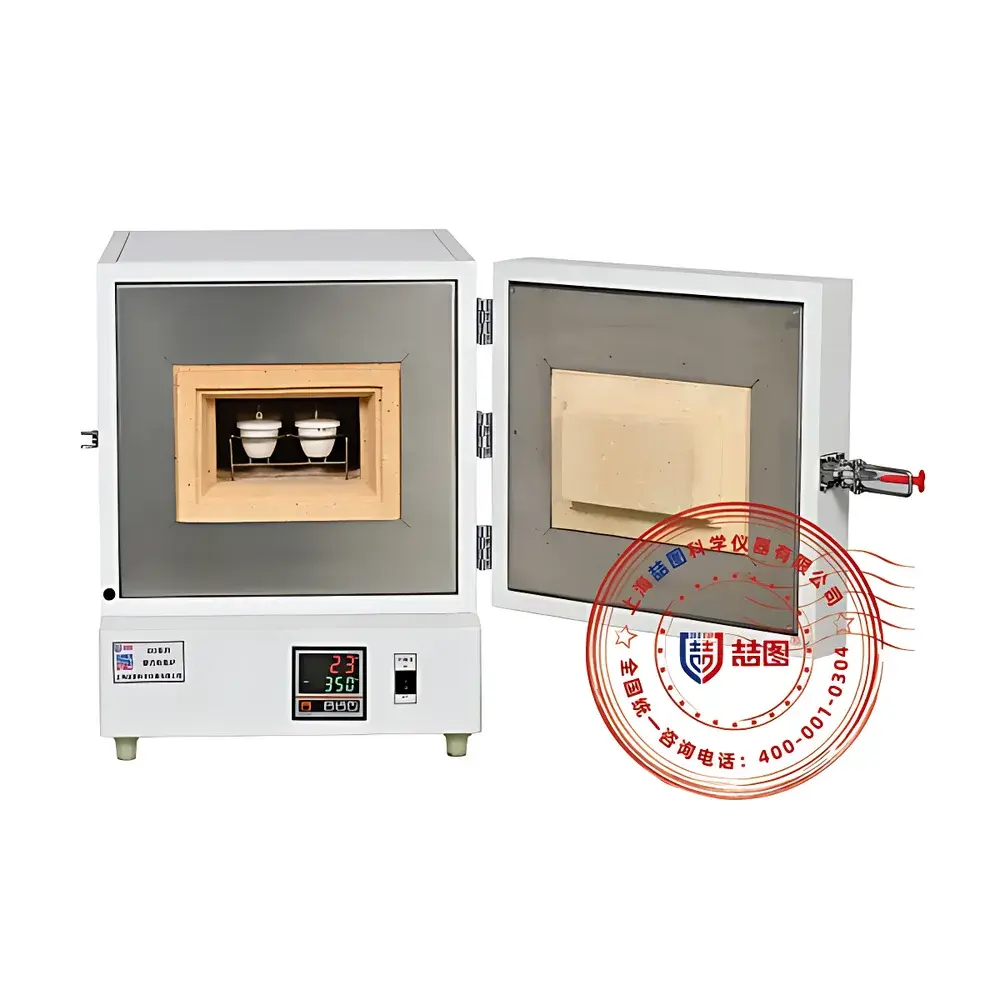

DRETOP SX2-10-12N Box-Type Muffle Furnace

Overview

The DRETOP SX2-10-12N is a precision-engineered box-type muffle furnace designed for laboratory and industrial thermal processing applications requiring stable, repeatable high-temperature environments up to 1200°C. Operating on the principle of resistive heating via embedded Ni-Cr alloy wire elements distributed across all four chamber walls, it delivers uniform radiant heat distribution—critical for consistent sample treatment in ashing, calcination, sintering, heat treatment, and thermal stability testing. Its fully enclosed muffle design isolates samples from combustion byproducts and external atmosphere, ensuring contamination-free thermal exposure. The furnace complies with fundamental safety and performance expectations for Class I, Group A laboratory heating equipment per IEC 61010-1 and meets structural requirements aligned with ASTM E1142 (Standard Specification for Laboratory Muffle Furnaces). It is widely deployed in quality control laboratories across coal analysis, cement production, pharmaceutical R&D, metallurgical research, and academic materials science programs.

Key Features

• Four-wall heating configuration using high-purity nickel-chromium resistance wire ensures exceptional temperature uniformity (±3°C within working zone at 1200°C), validated per ISO/IEC 17025-compliant calibration protocols.
• Microprocessor-based PID temperature controller with large-digit LED display enables intuitive operation, real-time monitoring, and precise setpoint regulation with ±1°C accuracy over the full operating range (RT +50°C to 1200°C).
• 30-segment programmable ramp-soak profile capability (standard on P-series variants) supports complex thermal cycles including controlled cooling, multi-step annealing, and timed hold functions—essential for GLP/GMP-compliant thermal validation studies.
• Integrated dual-stage over-temperature protection: primary electronic cut-off at user-defined limit + independent mechanical backup relay prevents uncontrolled thermal excursion; additional safeguards include open-couple detection, phase-loss monitoring, and automatic power interruption upon door opening.
• Rugged construction features refractory brick-lined chamber (low thermal mass, high insulation efficiency), reinforced stainless steel inner door seal (2 mm thickness), and phosphate-treated + epoxy-powder-coated outer casing for corrosion resistance and long-term dimensional stability under thermal cycling.
• Ergonomic front-loading architecture with spring-assisted counterbalanced door and precision-machined latch mechanism guarantees gas-tight closure, minimizing heat leakage and maintaining thermal integrity during extended dwell periods.

Sample Compatibility & Compliance

The SX2-10-12N accommodates standard ceramic crucibles (alumina, quartz), metal trays, and graphite boats up to 250 mm width × 400 mm depth × 160 mm height. Its inert muffle environment—free from direct flame or gaseous combustion products—is suitable for ASTM D3174 (ash content in coal), ASTM C114 (chemical analysis of hydraulic cement), USP <231> (heavy metals testing), and ISO 1171 (determination of ash in solid mineral fuels). All electrical components conform to CE marking directives (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU). Optional RS485 Modbus RTU interface enables integration into centralized lab automation systems compliant with FDA 21 CFR Part 11 data integrity requirements when paired with audit-trail-enabled software.

Software & Data Management

While the base N-series model operates via standalone hardware controls, optional NC-series configurations integrate a 7-inch color touchscreen HMI with embedded logging functionality. This interface records timestamped temperature profiles, operational status events (door open/close, alarm triggers), and system diagnostics with configurable export (CSV/Excel) via USB port. Firmware supports multi-level password protection (operator, engineer, administrator) and retains up to 100 programmable recipes. When connected to DRETOP’s LabLink™ PC software (sold separately), users gain access to remote monitoring, automated report generation, and electronic signature workflows aligned with ALCOA+ data governance principles.

Applications

• Thermal gravimetric analysis (TGA) pre-conditioning and residue quantification in environmental and geochemical labs.
• Ash fusion temperature determination for coal and biomass feedstocks per ISO 540.
• Calcination of catalyst precursors and ceramic powders prior to XRD or BET surface area analysis.
• Heat treatment of metallurgical specimens for microstructure development and hardness correlation studies.
• Residue-on-ignition (ROI) testing in wastewater sludge characterization and fertilizer quality assurance.
• Pre-drying and ignition of filter papers in total suspended solids (TSS) and volatile solids (VS) protocols per Standard Methods 2540F/G.

FAQ

What is the recommended maintenance schedule for the SX2-10-12N?
Perform visual inspection of heating elements and insulation integrity every 200 operating hours; verify thermocouple calibration annually or after 500 thermal cycles using NIST-traceable reference standards.
Can this furnace operate under inert or reducing atmospheres?
No—the standard SX2-10-12N is air-atmosphere only. For controlled atmospheres, specify optional inert gas inlet port (model suffix “-G”) and compatible sealed door gasket upgrade.
Is the furnace compatible with external data acquisition systems?
Yes—RS485 Modbus RTU output is available as factory option; analog 4–20 mA temperature output can be added for PLC interfacing.
Does the unit include a certificate of conformance or calibration documentation?
Each unit ships with a Factory Conformance Certificate. NIST-traceable calibration reports are available upon request at time of order (additional fee applies).
What safety certifications does the SX2-10-12N hold?
Complies with IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meets EMC immunity/performance thresholds per IEC 61326-1:2020.
