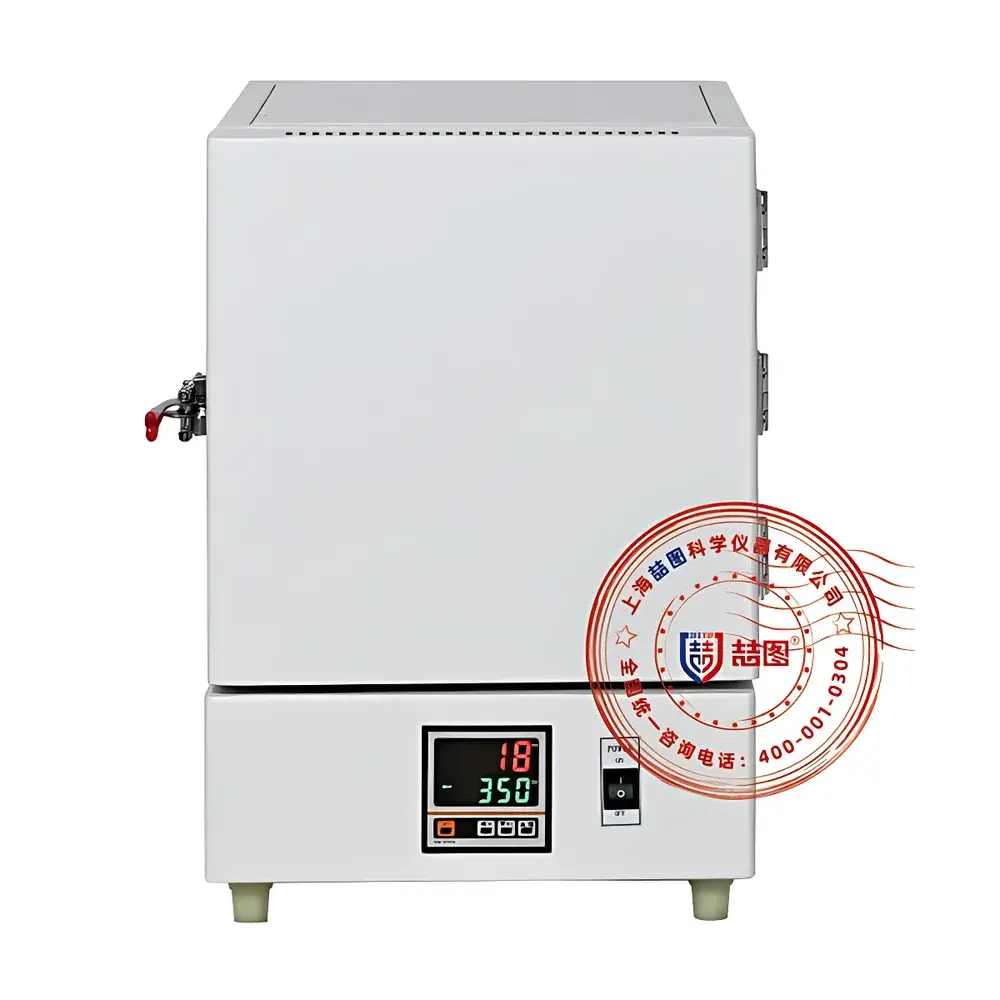

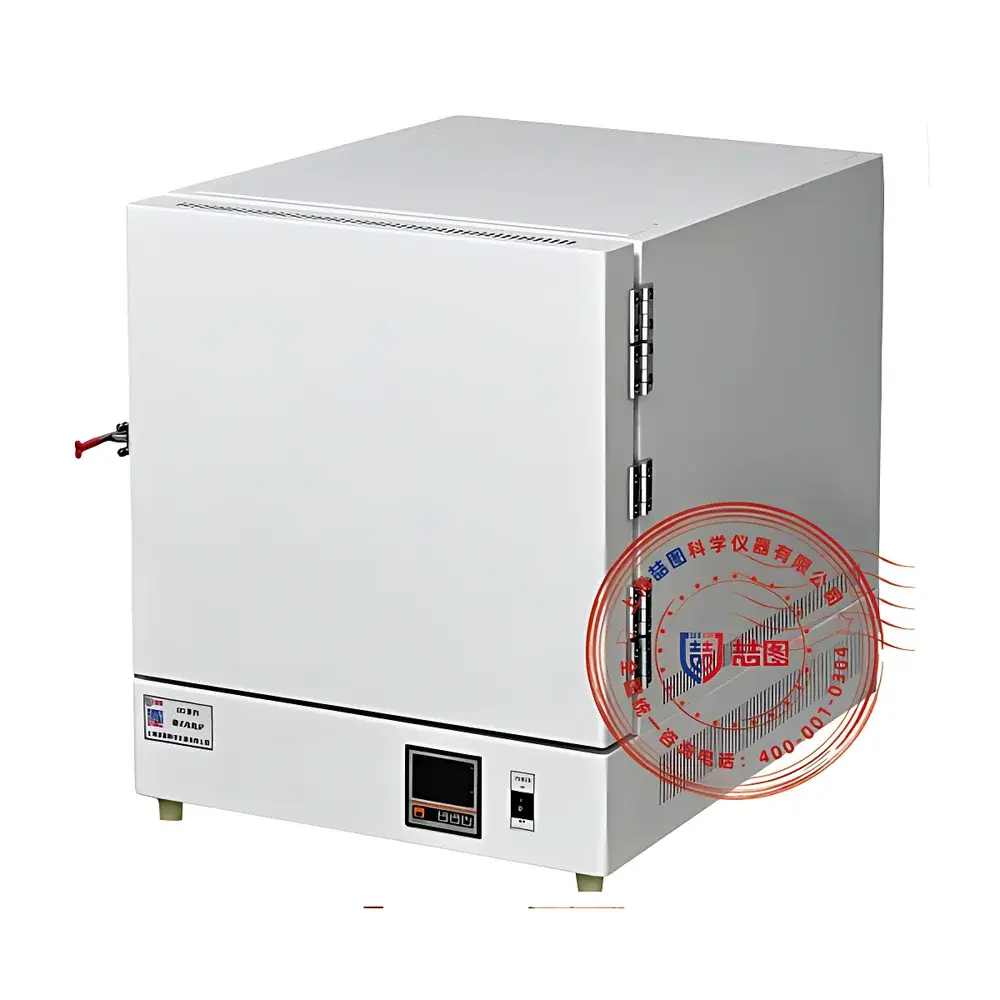

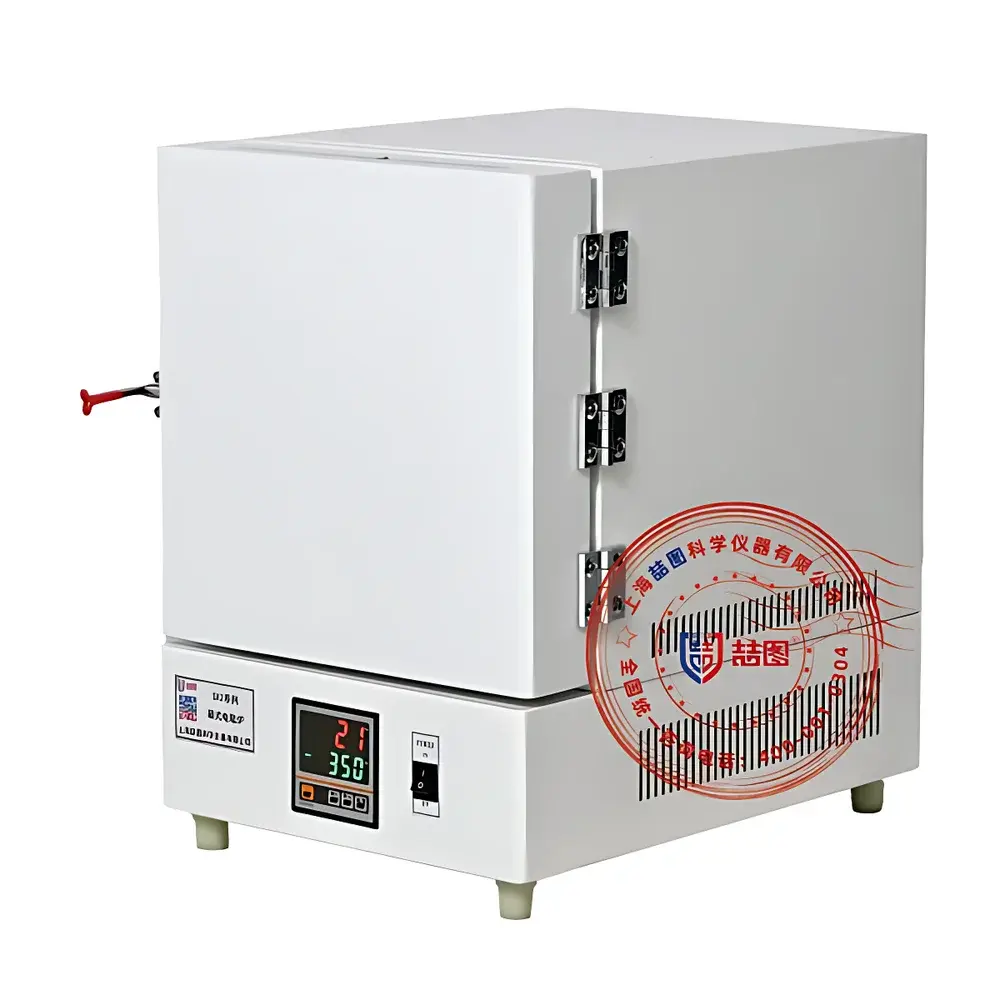

DRETOP SX2-10-12NP Box-Type Muffle Furnace

Overview

The DRETOP SX2-10-12NP is a precision-engineered box-type muffle furnace designed for controlled high-temperature thermal processing in research laboratories, quality control facilities, and industrial R&D environments. Operating on resistive heating principles, it utilizes embedded nickel-chromium (NiCr) alloy wire elements wound uniformly along all four interior chamber walls—ensuring rapid, symmetrical heat distribution and minimizing axial or radial thermal gradients. With a maximum operating temperature of 1000 °C and a certified control accuracy of ±1 °C across its full range (RT + 50 °C to 1000 °C), the furnace meets stringent requirements for ash content determination (ASTM D3174, ISO 1171), loss-on-ignition (LOI) analysis, calcination of catalyst precursors, and pre-treatment of inorganic samples prior to XRF or ICP-OES analysis. Its fully enclosed muffle design isolates samples from combustion by-products and external atmosphere, supporting reproducible thermal protocols under inert or ambient air conditions.

Key Features

• 30-segment programmable PID controller enabling precise ramp-soak-cool profiles—including automatic shutdown upon completion, adjustable heating/cooling rates, and hold-time synchronization for multi-step thermal treatments.
• Door-actuated safety interlock system: power to heating elements is immediately cut upon door opening, resuming automatically after closure—eliminating manual reset and reducing operator exposure risk during sample handling.

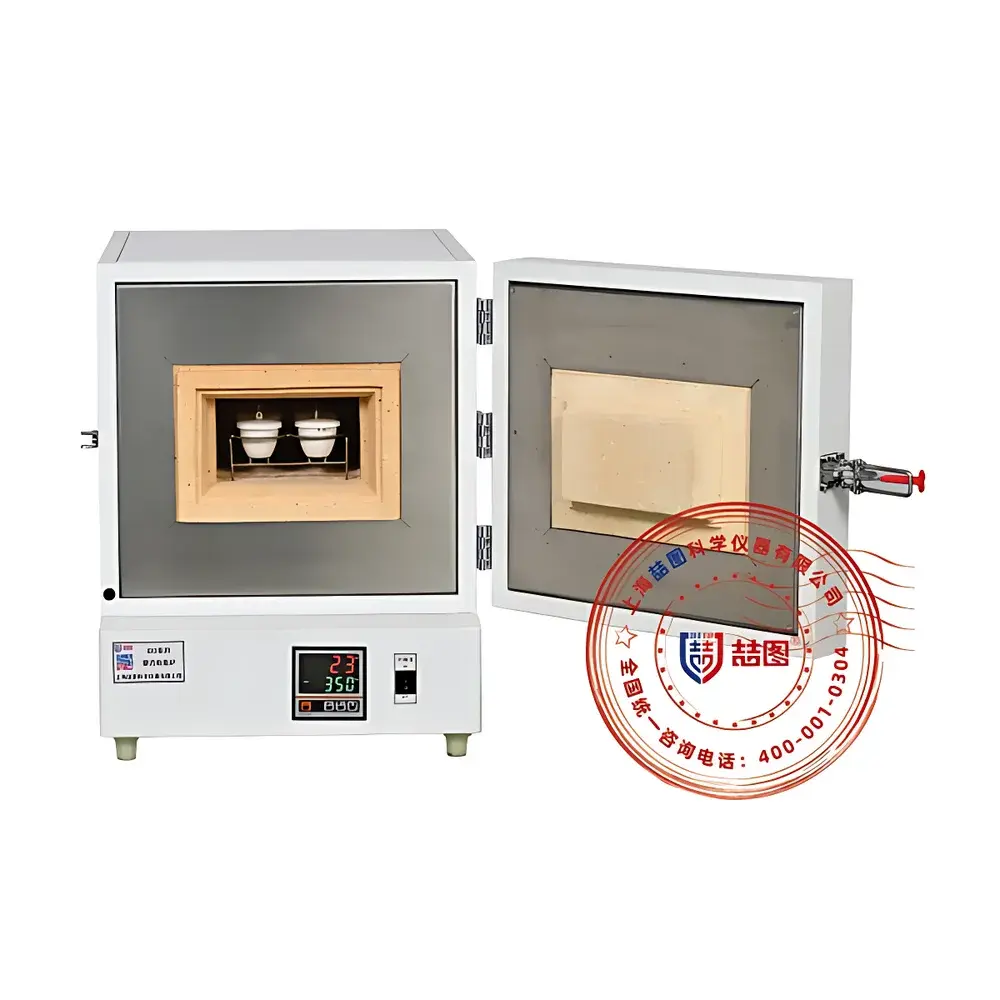

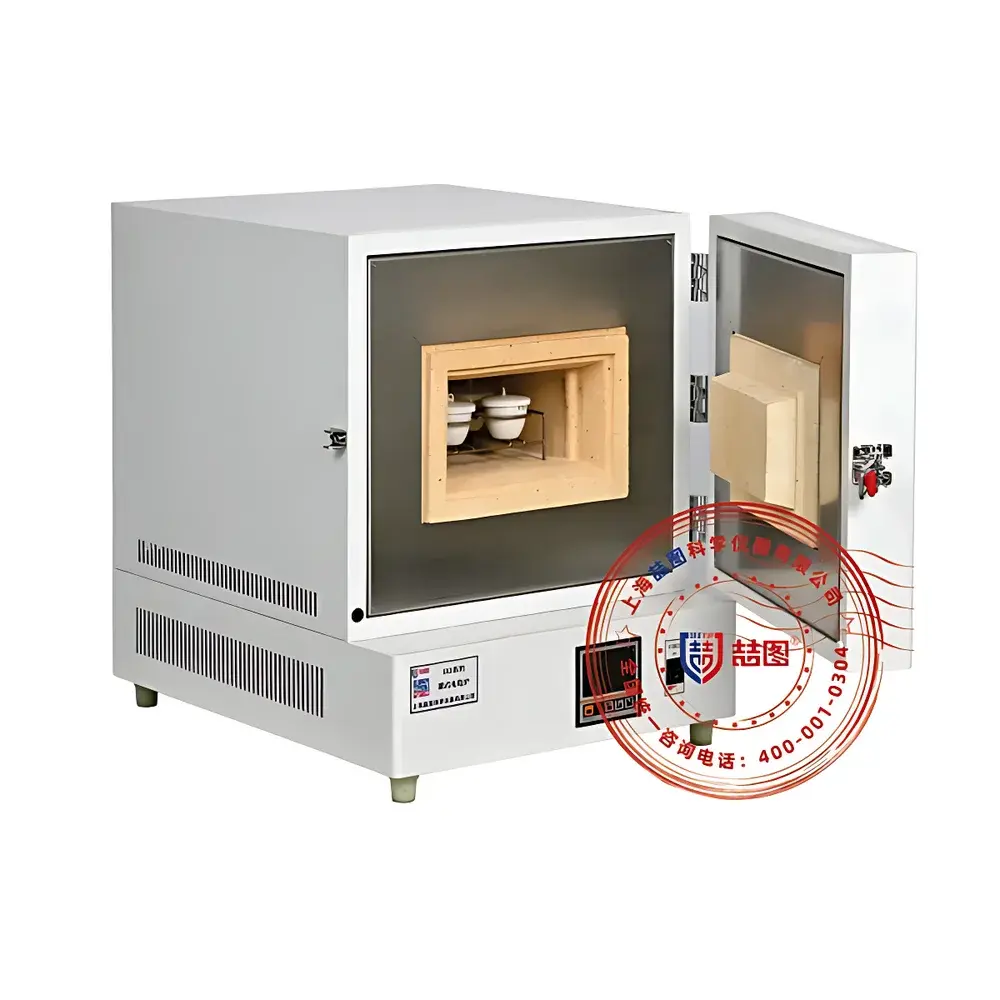

• Refractory brick chamber construction with integrated 2 mm stainless steel inner sealing at the furnace mouth—resisting oxidation, facilitating post-run cleaning, and maintaining dimensional stability after repeated thermal cycling.
• Dual-stage over-temperature protection: primary PID-controlled limit plus independent mechanical backup thermostat, compliant with IEC 61000-4-2 immunity standards for industrial control systems.
• Real-time digital voltage and current monitoring displayed directly on the front panel—supporting preventive maintenance through electrical load trending and early detection of element degradation.
• Optimized thermal architecture featuring four-wall heating layout, high-density ceramic fiber insulation behind brick lining, and a thermally balanced door gasket design—achieving ≤±3 °C uniformity (measured per ASTM C1040 at 900 °C) across the entire 16 L working volume.

Sample Compatibility & Compliance

The SX2-10-12NP accommodates standard crucibles (alumina, quartz, platinum, or silicon carbide), ceramic boats, and refractory trays up to 250 mm wide × 400 mm deep × 160 mm high. It is routinely deployed in coal and coke laboratories (per ASTM D3172–D3176), cement clinker analysis (ASTM C114), pharmaceutical excipient validation (USP <631>), and environmental solid waste characterization (EPA Method 2540E). All electrical components conform to CE marking requirements (EN 61000-6-2/6-4), while thermal performance data supports audit readiness for ISO/IEC 17025-accredited testing labs. The furnace’s non-vented base configuration complies with indoor laboratory ventilation guidelines when used with optional exhaust chimney (DRETOP CH-EX120), enabling safe removal of volatile decomposition products during organic matrix ashing.

Software & Data Management

While the standard NP-series controller operates via front-panel keypad navigation and local display, optional RS485 Modbus RTU interface enables integration into centralized lab management systems (e.g., LabVantage, Thermo Fisher SampleManager). When equipped with the NC-series color touchscreen upgrade, users gain access to password-protected engineering modes, real-time temperature curve visualization, exportable CSV log files (timestamped, with metadata tagging), and electronic signature support aligned with FDA 21 CFR Part 11 Annex 11 requirements. Audit trails record all parameter modifications, door events, alarm triggers, and power interruptions—retained for ≥18 months without external storage dependency.

Applications

• Quantitative ash residue determination in coal, biomass, and feedstock materials
• Thermal gravimetric pre-conditioning of geological samples prior to elemental analysis
• Calcination of metal oxide precursors in battery cathode material synthesis
• Heat treatment of ceramic green bodies and sintering aids
• Residue testing for extractables in medical device packaging (ISO 10993-12)
• Standardized drying and ignition protocols in food safety laboratories (AOAC 942.05)
• Calibration verification of thermocouples and infrared pyrometers using fixed-point reference materials

FAQ

What is the recommended maintenance schedule for the NiCr heating elements?
Visual inspection every 200 operational hours; resistance measurement quarterly. Replace if measured resistance deviates >15% from factory baseline or if visible sagging/brittleness occurs.
Can this furnace operate under inert gas atmosphere?
Yes—optional inert gas inlet valve (DRETOP IG-V12) allows continuous N₂ or Ar purging; ensure proper venting and O₂ monitoring when modifying atmosphere.
Is the 16 L chamber volume usable at full 1000 °C?
Yes—the rated volume reflects usable space at maximum temperature; thermal uniformity remains within specification when loading ≤70% of internal volume.
Does the controller support remote calibration adjustment?
No—calibration offset adjustments require physical access and authenticated technician mode; traceable calibration certificates are provided with each unit.
How does the furnace meet GLP documentation requirements?
All alarm logs, setpoint changes, and runtime events are time-stamped and stored internally; optional NC module adds electronic signature fields and PDF report generation compatible with GLP audit templates.
