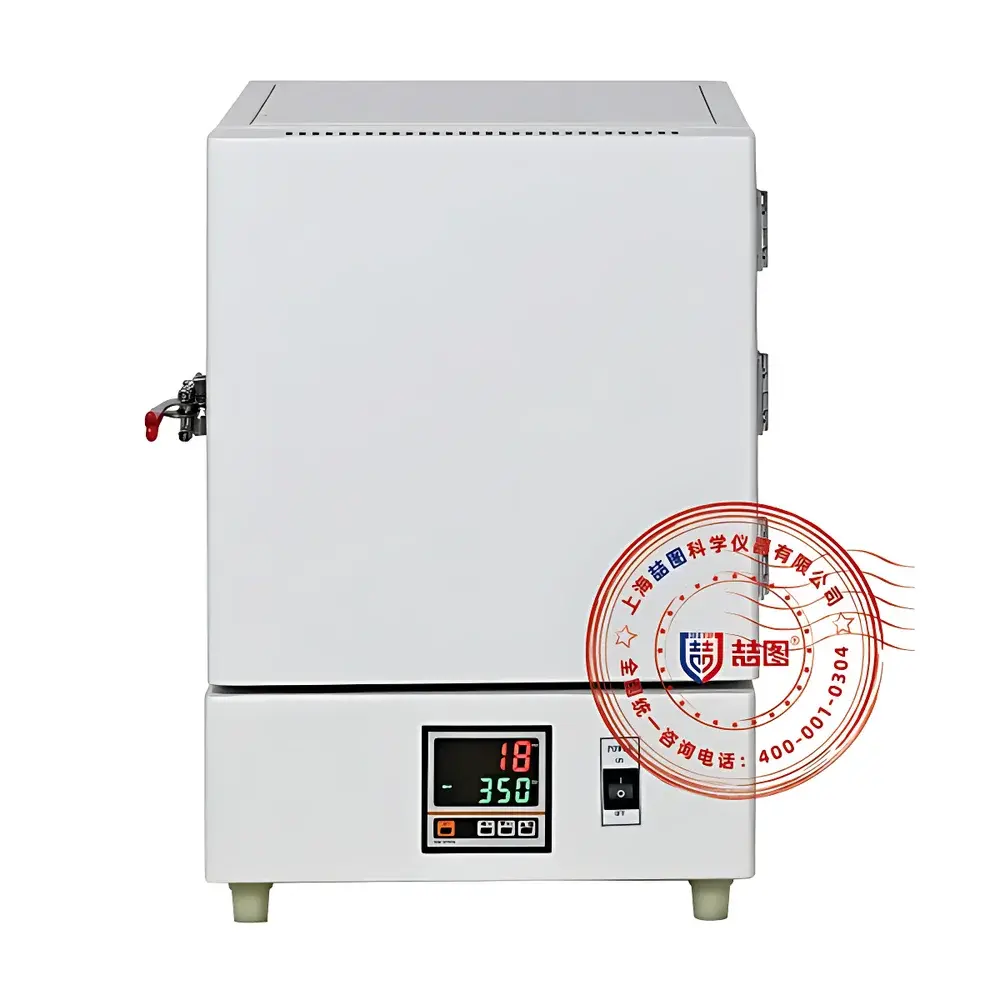

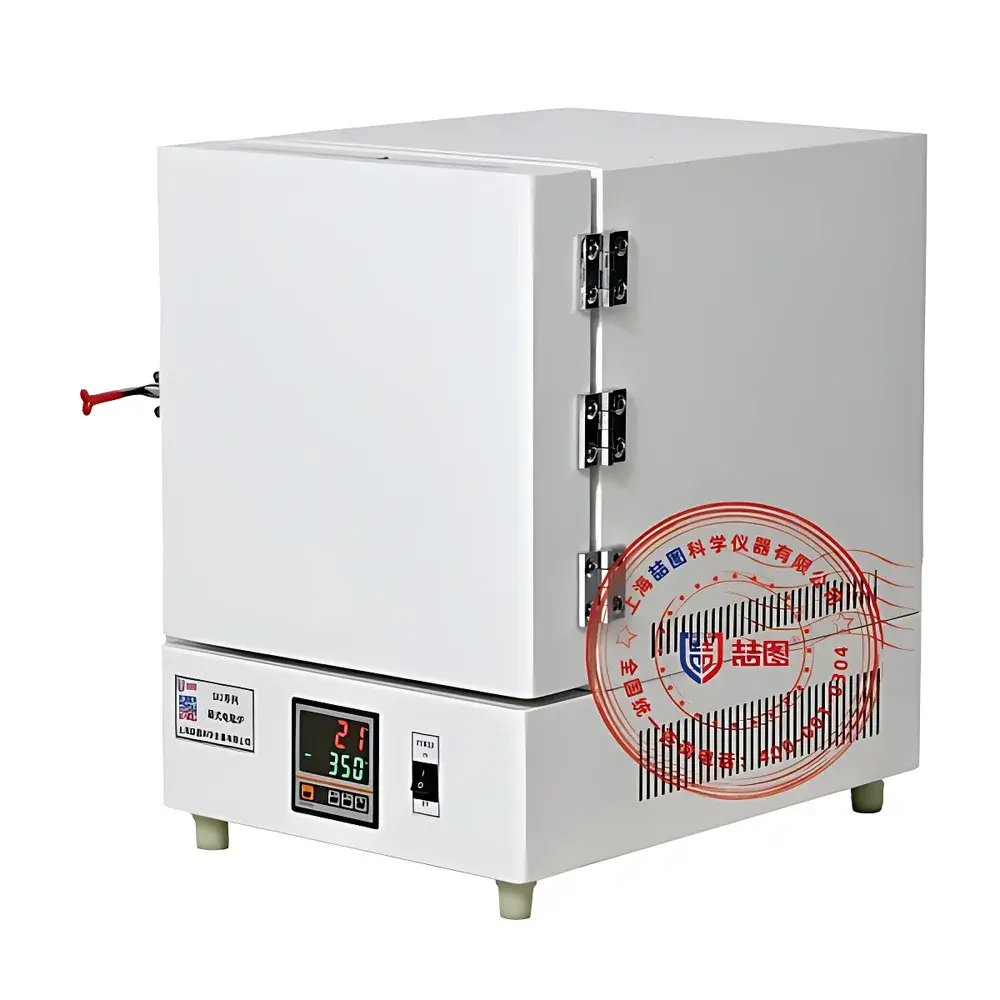

DRETOP SX2-2.5-10NP Benchtop Muffle Furnace

Overview

The DRETOP SX2-2.5-10NP is a compact, benchtop-rated box-type muffle furnace engineered for precise thermal processing in research laboratories, quality control environments, and industrial testing facilities. Operating on resistive heating principles, it utilizes high-stability nichrome wire wound uniformly across all four chamber walls to generate uniform radiant heat distribution—enabling consistent thermal exposure without convective interference. With a maximum operating temperature of 1000 °C and a nominal chamber volume of 2 liters, the furnace is optimized for small-batch ashing, calcination, heat treatment, and thermal stability evaluation of inorganic samples—including coal, coke, catalysts, ceramics, and pharmaceutical excipients. Its fully enclosed muffle design isolates the sample from combustion byproducts and external atmosphere, ensuring reproducible, contamination-free thermal profiles essential for ASTM D3174 (ash content), ISO 1171 (determination of ash), and USP & EP thermal validation protocols.

Key Features

• Four-wall heating configuration with spiral-wound nichrome elements ensures radial thermal symmetry and minimizes axial temperature gradients—critical for uniform sample decomposition and inter-laboratory comparability.
• Microprocessor-based PID temperature controller with digital LED display provides real-time setpoint tracking and dynamic compensation for ambient drift, achieving ±1 °C accuracy across the full 50–1000 °C operating range.
• 30-segment programmable ramp-soak profile capability (NP-series variant) supports complex thermal cycles required for TGA pre-conditioning, sintering optimization, and multi-step ashing protocols.
• Integrated door-interlock safety circuit automatically de-energizes heating elements upon door opening—preventing operator exposure and thermal shock to samples during intermediate inspection or loading.
• Dual-stage overtemperature protection includes primary thermocouple feedback cutoff and independent mechanical high-limit switch, compliant with IEC 61000-6-2 (EMC) and EN 60519-2 (industrial heating equipment safety).
• Reinforced refractory brick chamber lined with stainless steel (2 cm perimeter seal) resists thermal cycling fatigue and simplifies post-run residue removal—reducing maintenance downtime and improving long-term calibration stability.

Sample Compatibility & Compliance

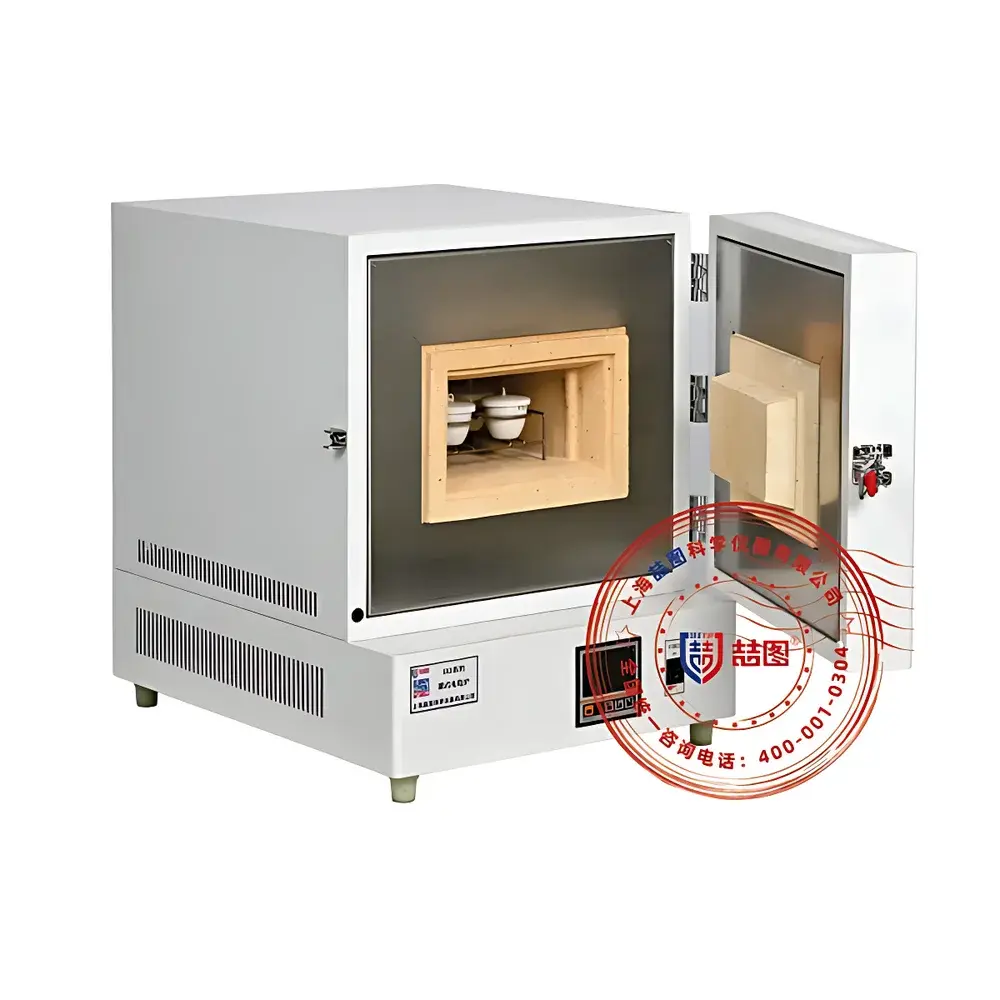

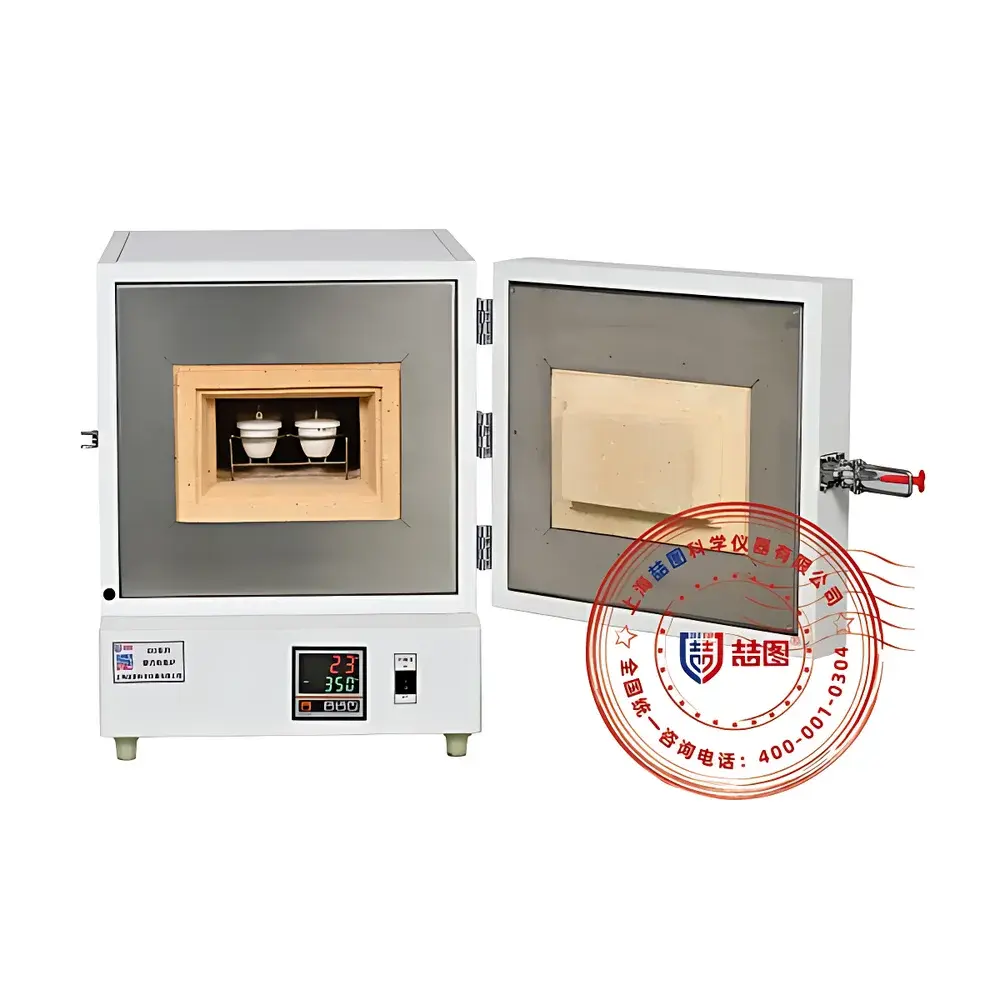

The SX2-2.5-10NP accommodates standard crucibles (alumina, platinum, quartz) up to Ø60 mm × 40 mm height within its 120 × 200 × 80 mm chamber. It supports routine applications defined in ASTM E1529 (fire-test-response), ISO 562 (softening point of coal tar pitch), and GB/T 212–2008 (Chinese standard for coal analysis). The furnace meets GLP documentation requirements through optional RS485 Modbus RTU interface (for integration with LIMS) and supports 21 CFR Part 11-compliant audit trails when paired with DRETOP’s NC-series touchscreen controller (sold separately). All electrical components conform to CE marking directives, including low-voltage directive 2014/35/EU and electromagnetic compatibility directive 2014/30/EU.

Software & Data Management

While the base N-series model features standalone microcontroller operation, the NP-series variant integrates a non-volatile memory module that retains user-defined programs and runtime logs even after power interruption. Optional NC-series color touchscreen controllers enable graphical temperature curve visualization, password-protected parameter editing (three-tier access: operator, engineer, administrator), and CSV export via USB host port. Firmware supports time-stamped event logging—including door open/close events, alarm triggers, and setpoint changes—facilitating FDA-mandated traceability. Communication interfaces include RS485 (Modbus RTU), analog 4–20 mA output for PLC integration, and optional 4G-enabled remote monitoring (via LTE module add-on).

Applications

• Quantitative ash determination in coal, biomass, and feedstock per ASTM D3174 and ISO 1171.
• Calcination of metal oxides, battery cathode precursors, and ceramic powders under inert or air atmosphere (with optional gas inlet valve).
• Thermal gravimetric analysis (TGA) sample pre-treatment and residue stabilization prior to SEM-EDS or XRD analysis.
• Heat treatment of calibration standards (e.g., NIST SRM 1978) and reference materials used in elemental analysis labs.
• Residue ignition testing for pharmacopeial compliance (USP <281>, EP 2.2.25) and environmental sludge characterization (EPA Method 2540F).

FAQ

What is the recommended maintenance interval for the heating elements and insulation?
Under continuous use at ≤900 °C, nichrome elements typically require inspection every 6 months; refractory brick integrity should be verified annually using visual and tap-test methods.
Can this furnace operate under inert gas purge?
Yes—when equipped with the optional inert gas inlet valve (sold separately), the chamber can be purged with N₂ or Ar to prevent oxidation during heat treatment of reactive metals or carbonaceous materials.
Is the temperature uniformity validated per industry standards?
The furnace achieves ±3 °C uniformity (9-point measurement per ASTM E2203) across the usable zone at 900 °C; certificate of conformance available upon request.
Does the controller support data export for regulatory submission?
The NP-series stores up to 100 cycle logs internally; NC-series units support direct USB export of timestamped temperature/time datasets compatible with Excel and statistical process control (SPC) software.
What safety certifications does the unit carry?
CE-marked per EN 61000-6-2/6-3 and EN 60519-2; RoHS-compliant construction; factory-calibrated against NIST-traceable reference thermocouples.
