DRETOP SX2-2.5-12N Benchtop Muffle Furnace

Overview

The DRETOP SX2-2.5-12N is a precision-engineered benchtop muffle furnace designed for routine thermal processing in analytical laboratories, quality control environments, and academic research settings. Operating on resistive heating principles, it utilizes high-stability nichrome wire wound uniformly across all four chamber walls to generate a highly uniform radiant heat field—critical for reproducible ashing, calcination, heat treatment, and gravimetric analysis. With a maximum operating temperature of 1200°C and a tightly controlled thermal stability of ±1°C, the furnace meets fundamental requirements for ASTM E1529 (Standard Test Methods for Determining Ignition Temperature of Plastics), ISO 1171 (Solid Mineral Fuels — Determination of Ash), and USP heavy metals testing protocols. Its compact 2 L chamber volume and optimized thermal mass enable rapid ramp-up (≤60 minutes to 1200°C) without compromising long-term temperature homogeneity or structural integrity under repeated thermal cycling.

Key Features

• Four-wall heating architecture with spiral-wound nichrome elements ensures superior temperature uniformity (±3°C within working zone at 1000°C), minimizing thermal gradients that compromise sample consistency.
• Microprocessor-based PID controller with digital LCD interface provides intuitive operation, real-time temperature monitoring, and programmable 30-segment thermal profiles—including ramp rates, dwell times, and auto-shutdown logic.
• Dual-stage overtemperature protection: primary limit switch + secondary independent thermocouple cutoff circuitry, compliant with IEC 61000-6-2/4 electromagnetic compatibility standards.
• Integrated door interlock system automatically de-energizes heating elements upon door opening—eliminating operator exposure to radiant heat and preventing thermal shock to samples or furnace lining.
• Reinforced ceramic fiber insulation combined with double-layer steel housing (phosphate-treated and high-temp epoxy-coated) delivers surface temperatures <45°C at ambient conditions, enhancing lab safety and energy efficiency.

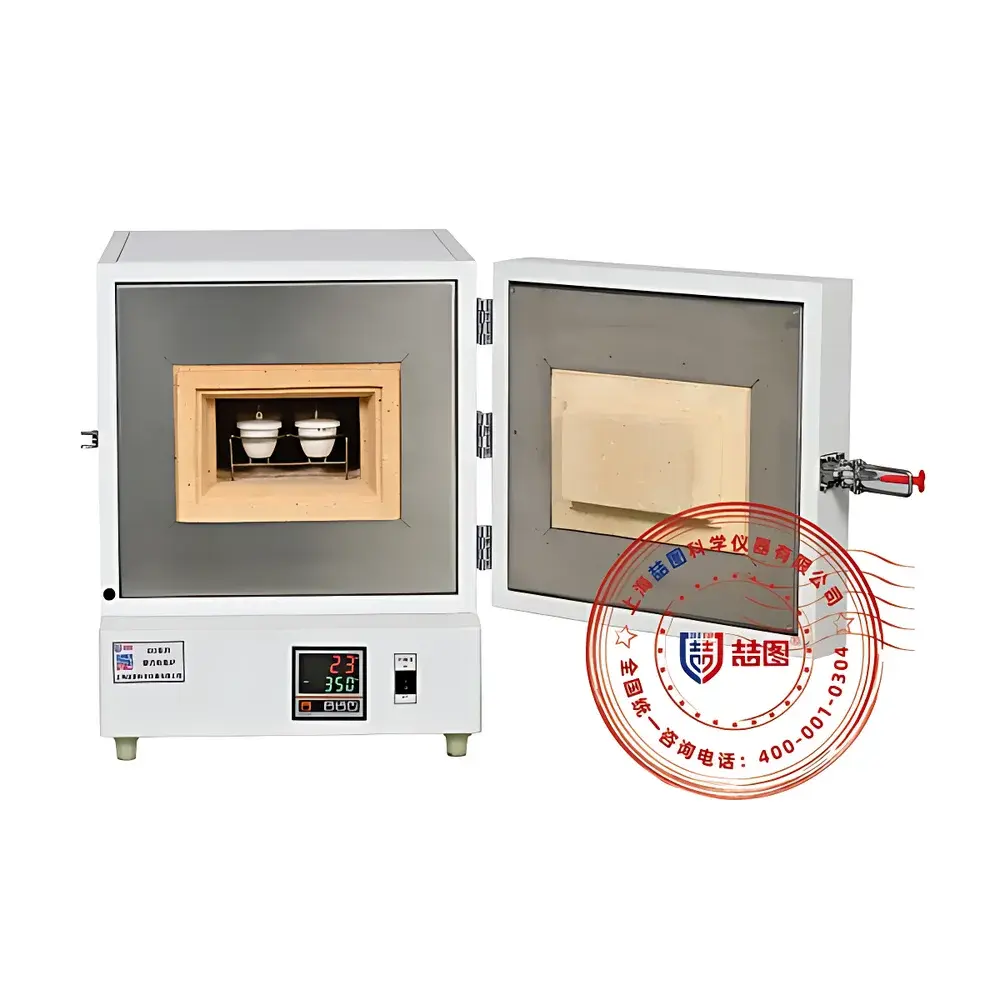

• Front-access chamber with reinforced stainless-steel inner seal (2 mm thick) minimizes heat loss at the door interface and resists oxidation-induced warping after >5,000 cycles at 1200°C.

Sample Compatibility & Compliance

The SX2-2.5-12N accommodates standard crucibles (alumina, silica, platinum) up to Ø60 mm × 50 mm height and supports batch processing of coal, coke, limestone, pharmaceutical excipients, catalysts, and ceramic precursors. Its muffle design isolates samples from combustion byproducts, satisfying ISO 5912 (Cement — Determination of Loss on Ignition) and ASTM D3174 (Ash in Coal and Coke). All electrical components conform to UL 61010-1 and CE EN 61000-6-3 safety directives. The furnace’s temperature validation protocol supports GLP-compliant calibration using NIST-traceable reference thermocouples (Type S or K), and its data logging capability—when paired with optional RS485 interface—enables audit-ready records aligned with FDA 21 CFR Part 11 requirements.

Software & Data Management

While the base N-series model features a stand-alone microcontroller with non-volatile memory for program storage and power-loss recovery, optional NC-series upgrades include a 7-inch color touchscreen HMI with embedded data logging (timestamped temperature vs. time), USB export, and multi-level user access (Operator/Engineer/Administrator). Communication interfaces support Modbus RTU (RS485) for integration into LabVantage or Thermo Fisher SampleManager LIMS platforms. Optional 4G-enabled remote monitoring allows real-time alarm notifications (e.g., overtemp, door ajar, thermocouple failure) via SMS or email—facilitating unattended overnight runs while maintaining full traceability per ISO/IEC 17025 Clause 7.7.

Applications

• Gravimetric analysis: ash content determination in biomass, feedstuffs, and polymers per AOAC 942.05 and EPA Method 1631.
• Thermal pre-treatment of catalysts and battery electrode materials prior to XRD or BET surface area measurement.
• Calcination of metal oxide precursors in nanomaterial synthesis workflows.
• Residue-on-ignition testing for pharmacopeial compliance (USP , Ph. Eur. 2.2.14).
• Calibration verification of thermocouples and RTDs in metrology labs.
• Pre-drying of filter papers and crucibles in environmental testing labs (e.g., EPA SW-846 Method 3010A).

FAQ

What is the recommended maintenance interval for the SX2-2.5-12N?

Perform visual inspection of heating elements and insulation integrity every 200 operating hours; recalibrate temperature sensors annually using a certified reference thermometer.
Can this furnace be used under inert atmosphere?

Yes—optional flanged inlet/outlet ports (with stainless-steel gas fittings) support nitrogen or argon purging; ensure proper venting and O₂ monitoring when operating below 5% O₂.
Is the controller compatible with external SCADA systems?

Standard RS485 Modbus RTU output enables seamless integration with Siemens Desigo, Schneider EcoStruxure, or custom Python-based monitoring scripts.
Does the furnace meet GMP documentation requirements?

With optional NC-series controller and audit trail module, it generates electronic records compliant with Annex 11 and ALCOA+ data integrity principles.
What is the expected service life of the heating elements at 1200°C?

Nichrome wire elements maintain stable resistance and thermal output for ≥3,000 hours at continuous 1200°C operation under clean, low-humidity conditions.
