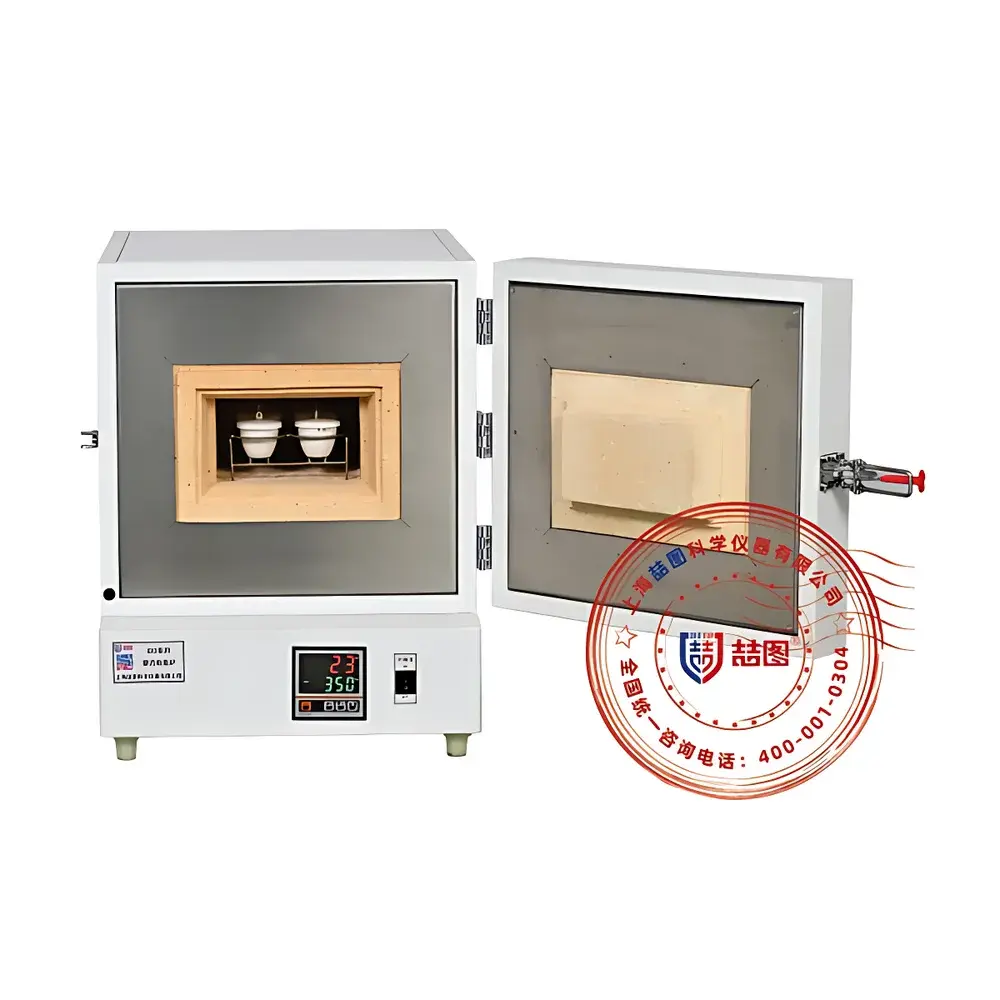

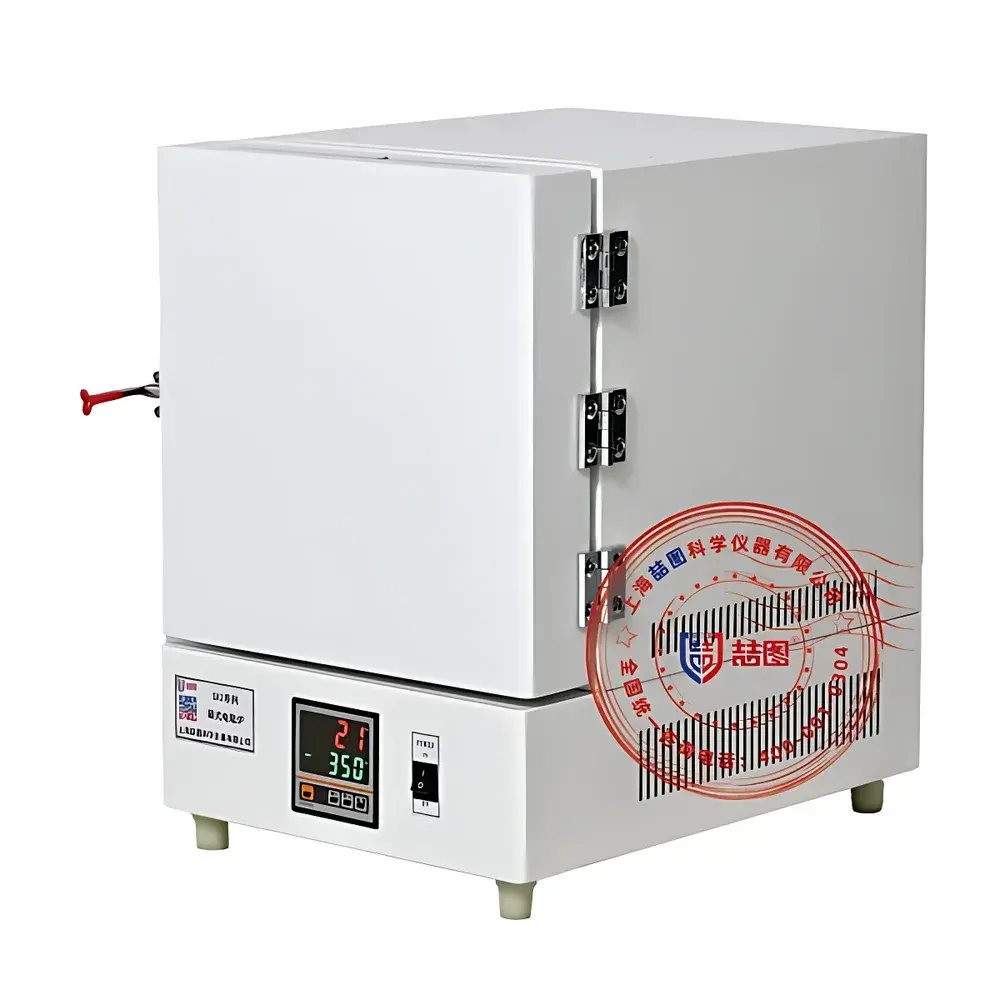

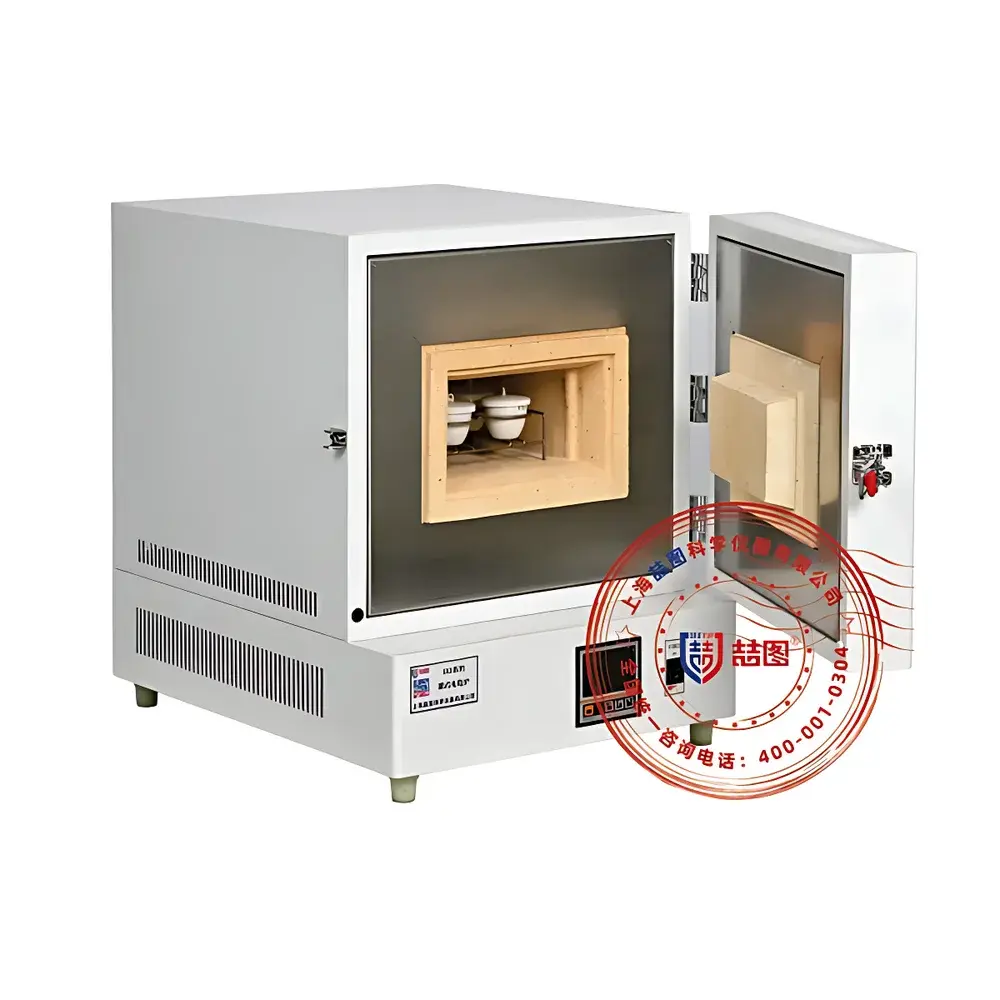

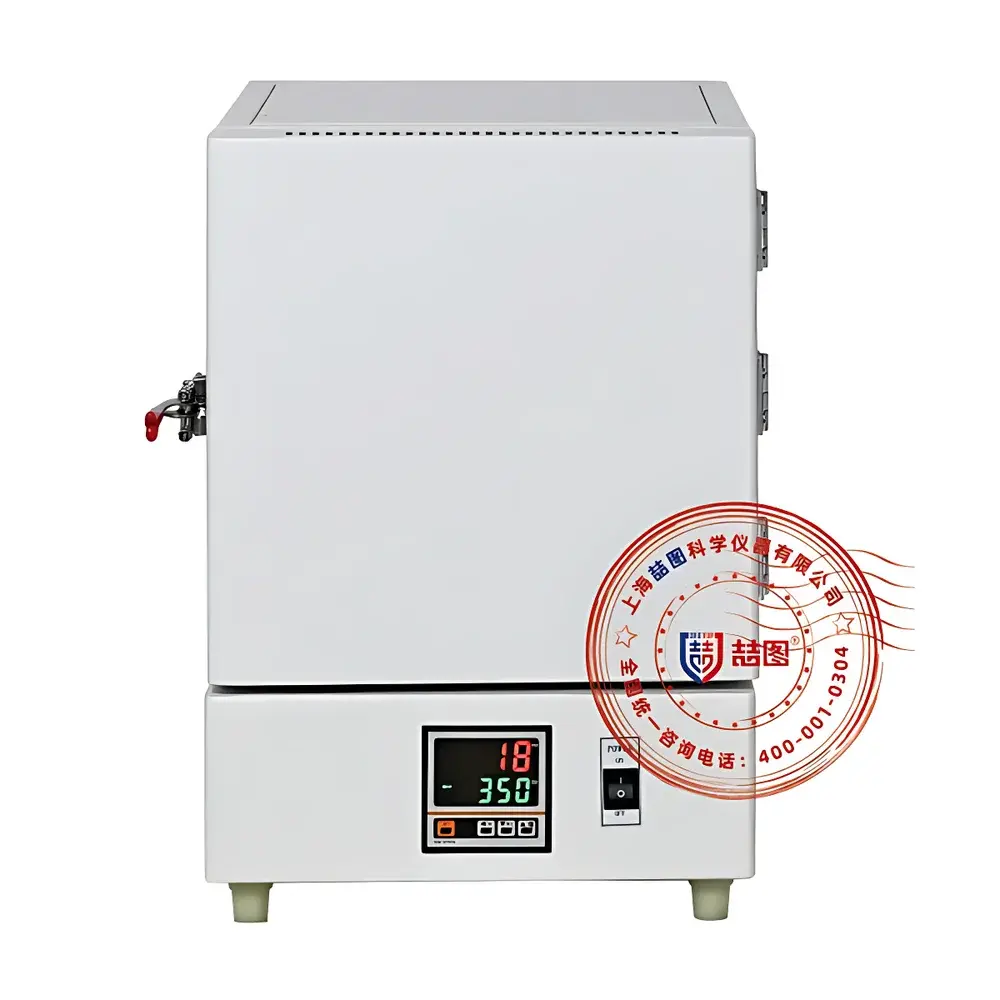

DRETOP SX2-2.5-12NP Programmable Box-Type Muffle Furnace

Overview

The DRETOP SX2-2.5-12NP is a programmable box-type muffle furnace engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. Operating on resistive heating principles, it utilizes high-stability nichrome wire elements embedded in all four chamber walls to generate uniform radiant heat distribution—enabling consistent thermal profiles critical for ashing, calcination, heat treatment, and gravimetric analysis. Designed to ASTM E1137/E1137M and ISO 7887-compliant thermal protocols, the furnace maintains stable setpoint operation across its full 1000 °C range (RT + 50 °C to 1000 °C), with independent verification of temperature uniformity per IEC 60068-3-5. Its compact 2 L chamber (120 × 200 × 80 mm) supports standardized crucible formats—including ASTM G142 and ISO 11358 sample holders—while maintaining structural integrity under repeated thermal cycling.

Key Features

• 30-segment programmable PID controller with ramp-soak capability, enabling precise replication of multi-step thermal cycles (e.g., pre-ashing hold, controlled oxidation, slow cool-down)
• Dual-stage overtemperature protection: primary limit switch + secondary thermocouple-based cutoff, compliant with IEC 61000-4-5 surge immunity requirements
• Automatic door interlock system: power disengagement upon door opening; automatic resumption after closure—ensuring operator safety and process continuity
• Four-wall heating architecture with helically wound nichrome elements, achieving ≤±2 °C temperature uniformity across the working zone (measured per ISO/IEC 17025 calibration methodology)
• Integrated digital voltmeter and ammeter for real-time electrical load monitoring—supporting preventive maintenance and energy consumption logging
• Phosphate conversion coating + high-temp epoxy powder coating on outer casing (≥200 µm thickness), providing corrosion resistance in humid or saline lab environments
• Reinforced refractory brick chamber (Al₂O₃ ≥92%, low thermal conductivity <1.2 W/m·K at 1000 °C) with stainless steel (304) inner sealing flange for easy residue removal

Sample Compatibility & Compliance

The SX2-2.5-12NP accommodates standard ceramic, alumina, and platinum crucibles up to Ø60 mm × 40 mm height. Its open-front loading design supports batch processing of solid powders, granular feedstocks (e.g., coal, coke, catalysts), and pre-weighed filter papers per ASTM D3174 and ISO 1171 ash content methodologies. The furnace meets essential regulatory prerequisites for GLP-compliant laboratories: audit-trail-capable controller memory (with timestamped event logs), non-volatile program storage, and configurable alarm thresholds traceable to NIST-traceable reference standards. Optional RS485 Modbus RTU interface enables integration into LIMS or SCADA systems adhering to FDA 21 CFR Part 11 electronic record requirements.

Software & Data Management

The microcomputer PID controller includes built-in data logging (10,000-point capacity) with user-configurable sampling intervals (1–60 s). All thermal profiles—including segment start/end times, ramp rates (°C/min), soak durations, and actual vs. setpoint deviations—are exportable via USB to CSV format for post-analysis in MATLAB, JMP, or Excel. Optional NC-series color touchscreen upgrade adds multi-level password protection (engineer/operator/auditor roles), real-time temperature curve visualization, and firmware update capability via SD card. Calibration certificates (as-tested) are provided with each unit, documenting as-delivered accuracy against ITS-90 reference points at 500 °C, 800 °C, and 1000 °C.

Applications

• Proximate and ultimate analysis of coal, biomass, and municipal solid waste per ASTM D3172/D3176
• Residue-on-ignition testing for pharmaceutical excipients (USP ) and inorganic APIs
• Thermal decomposition studies of polymers, battery cathode materials, and metal-organic frameworks (MOFs)
• Preparation of reference standards for XRF and ICP-OES via controlled ashing of certified reference materials (CRMs)
• Heat treatment of metallurgical samples prior to hardness or microstructure evaluation (ASTM E384, E112)
• Validation of sterilization cycle parameters for reusable laboratory glassware in regulated biotech facilities

FAQ

What is the maximum recommended continuous operating temperature?
The furnace is rated for continuous operation at 1000 °C. Extended use above 950 °C requires periodic verification of thermocouple drift and heating element resistance.
Does the controller support external data acquisition systems?
Yes—standard RS485 Modbus RTU interface (optional on NP-series; included on NC-series) allows bidirectional communication with PLCs, DAQ modules, or centralized lab networks.
Can the furnace be used under inert or reducing atmospheres?
Not natively. For controlled-atmosphere applications, optional quartz-tube inert gas inlet kits (rated to 0.2 MPa) must be installed with compatible gas flow controllers and O₂ analyzers.
How often should the thermocouple be recalibrated?
Annual calibration is recommended per ISO/IEC 17025; however, users performing GLP/GMP work should follow internal SOPs requiring calibration before each critical batch or quarterly—whichever is more frequent.
Is the unit suitable for Class 100 cleanroom environments?
No—the standard configuration emits particulate during initial high-temp conditioning. A dedicated cleanroom variant (SX2-2.5-12NP-CR) with HEPA-filtered purge air and static-dissipative housing is available upon request.
