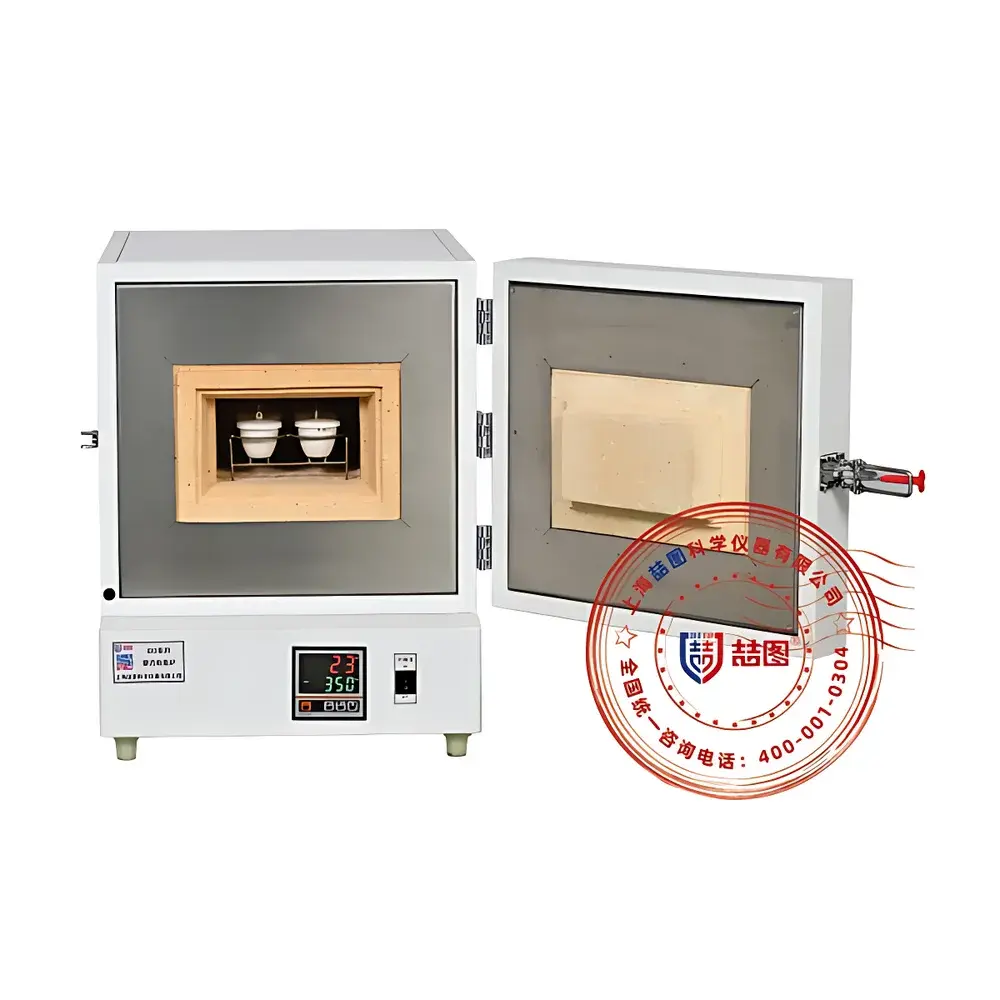

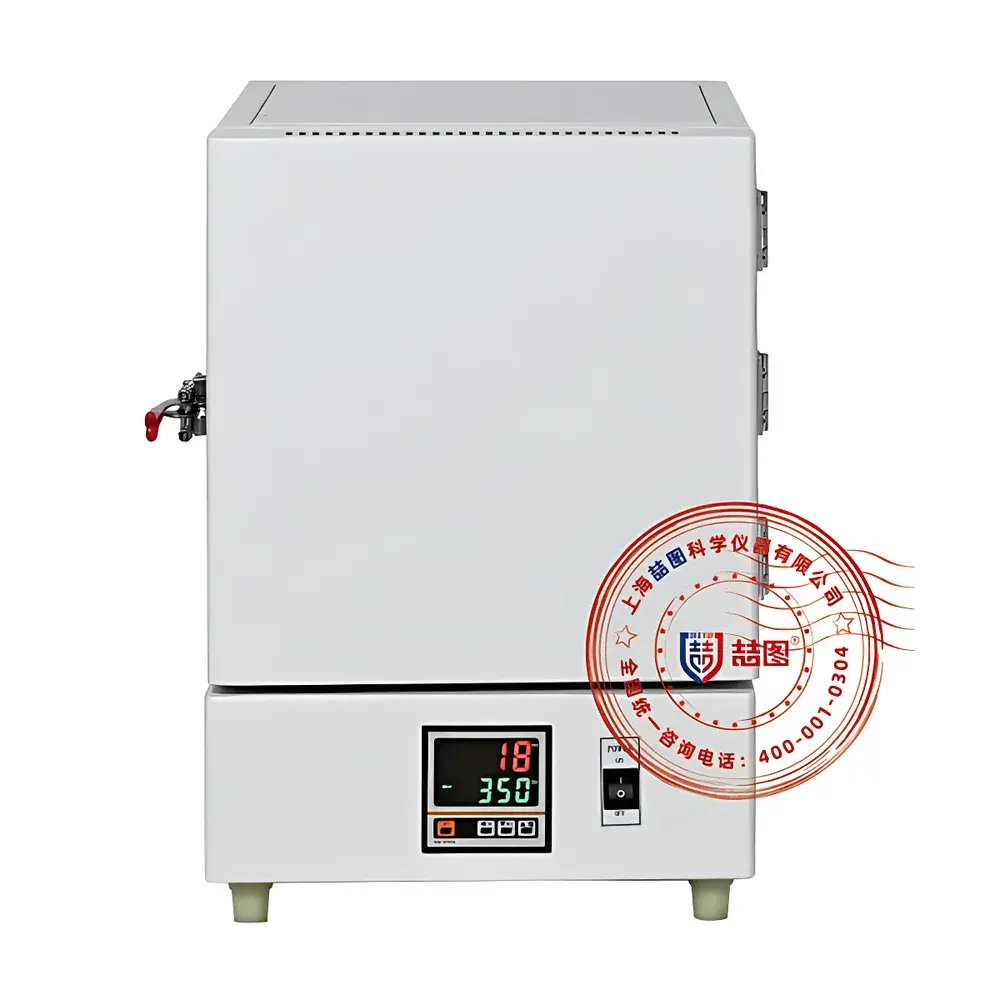

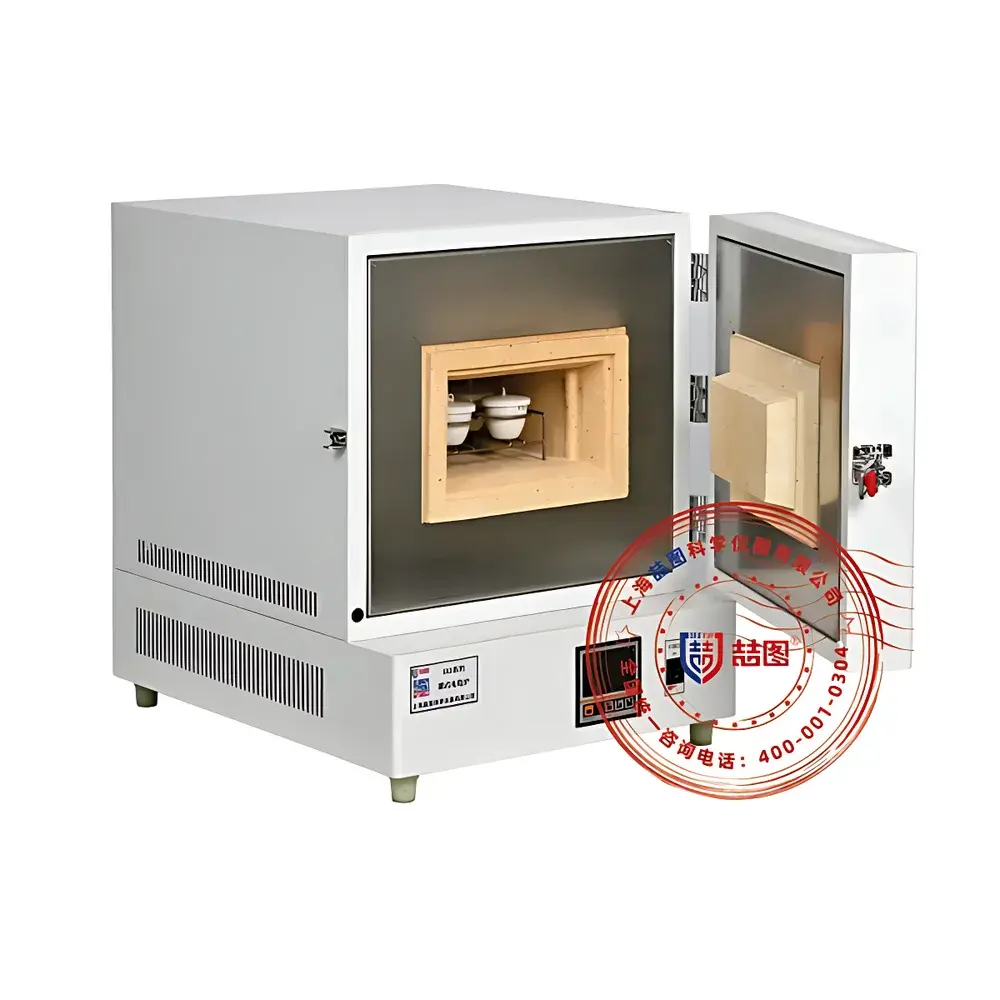

DRETOP SX2-5-12NP Box-Type Muffle Furnace

Overview

The DRETOP SX2-5-12NP is a precision-engineered box-type muffle furnace designed for routine thermal processing in academic laboratories, quality control environments, and industrial R&D settings. Operating on resistive heating principles, it employs high-stability nichrome wire elements embedded symmetrically across all four chamber walls—enabling uniform radiant heat distribution and minimizing axial or radial thermal gradients. With a maximum operating temperature of 1000 °C and a certified control accuracy of ±1 °C, the furnace meets essential performance requirements for ash content determination (ASTM D3174, ISO 1171), loss-on-ignition (LOI) analysis (ASTM C114), and thermal pre-treatment of catalysts, ceramics, and metallurgical samples. Its sealed muffle configuration isolates the sample from combustion byproducts and external atmosphere, ensuring reproducible oxidative conditions without cross-contamination—critical for standardized testing in coal, cement, pharmaceutical excipient, and agricultural feed analysis.

Key Features

• Four-wall heating architecture with spiral-wound nichrome elements ensures exceptional temperature uniformity (±3 °C within working zone at 1000 °C), validated per ASTM E1142 and IEC 60068-3-5.
• Microprocessor-based PID controller with large-digit LED display supports 30-segment programmable ramp-soak profiles—including customizable heating rates, dwell durations, and automatic shutdown logic.
• Integrated door-interlock safety circuit halts power delivery immediately upon door opening; resumes operation automatically after closure—eliminating manual reset steps during intermittent sampling.
• Dual-stage overtemperature protection: primary electronic cutoff at user-defined limit + independent mechanical backup relay activated at 1050 °C, compliant with EN 61000-6-2 EMC and EN 61010-1 safety standards.
• Thermally insulated double-layer steel housing with phosphate conversion coating and high-temp epoxy finish provides structural rigidity, surface durability, and operator-safe external skin temperatures (<50 °C at 1000 °C ambient).
• Reinforced refractory brick chamber (Al₂O₃–SiO₂ composite) offers low thermal mass, rapid cooldown, and resistance to thermal shock—validated for >5,000 cycles under GLP-compliant usage protocols.

Sample Compatibility & Compliance

The SX2-5-12NP accommodates standard crucibles (porcelain, alumina, platinum) up to Ø80 mm × 60 mm height within its 7.2 L chamber. Its muffle design complies with ISO/IEC 17025 method validation prerequisites for gravimetric ash assays and supports traceable calibration using NIST-traceable reference materials (e.g., SRM 1646a Estuarine Sediment). The furnace satisfies key regulatory expectations for analytical instrumentation in regulated environments: audit trail capability (via optional RS485 interface), electronic record integrity (aligned with FDA 21 CFR Part 11 Annex 11 principles), and documented thermal mapping reports required for GMP/GLP laboratory accreditation (e.g., ISO/IEC 17025:2017 Clause 6.4.10).

Software & Data Management

While the base NP-series controller operates via front-panel navigation, optional communication modules enable integration into centralized lab data systems. The RS485 port supports Modbus RTU protocol for real-time temperature logging, remote setpoint adjustment, and alarm status polling—compatible with LabVIEW™, SCADA platforms, and LIMS middleware. Optional color touchscreen (NC-series upgrade) delivers graphical temperature curve visualization, multi-level password protection (operator/engineer/administrator tiers), and internal storage of ≥100 program templates with timestamped execution logs. All digital interfaces maintain electromagnetic compatibility per EN 61326-1 and support encrypted firmware updates to ensure long-term cybersecurity compliance.

Applications

• Coal and coke analysis: proximate analysis (moisture, volatile matter, fixed carbon, ash), sulfur residue quantification.
• Cement and clinker testing: free lime determination (EN 196-2), sulfate content evaluation via ignition loss.
• Environmental testing: organic matter decomposition in soils and sediments (EPA Method 9080), filter ash correction in PM2.5 monitoring.
• Pharmaceutical QC: residual solvent removal from APIs, excipient dehydration per USP , and tablet friability preconditioning.
• Materials science: pre-sintering of ferrites, calcination of battery cathode precursors (e.g., LiCoO₂), and thermal aging of polymer composites.

FAQ

What is the recommended maintenance schedule for optimal thermal uniformity?
Perform quarterly verification of thermocouple calibration against a reference thermometer (±0.5 °C tolerance), and conduct annual thermal mapping per ASTM E2203 using nine-point sensor array.
Can inert gas purging be implemented with this model?
Yes—optional inert gas inlet valve (N₂/Ar compatible) enables controlled atmosphere operation; requires external gas supply and pressure regulator (0.02–0.1 MPa range).
Is the furnace suitable for continuous operation at 1000 °C?
Rated for uninterrupted duty at ≤950 °C; extended 1000 °C operation is permissible up to 8 hours per cycle with ≥30-minute cooldown intervals between runs.
How does the dual-stage overtemperature protection function during power interruption?
The mechanical backup relay retains its trip threshold independently of controller power; memory retention circuit preserves last valid setpoint and profile upon AC recovery.
What documentation is provided for IQ/OQ validation?
Factory-issued as-built drawings, component traceability certificates (heating elements, thermocouples), and blank URS-compliant qualification protocol templates are included with shipment.
