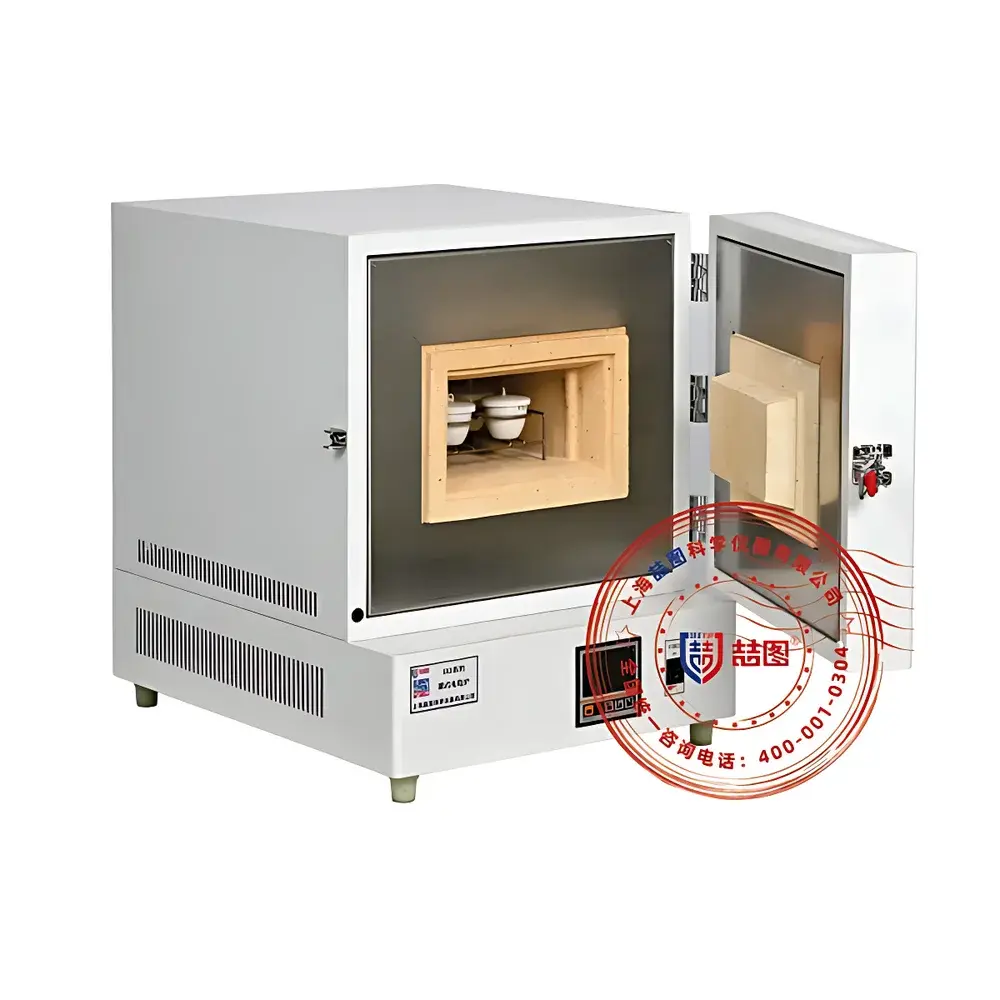

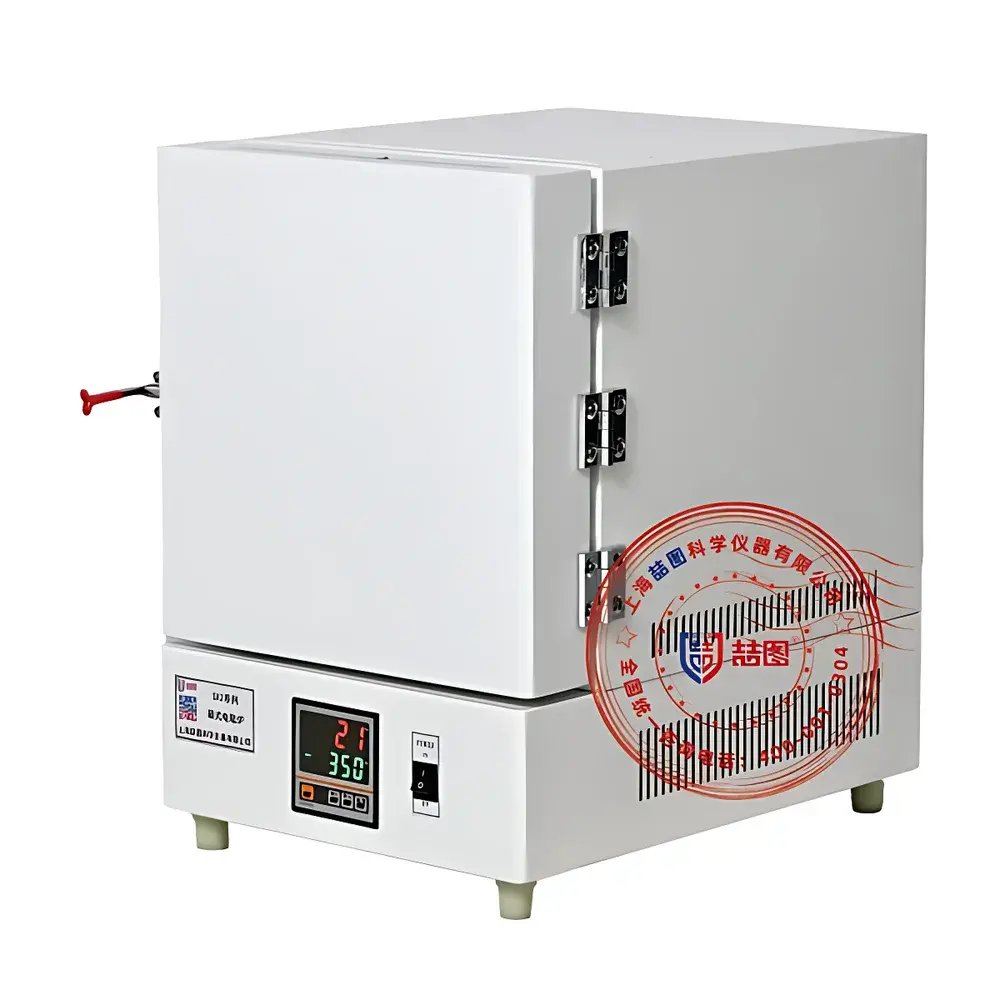

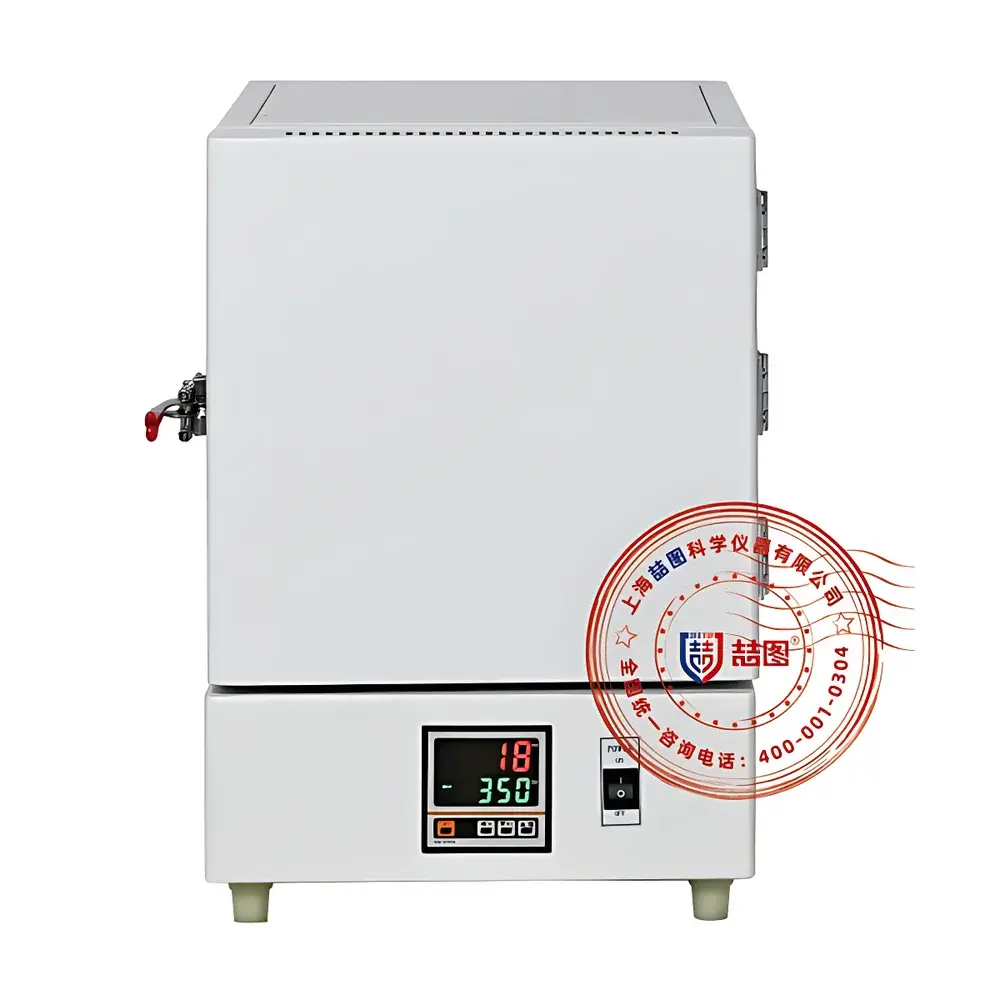

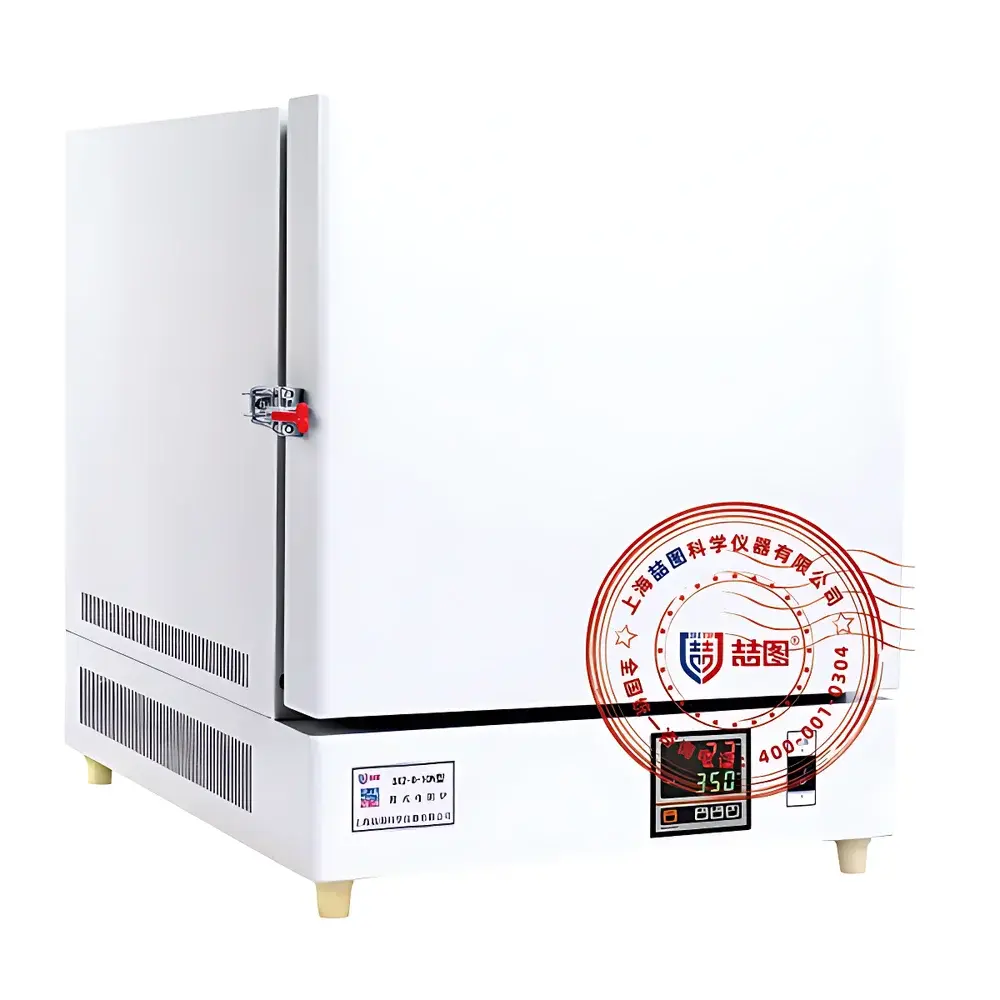

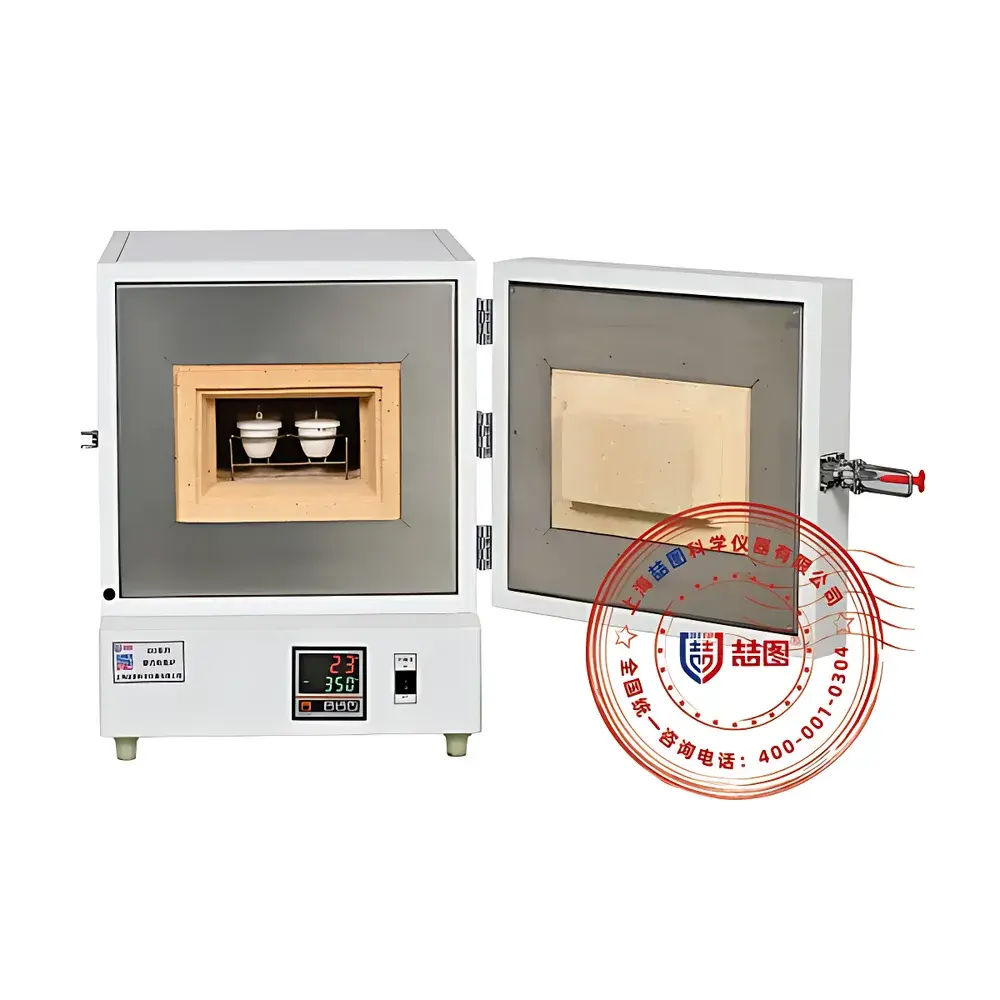

DRETOP SX2-8-10N Box-Type Muffle Furnace

Overview

The DRETOP SX2-8-10N is a precision-engineered box-type muffle furnace designed for laboratory and industrial thermal processing applications requiring stable, uniform, and repeatable high-temperature environments up to 1000°C. Operating on the principle of resistive heating via embedded NiCr alloy wire elements arranged on all four chamber walls, the furnace delivers rapid thermal response and exceptional temperature homogeneity across its 16 L nominal chamber volume. Its fully insulated refractory brick chamber—lined with high-purity alumina-silica ceramic material—and dual-layer steel housing ensure minimal heat loss, energy efficiency, and long-term structural integrity under cyclic thermal loading. The SX2-8-10N complies with fundamental safety and performance expectations for Class I, Group A laboratory furnaces per IEC 61010-1 and meets mechanical design benchmarks aligned with ISO/IEC 17025–recommended environmental conditioning equipment.

Key Features

• Four-wall heating configuration with helically wound NiCr resistance wire ensures radial and axial temperature uniformity ≤ ±3°C at 1000°C (measured per ASTM E220 calibration methodology)
• Microprocessor-based PID temperature controller with digital LED display, supporting 30-segment programmable ramp-soak profiles—including automatic start/stop, rate-limited heating, and dwell time sequencing
• Integrated door interlock system: power cutoff upon door opening, automatic resumption upon closure—enabling safe, non-disruptive sample handling during active thermal cycles
• Dual-stage over-temperature protection: primary control loop + independent mechanical backup limiter; supplemented by real-time voltage/current monitoring and fault logging
• Ergonomic front-access design with reinforced stainless-steel inner door seal and 20 mm ceramic fiber gasket, minimizing thermal leakage and improving repeatability in gravimetric ashing or calcination
• Phosphate conversion coating + high-temp epoxy powder coating on outer chassis provides corrosion resistance and thermal insulation for operator safety

Sample Compatibility & Compliance

The SX2-8-10N accommodates standard crucibles (alumina, quartz, platinum, or silicon carbide), ceramic boats, and refractory trays up to 200 mm in height. Its chamber geometry supports ASTM D3174 (ash content in coal), ASTM C114 (chemical analysis of hydraulic cement), ISO 562 (determination of volatile matter in coal), and USP heavy metals testing protocols. The furnace satisfies GLP documentation requirements through optional RS485 Modbus RTU interface integration and supports audit-ready operation when paired with compliant data acquisition software. All electrical components conform to CE marking directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive); no hazardous substances are used per RoHS 2011/65/EU Annex II.

Software & Data Management

While the base N-series model features standalone PID control, optional NC-series upgrades include a 7-inch capacitive touchscreen HMI with embedded data logging (10,000-point buffer), real-time curve plotting, and password-protected user tiers (Operator, Technician, Administrator). Export formats include CSV and PDF reports with timestamped metadata. When connected via RS485 or optional 4G module, the unit integrates into centralized lab management systems supporting FDA 21 CFR Part 11 compliance—including electronic signatures, audit trails, and change history retention. Firmware updates are performed via USB without hardware modification.

Applications

• Thermal gravimetric analysis (TGA) pre-conditioning and residue quantification in coal, biomass, and polymer feedstocks
• Ash content determination per ISO 1171 and ASTM D2974 in environmental and agricultural samples
• Calcination of catalyst precursors, metal oxides, and battery cathode materials (e.g., LiCoO₂, Ni-rich NMC)
• Heat treatment of metallurgical specimens for microstructural stabilization prior to SEM/EDS analysis
• Pre-drying and ignition of filter papers and crucibles in EPA Method 1669 (wastewater solids analysis)
• Standardized drying of pharmaceutical excipients per USP and Ph. Eur. 2.2.25

FAQ

What is the maximum recommended continuous operating temperature?
The SX2-8-10N is rated for continuous operation at 1000°C; intermittent use up to 1020°C is permissible for ≤30 minutes per cycle.
Does the furnace support inert atmosphere processing?
Yes—optional flanged gas inlet ports (M10×1) allow controlled purging with N₂, Ar, or forming gas; compatible with standard 6 mm OD stainless-steel tubing and needle valves.
Can the controller store multiple heating programs?
The NP-series variant supports storage of up to 10 independent 30-segment programs; NC-series units retain ≥50 programs with versioned backup.
Is calibration certificate included with shipment?
A factory-as-tested calibration report (traceable to NIM China) is provided; full UKAS/NIST-traceable certification is available as an add-on service.
What maintenance intervals are recommended for optimal performance?
Inspect door gasket integrity every 200 operating hours; verify thermocouple drift annually using a reference-grade dry-block calibrator per ISO/IEC 17025 clause 6.5.2.
