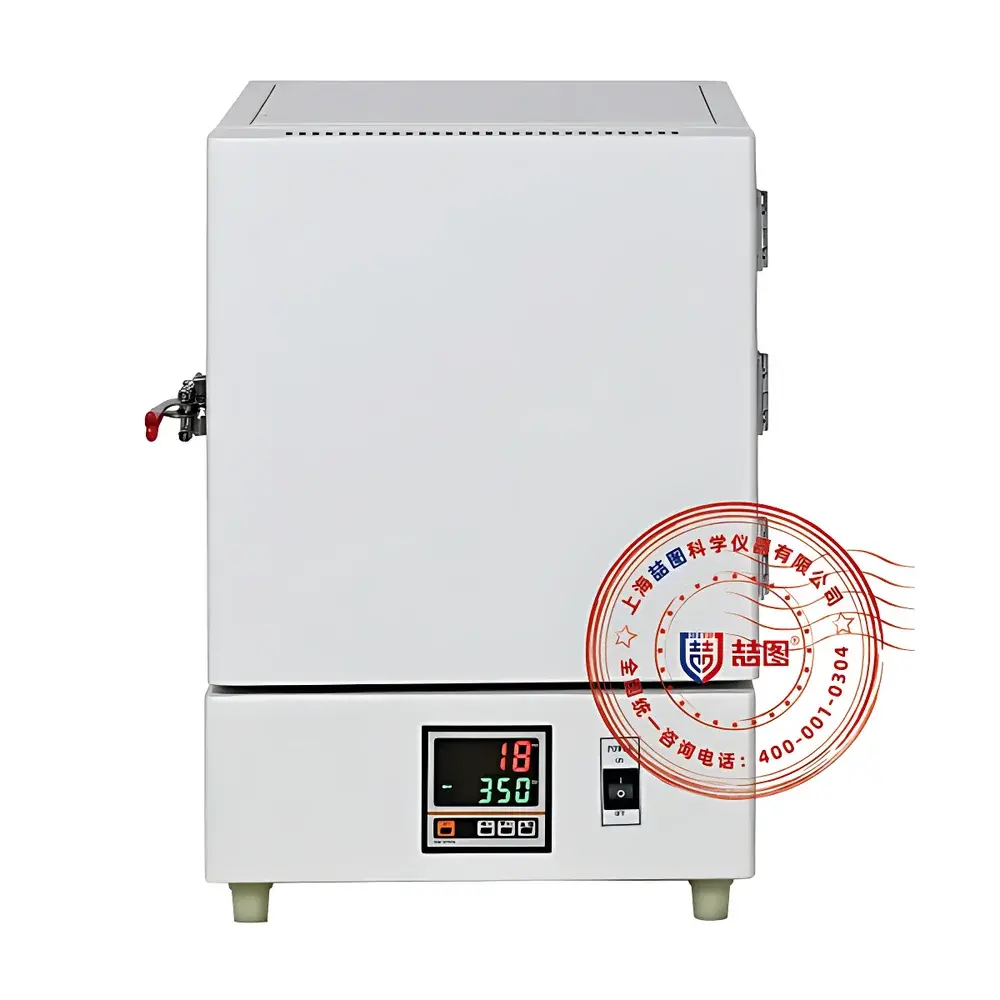

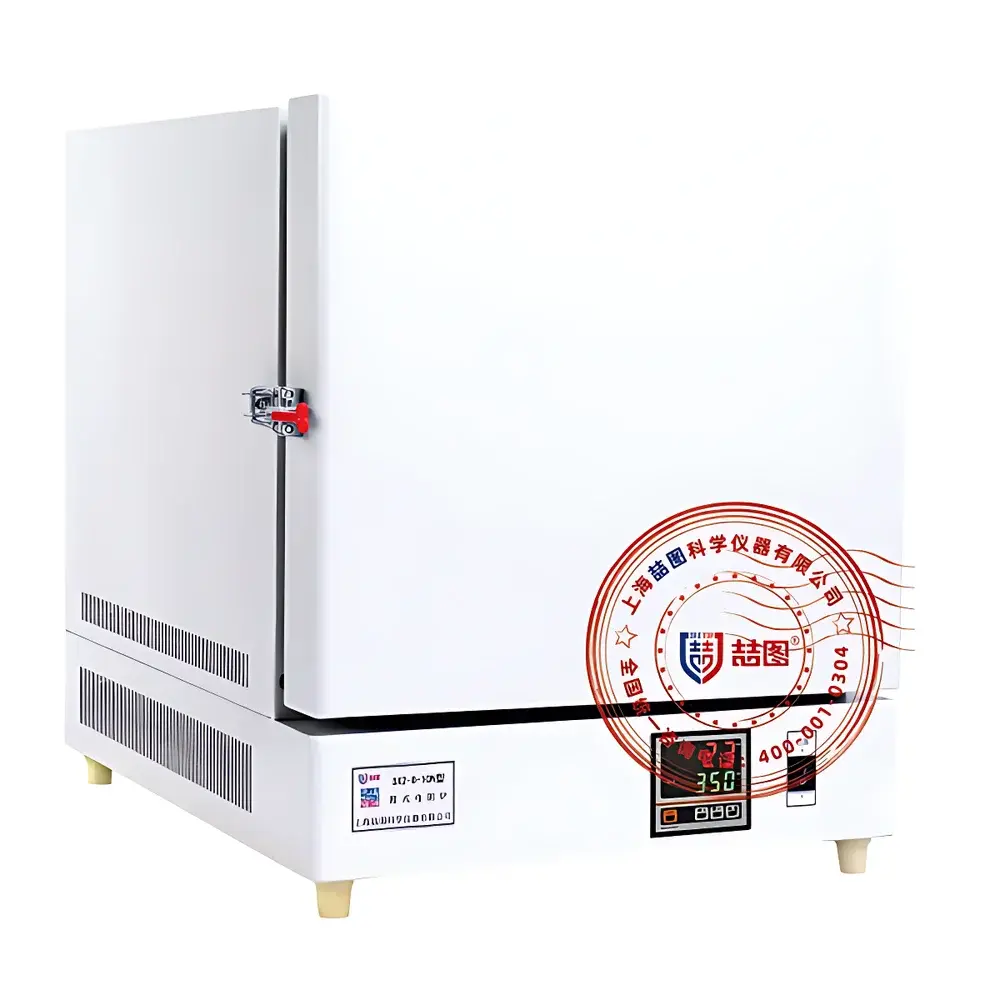

DRETOP SX2-8-10NP Box-Type Muffle Furnace

Overview

The DRETOP SX2-8-10NP is a precision-engineered box-type muffle furnace designed for laboratory and industrial thermal processing applications requiring stable, repeatable, and uniform high-temperature environments up to 1000 °C. Operating on the principle of resistive heating via embedded NiCr alloy wire elements, it delivers controlled convection-free thermal exposure—ideal for ashing, calcination, heat treatment, and thermal stability testing of inorganic and organic samples. Its fully enclosed muffle design isolates the sample chamber from combustion byproducts and external airflow, ensuring contamination-free thermal profiles essential for analytical chemistry, materials science, and quality control workflows. The furnace conforms to fundamental thermal safety and performance expectations aligned with ISO 17025-compliant laboratory infrastructure and supports GLP-aligned operational traceability when integrated with optional data logging accessories.

Key Features

• Four-wall heating configuration with spiral-wound NiCr resistance wire ensures radial and axial temperature uniformity across the 16 L chamber (±3 °C at 1000 °C per ASTM E220 calibration guidelines).
• Microprocessor-based PID controller with large-digit LED display enables precise setpoint management, real-time deviation monitoring, and intuitive parameter navigation.
• 30-segment programmable ramp-soak profile capability (NP-series firmware) allows automated multi-step thermal cycles—including controlled cooling—without manual intervention.
• Integrated door-safety interlock system automatically cuts power upon door opening and resumes operation upon closure, minimizing thermal shock and operator exposure risk.
• Dual-stage overtemperature protection: primary electronic limit (adjustable) and secondary independent mechanical cutout safeguard against controller failure or sensor drift.
• Structural integrity reinforced by double-layered insulation—ceramic fiber board backed with refractory brick lining—reducing surface temperature rise (<45 °C at ambient) and improving energy efficiency.

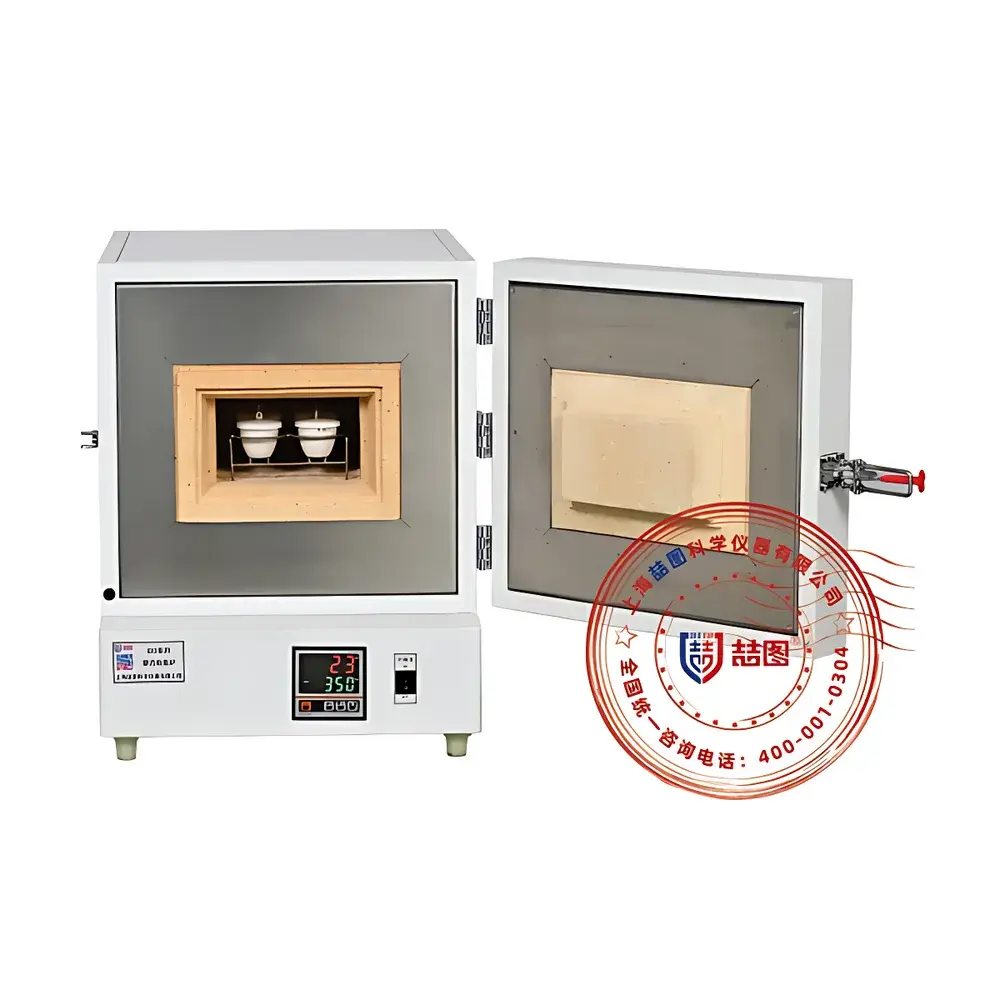

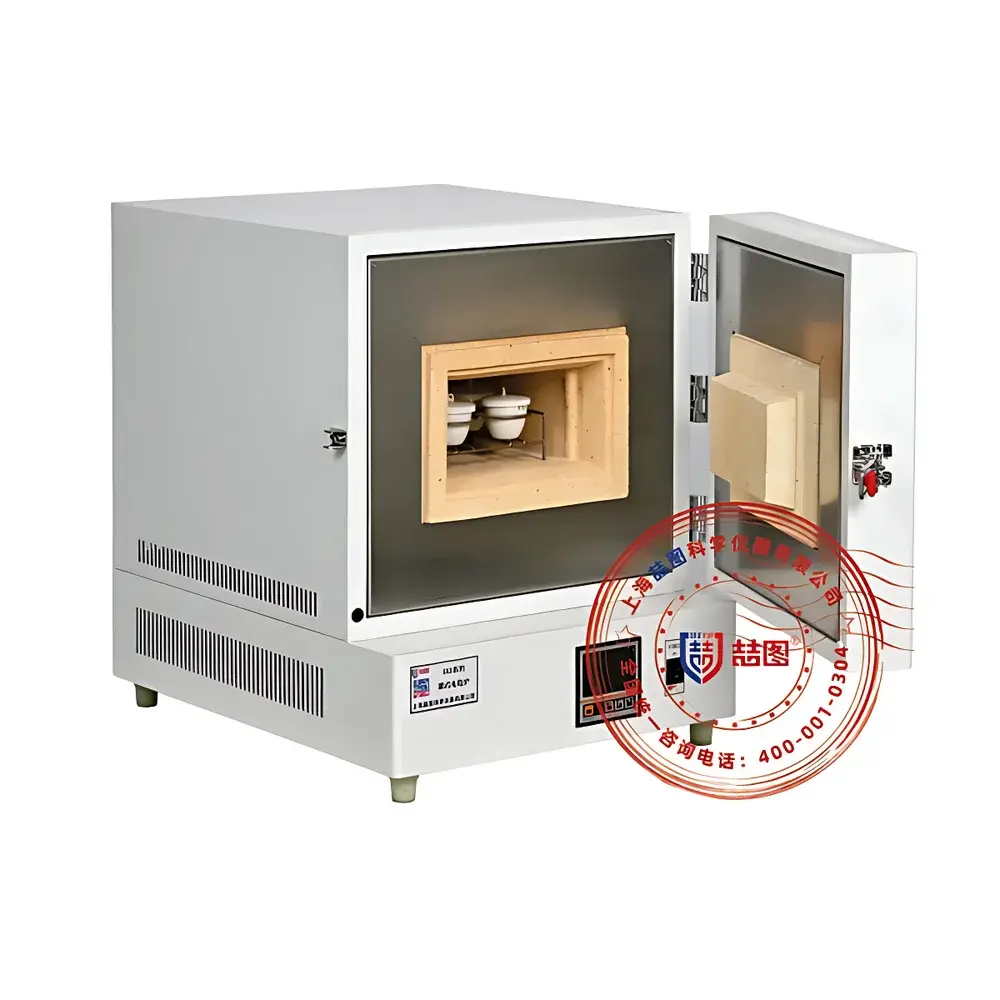

• Front-access chamber with robust stainless-steel inner sealing flange (2 mm thick) resists oxidation and simplifies post-run cleaning of carbonaceous residues.

Sample Compatibility & Compliance

The SX2-8-10NP accommodates standard crucibles (alumina, quartz, nickel, or stainless steel), ceramic boats, and refractory trays up to 200 mm in length. It is routinely deployed in coal analysis (ASTM D3174, D3175), cement clinker testing (ASTM C114), pharmaceutical residual solvent validation (USP ), and catalyst pre-treatment per ISO 12944-6. The furnace meets general electrical safety requirements per IEC 61010-1 and incorporates dual voltage monitoring (V/A digital readouts) for continuous circuit health assessment. While not inherently 21 CFR Part 11 compliant, its optional RS485 interface and timestamped event logging (via external SCADA or LabVIEW integration) support audit-ready data capture under GMP/GLP frameworks when validated per site-specific SOPs.

Software & Data Management

The NP-series controller supports ASCII-based serial communication (RS485, Modbus RTU protocol) for bidirectional parameter exchange and real-time temperature streaming. When paired with third-party acquisition software (e.g., DASYLab, MATLAB Data Acquisition Toolbox), users can record time-stamped thermocouple output, power status, alarm events, and program stage transitions. Optional color touchscreen upgrade (NC-series variant) introduces role-based access control (engineer/operator/admin levels), on-device curve visualization, and USB export of CSV-formatted thermal logs. All firmware versions retain non-volatile memory for power-loss recovery—retaining active program state and setpoint history after mains interruption.

Applications

• Proximate and ultimate analysis of coal, biomass, and solid fuels per ASTM D3172–D3176.
• Gravimetric determination of ash content in foodstuffs, feedstuffs, and environmental solids (AOAC 942.05, EPA Method 1650).
• Thermal decomposition studies of polymers, battery cathode precursors, and metal-organic frameworks (MOFs).
• Pre-oxidation of graphite crucibles and sintering aids prior to high-purity metallurgical processing.
• Calibration verification of thermocouples and RTDs using fixed-point reference materials (e.g., Al, Zn, Sn ITS-90 points).
• Residue-on-ignition testing in pharmaceutical excipient qualification (ICH Q5C, USP ).

FAQ

What type of thermocouple is used for temperature sensing?
The furnace integrates a K-type thermocouple (chromel-alumel) with cold-junction compensation, certified to ±1.5 °C accuracy over 0–1000 °C per IEC 60584-2.
Is inert atmosphere operation supported?
Yes—optional gas inlet port (¼” NPT) enables purging with nitrogen or argon; recommended flow rate: 0.5–2 L/min to maintain positive pressure and exclude ambient oxygen.
Can the unit be integrated into a central lab monitoring system?
Via RS485 Modbus RTU, it supports polling of temperature, setpoint, power status, and alarm flags at user-defined intervals (1–60 s). No proprietary driver required.
What maintenance is required for long-term reliability?
Annual inspection of heating element continuity, thermocouple calibration verification, and ceramic fiber insulation integrity is advised. NiCr wire exhibits >5,000 h service life at 900 °C continuous operation.
Does the furnace comply with CE or UL standards?
It carries CCC certification (China Compulsory Certification) and meets GB/T 10066.1–2004 (national standard for industrial furnaces); CE/UL listing requires site-specific third-party evaluation due to regional installation requirements.
