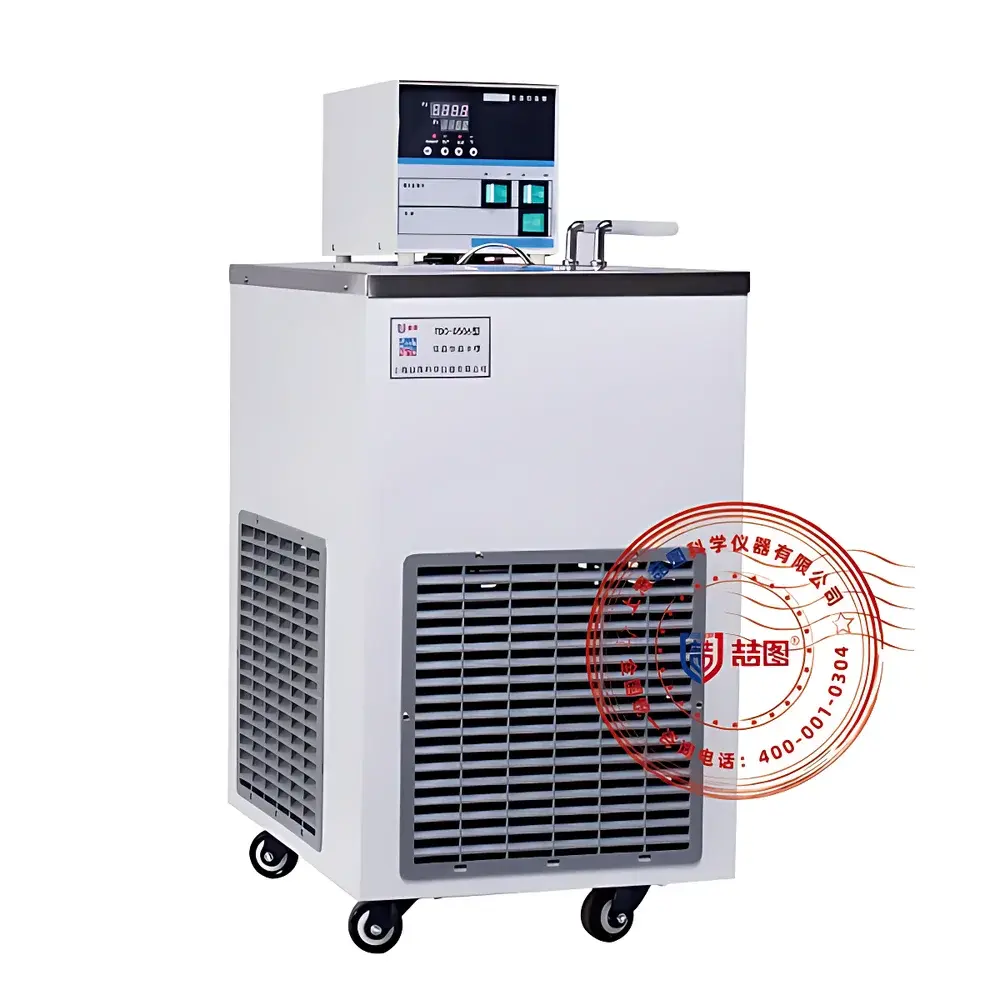

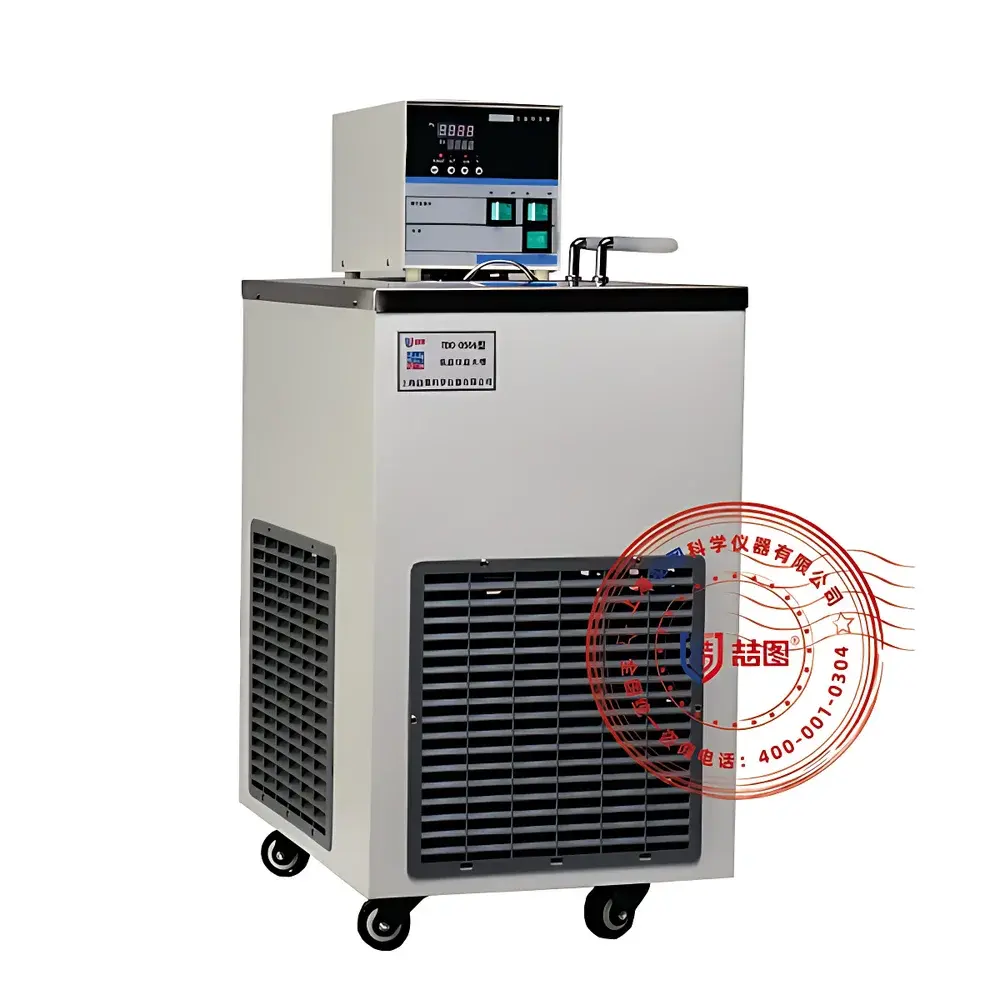

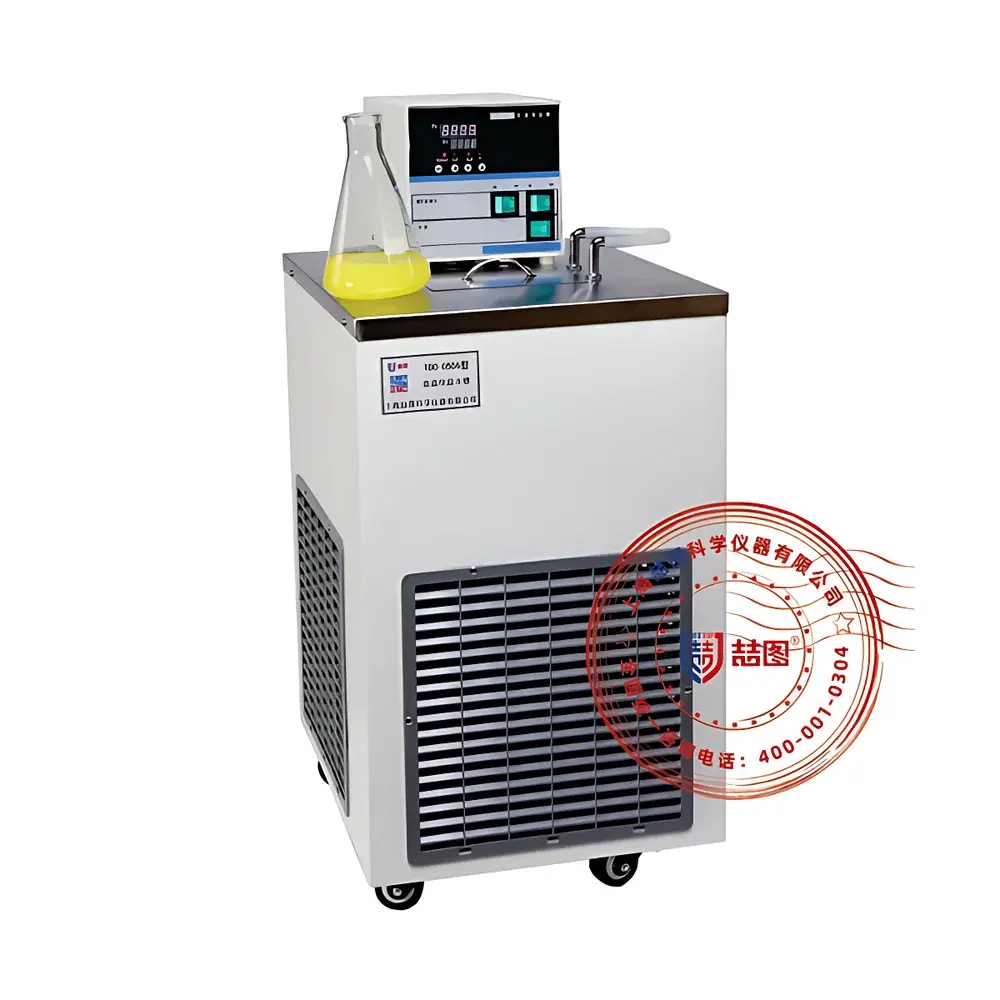

DRETOP TDC-0510 Low-Temperature Constant-Temperature Bath

Overview

The DRETOP TDC-0510 Low-Temperature Constant-Temperature Bath is a compact, benchtop-ready thermal control system engineered for precise and stable temperature regulation across a wide operational range (−5 °C to 100 °C). It integrates a hermetically sealed refrigeration circuit with a high-efficiency resistive heating module, enabling seamless bidirectional thermal control without manual intervention. The unit operates on the principle of forced liquid circulation—using a magnetically coupled, heat-isolated centrifugal pump—to maintain uniform thermal distribution within the bath chamber and enable external temperature conditioning of auxiliary equipment such as reactors, condensers, synthesis systems, and analytical instrumentation. Its horizontal footprint minimizes laboratory space requirements while supporting both direct immersion experiments and closed-loop external circulation applications. Designed for reproducible thermal environments in research, quality control, and production settings, the TDC-0510 complies with fundamental engineering standards for thermal stability, safety interlock integrity, and material compatibility in regulated laboratory workflows.

Key Features

• Intuitive touchscreen interface with PID-based digital temperature controller, supporting real-time setpoint adjustment, ramp/soak programming, and parameter logging.
• 304 stainless steel inner tank and work surface, combined with electrostatically sprayed powder-coated steel housing—resistant to corrosion, thermal stress, and routine chemical exposure.
• Dual-mode circulation architecture: internal recirculation via integrated silicone tubing; external circulation enabled by quick-connect inlet/outlet ports compatible with standard 10 mm OD tubing.
• Drain valve located at the lowest point of the reservoir for complete fluid evacuation and contamination-free medium replacement—critical for multi-experiment workflows requiring solvent or coolant changes.
• Multi-layer safety system including over-temperature cutoff, low-level fluid detection, compressor thermal overload protection, and phase-loss monitoring—fully compliant with IEC 61010-1 safety requirements for laboratory electrical equipment.
• U-shaped multi-orifice return manifold design ensures turbulent flow patterns inside the bath, minimizing thermal stratification and achieving ≤±1 °C spatial uniformity across the 280 × 200 × 180 mm working chamber.

Sample Compatibility & Compliance

The TDC-0510 supports a broad spectrum of thermally sensitive sample configurations—including glassware, metal reactors, PTFE-lined vessels, and sensor probes—provided the selected heat transfer medium remains chemically inert toward both the 304 stainless steel bath interior and the experimental apparatus. Recommended media include deionized water (5–80 °C), ethylene glycol/water mixtures (−10–100 °C), anhydrous ethanol (≥99.5%, −80–20 °C), and specialty low-volatility synthetic heat transfer fluids (−80–100 °C). Users must observe critical compatibility guidelines: avoid aqueous-organic mixing (e.g., ethanol + water), prevent use of tap water (scale formation risk), and verify flash point, viscosity, and freezing point against target operating conditions. The device meets structural and electrical safety benchmarks per GB/T 25127.2–2010 (Chinese national standard for low-temperature equipment) and supports audit readiness for GLP and ISO/IEC 17025-accredited laboratories through traceable calibration records and configurable alarm logs.

Software & Data Management

While the TDC-0510 operates as a standalone instrument with embedded firmware, its RS-485 serial interface enables integration into centralized lab management systems via Modbus RTU protocol. Logged data—including actual temperature, setpoint, pump status, and fault codes—can be exported in CSV format using optional PC software (DRETOP LabLink v3.2). All temperature events are timestamped with millisecond precision, and system alarms generate non-volatile event entries for retrospective analysis. For regulated environments, optional firmware upgrade supports 21 CFR Part 11-compliant electronic signatures, audit trails, and user-access role assignments—facilitating compliance with FDA, EMA, and MHRA documentation requirements in pharmaceutical and clinical testing labs.

Applications

• Calibration of temperature-sensitive sensors (RTDs, thermistors, infrared cameras) under controlled thermal gradients.
• Thermal conditioning of chromatographic columns, viscometers, and densitometers prior to measurement cycles.
• Stabilization of laser diodes, photodetectors, and optical interferometers requiring sub-degree thermal drift suppression.
• Reaction temperature control in small-scale organic synthesis, polymerization studies, and enzymatic assays.
• Accelerated stability testing per ICH Q1A(R3) guidelines, including long-term storage simulation at defined cold-chain temperatures.
• Material property evaluation—coefficient of thermal expansion (CTE), glass transition (Tg), and thermal conductivity measurements—per ASTM E228 and ISO 11359.

FAQ

What heat transfer fluids are compatible with the TDC-0510 at −5 °C?
Deionized water is unsuitable below 0 °C due to freezing risk. Recommended options include 30%–50% ethylene glycol/water mixtures (freezing point down to −35 °C) or anhydrous ethanol (≥99.5%, freezing point −114 °C). Always verify fluid compatibility with your experimental hardware.
Can the TDC-0510 support external circulation to a 5 L jacketed reactor?
Yes—the unit delivers ≥12 L/min flow rate at ≤0.2 bar backpressure, sufficient for most single-jacket reactors up to 10 L volume. Use insulated tubing and ensure inlet/outlet line diameters match the 10 mm port specification.
Is the temperature resolution of 0.1 °C maintained across the full −5 to 100 °C range?
Yes—resolution is hardware-limited by the 16-bit ADC and calibrated Pt100 sensor array; however, achievable stability (±1 °C) reflects system-level thermal inertia and load dynamics rather than sensor resolution alone.
Does the TDC-0510 require periodic recalibration?
Annual verification against NIST-traceable reference thermometers is recommended. DRETOP provides factory calibration certificates (as per ISO/IEC 17025) with each unit, documenting deviation across five points in the operational range.
How is condensation managed during low-temperature operation?
The unit includes a dedicated condensate collection tray beneath the compressor compartment and vented cabinet design to minimize moisture accumulation. Ambient humidity >60% RH may necessitate supplemental desiccant placement near air intakes.
