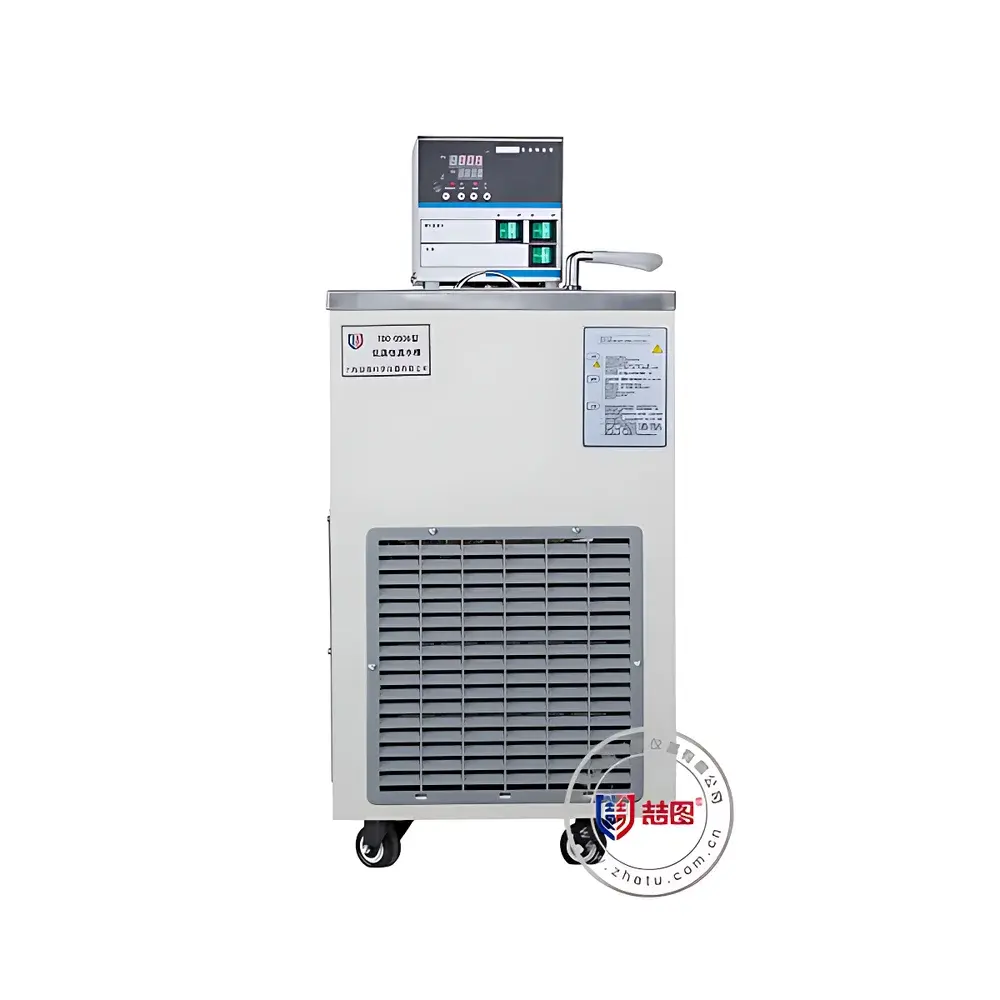

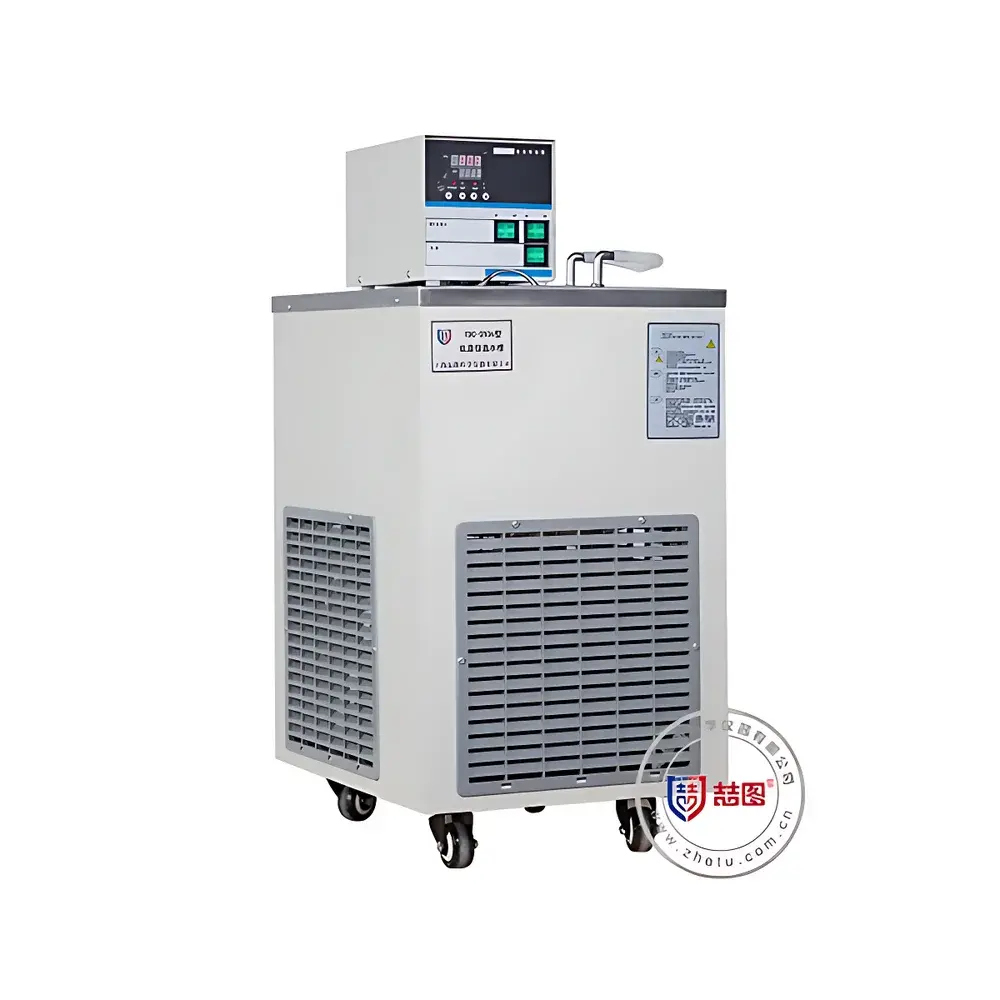

DRETOP TDC-3006 Low-Temperature Constant-Temperature Bath

Overview

The DRETOP TDC-3006 Low-Temperature Constant-Temperature Bath is a precision-engineered circulating thermal bath designed to deliver stable, uniform temperature control across a wide operational range—from −30 °C to 100 °C. It integrates a high-efficiency hermetically sealed refrigeration system with PID-controlled heating elements, enabling bidirectional thermal regulation for both cooling and heating applications. Unlike passive water baths, the TDC-3006 employs forced convection via an integrated centrifugal circulation pump (13 L/min flow rate), ensuring rapid thermal equilibration and exceptional spatial uniformity within the 6 L stainless steel chamber (200 × 200 × 180 mm internal dimensions). This architecture supports accurate thermoregulation in demanding laboratory workflows—including calibration of temperature-sensitive sensors, stabilization of analytical instrumentation (e.g., viscometers, spectrophotometers, and chromatography detectors), and controlled-condition sample conditioning prior to physical or chemical testing.

Key Features

• Fully welded 304 stainless steel inner tank and top plate—resistant to corrosion from aqueous, glycolic, and mild organic media; compatible with 15% glycerol–water mixtures up to 95 °C.
• Hermetically sealed compressor-based refrigeration system with dual protection: thermal overload cutoff and overcurrent circuit interruption for long-term reliability.
• Dual-mode circulation architecture: internal recirculation (via connected inlet/outlet ports) maintains bath homogeneity; external circulation enables remote temperature control of auxiliary equipment (e.g., jacketed reactors, calorimeters, or optical cells).
• LED-backlit digital controller with real-time display of setpoint, actual bath temperature, and operational status; standard resolution of 0.1 °C (optional U-series: 0.01 °C; M-series: 0.001 °C).
• Compact horizontal footprint (optimized for benchtop integration); minimal floor space requirement without compromising thermal capacity or pump performance.
• Integrated condenser cooling circuit with dedicated inlet/outlet water connections—designed for continuous operation under ambient temperatures up to 35 °C.

Sample Compatibility & Compliance

The TDC-3006 accommodates a broad spectrum of sample formats and thermal media. Standard operation uses deionized water for temperature ranges between 5 °C and 85 °C; above 85 °C, 15% glycerol–water solutions are recommended to suppress evaporation and minimize oxidative degradation. The unit complies with general electrical safety requirements per IEC 61010-1 (Laboratory Equipment Safety) and meets CE marking criteria for electromagnetic compatibility (EMC Directive 2014/30/EU). While not certified to ISO/IEC 17025 or GLP-specific validation protocols out-of-the-box, its documented temperature stability (±1 °C), reproducible ramp rates, and audit-ready parameter logging (when paired with optional software) support compliance with internal quality systems aligned with ISO 9001, ASTM E2777 (Standard Guide for Thermal Validation), and USP (Thermal Analysis). Traceable calibration certificates for temperature sensors can be provided upon request.

Software & Data Management

The TDC-3006 operates autonomously via its front-panel interface but supports optional RS485/Modbus RTU communication for integration into centralized lab automation networks. When connected to DRETOP’s proprietary LabLink™ software (Windows-compatible), users gain access to time-stamped temperature logging, programmable ramp–soak profiles, real-time graphing, and exportable CSV datasets. The software enforces electronic audit trails—including user login timestamps, parameter modification history, and alarm event records—facilitating adherence to FDA 21 CFR Part 11 requirements where electronic records are subject to regulatory review. All firmware updates are delivered via secure USB interface, with version rollback capability to ensure continuity during method validation.

Applications

• Calibration and verification of thermocouples, RTDs, infrared thermometers, and digital temperature probes in metrology labs.
• Stabilization of laser sources, interferometers, and photodetectors requiring sub-degree thermal drift control.
• Controlled-rate cooling/heating of polymer melts, waxes, and phase-change materials during DSC or rheological pre-conditioning.
• Temperature-dependent kinetic studies in physical chemistry—e.g., Arrhenius analysis of reaction rates, solubility mapping, and enzyme activity assays.
• Pre-conditioning of reference standards (e.g., NIST-traceable SRMs) prior to mechanical testing or spectroscopic characterization.
• Supporting QC/QA workflows in pharmaceutical manufacturing, including dissolution apparatus temperature verification per USP and stability chamber qualification.

FAQ

What temperature media are compatible with the TDC-3006 at −30 °C?
Ethanol–water mixtures (e.g., 30% ethanol by volume) or specialized low-temperature heat transfer fluids (e.g., Dowtherm J) are recommended below 0 °C. Pure water freezes at −30 °C and must not be used.
Can the TDC-3006 maintain ±0.1 °C stability during external circulation?
Yes—stability of ±1 °C is guaranteed under full external load (up to 13 L/min flow) and ambient conditions ≤30 °C. For tighter tolerance (±0.1 °C), optional U-series controller upgrade and insulated external tubing are advised.
Is the unit suitable for GMP-regulated environments?
It supports GMP alignment through configurable alarm thresholds, password-protected parameter settings, and electronic record generation via LabLink™—but requires site-specific IQ/OQ documentation and periodic thermometric verification per Annex 15.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil and refrigerant integrity should be verified annually; condenser coils require biweekly cleaning in dusty environments. DRETOP provides factory-certified service kits and technical bulletins for preventive maintenance.
Does the TDC-3006 include over-temperature protection for connected devices?
No standalone external device protection is built-in; however, the unit’s internal high-limit cut-off (programmable up to 105 °C) prevents bath overheating. Users must implement independent thermal fuses or PLC interlocks on externally circulated loops.
